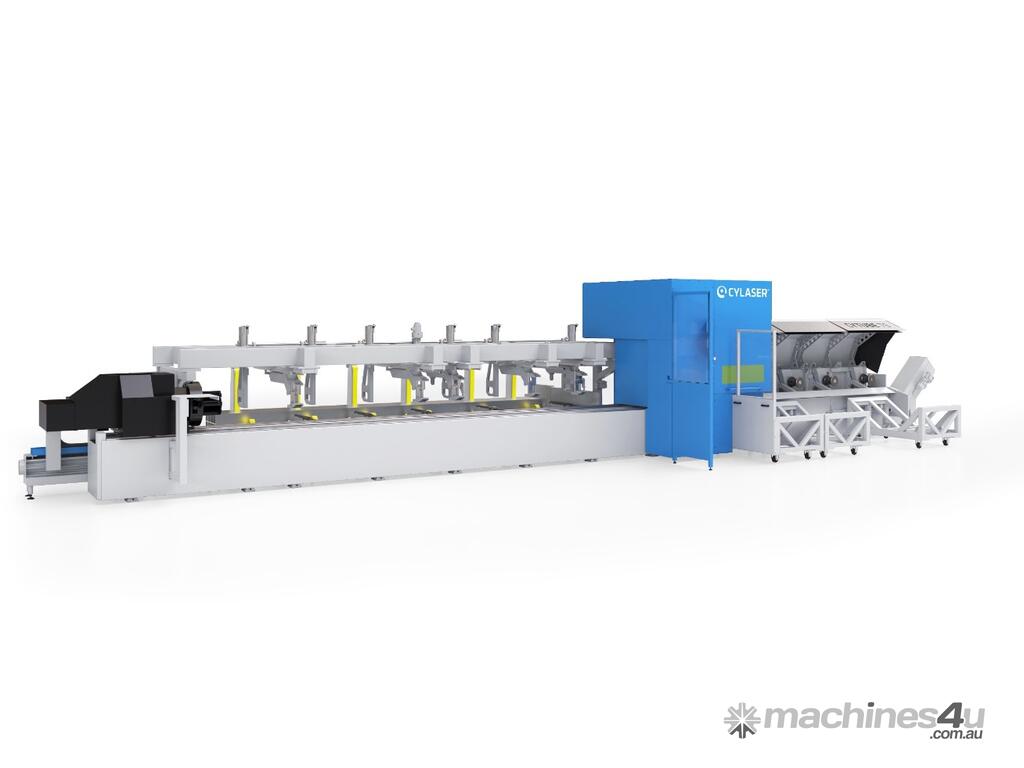

CY Laser CYT5 Laser Tube Cutting System

CYT5: CY-LASER’S SYSTEM TO CUT TUBES HAVING DIFFERENT PROFILES WITH MINIMUM OF 15MM TO MAXIMUM 225MM DIAMETER AND MANAGE LOADS FROM 20 TO 40 KG/M.
Main features:

- Unique construction philosophy, use of Off-the-Shelf components

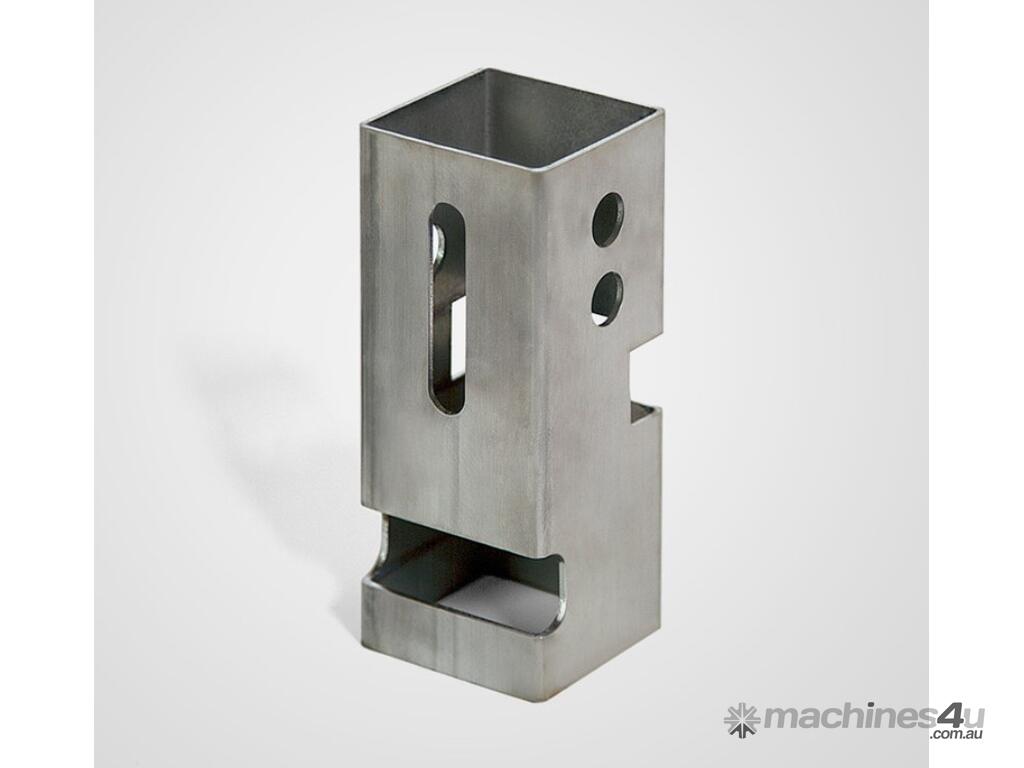

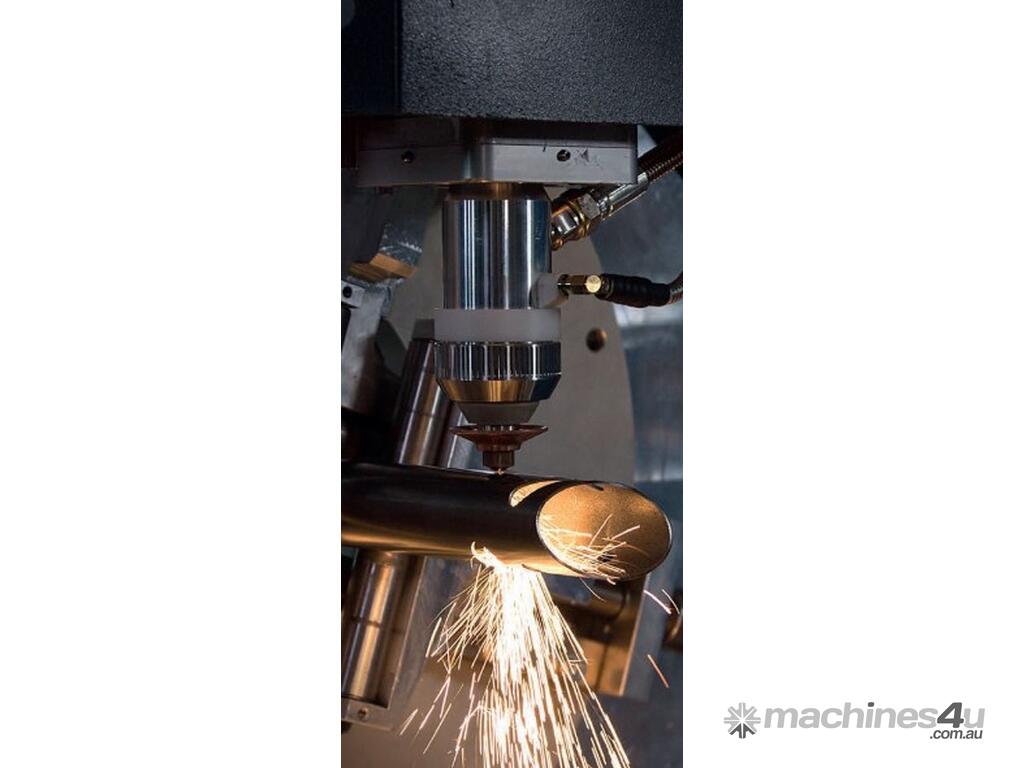

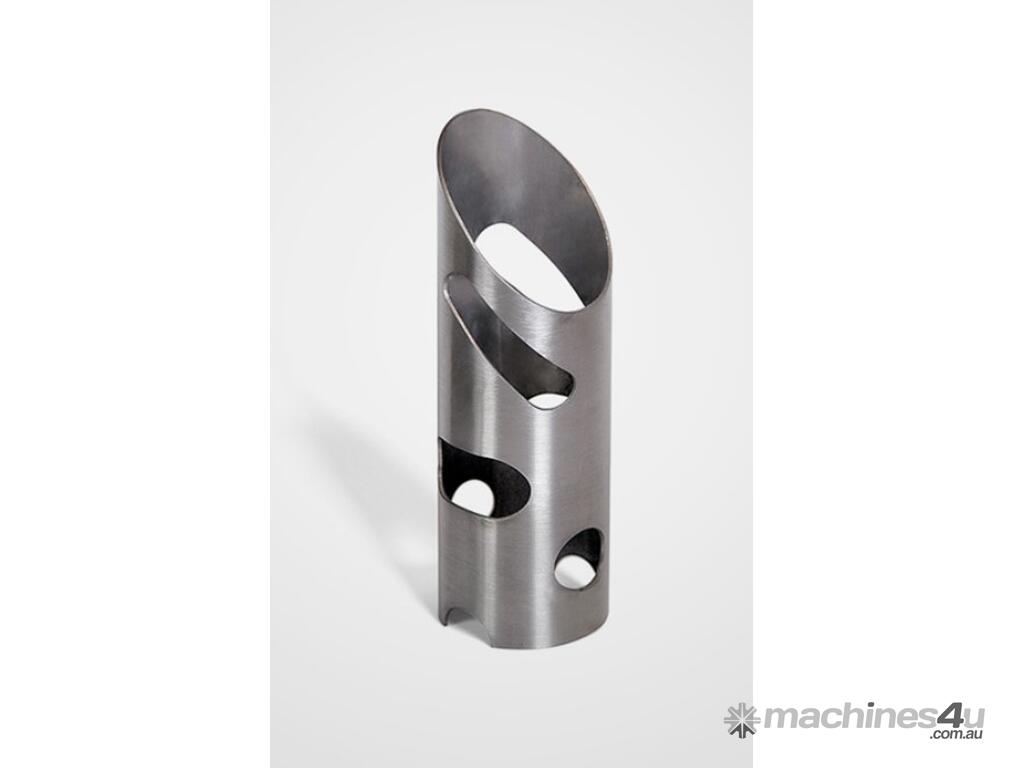

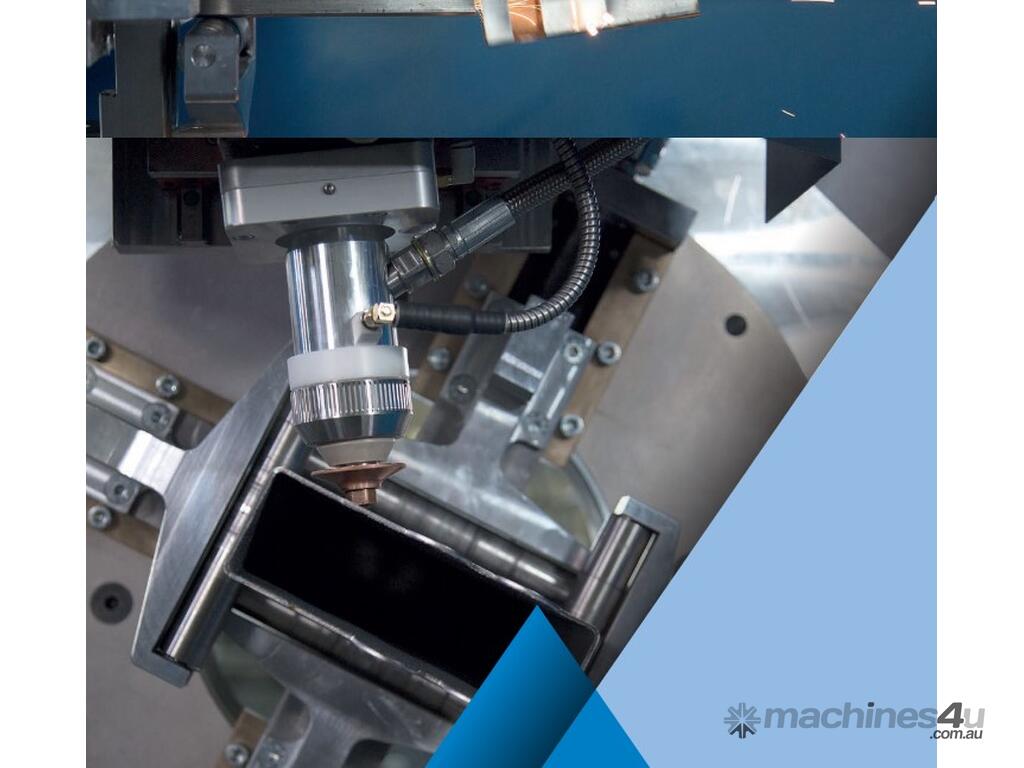

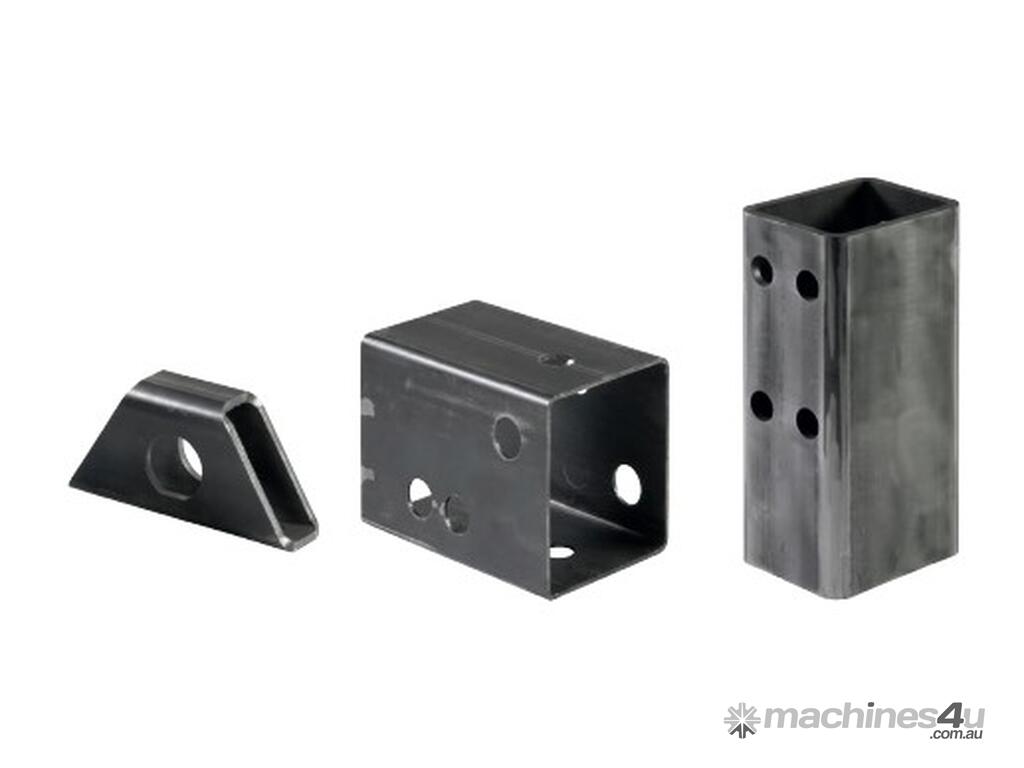

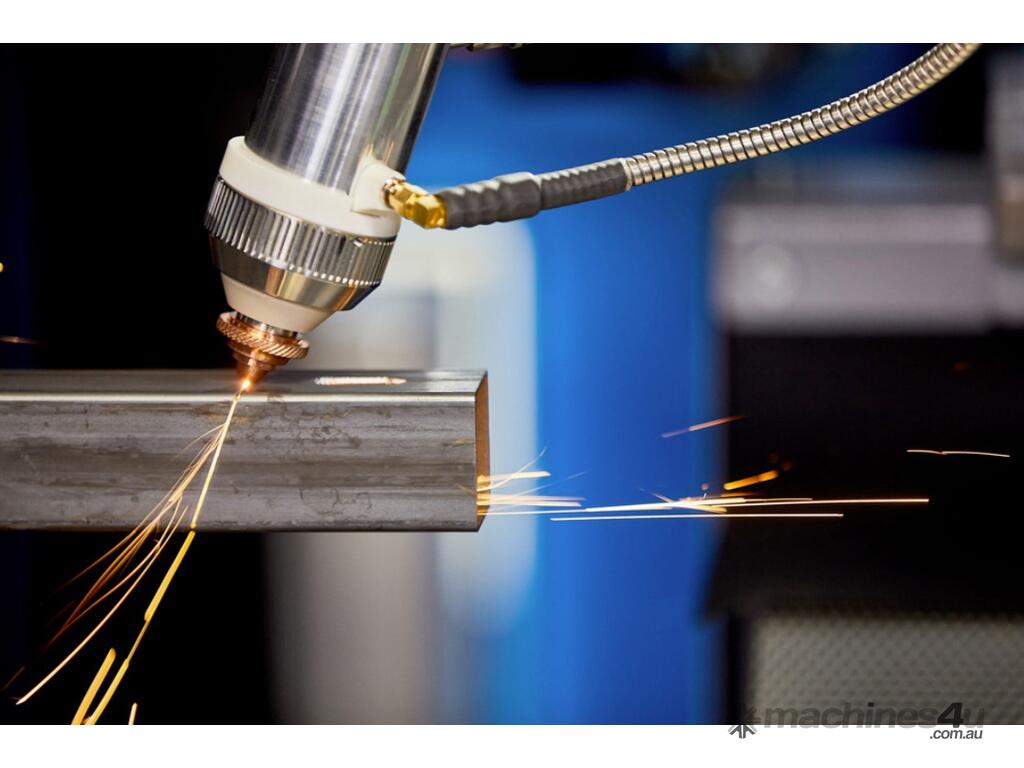

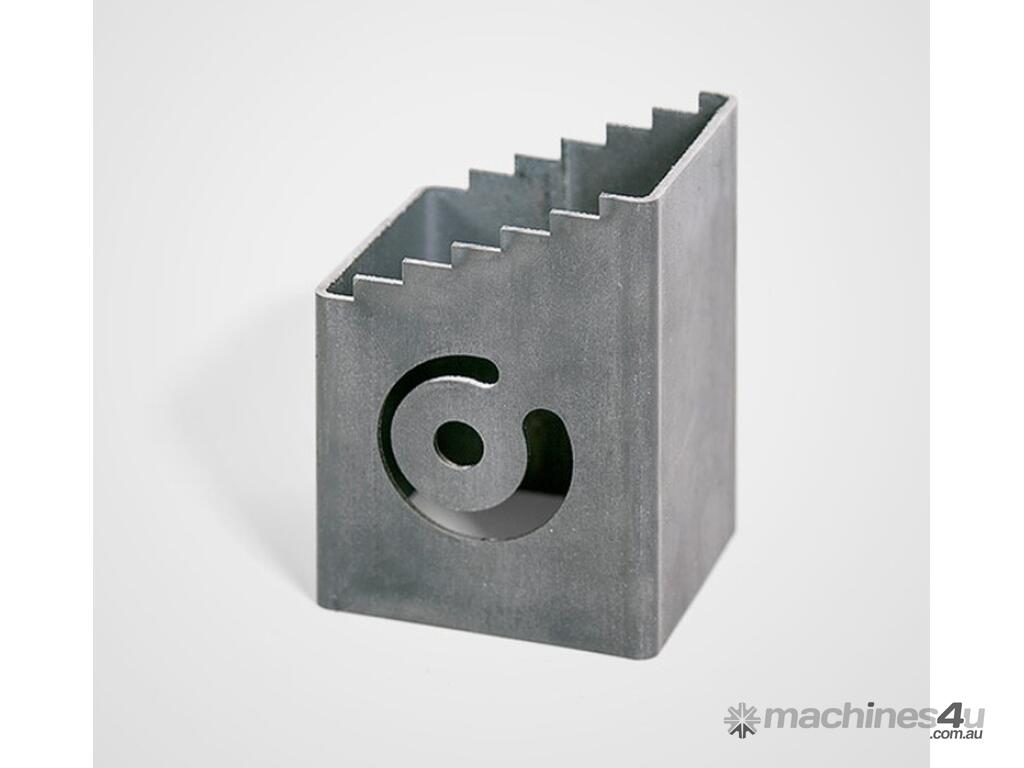

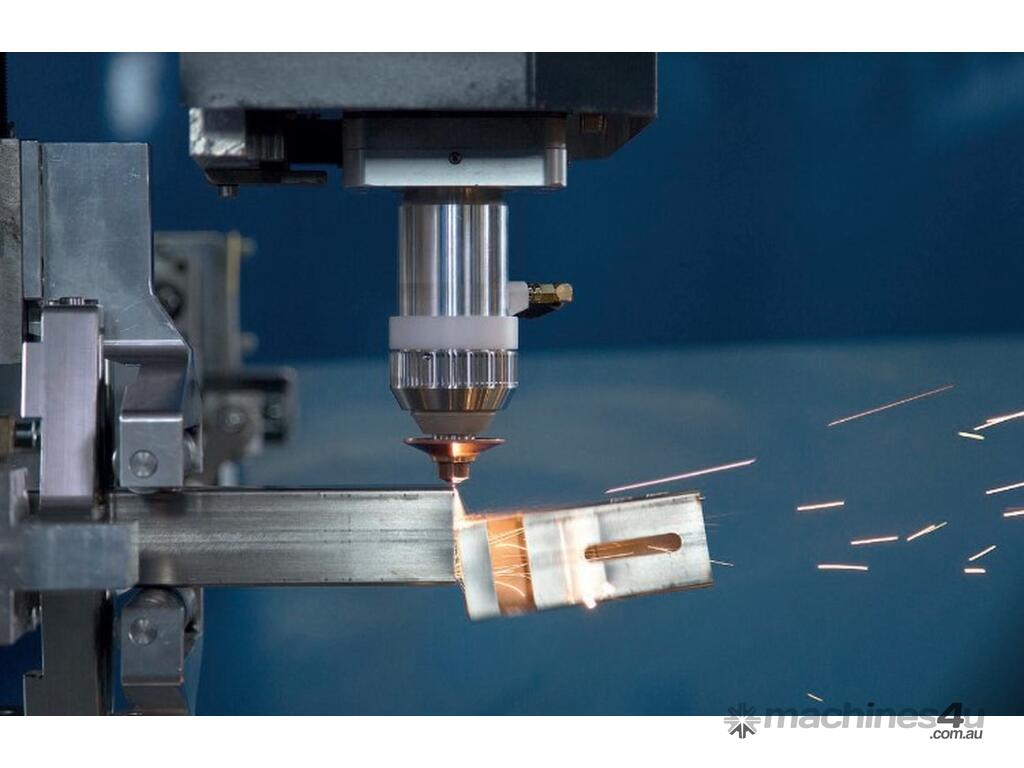

- EVO III proprietary cutting head, the most advanced in fiber laser industry, being the result of a very long experience in this
specific process

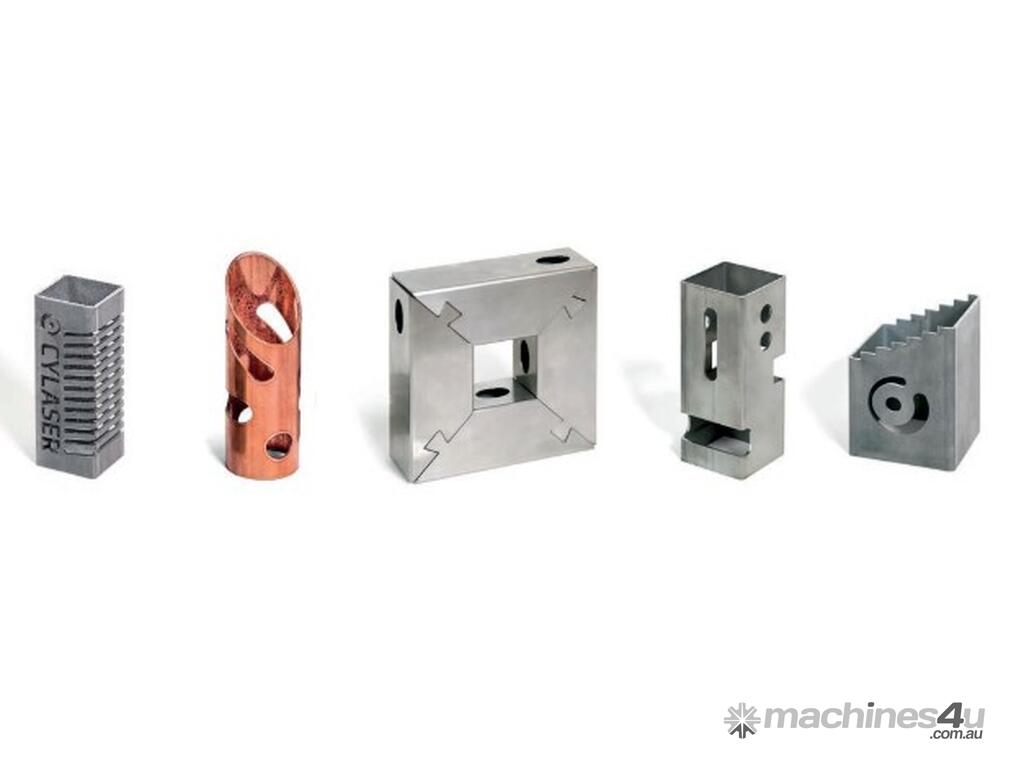

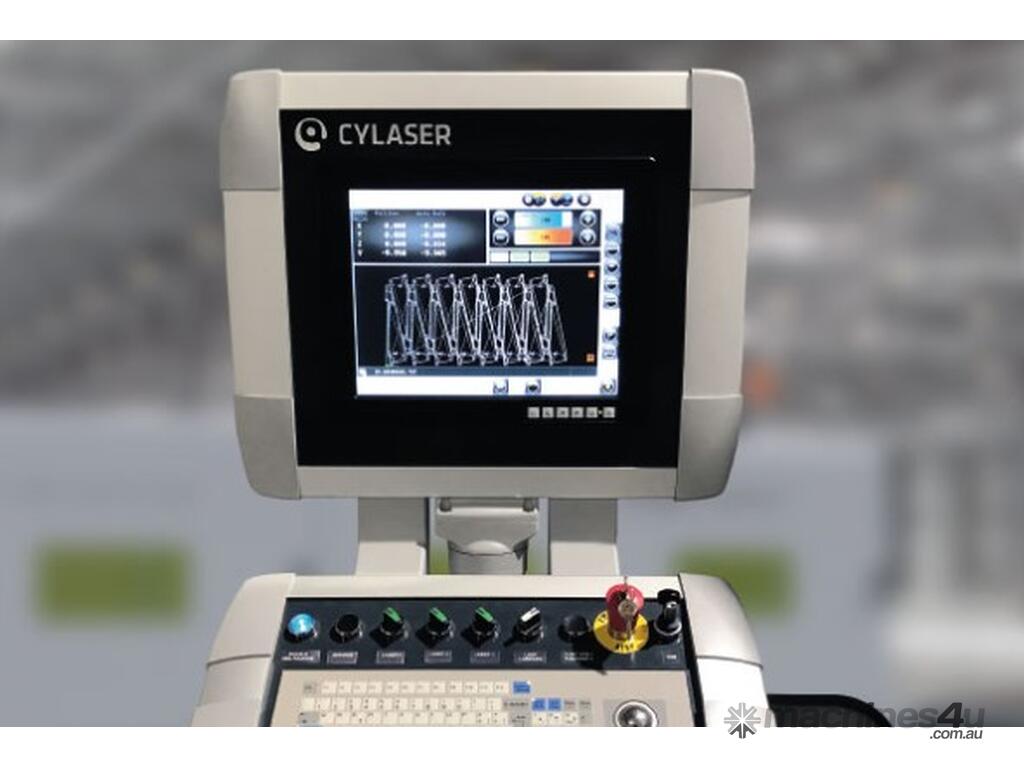

- User friendly interface and dual versions CAD-CAM software 2D and 3D modulation
- Innovative modular structure to meet customer’s different needs

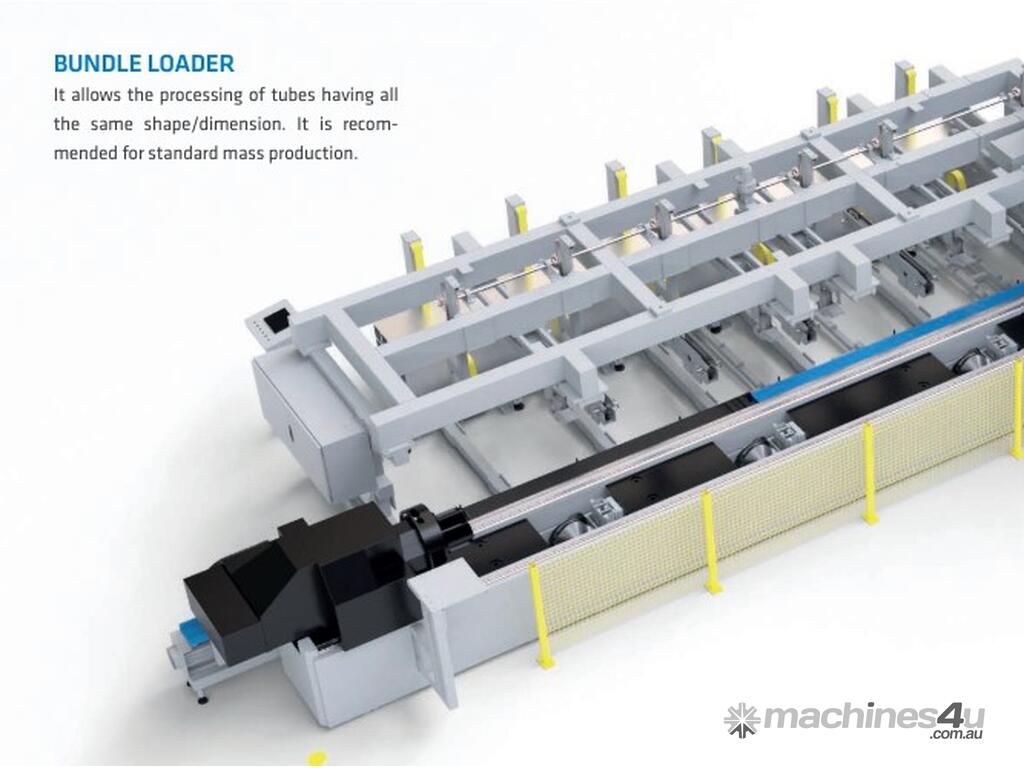

- Tube loading: manual, automatic, step loader, bundle loader. All solutions can be integrated with automatic storages (single
tube or bundle of tubes)
- Collision control systems through a magnetic breakaway torch
- Possibility to perform cutting samples at the machine
- Automatic setting of clamps with adjustment of jaws for a remarkable reduction of production change time
- Adaptive tube clamping with automatic adjustment for more effective closure on material of any thickness.
- Maximum suction guaranteed during entire processing time
- Automatic scrap conveyor.

MODEL CYT5

WORKING AREA - X axis 6,500 mm
- Y axis - 400 mm
- Z axis - 250 mm
Round tube (min/max) - 15/127 mm
Square tube (min/max) - 15x15 / 90x90 mm
Rectangular tube (min/max) - 15x20 mm

LOADING/UNLOADING CAPACITY
Loading capacity - 20 kg/mt
Tube storage Capacity - 3000 kg
Tube length (min/std/option) - 3250 / 6500 / 8500 mm
Max unloading capacity options (std/option/option) - 3000 / 4500 / 6000 mm

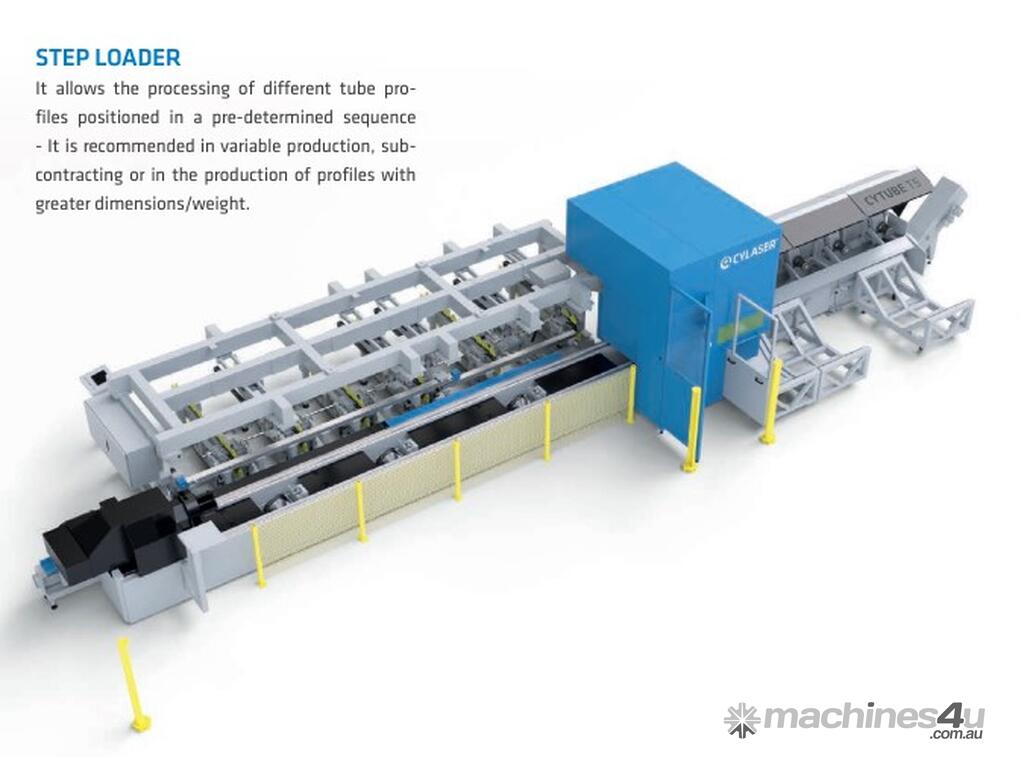

Automatic loading type Step Loader
Bundle Loader
Step Loader
Bundle Loader
Tube loading time - 20 sec.

SPEED
Minimum and maximum working speed - 150 / 30.000 mm/min.
Positioning speed (X/Y axis) - 100,000 mm/min.
Acceleration mm/sec2 - 14,700 mm/sec2
Spindle rotation speed - 360 grad/sec

ACCURACY
Mechanical repeatability accuracy - 0,03mm
Cut perpendicularity (over each mm of thickness) - 0,01 mm
Minimum program increment - 0,00 mm
