CYCLONE BK-105 Short Bar Feeder - Supports up to 105 mm Diameter

The CYCLONE BK-105 Short Bar Feeder offers precise, high-efficiency material handling with full servo transmission. It supports a wide range of bar diameters, optimizing productivity and minimizing downtime.

Features
Fully SERVO Controlled Loading & Feeding
Accurate & fast feeding with or without a turret stop
‘Pick and Place’ Loading System, quiet, no impact loading
CE Certified

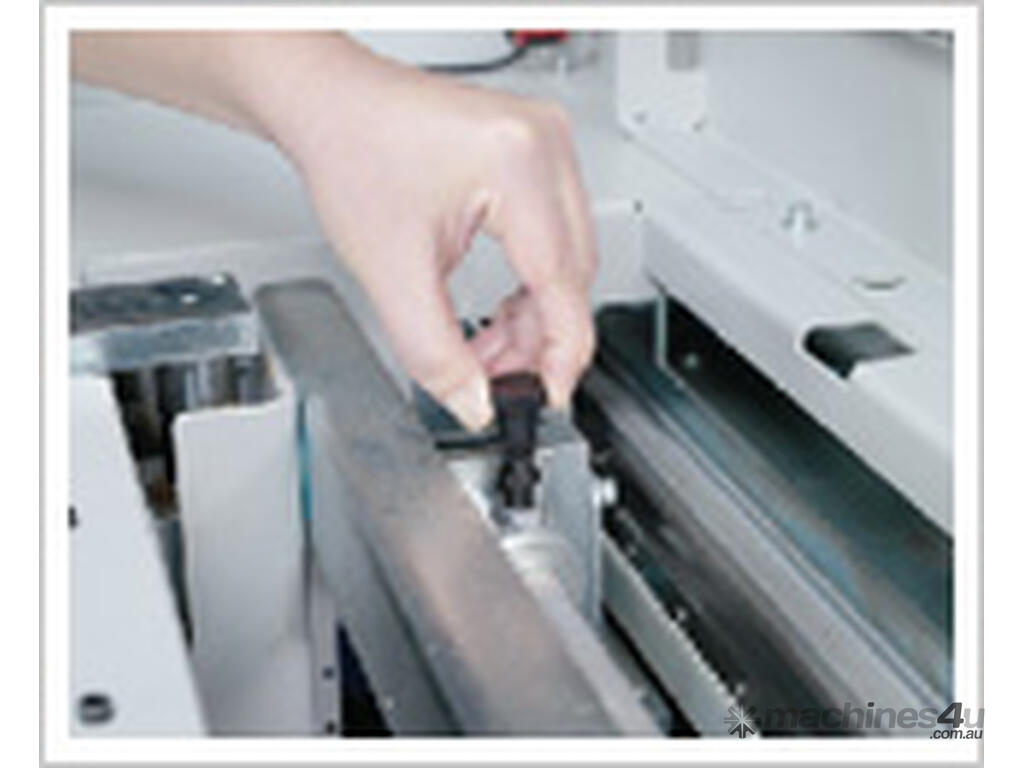

Quick Change Pushrod design
No vibration, allows precision machining at high speed
External LED display monitors, ‘Bar Length’, ‘Bar Change’, ‘Bar feeder Error’, ‘CNC Error’
User friendly display, easy to set & trouble shoot
Adjustment free changeover to different bar sizes
Remote Control greatly improves operational convenience
‘X&‘Z’ axis Linear Slides, allows easy access to CN C lathe for liner change or maintenance (Optional)
Rear or Front or Front & Rear Loading Magazines (F&R Optional)

Model: BA-65, BA-65L
Specifications: 1.2M, 1.5M
Bar Diameter: Ø5.0 – Ø65.0mm
Bar Capacity: Ø105.0mm/5pcs (10pcs with Front & Rear Magazines)
Machine Weight: 600kg, 700kg
Transmission: Full Servo

Barload Australia focuses in innovative design plus powerful control that will change the way things are done. Contact us to improve your efficiency & your future.
