Cantilever Style 3 Axis Waterjet Cutting Machine

A cantilever type waterjet is widely used in manufacturing. Because it’s capable of creating precise cuts in even the hardest materials, it is a useful tool for making everything from metal machine parts for automobiles and planes to original works of glass art.

At SAME, we’ve developed a powerful cantilever type waterjet cutting machine. It delivers extreme accuracy – the waterjet’s cutting accuracy range is +/- 0.1 mm. Available in a variety of sizes, including custom sizes, our cutting machine can be aligned with your needs.

Common uses of cantilever type waterjets
Our waterjet uses high pressure to cut through stone, metal, glass, and fibre. With a small height when compared to a gantry type waterjet, a cantilever type waterjet cutting machine is easier to work with if you’re cutting small pieces or if the priority is to achieve detailed cuts. This makes it ideal for fabricating small machine parts, as well as artwork and glass or ceramic designs.

There is no limit to what you can create with a high-quality waterjet. The force of the water can easily cut, trim, and shape soft materials such as leather, carpet, and insulating rubber. With a special nozzle and innovative abrasive powder, our carefully designed cutting machines can also cut through stainless steel, titanium, marble, and ceramic with impressive results.

Easy to use and efficient, our cantilever type waterjet is great for high-volume production. It features an advanced design that ensures stability and durability. There’s also a built-in lubrication part, which helps to simplify maintenance.

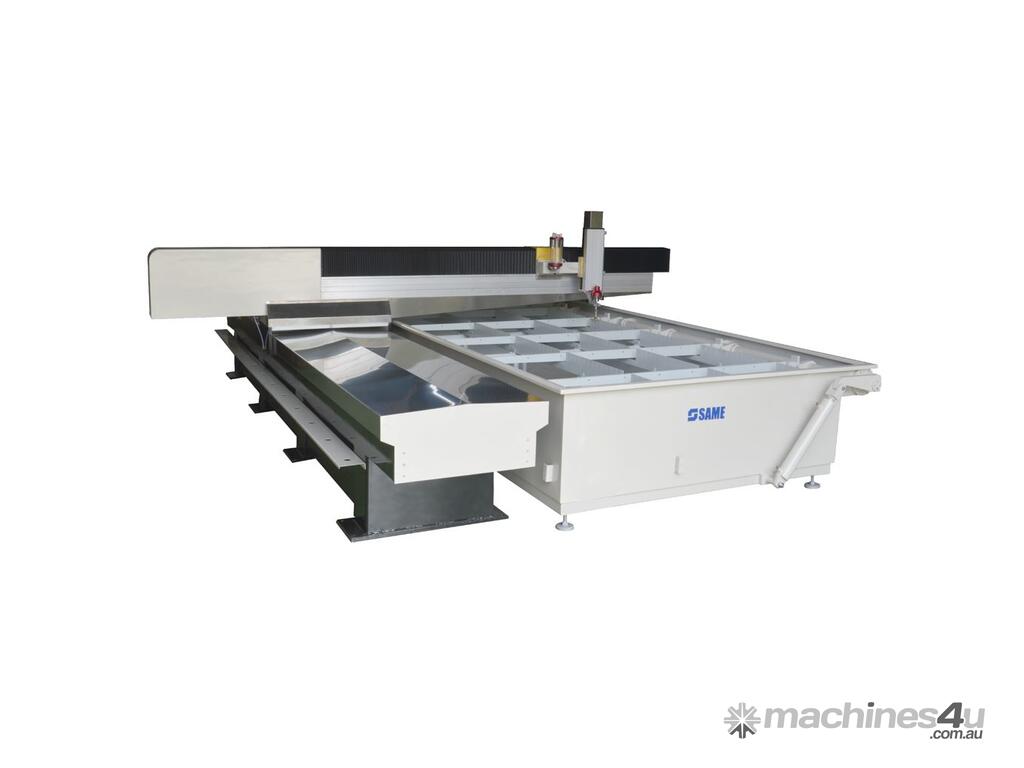

The cantilever-type cutting table consists of the transmission part with the X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Cantilever mechanical structure is fit to small size machines, a short-running distance of X and Y axis, suitable for processing a variety of complex small parts.

Features:
The cutting table consists of a transmission part with X axis Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Cantilever mechanical structure is fit to small size machines, a short running distance of X and Y axis, simple structure, suitable for processing a variety of complex small parts.

Product information:
SAME® cantilever type waterjet cutting machine is available in many sizes (1600mm x 1600mm, 2500mm x 1600mm, 3000mm x 2000mm, 4000mm x 2000mm, etc. Customized service is available.)

- Travel of Z axis: 150mm
- Servo system: YASKAWA, JAPAN
- Cutting accuracy: ±0.1mm
- Control accuracy: ±0.01mm
- Re-positioning accuracy: ±0.025mm/m
- Max. moving speed: 10000mm/min

Welcome to SAME Water Jet

Same Water Jet has more than 20 years of experience when it comes to manufacturing water jet cutting machines. We are one of the earliest enterprises having ultrahigh-pressure waterjet technology. Our company became a member of the Jet Equipment Standardisation committee of the State Bureau of Machine-Building Industry, Chinese Structural Glass and Industrial Glass Association, Guangdong Dimension Stone Industrial Association and Guangdong Glass Industrial Association.

We are also the first successful domestic enterprise that applies the three-cylinder plunger to the drive pump to the ultra-high-pressure cutting field in China. So don’t hesitate to choose us because our machines are sold in 45 countries around the world, and we are highly known as outstanding when it comes to cutting performance and productivity.

Same Water Jet cutting machines are popular in the metal, glass cutting industry, and stone & fibre cutting industry. We also offer water jet pumps and water jet spare parts to replace old parts of your water jet cutting machine. If you are looking for a new water jet cutting machine, don’t hesitate to contact us as we guarantee outstanding quality and affordable prices. Choose Same Water Jet, your best choice of waterjet glass cutting industry. Contact us today!
