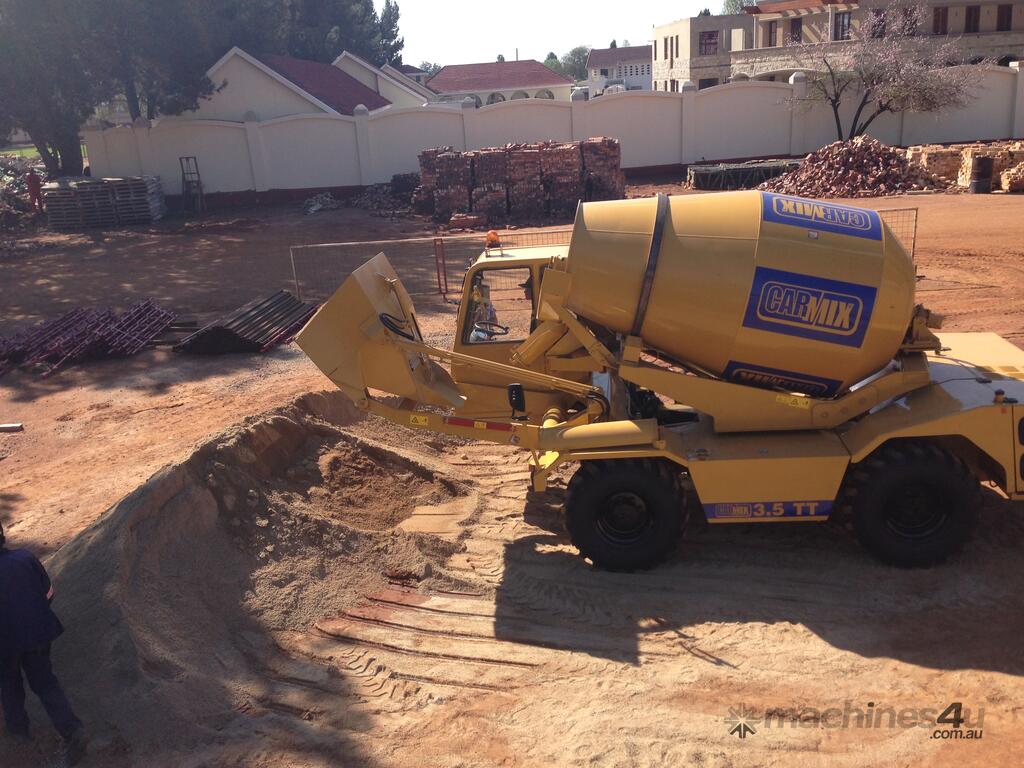

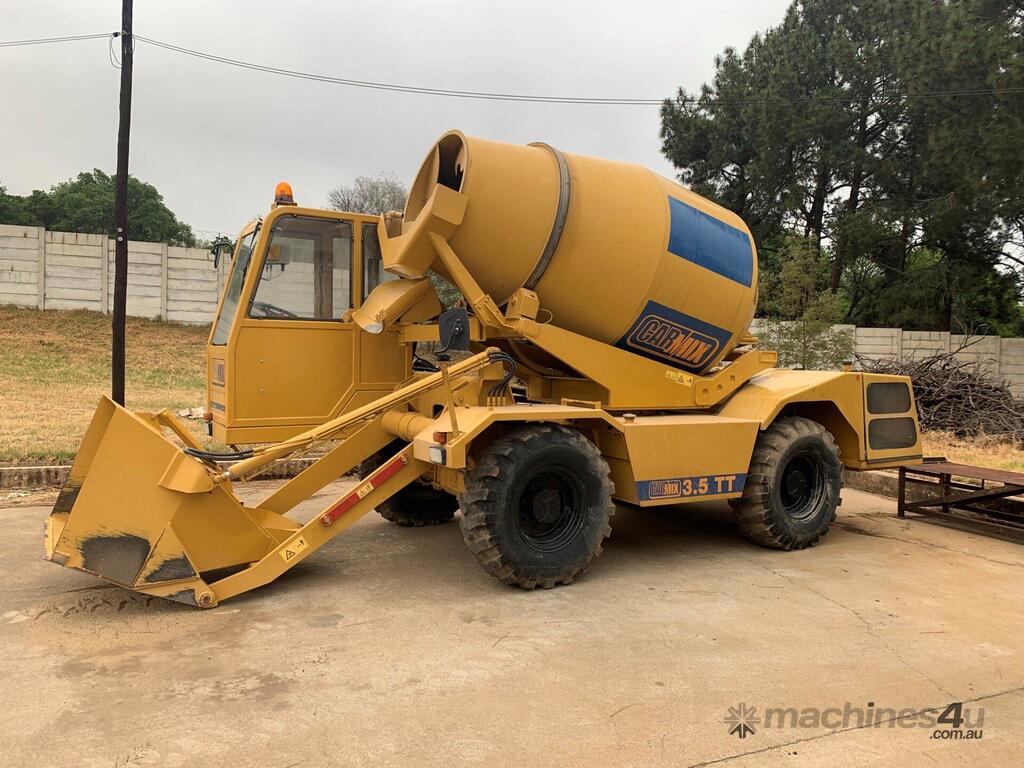

Carmix 3.5TT Mobile 4X4 Self Batching Concrete Mixer

We are the recongnized agent for the Italian Carmix Self Loading 4X4 Mixers & Dumpers. With over 25 years experience in piling, equipment sales, training and maintenance, it means that you can rely on us.

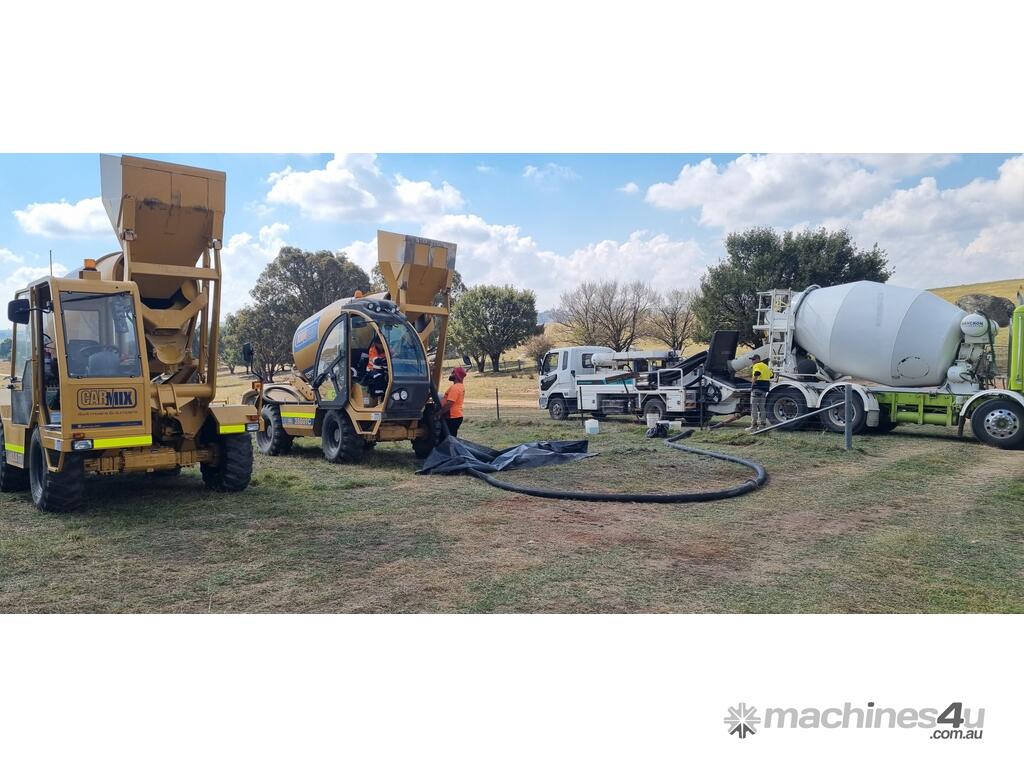

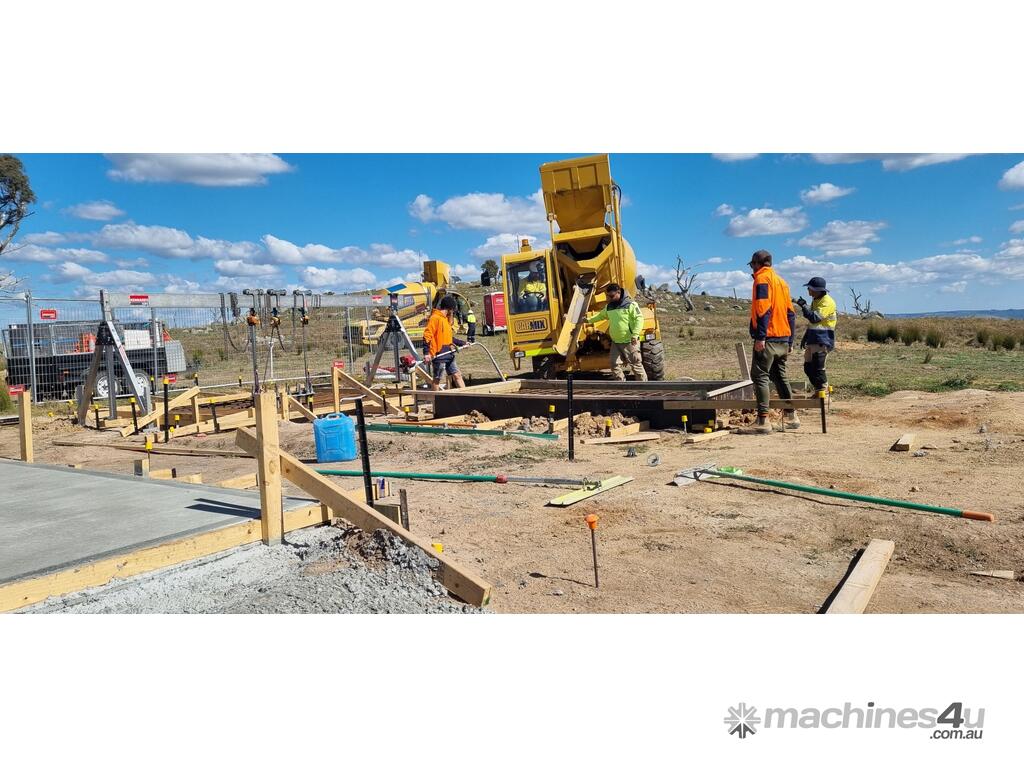

Carmix 3.5TT is ideal for:

* Remote Concrete

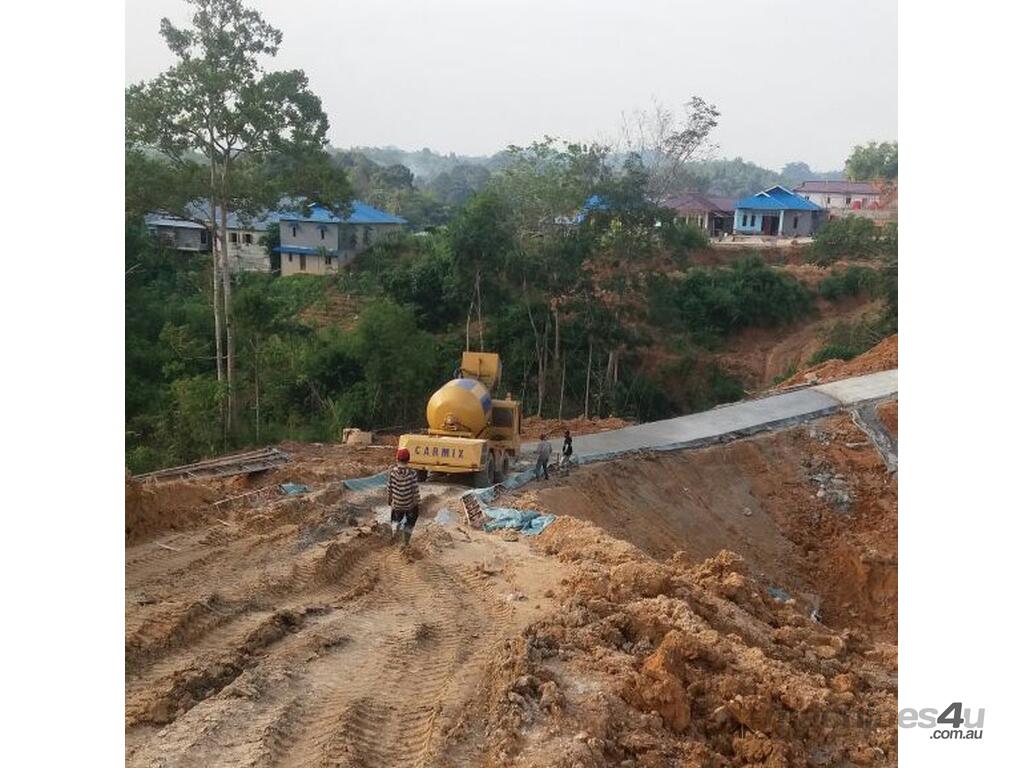

* Difficlut or Steep Access Sites
* Mine Sites

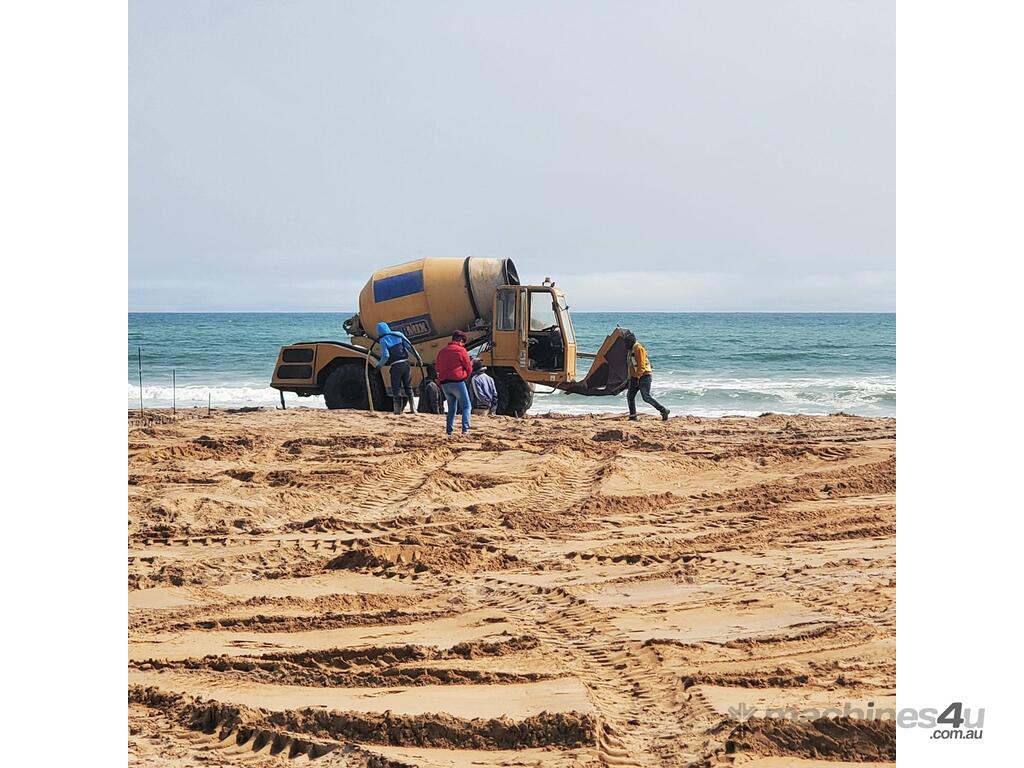

* Island Projects
* Road Projects in Remote/Rural Regions

The Carmix 3.5TT is the most popular unit worldwide due its’ versatility and the perfect balance between the 3.0m³ concrete yield per batch and the per hour productivity. The 300° slewing drum is ideal for tight discharge location . The mixing drum’s rotation is controlled by a hydraulic motor which controls the mixing and discharging speed. When travelling down steep inclines the drum can be rotated to face rear - this avoid spillage when full

FEATURES
* VEI Helper X: Consisting of 4 dynamic load cells located under the drum to ensure precise weighing of all
aggregates including the water.
*Engine: Perkins 1104 D-44 TA Turbo-Diesel, water-cooled, 4 cylinders. Rated power KW 83 (111 HP)
set at 2300 rpm. Engine mounted transversal on the rear.
*Transmission: Hydrostatic Bosch Rexroth. Pump and motor are connected to the differentials through a 2-
speed reducer (working and transfer). 4-wheel drive and steering.
*Speed: Working speed from Oto 9 km/h, road transfer from 0 to 25 km/h. Electric servo control
* Water Pump: Self-contained. Hydraulic driven water pump, water meter, washing outlet.
* Steering: Hydrostatic. 3 ways steering. 3 Types of steering add: Normal front axle steering, Crabbing,
front and rear axle steering for 360° turning. Radius: internal: mm. 1700mm, external mm
3700mm.
* Water Tanks: 2 x 500Liitres
* Deisel Tank: 115 Litres

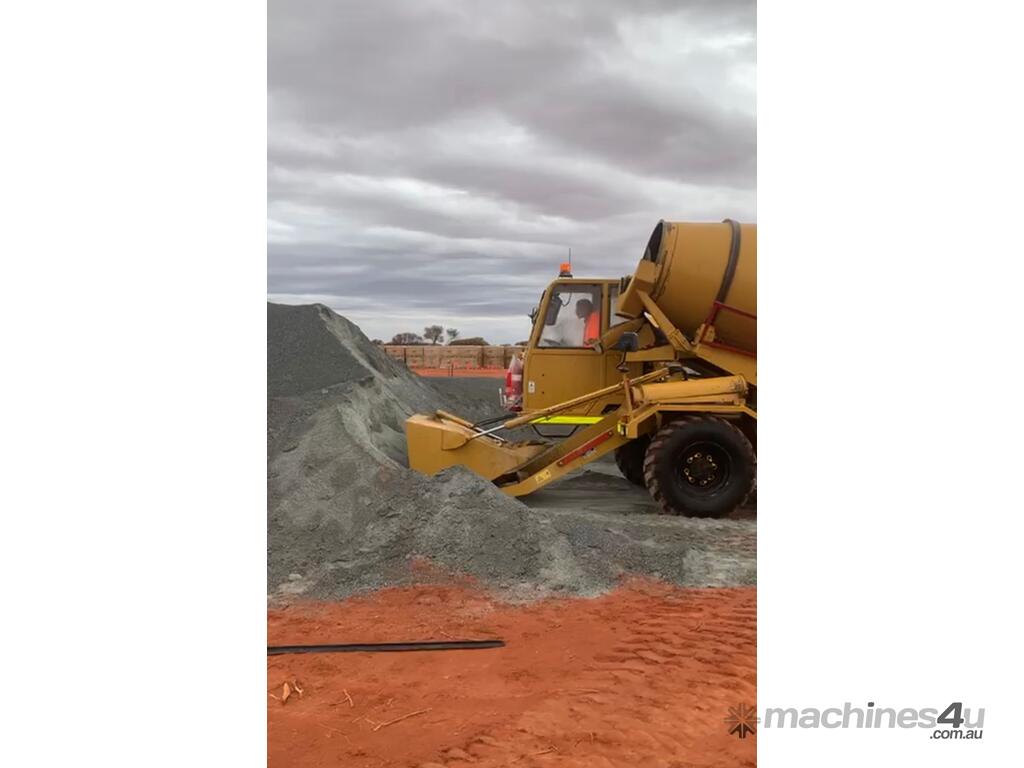

* Loading Shovel: Effective capacity per load 600 litres, complete with hydraulic opening gate.
* Electrical System: 12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.

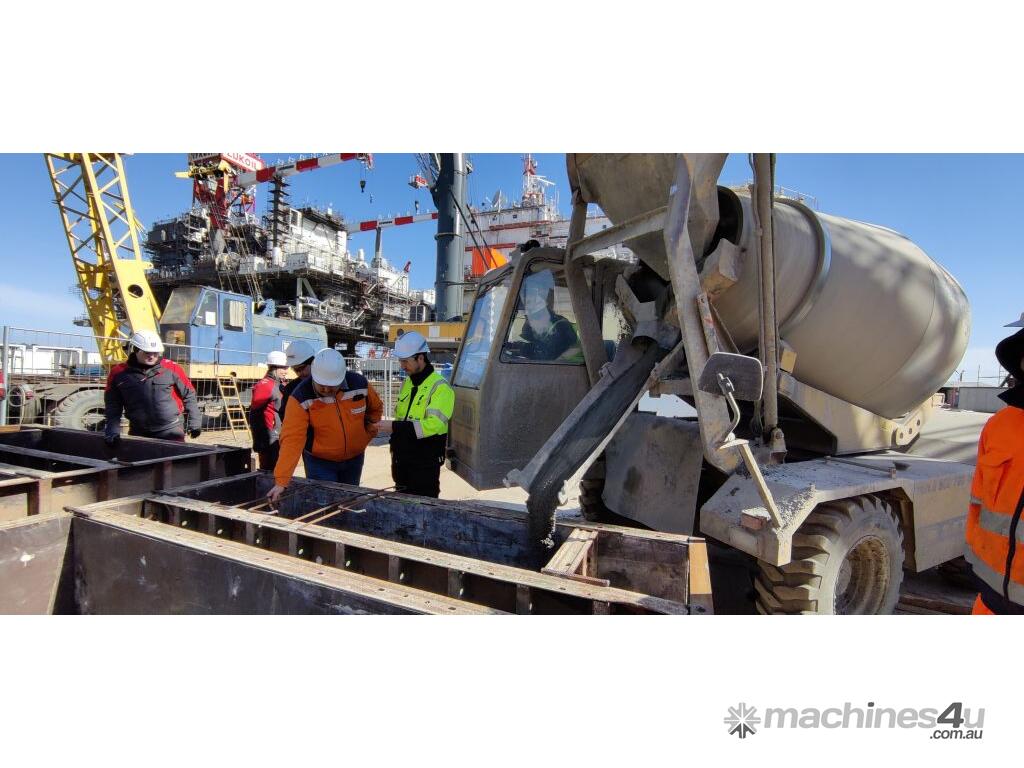

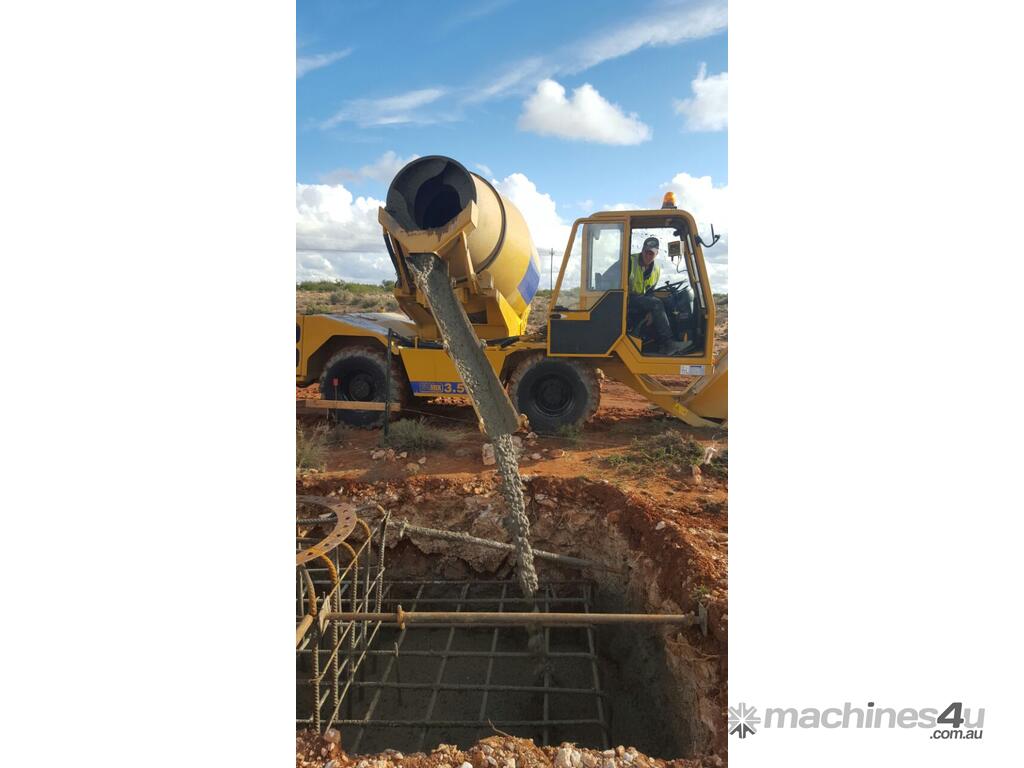

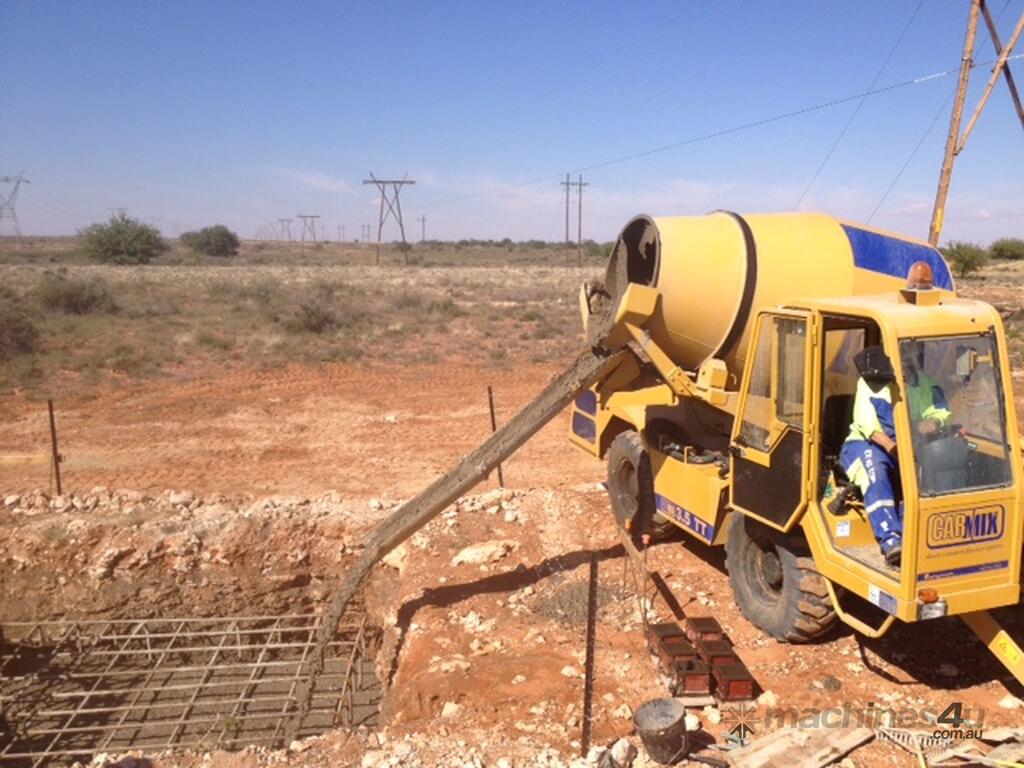

* Chute: Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the
discharge height

Contact us now to secure your ultimate solution to concrete today Units arriving Q4 2024
