We are the recongnized agent for the Italian Carmix Self Loading 4X4 Mixers & Dumpers. With over 25 years experience in piling, equipment sales, training and maintenance, it means that you can rely on us.

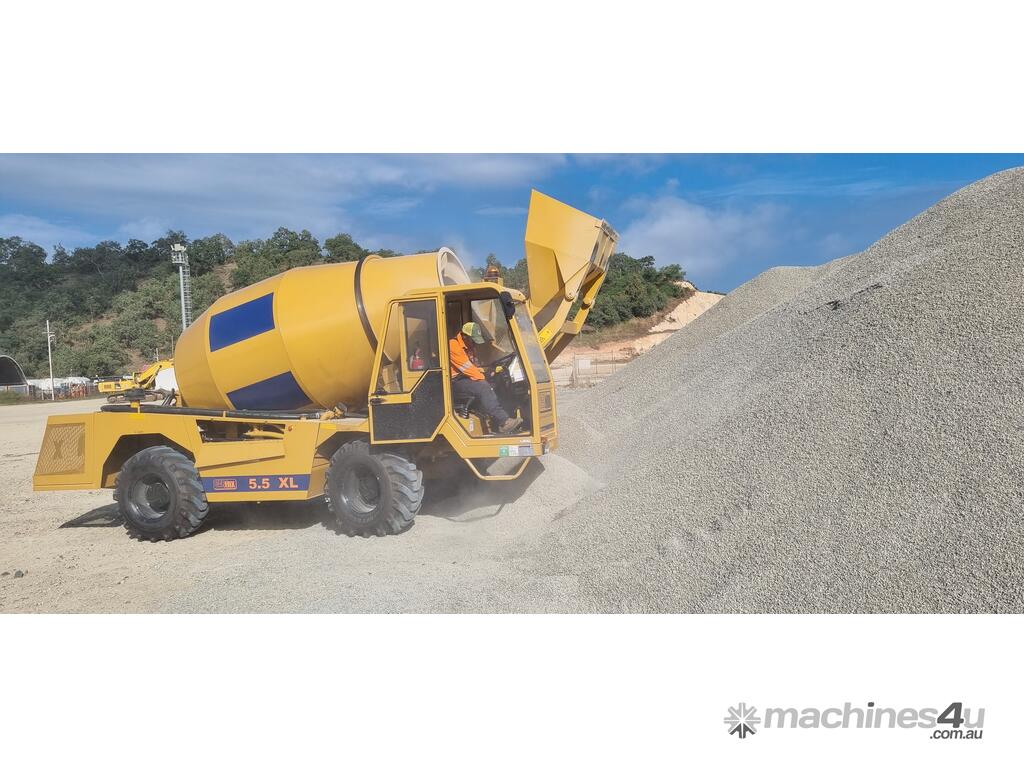

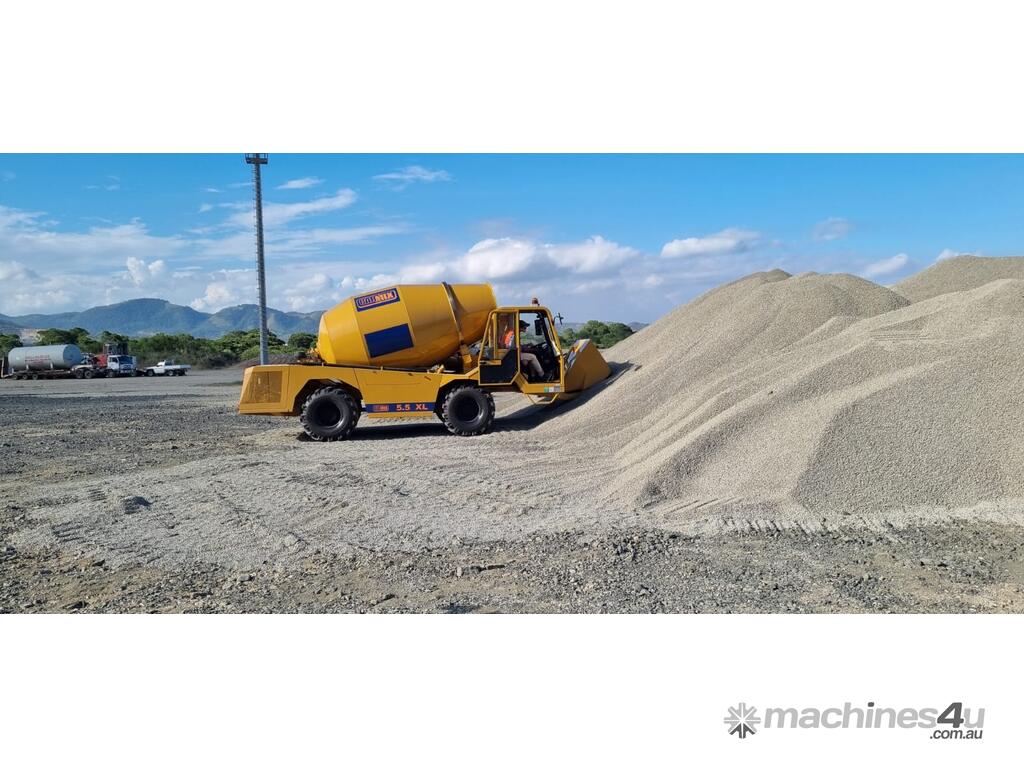

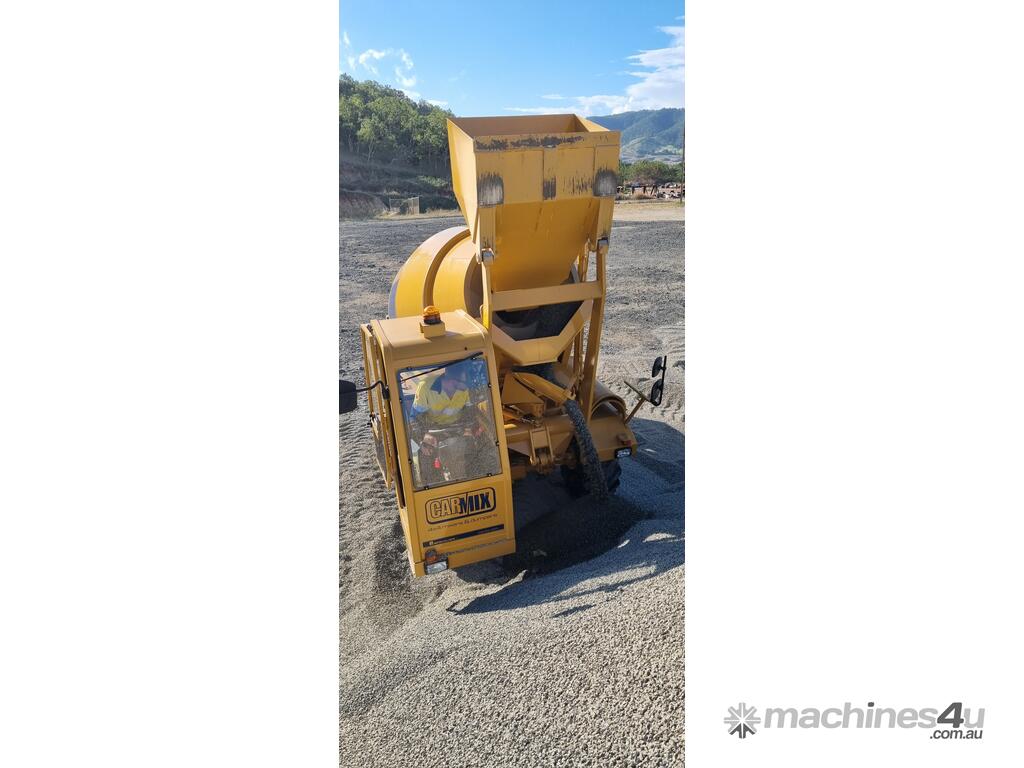

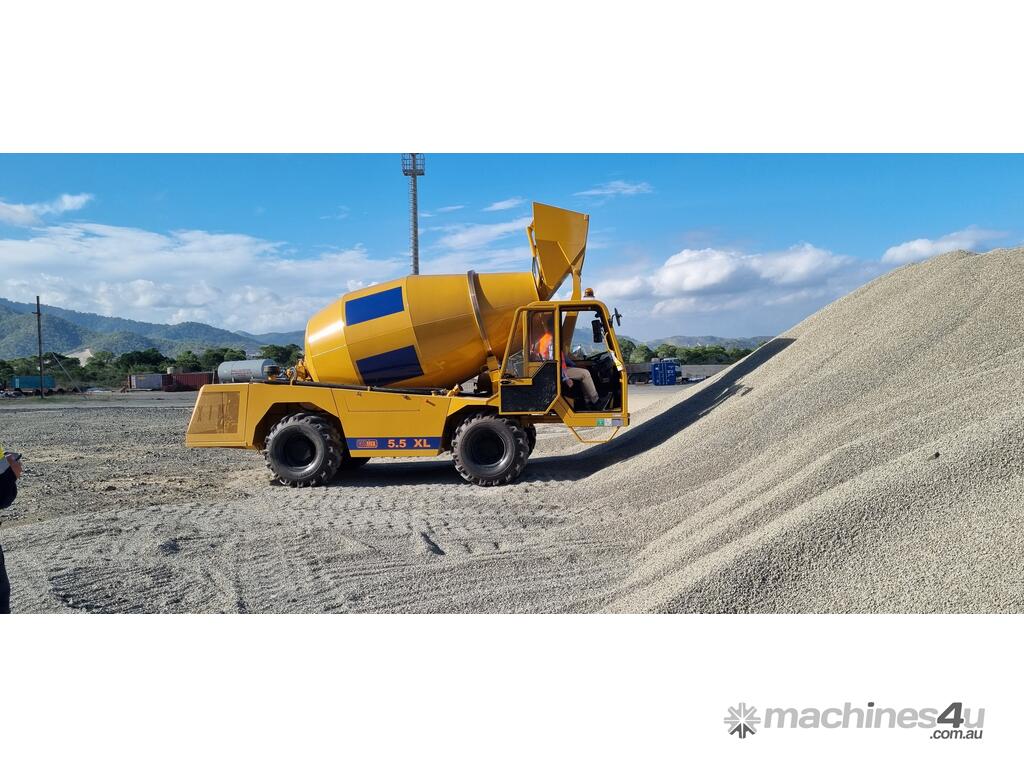

The Carmix 5.5XL is the largest unit in the CARMIX range . Concrete yield of 5.0m³ per batch at slump 90mm.

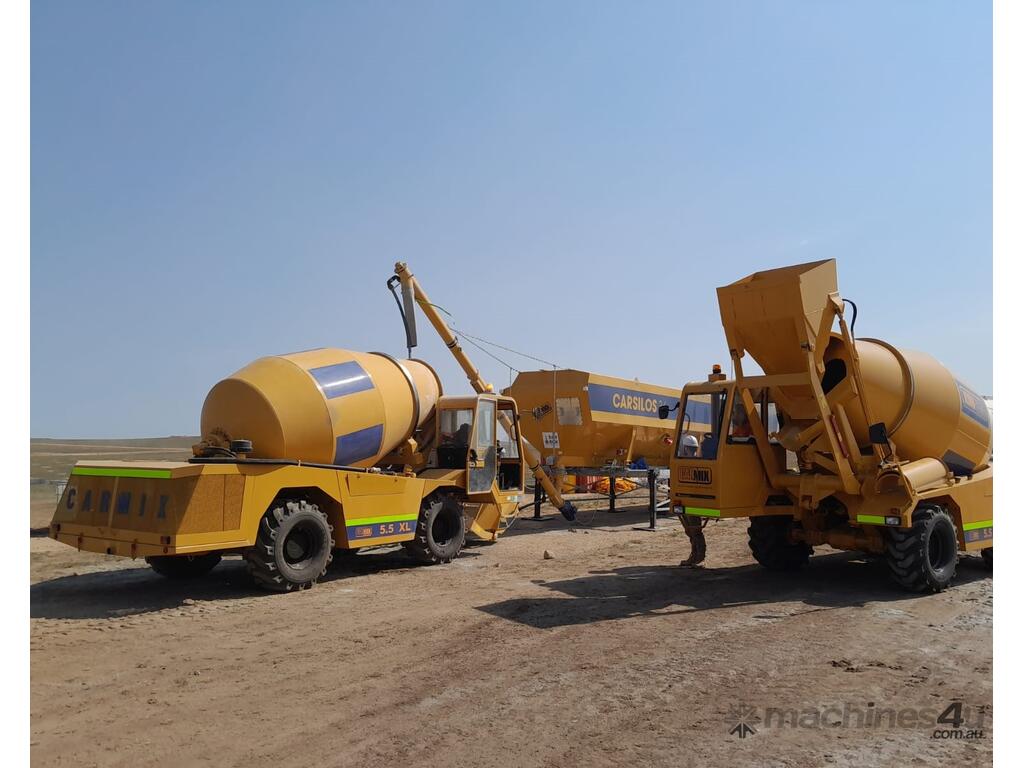

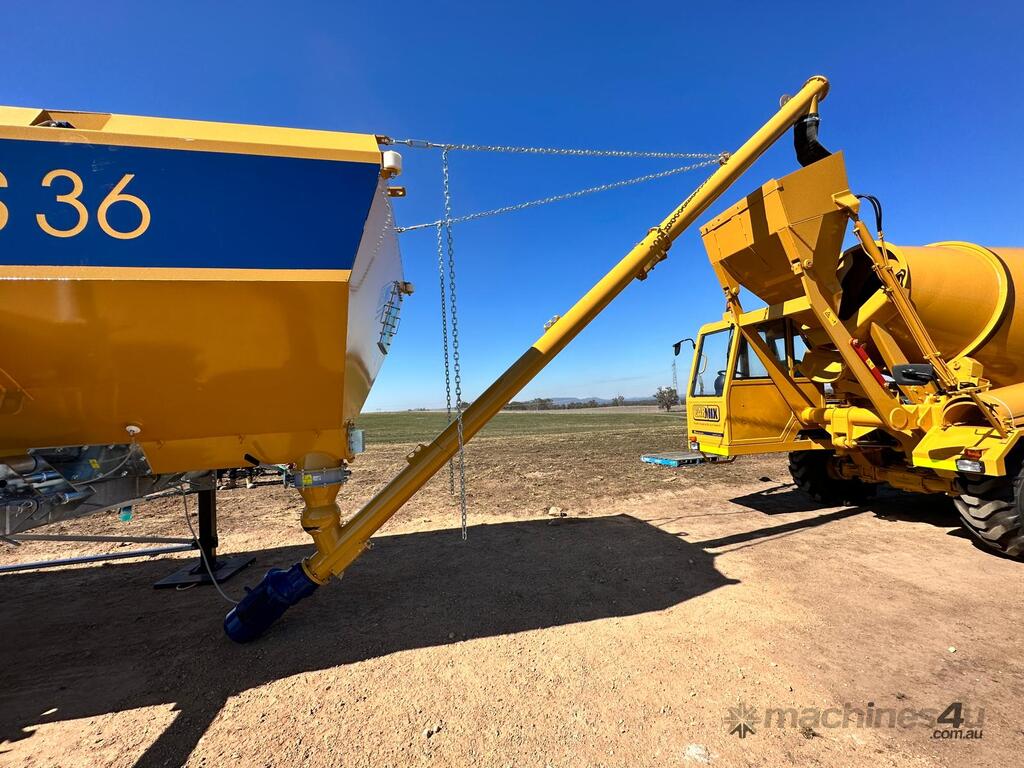

This unit can be used as Transit mixer or Self Load Mixer . Fitted with load cells and VEI Batch controller and printer this unit becomes a Mobile Registered batch plant . Whe matched with a Carmix HC36 Horizontal Silo this unit can batch alone almost 50m3 per day based on travel distance and discharge time .The Carmix 5.5XL has an operating speed of 0-10km/h, road transfer speed from 0-30km/h and is capable of operating on gradients of up 30° fully loaded.
Carmix 5.5XL is ideal for:
Producing large batches of accurate high quality concrete for mining, large construction sites and civil activities particularly where high slump concrete such as grout or shotcrete is required.
FEATURES
* Engine: Cummins Turbo-diesel B5.9 TAA, water cooled, 6 cylinders. Maximum power 112kw (150HP). Engine
mounted transversal on the rear
* Transmission: Hydrostatic Bosch Rexroth. differentials through a 2-speed gear box. 4-wheel drive and steering.
* Speed: Working speed from O to 10 km/h, road transfer from 0 to 30 km/h
* Water Pump: Self-contained. Hydraulic driven water pump, water meter, washing outlet. ( 400 ltr per min )
* Pressure Washer: 1500psi pressure washer with lance
* Air-Conditioning: Standard cabin cooling system
* Steering: Hydrostatic. 3 ways steering. 3 Types of steering: Normal front axle steering, Crabbing, front and rear axle
steering for 360° turning. Radius: internal: mm. 1700mm, external mm 3700mm.
* Water Tanks: 2 X 600 Litres
*Diesel Tanks: 115 Litres

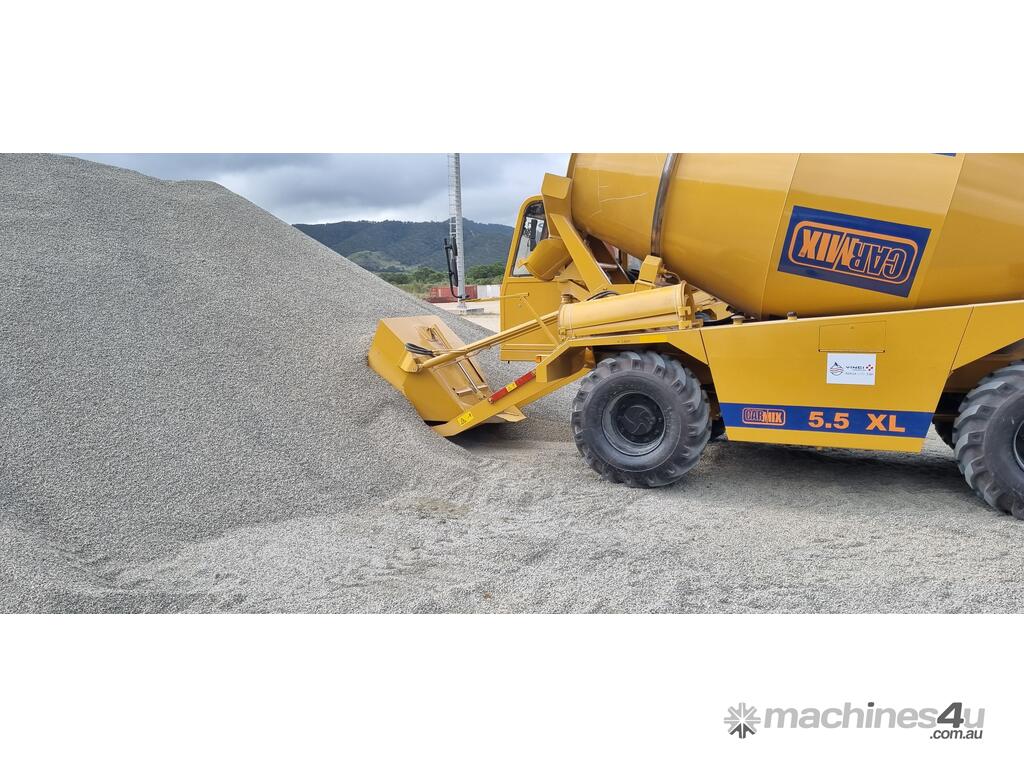

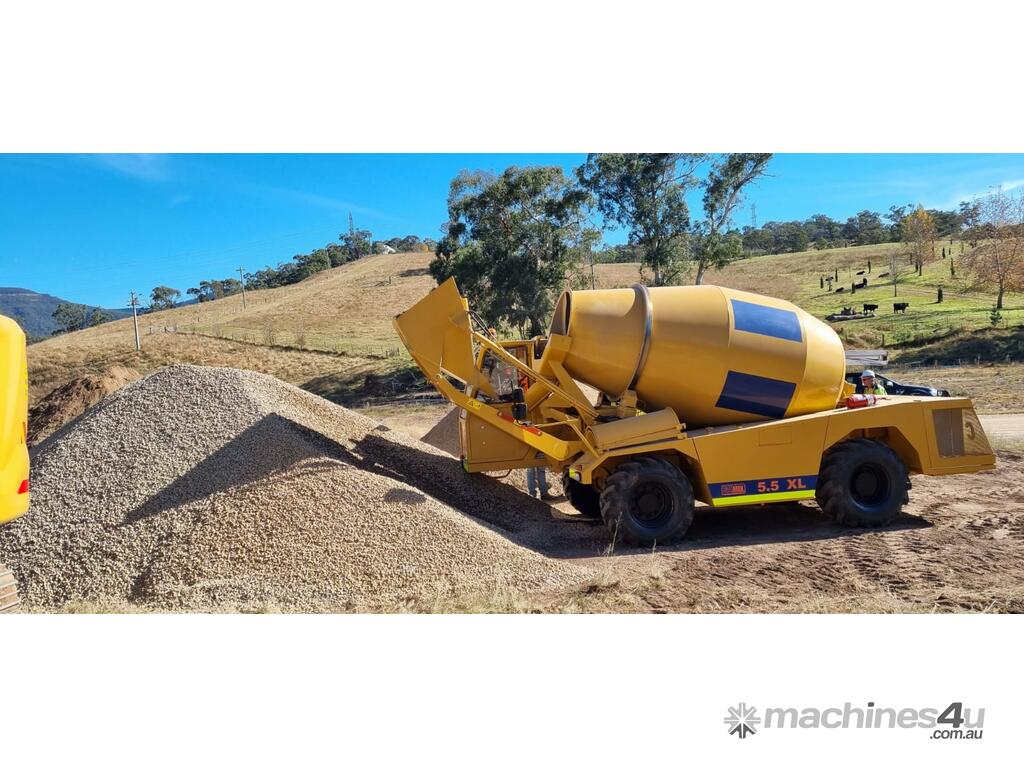

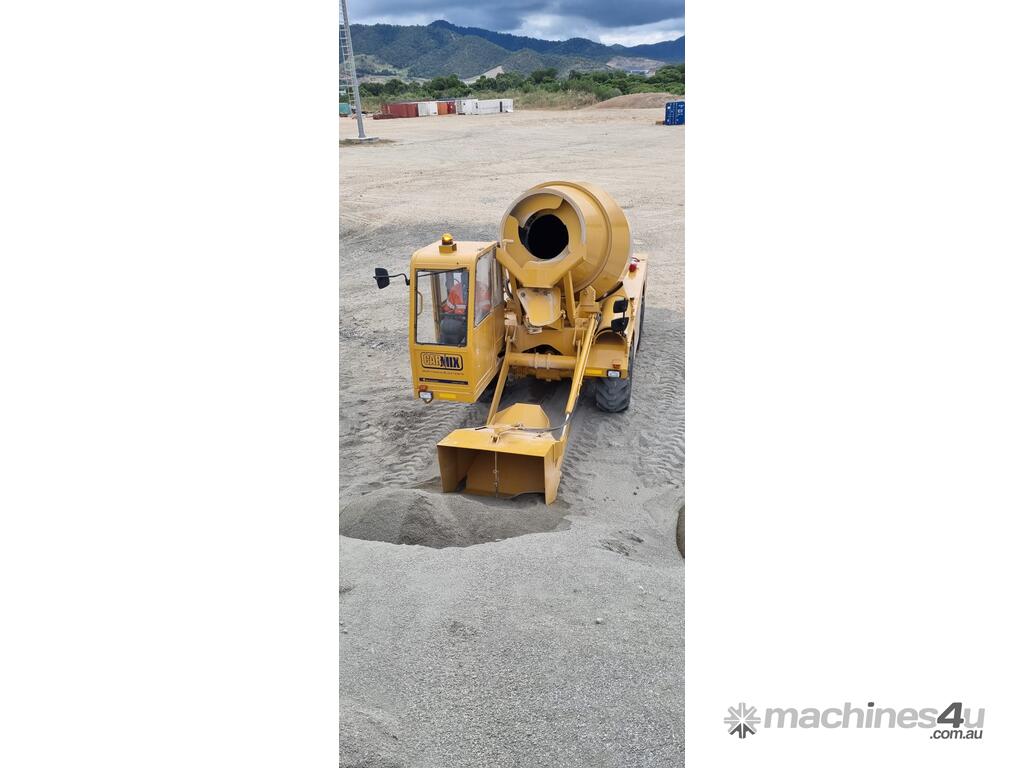

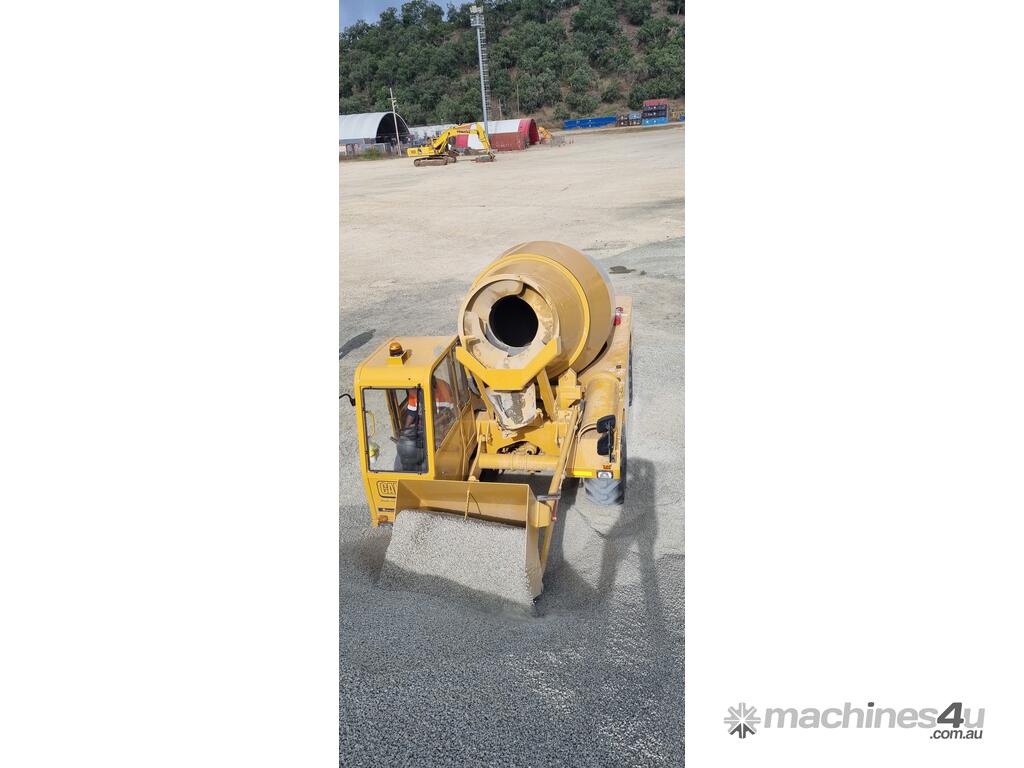

* Loading Shovel: Large capacity shovel 600 ltr with Hydraulic opening gate to control feed quantity
*Electrical System: 12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off

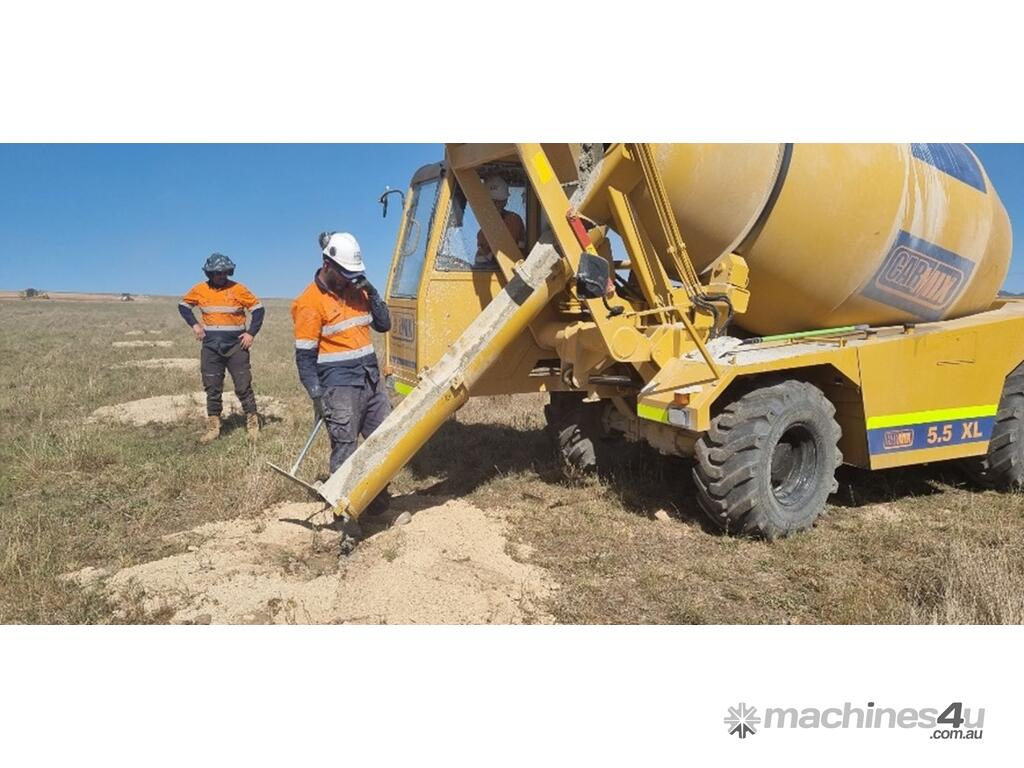

* Chute: Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge
height. 2 x 1m sections
Contact us now to secure your ultimate solution to concrete today!
