Cella Flexstore S - Sigma

Functional and dynamic 3-axis automatic storage system for the panels management. It guarantees the optimisation of the material flow and machining time at low cost.

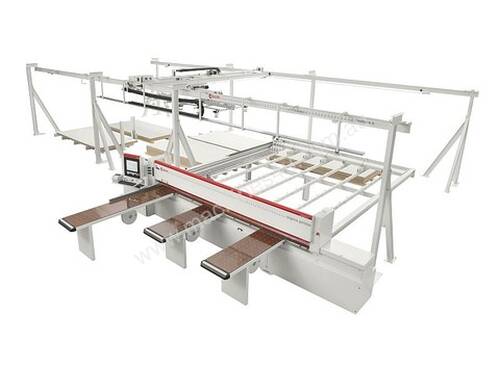

Storage cells composition with Prima and Impact beam saws. The machine has two side portal structures to support the main crossbeam. The machine is completely automatic and doesn't need any manual adjustment.

Advantages:
Time saving
Space saving
Less operators required

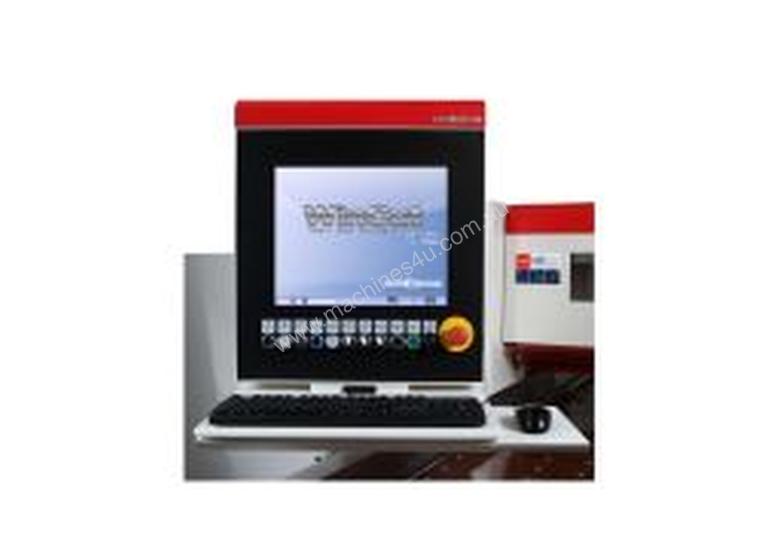

A single station to manage the working process of the complete cell
A single cell diagnostic report
Material always available, the forklift is not required for the material displacement


Technical data:
FLEXSTORE S
MACHINE DIMENSIONS
Overall height mm 3450
Minimum height for installation and maintenance mm 3950
Installed electrical power Kw 19
Compressed air consumption (6 bar) Nl/min 300
Suction pump capacity Mc/h 40

PANEL DIMENSIONS
Laminated panels thickness mm 10-40
Raw panels thickness mm 16-40
Max. Weight Kg 150
PICKING FRAME 2800X1100
Min/max width mm 1200 - 1900
Min/max length mm 2400 - 3100
PICKING FRAME 3450X1400
Min/max width mm 1500 - 2150
Min/max length mm 2800 - 3660
PICKING FRAME 4000X1700
Min/max width mm 1800 - 2200
Min/max length mm 3600 - 4250

SIGMA PRIMA/IMPACT
Cutting dimensions mm 3200/3300/3800 /4300/4500
Cutting depth mm 2100/3200/3800
/4300
Blade projection
- Impact mm 95-115
- Prima mm 55-70
Variable sawcarriage speed m/min 6-30
Variable pusher speed
- Impact m/min 27/38
- Prima m/min 24
Sawblade motor (S6 -40%)
- Impact kW(HP) 7,5(10,5)/ 9(12)
- Prima kW(HP) 7,5(10,5)
