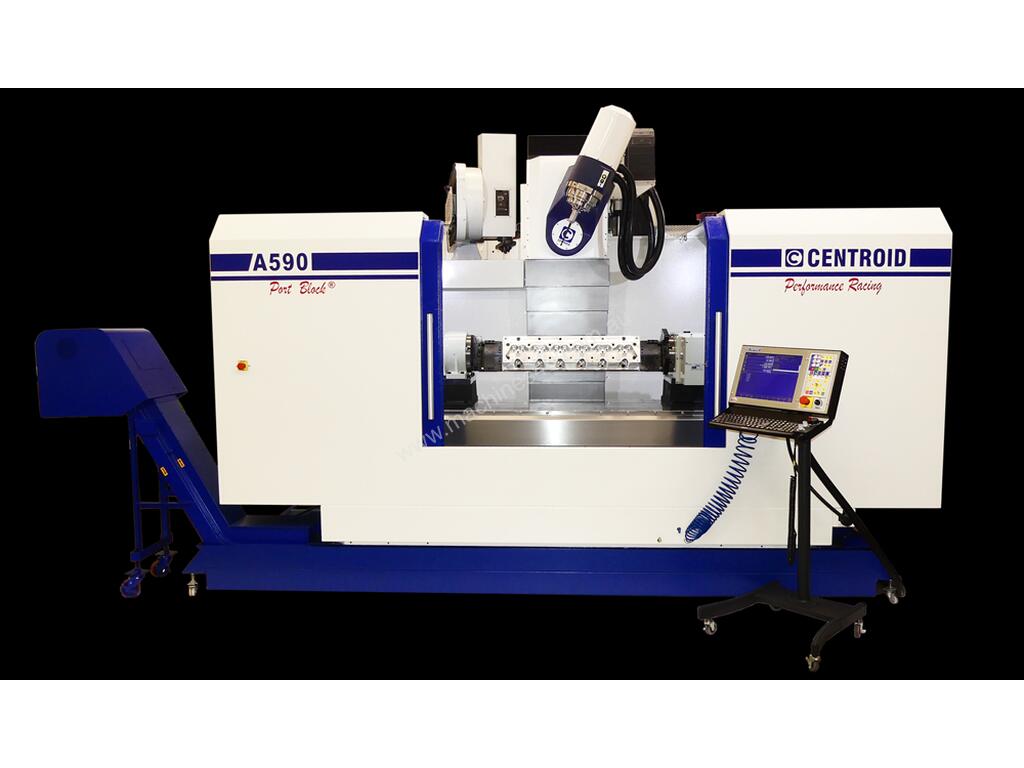

Centroid Performance 5 Axis Machining Centre

A590 Machine Specifications

Table Size 66.9" x 23.6" (1700 x 600mm)
Longitudinal travel (X) 59" (1498mm)
Cross travel (Y) 27" (685mm)
Vertical travel (Z) 36" (914mm)
Spindle center to column

Maximum table load 2425lbs (1099kg)
Spindle power 27 Hp / 20 kW or 40 Hp / 30Kw opt.
Spindle taper CAT 40
Spindle speed 20,000 RPM, 16,000 opt
Rapid feed rates (X,Y,Z) 1000 IPM XY (25400 mm/m) 800 ipm Z
ATC 24 Pocket Swing Arm Tool Changer
Guide ways Linear Guide way X,Y,Z
Accuracy 0.0005" (0.0127mm)
Repeatability 0.0002" (0.0060mm)
Axis drive motors (X,Y,Z) 2.9 Kw X,Y 4.5 Z AC Brushless Servos
Coolant pump 55 PSI 17 gal/min, 110 Gallon Capacity
Auto lubrication pump 2 Liter Capacity, 110v 2 amp
Power requirement 50-60Hz, 208-240v, 3-Phase 100A
Air requirement 90-100 PSI (6.2-6.8 Bar)
