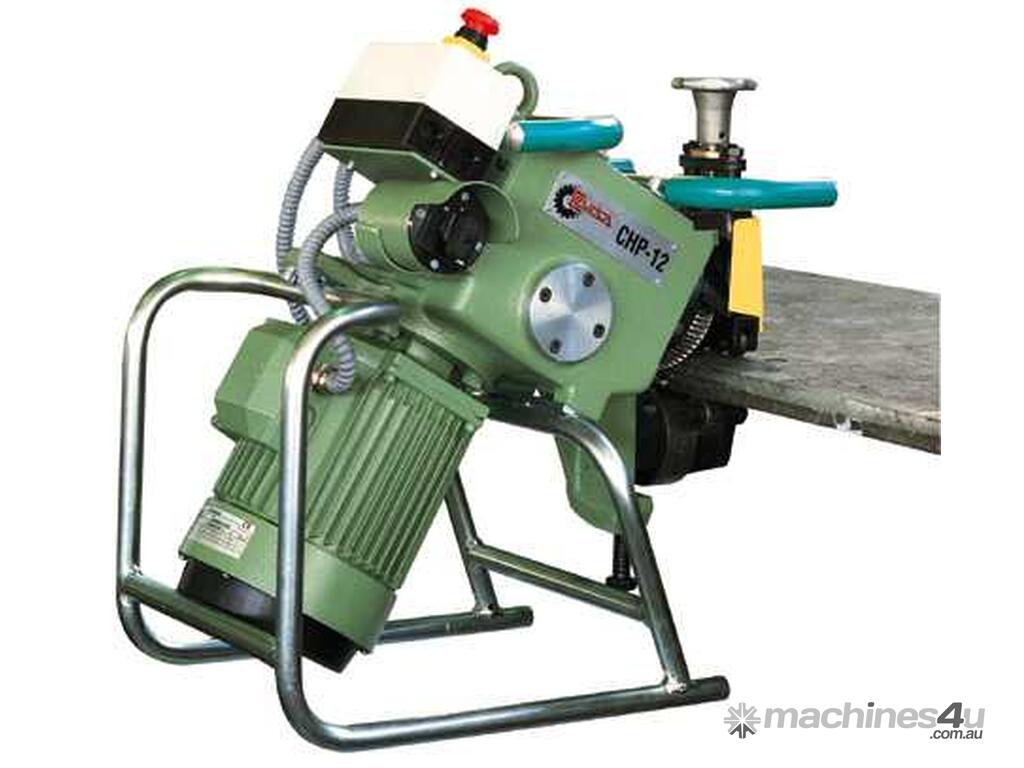

Cevisa CHP-12 Plate Beveller

Description

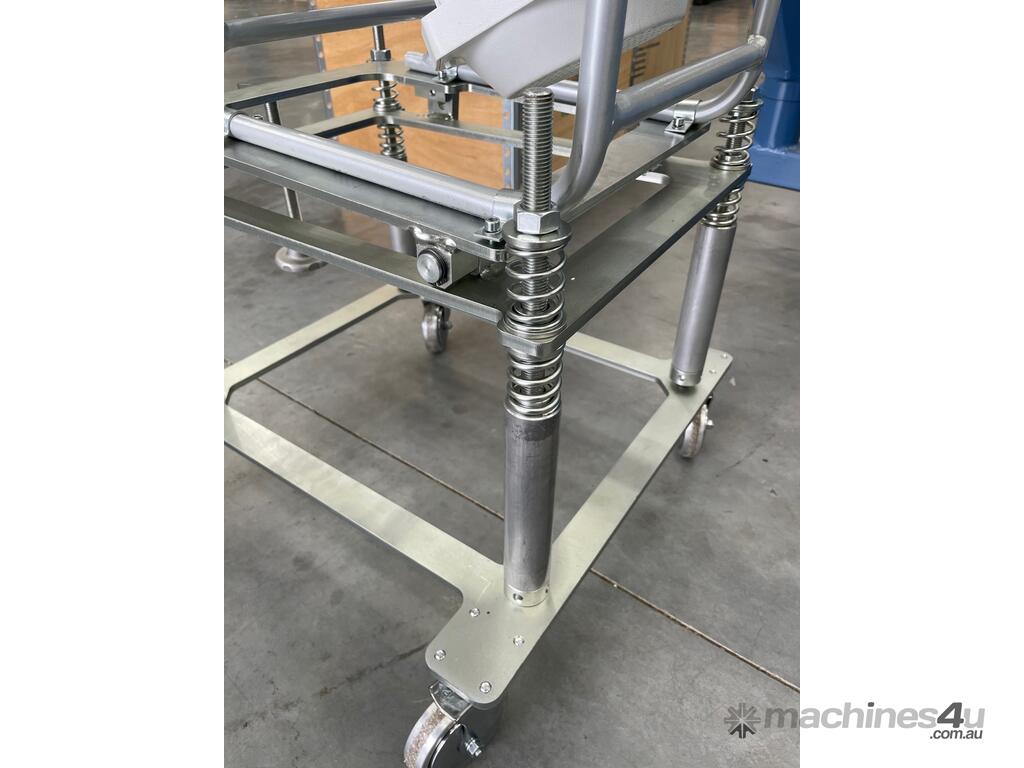

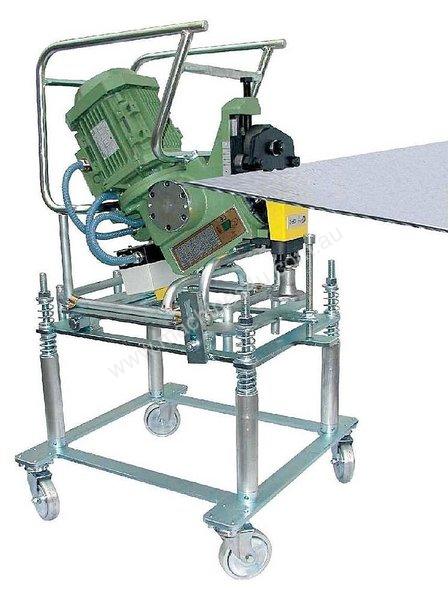

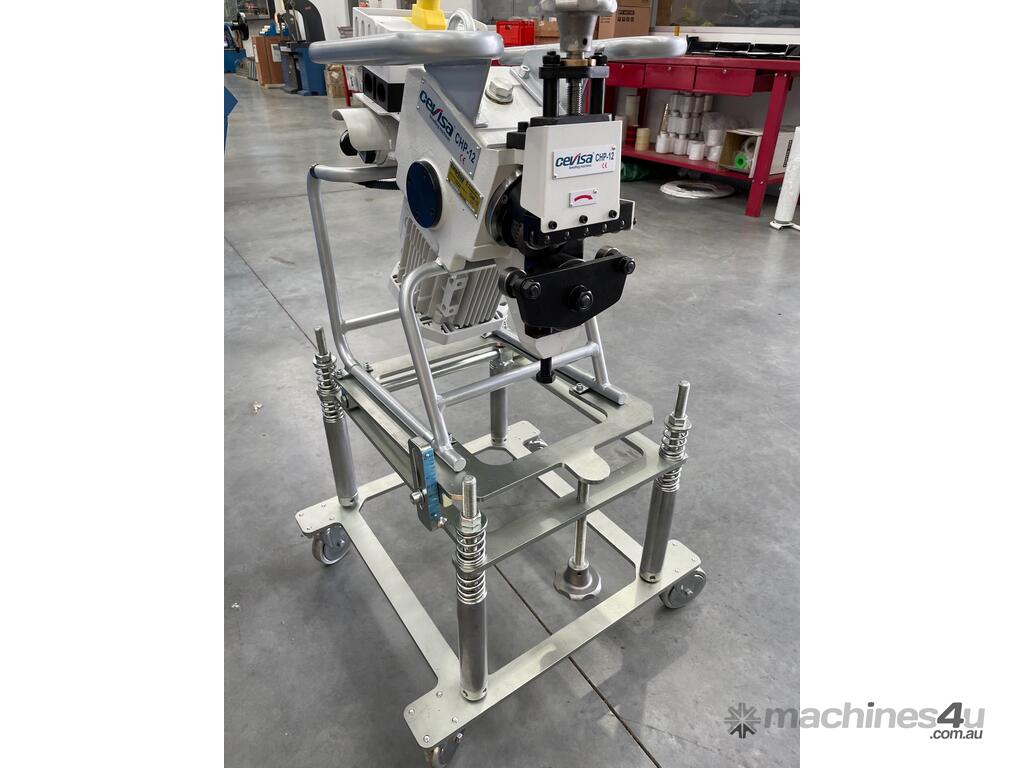

The CHP-12 is the most universal machine because it covers 80% of the applications for its type. It is versatile, adaptable and is easily transported on its own trolley.

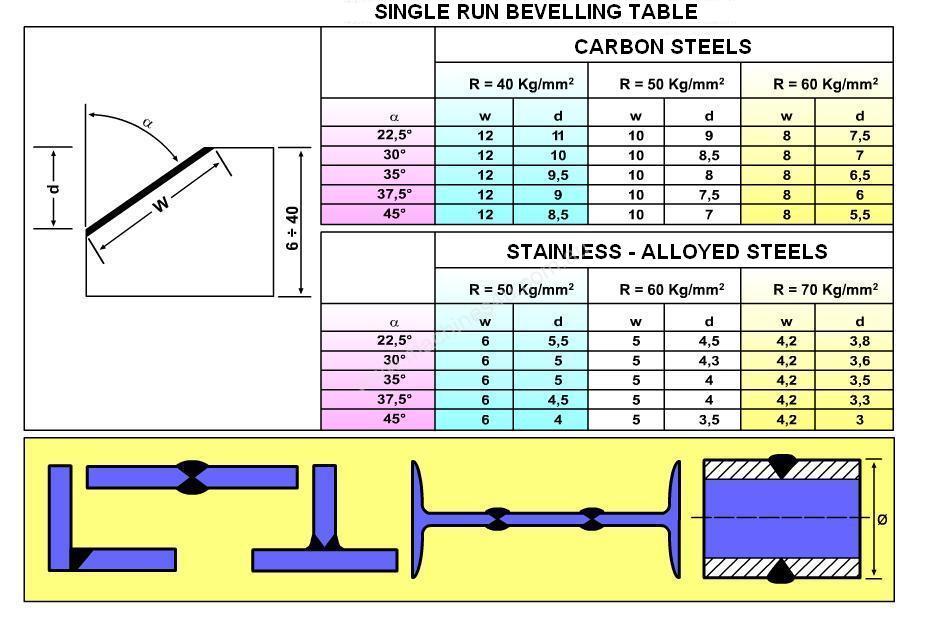

This machine performs 2,6 m/min. bevel to receive welding seams with 12 mm. depth in plates up to 40 mm. thickness and 40Kg/mm2 strength.
For full product information, please see attached pdf data sheets.
We also support all CEVISA Spare Parts - Call ASSET

Technical Data Snap-Shot

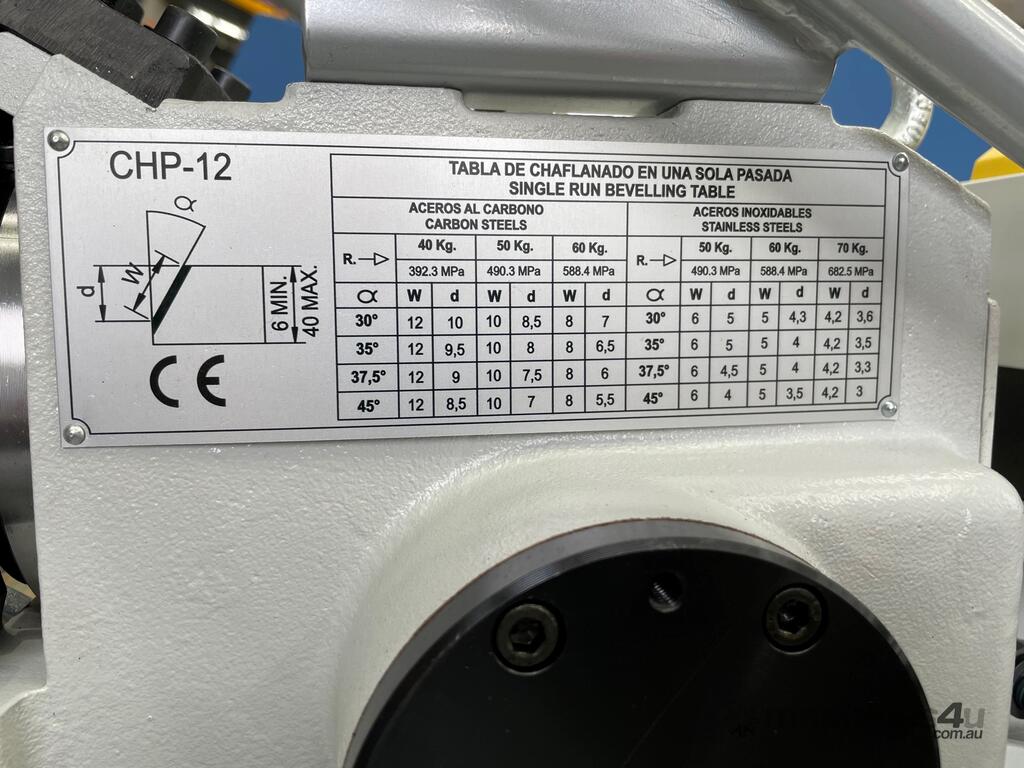

?12mm max. bevel depth in 1 x pass.330mm swing over bed
?6mm minimum plate thickness
?40mm maximum plate thickness
?1400 RPM
?2600mm beveling length per min.480mm swing in gap
?100mm diameter pipe beveling
?55mm min. plate width - optional devices to suit 25/32width - please ask us.
?65Kg machine weight
?3 H.P. Volt

Inclusions
?1 x angle vibration attachment

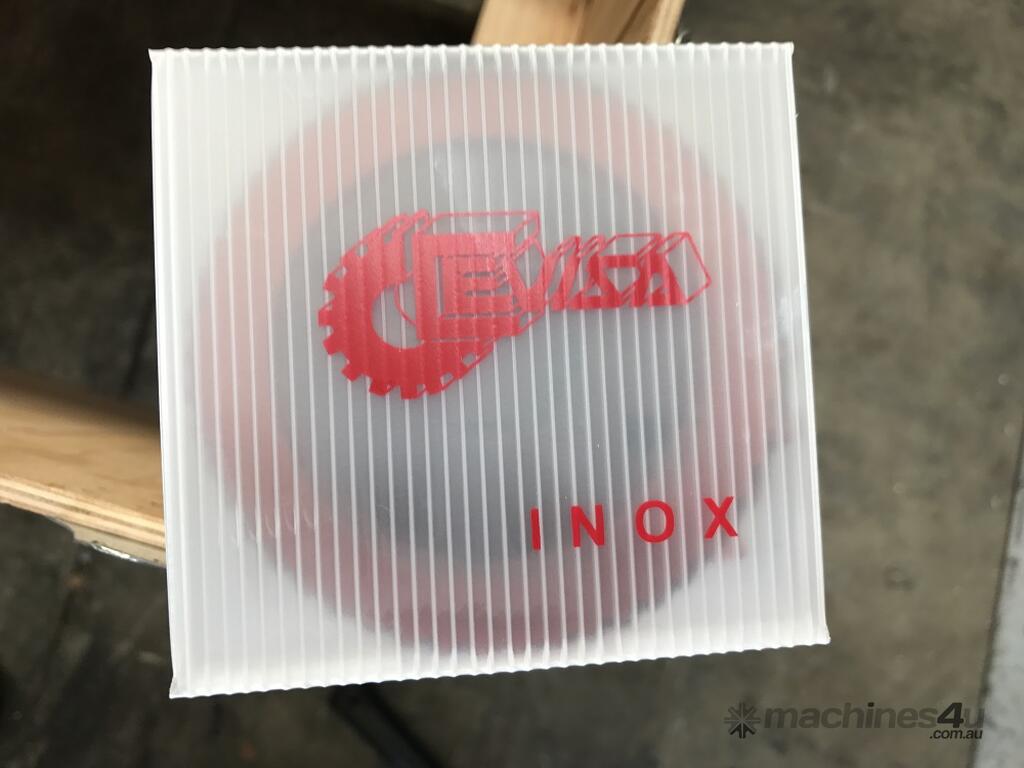

?1 x set milling cutters
?1 x set tube cutters
?tool box and operation manual

We also support all CEVISA Spare Parts - Call ASSET

The CHP-12 is the most universal machine because it covers 80% of the applications for its type. It is versatile, adaptable and is easily transported on its own trolley.

This machine performs 2,6 m/min. bevel to receive welding seams with 12 mm. depth in plates up to 40 mm. thickness and 40Kg/mm2 strength.

For full product information, please see attached pdf data sheets.
