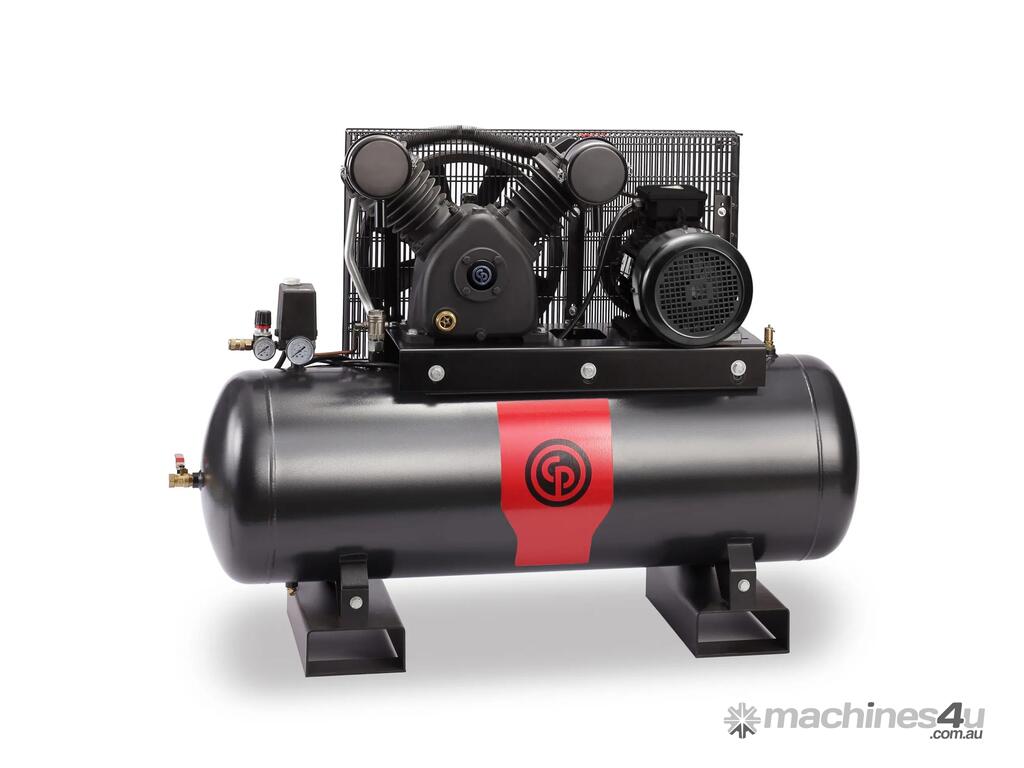

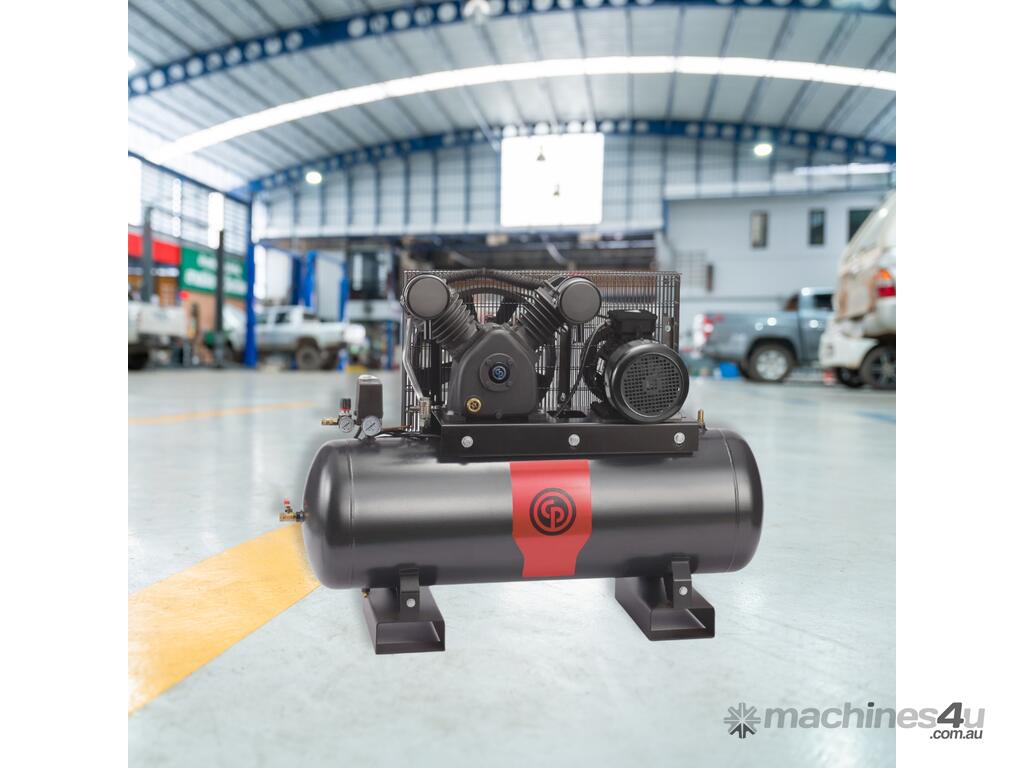

Chicago Pneumatic CP Ironman 5-150 AUS 150L 5.5HP Tank Mounted Three Phase Piston Air Compressor

Chicago Pneumatic CP Ironman 5-150 AUS 150L 5.5HP Tank Mounted Three Phase Piston Air Compressor

Piston compressors with fully cast iron blocks: a reliable and robust range, built with top quality components. The pumps are running at low speed, to guarantee lower noise levels and extended lifetimes, but they still guarantee a great performance, and they are perfectly suitable for the more demanding and intensive applications.

Slow turning, long lifetime cast iron pumps, providing strong performance.
Optimal cooling is guaranteed by using cylinder heads with deep cooling fins, a cast iron flywheel and a strong copper outlet pipe.
The large oil sight glass makes it easy to check the oil level. The long lifetime and low wear level of the pump are made possible by making use of a cast iron shaft, connecting rod and cylinders.
Losses are minimized thanks to the use of stainless steel valves and valve plates.

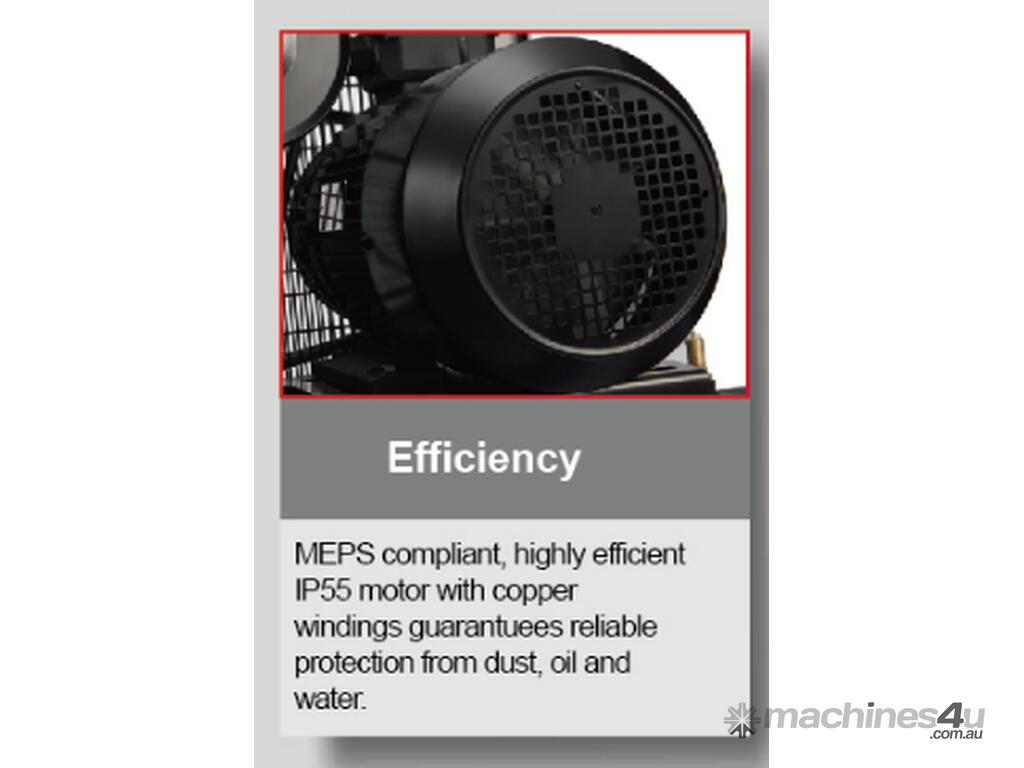

Efficiency: MEPS compliant, highly efficient IP55 motor with copper windings guarantees reliable protection from dust, oil and water.

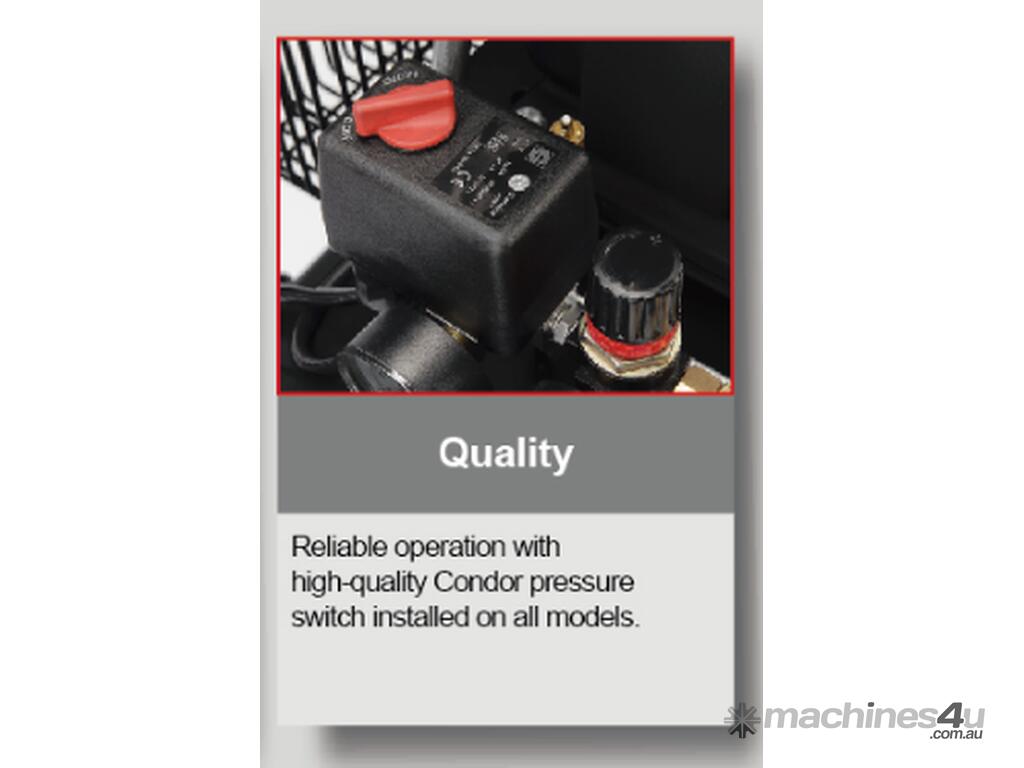

Quality: Reliable operation with high-quality Condor pressure switch installed on all models.

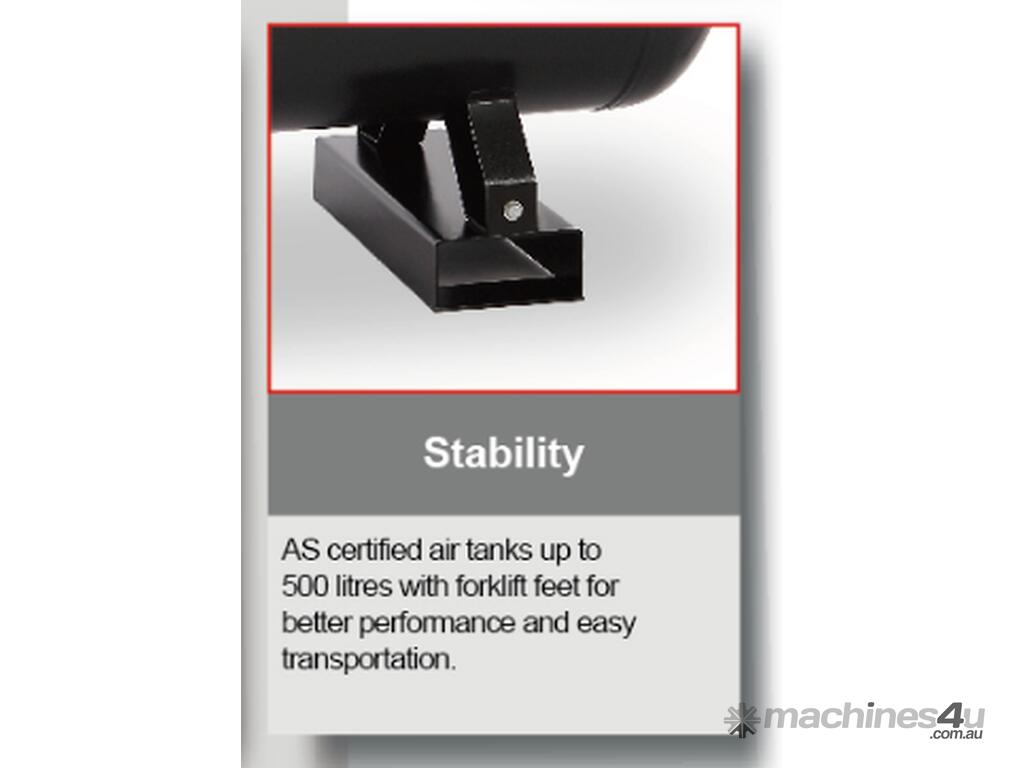

Stability: AS certified air tanks up to 500 litres with forklift feet for better performance and easy transportation.

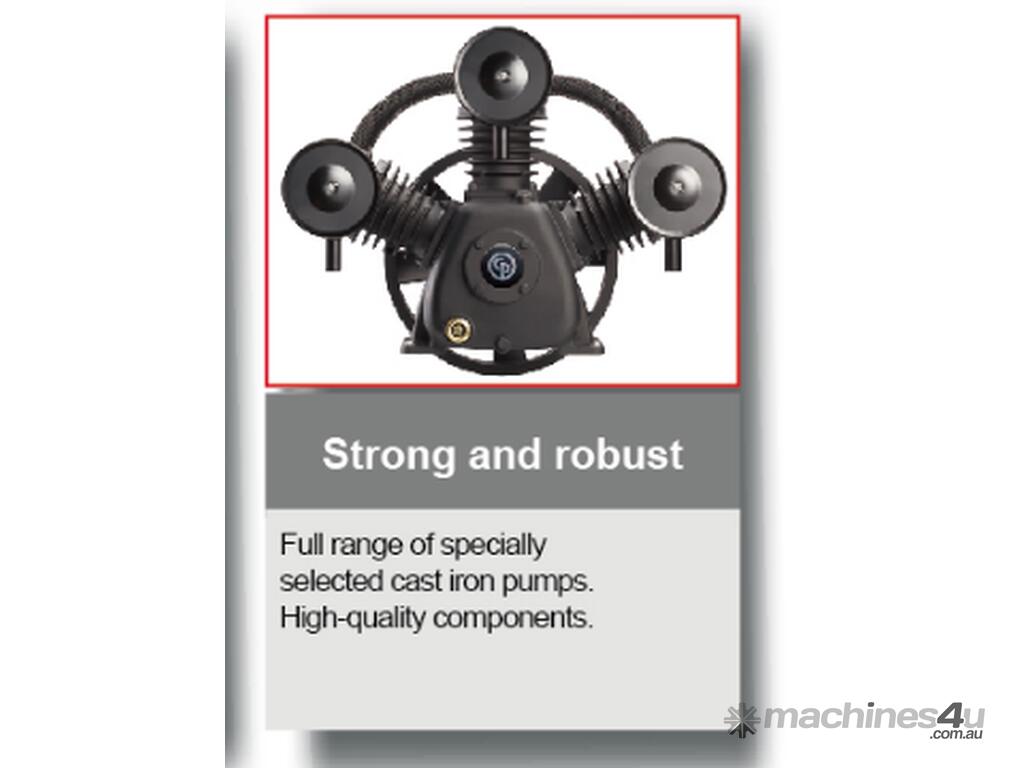

Strong and Robust: Full range of specially selected cast iron pumps. High-quality components.

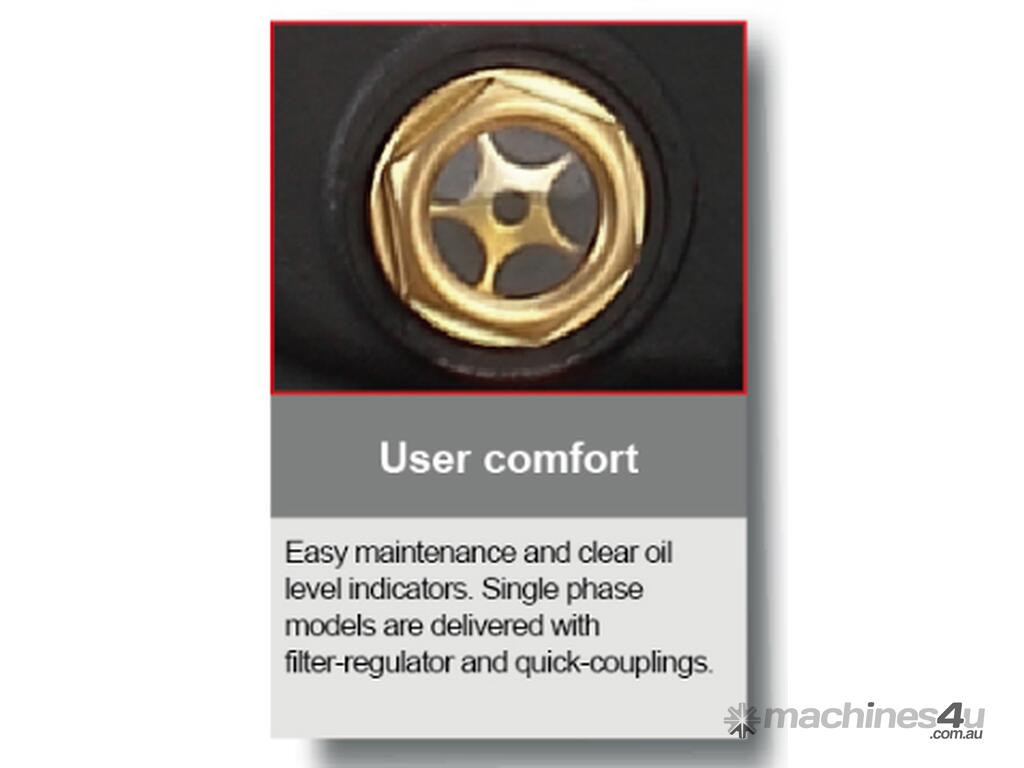

User comfort: Easy maintenance and clear oil level indicators. Single phase models are delivered with filter-regulator and quick-couplings.
Easy to Move: To improve mobility the single phase units are equipped with two solid, rubber wheels and feet.

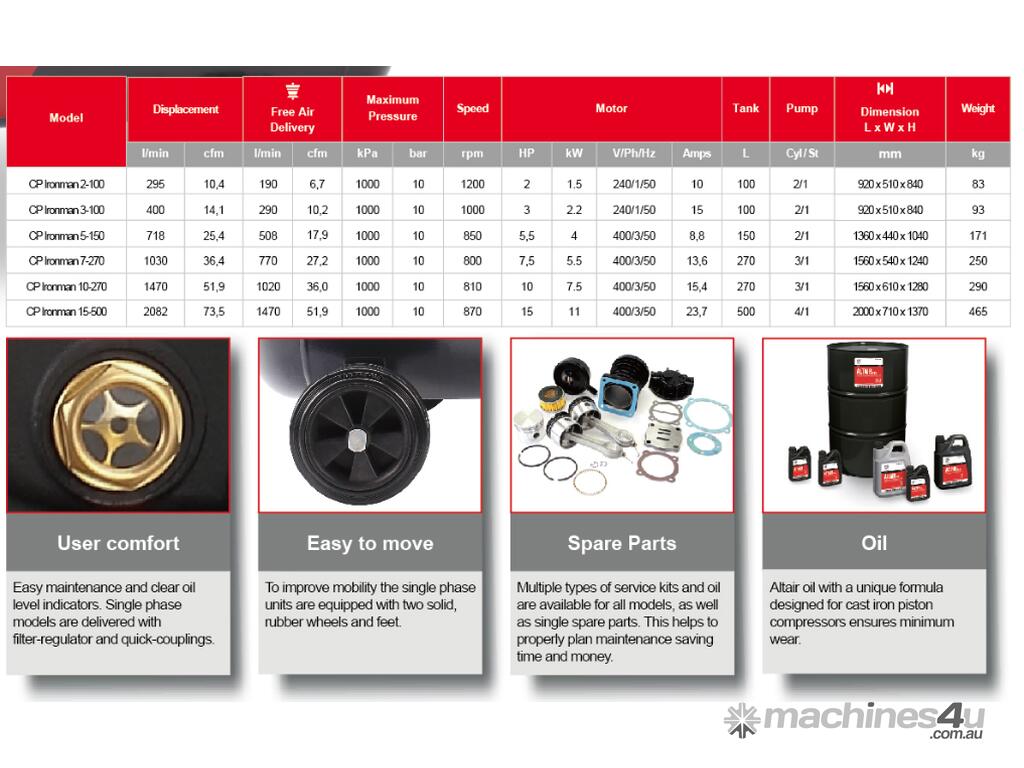

Specifications:

Specifications:
Free Air Delivery 17.9 cfm | 508 l/min
Motor Size 5.5 hp | 4 kW
Ideal Usage Professional
Pump Displacement 25.4 CFM | 718 (l/min)
Tank Sizes 150L
Type Cast Iron
Weight 171 kg
Dimensions 1360 x 440 x 1040 mm
Noise Level 73 dB(A)
