Chisel Morticer SEDGWICK Made in England

MADE IN ENGLAND "QUALITY"
New SEDGWICK S713 Chisel morticer

SPECIFICATION
MAX CHISEL SIZE HARDWOOD-SOFTWOOD
19mm-25mm

TIMBER CAPACITY
255x150mm

STROKE OF CHISEL HEAD
120mm

TABLE SIZE
500x160mm

TABLE MOVEMENT - LONGITUDINAL-LATERAL
430mm-80mm
MOTOR RATING
1.1Kw

DIMENSIONS – Length x Width x Height
735x630x1520mm
NETT WEIGHT
169 Kg

Please note; Prices include freight and shipping costs to Metro areas.

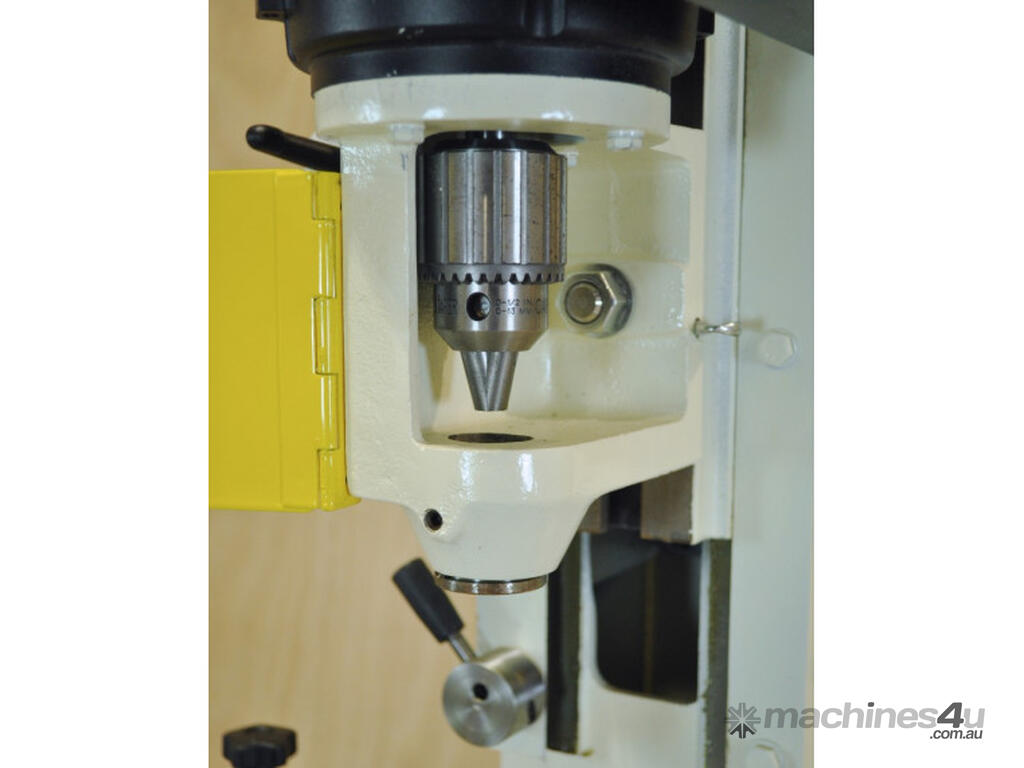

The Sedgwick 571 Hollow Chisel Morticer features a cast iron base, column, table, and slideways, which provide a rigid and durable mainframe assembly onto which to mount the cast iron chisel head and motor. All slide movements are easily adjusted by a single dovetail slide for ease of maintenance. The chisel head assembly is counterbalanced by a weight, giving fingertip control to the rise and fall and eliminating the breakages associated with spring type mechanisms. Its 1.1Kw IE2 High Efficiency Motor provides ample power for continuous duties and is fitted with a fully guarded ½” capacity adjustable chuck. Unlike a collet type system the chuck holds the auger firmly round its circumference, true to the centre line of the chisel, securing longer tool life and better cutting capability.
The table has longitudinal and lateral movement on a single handwheel, not only for ease of operation, but also for more precise positioning: lateral adjustment of the table being better controlled by a central screw. The angled timber clamp is adjustable on a tee slot, giving a maximum timber width of 150mm. Coupled with the height adjustable chisel head which can give a maximum timber height of 255mm underneath the chisel, the Sedgwick 571 has exceptional capability. For repetition work there are longitudinal stops along the front of the table, a marking out rail complete with turnover stop along the rear; and 2 position depth stop for haunching.
The switchgear has no volt release, thermal overload protection, and a mushroom headed stop button.
