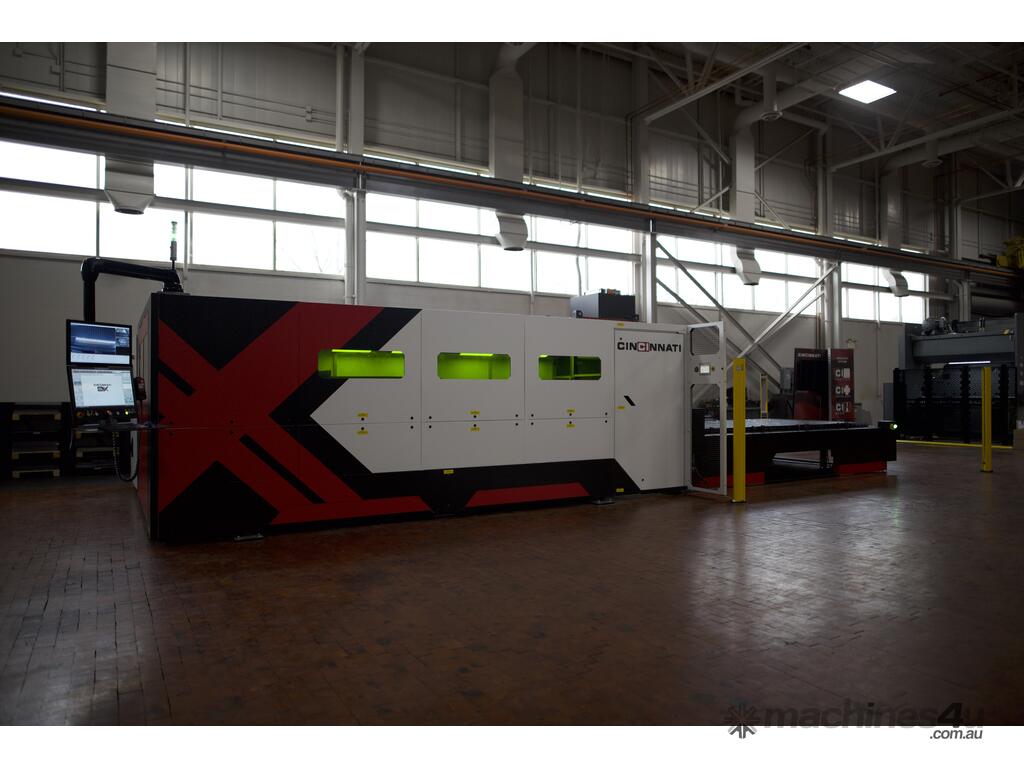

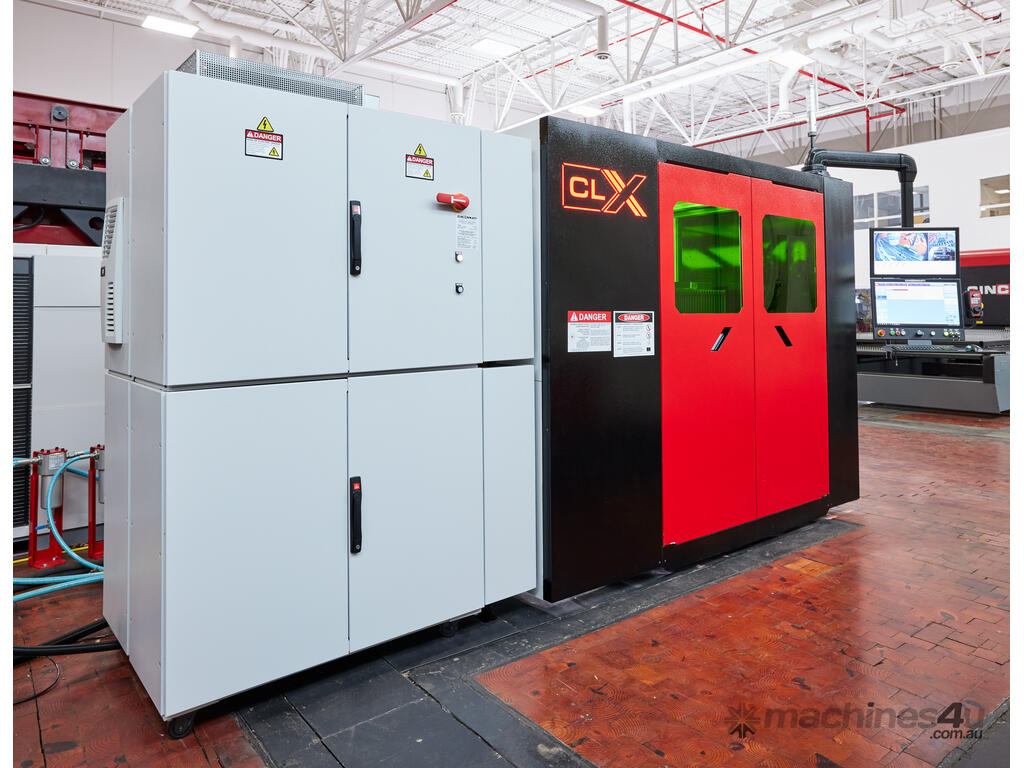

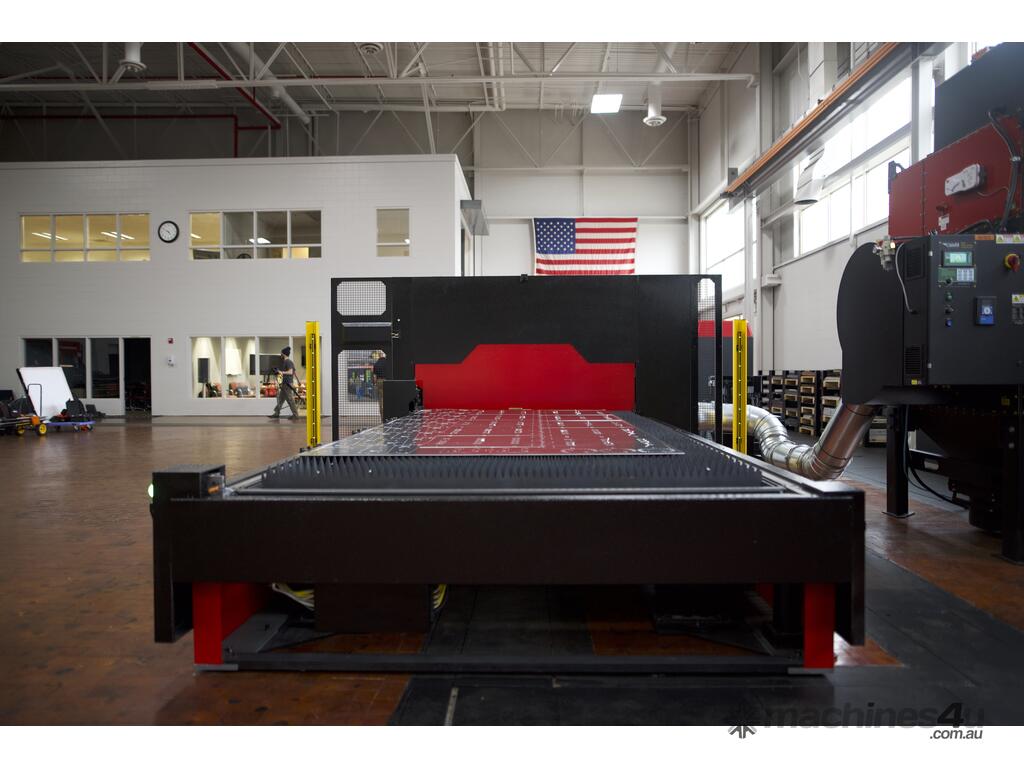

Cincinnati CLX 3015 Fiber Laser Machine

Cincinnati’s new range of Laser machines have been developed with the customer in mind.

The CLX is a fiber laser that has a wide range of power from 5kw to 15kw, meaning it can handle all kinds of material types and sizes. The hardware-based back-reflection protection allows the processing of even the most reflective metals with no interruptions or damage to the laser. It also has slats designed and modular for quick changeover and strength that maximize vertical strength. And debris removal is fast and easy.

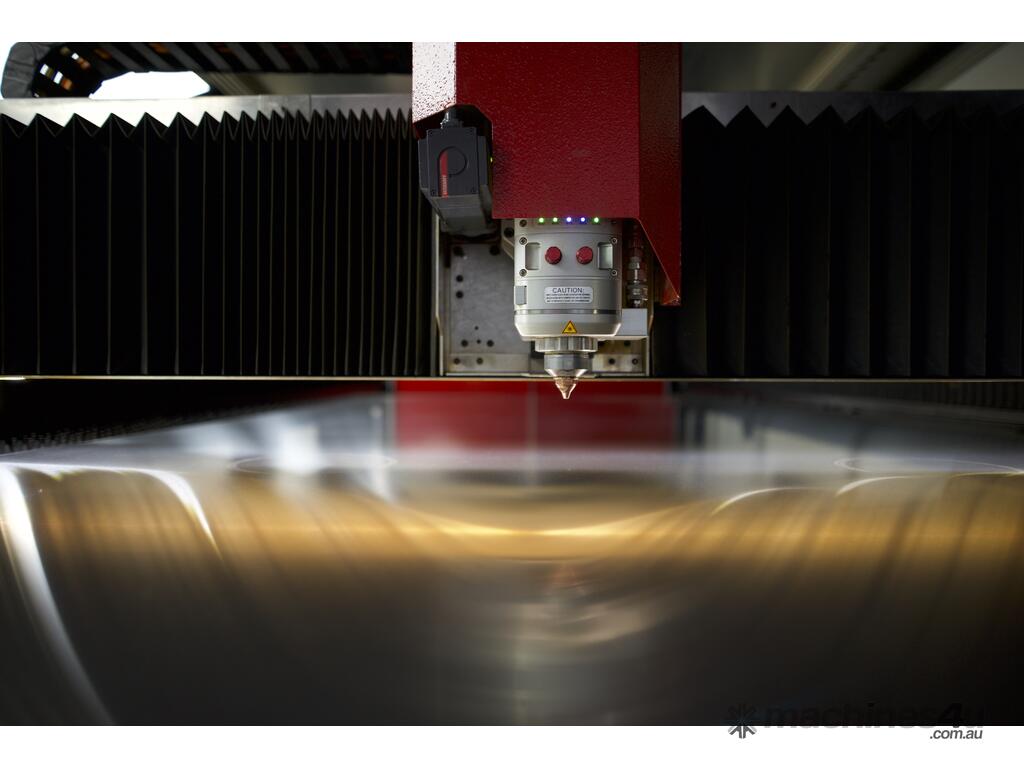

The CLX’s FIberCut 2Dx Cutting head has been redesigned for high power with high-power beam modes through the use of large-diameter optics and better gas flow for better cutting results.

The all new dual touchscreen controls every aspect of your machine with the high resolution, 22” dual touch screen monitors with integrated nesting and access to 3 internal webcams to view your progress in action.

Key Specifications

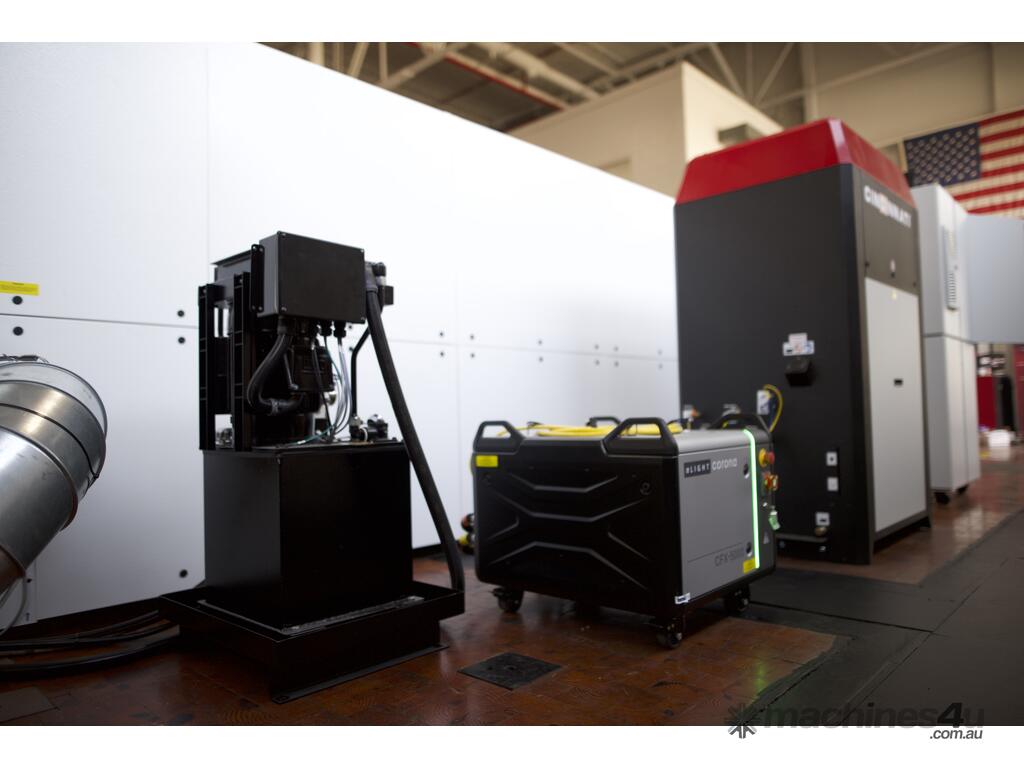

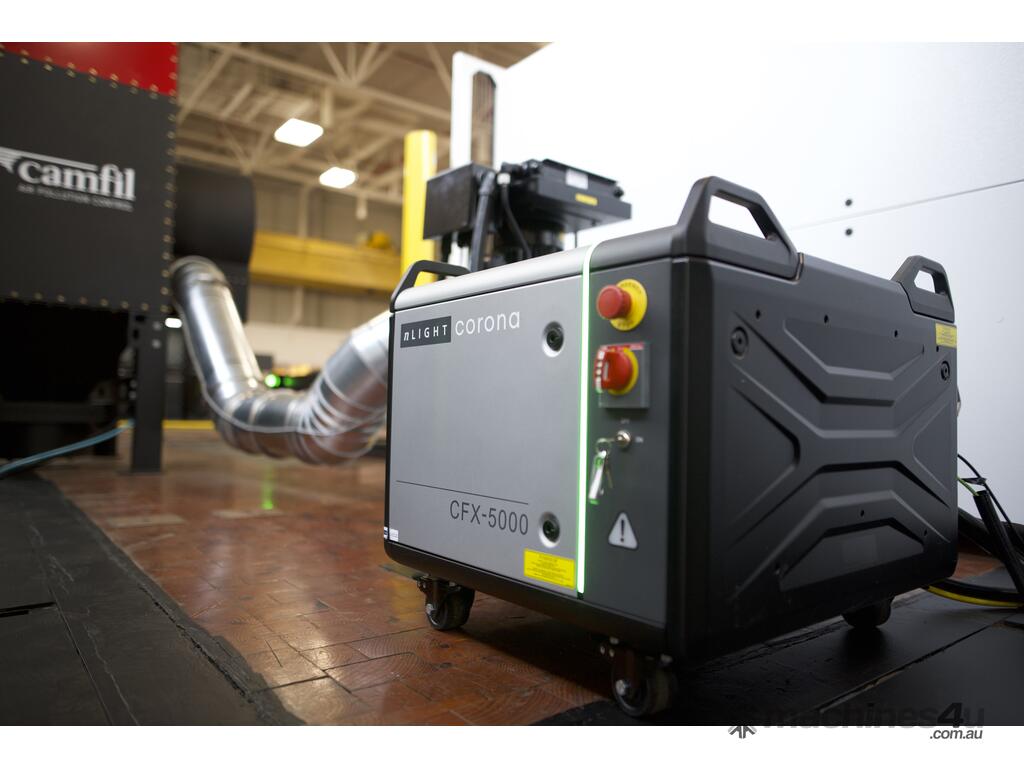

NLight series unit
Integrated BECKHOFF controls package
TwinCAT real-time control with PLC, NC, and CNC functions in a single package
TwinSAFE, Advanced hardware and software package
HMI with twin 24- inch Multi-Touch sensors
FiberCUT 2Dx cutting head, designed for high power, high performance lasers
3000 x 1500 Maximum Sheet Size

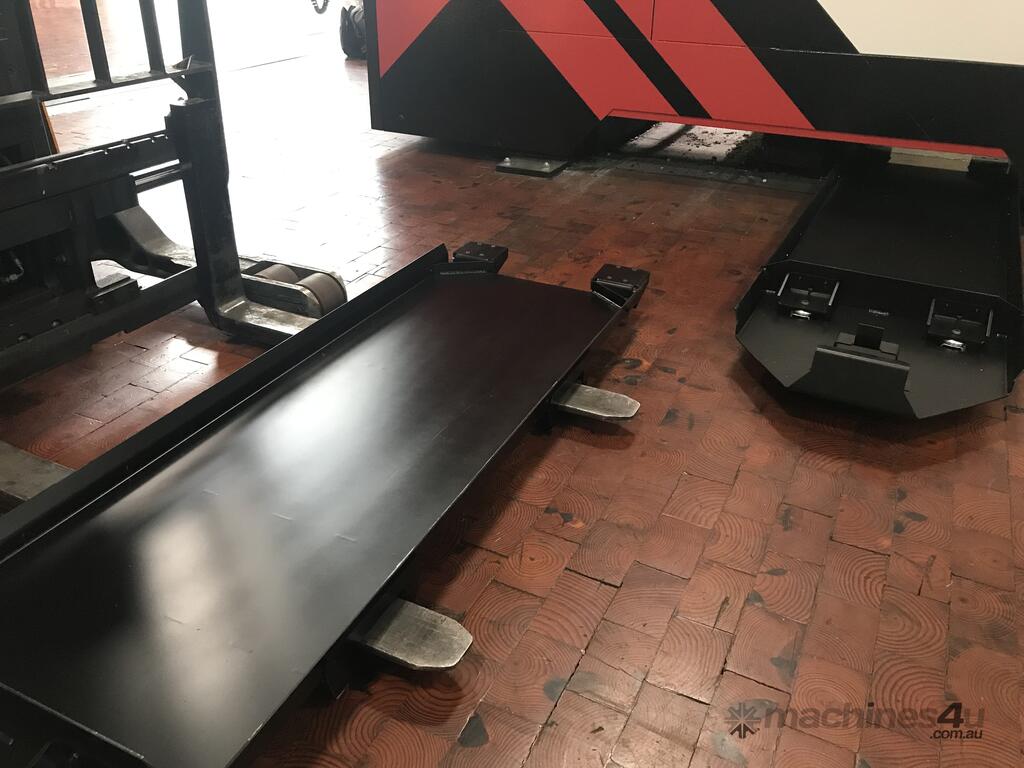

Hydraulic load table with 2 cutting pallets
0.002" / 20" Positioning Accuracy (X & Y Axis)
±0.00012" Repeatability (X & Y Axis)
6,693 IPM Simultaneous Rapid Traverse Speed (X & Y Axis)
