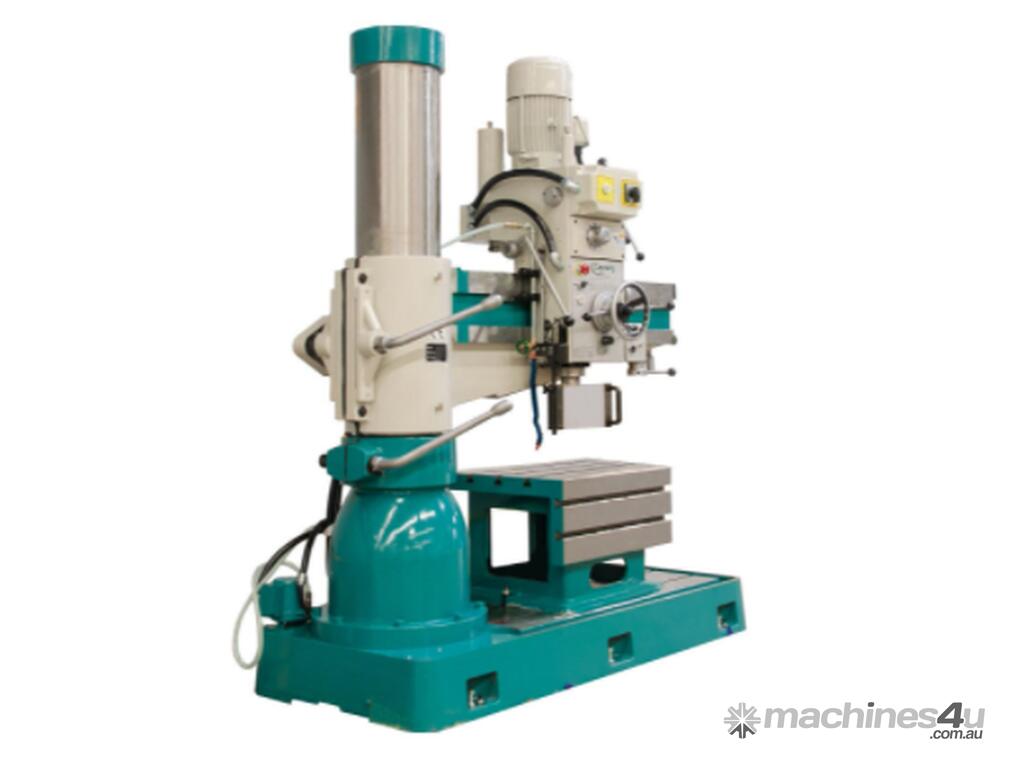

Clausing CL1100 Radial Drill

Super Seeded Model. Huge Saving

Features and Benefits:

Radial Arm Drills allow for drilling and boring small to massive holes in large oversize workpieces. Clausing’s Radial Drill design allows for the spindle head to move along the length of the arm and the arm height to be adjusted and rotated. This allows for precise drilling along many angles.

Special spindle balance mechanism, superior to a traditional balance mechanism extends Balance Spring life. Hardened and Ground steel gears, double-walled column, large bearing surface for easy arm rotation, hardened steel wear strips for excellent head travel, power spindle feeds with an efficient coolant system, make Clausing Radial Drills your choice for the tough jobs. Clausing radial arm drill presses can be NRTL certified upon request.

Clausing Radial Drill

43.3” Arm, 25.1 x 20.4 x 16.5 Box Table, 1.65” Drilling Capacity Steel, 1” Tapping Capacity Steel, 3 Hp 2-Speed Spindle Motor, W/CE Electrics, Spindle Guard, 12 – Speed Geared Head, 44 to 1500 rpm Spindle Speed, Self-Contained Coolant System, 230/460 Volts 3 Phase
