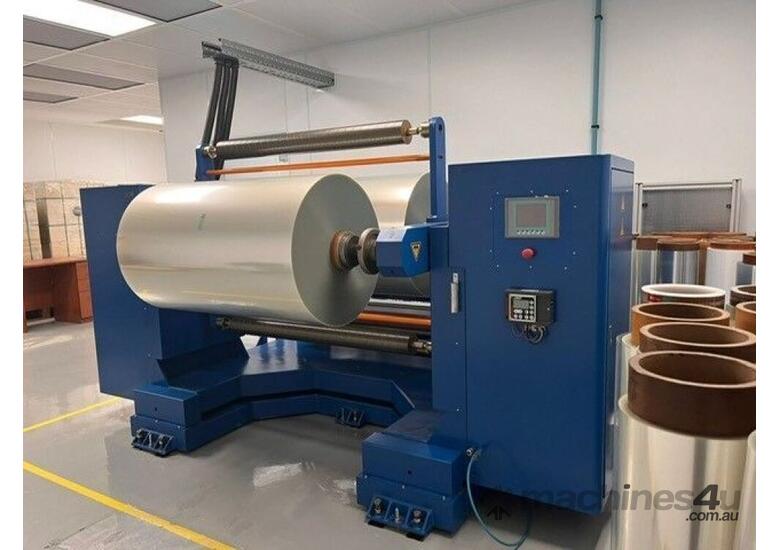

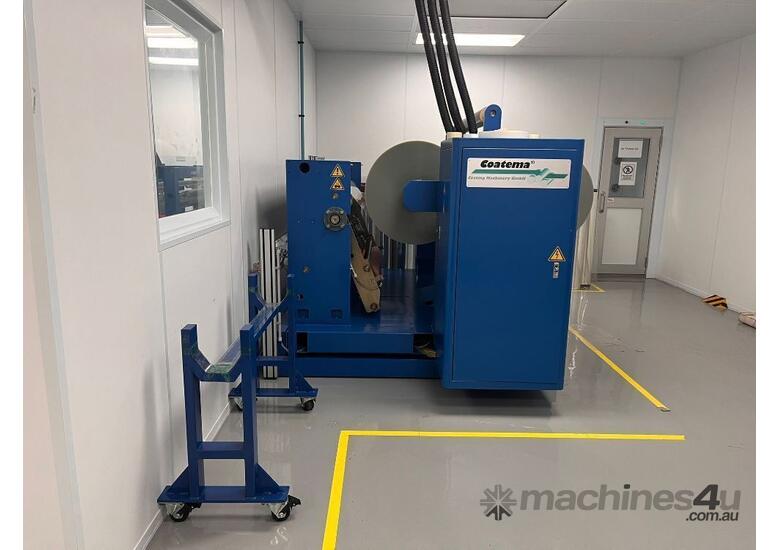

Coatema LC 32 Coating Line

Dimensions approx: 31m L x 2.8m W x 4.2m H
Coating with: up to 1150mm
Substrate width: 1200mm
Guilding roller diameter: 100mm
Coating thickness: 0.2 - 10 um dry, depending on the used chemicals
Substrate: PET/PP
Substrate thickness: 25-188 um
Soliid content: approx 40%
Solvent: Xylene, Toluene
Coating materialo: Silicone
Drying technology: Hot air approx. 100kW per 3m section
Heating medium: Thermo oil
Tension: 25-250 N/working width
Max. drying temperature: 180 degrees C
Circulation air volume: 2 x 1250m³/h per section
Exhaust air volume dryer: 2500 m³/h per section (15000m³/h total)
Exhaust air volume coating unit: 850m³/h
Machine speed, mechanical: 6.0 - 60.0m.min
Colour: Blue RAL 5017
Layout: IP 54/partly Ex
Voltage: 400V, 3/N/PE 50Hz
Water: Approx 2m³/h
Air pressure: 6 bar required at user side
