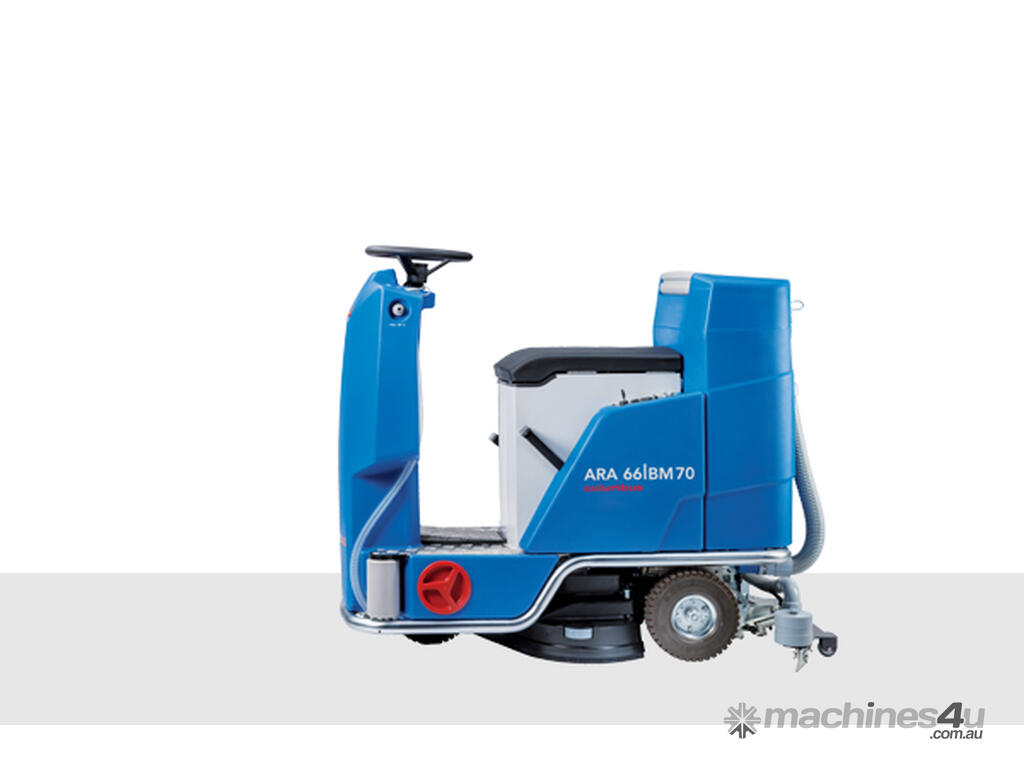

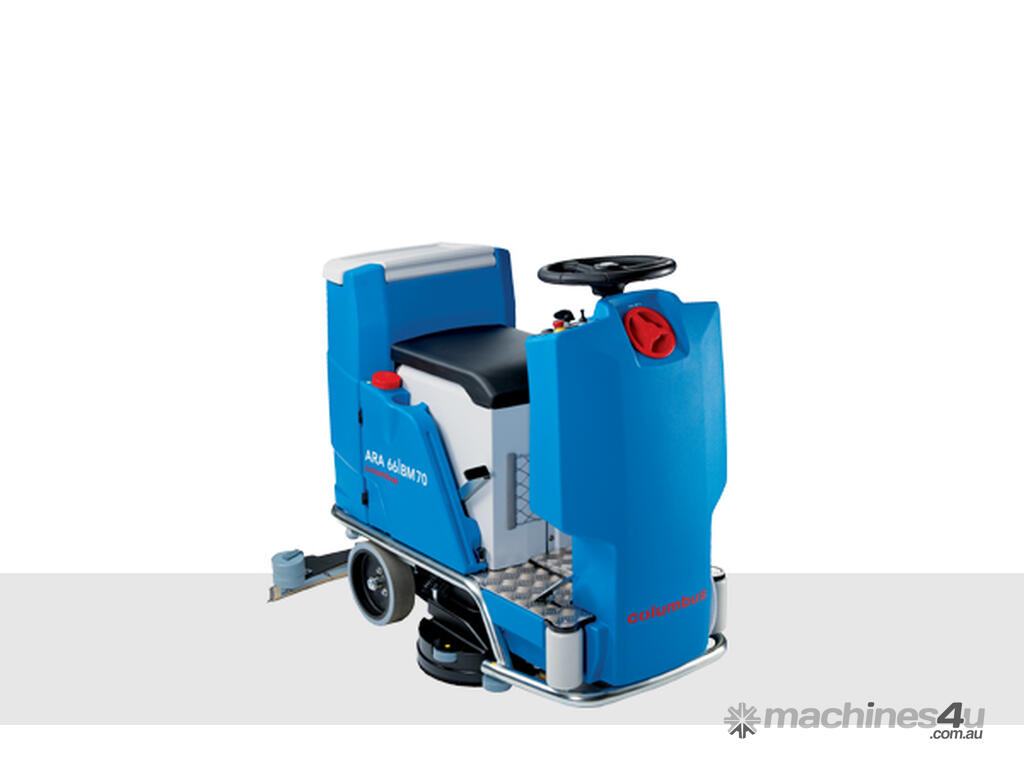

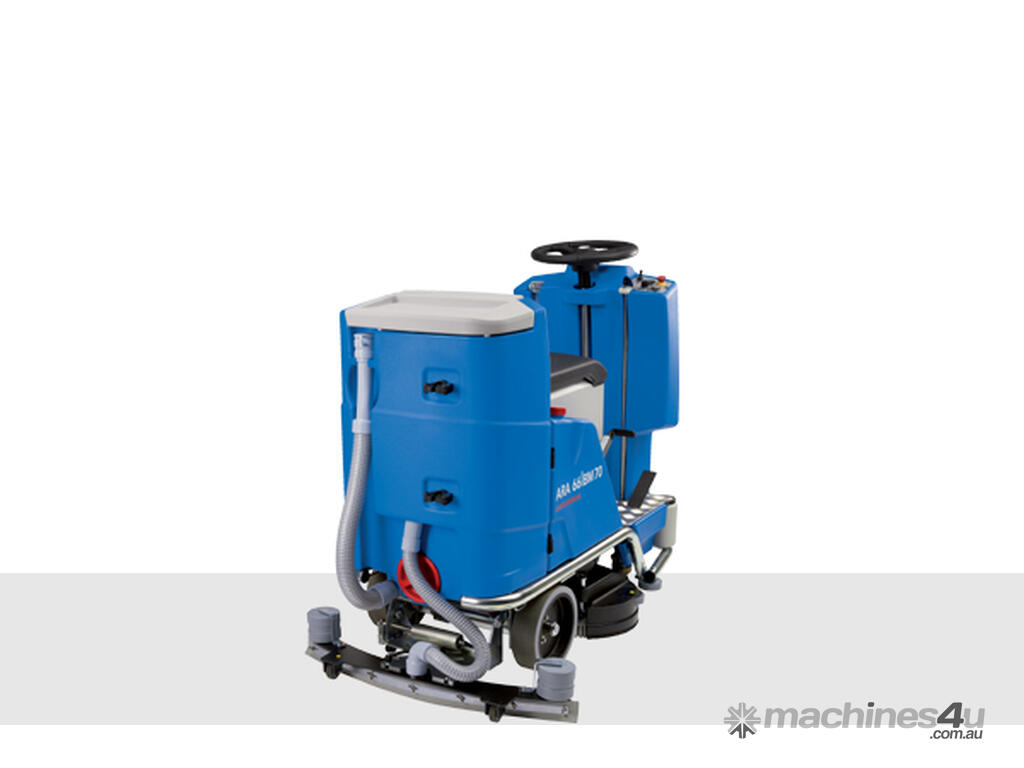

Columbus ARA 66|BM 70 Scrubber-Dryer

With a capacity of 70 litres, this ride-on scrubber dryer from columbus can perform efficient operations, even – and especially – in hospitals, supermarkets and other small buildings even with cramped and heavily-furnished areas.
The standard electronic water dosing system allows exact water supply following the needs of different cleaning tasks.
Whether the operator is just 155 cm or 195 cm tall, the long seat allows everyone to find the right position to work fatiguefree and relaxed.
An extremely small turning circle of just 1.65 m.
Fast, easy and hygienic changing of brushes and pad holders: the brushes and pad holders do not only spin-off with the press of a button, they also spin-on automatically.
Fresh water can be filled up in an instant – via the integrated, industry-standard system connector or via the large filling opening.
HACCP hygiene standards: the solution and recovery tank have inspection openings and can be thoroughly cleaned, the lid seal can be removed without tools.
Robust mechanics instead of electronics: simple operating switches to turn the machine on and off and for forward and backward movements. Mechanical lowering of brushes and squeegee.
Powerful traction motor and rearwheel drive allow scrubbing on inclines of up to 12%.
Optional: silent-version that operates at only 59 dB(A) and a security-kit for advanced security when used in facilities that are open to the public.
Environmentally friendly: the optional chemical dosage provides for a consistently high cleaning level with a low consumption of cleaning products. The 8 litres chemical tank can be removed without tools.
A faster clean: the area covered every hour is up to 600 m² larger compared to the performance of walk behind scrubber dryers of the same size.
Operators can act quickly and flexibly thanks to a low step height, an open cockpit on both sides and a spacious footwell.
Just 138 cm long and 85 cm wide, the ride-on scrubber dryer it fits into all standard lifts and and can easily negotiate narrow checkout areas.
Easy service: the seat can be lifted up to provide free access to batteries and components.
The arch-shaped squeegee tool with patented mounting system adapts actively to the movements of the machine and will perfectly pick up without leaving any waste water even on tight turns.



dimensions (WxLxH)



1380x680x1170 mm


voltage

24 V


rated current (total)

1690 W


area efficiency

4620 m²/h


empty weight

187 kg


operating weight

456 kg (180Ah)


noise level

63/59 dB(A)

BRUSHES


working width

660 mm


number

2


rotation per minute

180 U/min.


pressure force

30 kg

SUCTION


suction width

850 mm

TANK


solution tank

70 l


recovery tank

80 l

DRIVE


drive motor

750 W


speed max.

6 km/h


reverse gear, max.

3,5 km/h

BATTERIES


number of batteries

4


capacity wet

200 Ah 5


capacity gel

180 Ah 5


operation capacity net

3,5 h
