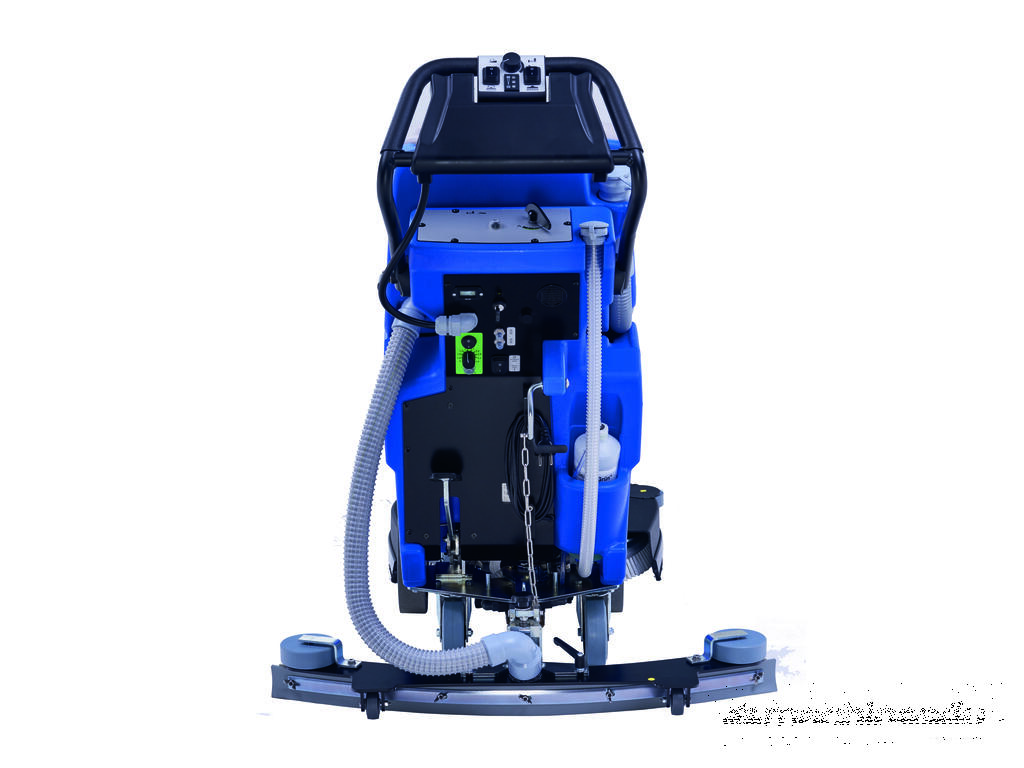

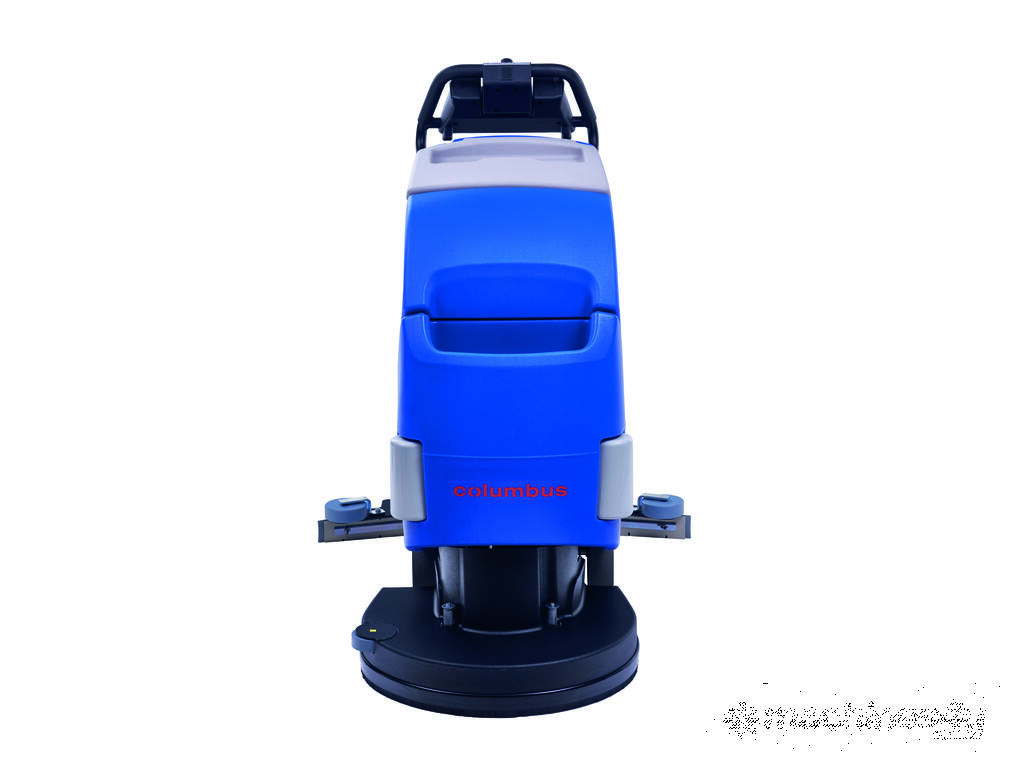

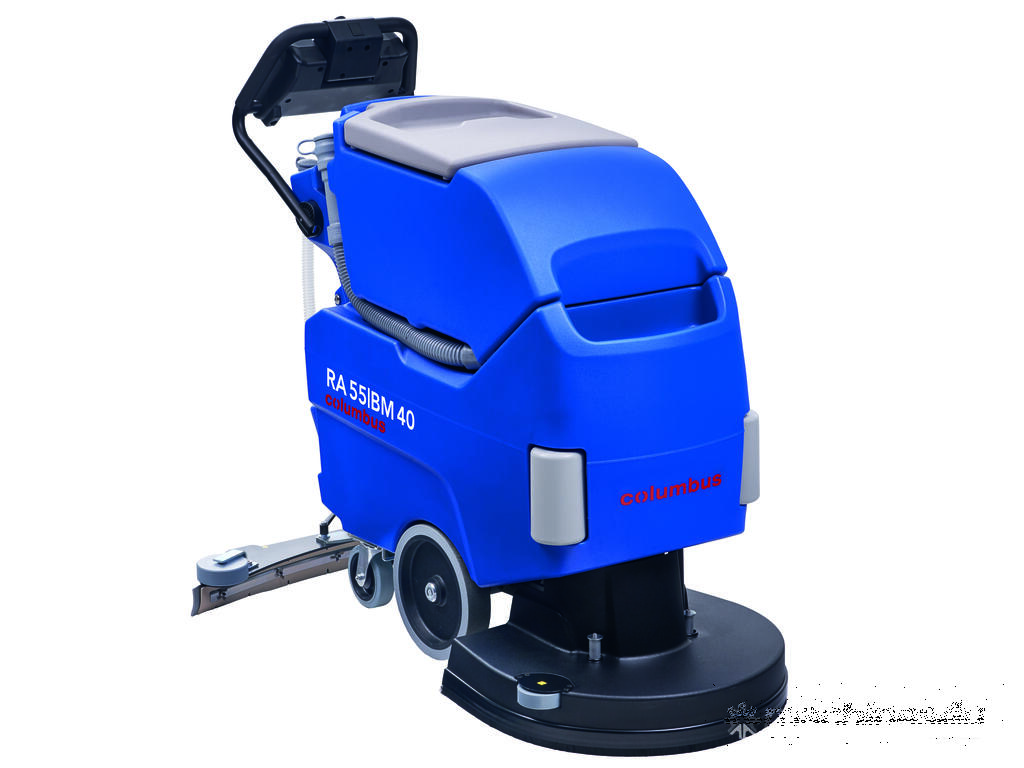

Columbus RA 55|BM 40 Scrubber-Dryer

The universal scrubber dryer is available in various specifications – for multiple applications on all floors.
Easy to operate without interruption of the working times with rugged mechanics instead of electronics: two functional switches on the handlebar, mechanical lowering of brush and squeegee tool.
Quick-Stopp as standard: fresh water filter and magnetic valve for safe and comfortable working: brushes and water supply stop automatically by releasing the handle.
Infinite dosage: the right amount of fresh water for any application.
Innovative lateral bumper rollers protect machine and other objects.

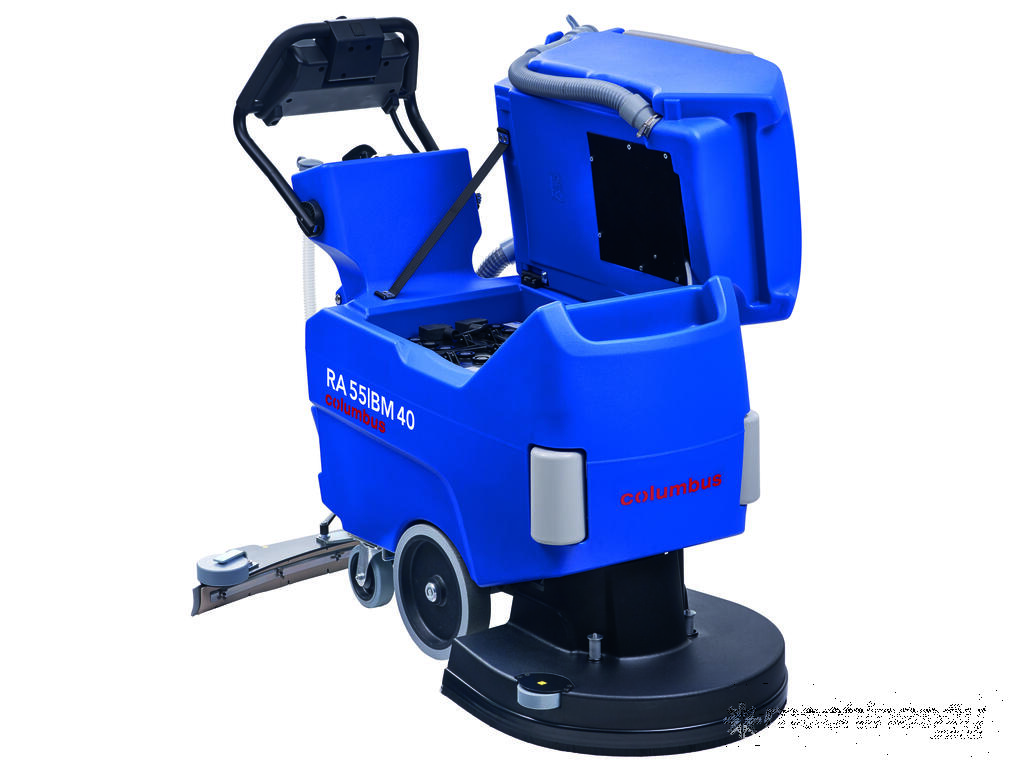

Service-friendly: easy maintenance with open access to battery and components.
Hygienic according to HACCP standards: the scrubber dryer features a removable recovery tank with an easy to replace cover gasket for thorough cleaning and disinfection – the only one in its class. Excess fresh water can be drained completely.

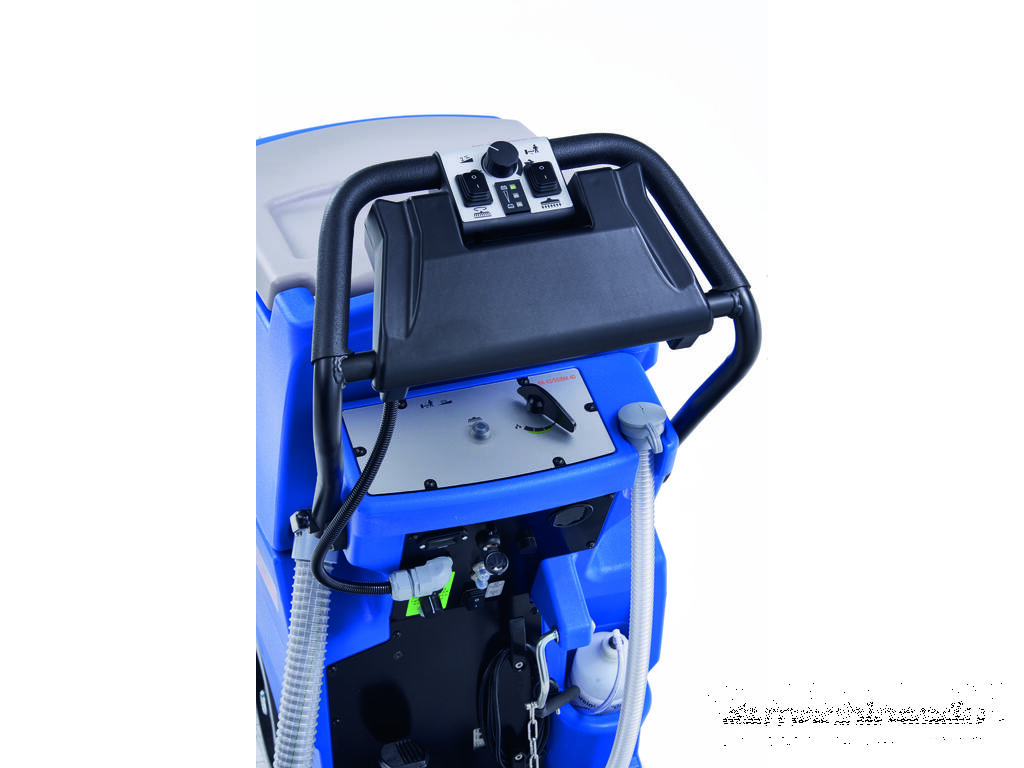

Intuitive, fatigue-free and safe working: height-adjustable handle bar, easy to operate control panel with ergonomic rocker function for back- and forward movements.
Easy-to-read fresh water level indicator integrated into the drain hose.
Optional splash guard for the brush head. Reduces water and chemical consumption and is eco-friendly.
Optional silent version operates at a sound level of only 60 dB(A) for cleaning in sensible appli- cations.
Optional features for customization: with/without traction motor, two different cleaning widths, with/without integrated battery charger, with/without chemicals supply system, battery capacity from 76 Ah 5 to 110 Ah 5.
noBAC® version optional: antibacterial tanks for every kind of sites with stringent hygiene requirements according to HACCP concept or following hygiene plan.




dimensions (WxLxH)

1140x510x870 mm


voltage

24 V


rated current (total)

1050 W


area efficiency

1720 m²/h


empty weight

82 kg


operating weight

(100 Ah) 202 kg


noise level

65 / 60* dB(A)

BRUSHES


number

1 Stück


rotation per minute

150 U/min


pressure force

23 kg

SUCTION


suction width

730 mm


air flow max.

32 l/s


low pressure max.

110 mbar

TANK


solution tank

40 l


recovery tank

40 l

DRIVE


drive motor

150 W


speed max.

4 km/h
