Combi V10 Vertical Machining Centre

Combi-V10
Standard
- Fanuc-18i-MB / Heidenhain iTNC530
- Feedback linear scale

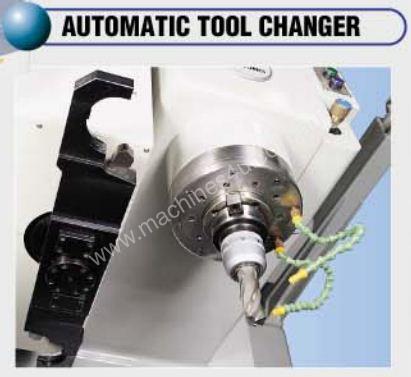

- 24 tools vertical tool changer
- Spindle orientation for rigid tapping
- Bed, column, saddle, table and head in Meehanite cast
- Hardened and ground slideway for 3 axis(Longitudinal, cross and vertical)
- Six(6) slideway for X travel
- Oil cooler
- Flood coolant system with tank and pump
- Telescopic chip cover for X, Y, Z axis
- Chip screw in the rear of the bed
- Electronic handwheel
- Air blow
- Automatic power off with M function
- RS232C interface
- Splash guard on the table

Optional
- CTS(coolant through spindle)
- Lift up chip conveyor
- Preparation of the continuous 4th axis
- ZF gear box

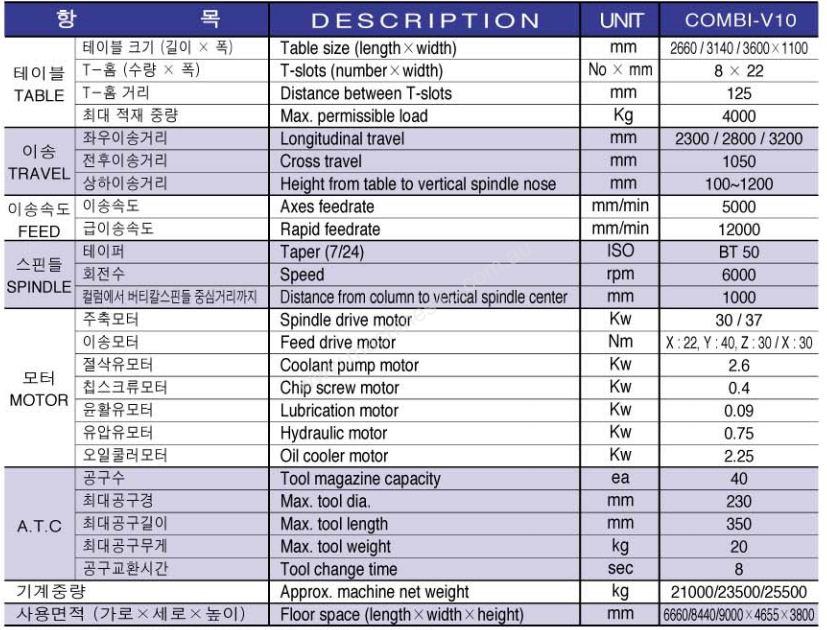

Combi-V10 Specifications and more detail available by or visit our .

Please call for mor info

* Video for example
