Comec CNC Head & Block Resurfacer

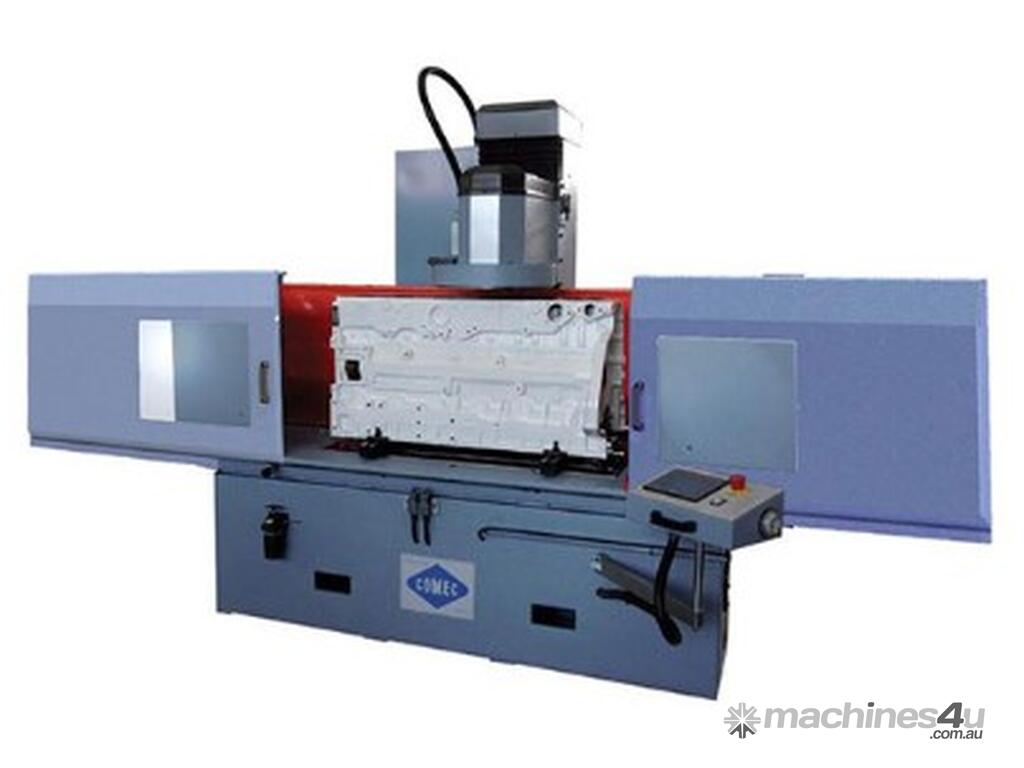

The Comec RP1400CNC head and block resurfacer is engineered for precision resurfacing of cylinder heads, engine blocks for cars and trucks, and any flat surfaces requiring the highest level of accuracy. This advanced machine integrates cutting-edge technology with reliable features: a brushless motor enables the CNC-controlled, automatic positioning of the milling cutter plate, while traditional components like linear guides and recirculating ball feed screws ensure stability and precision. Both the axes and milling cutter rotation speed are regulated by an inverter, and feed speeds are easily monitored.

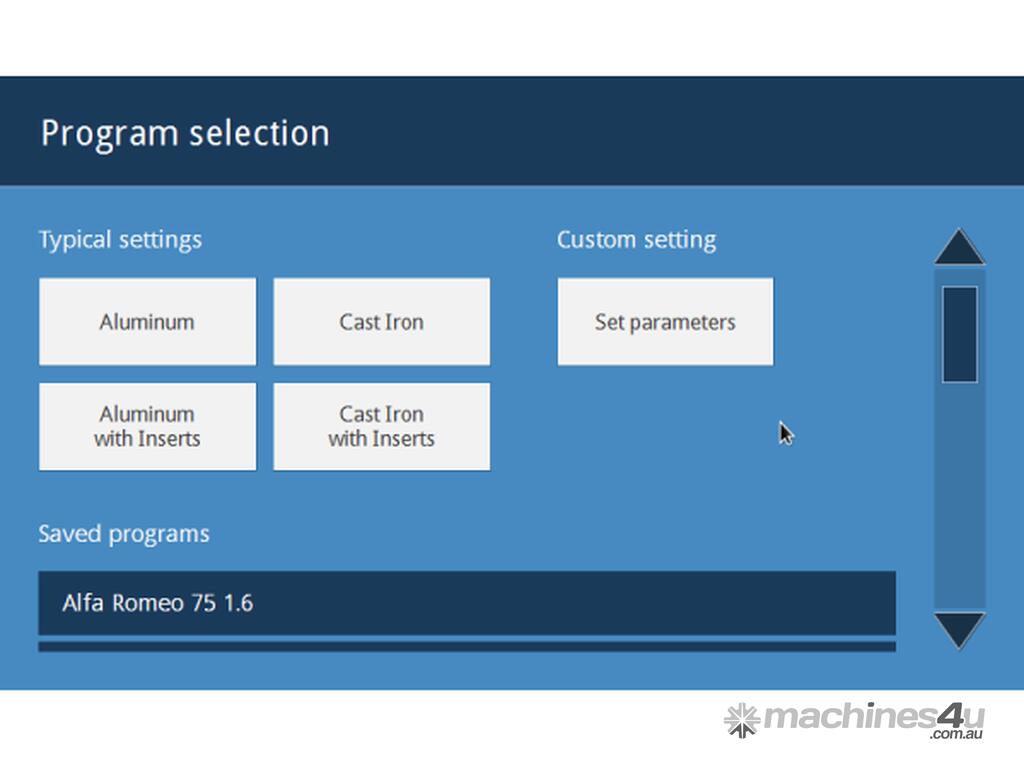

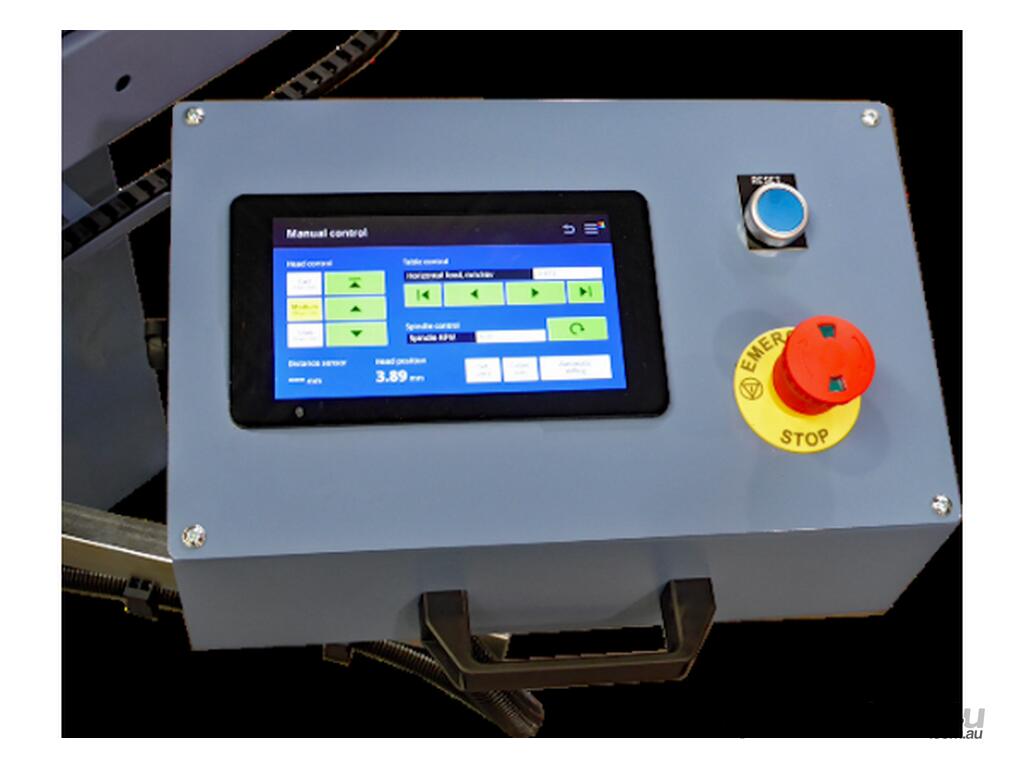

The industrial touch screen control panel offers simple, intuitive programming. The RP1400CNC can be equipped with a CBN-PCD tool-holder milling cutter plate, 405mm in diameter, suitable for resurfacing cast iron or aluminum surfaces. For heads with pre-chambers, a specialized tool is available to ensure an impeccable finish.

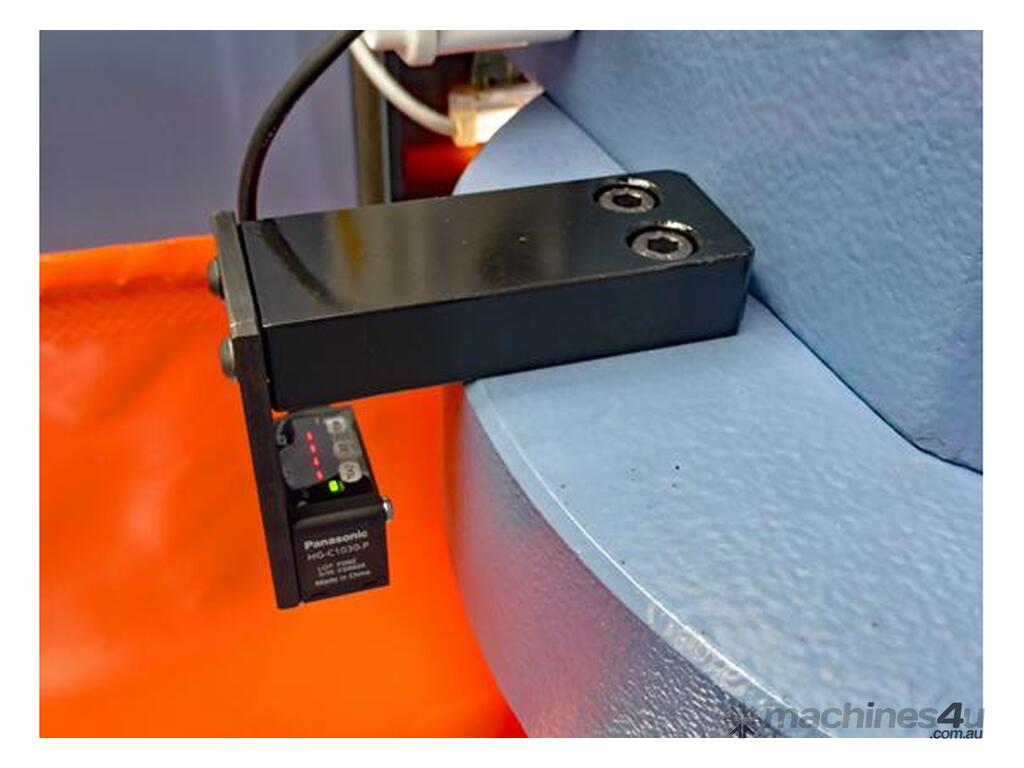

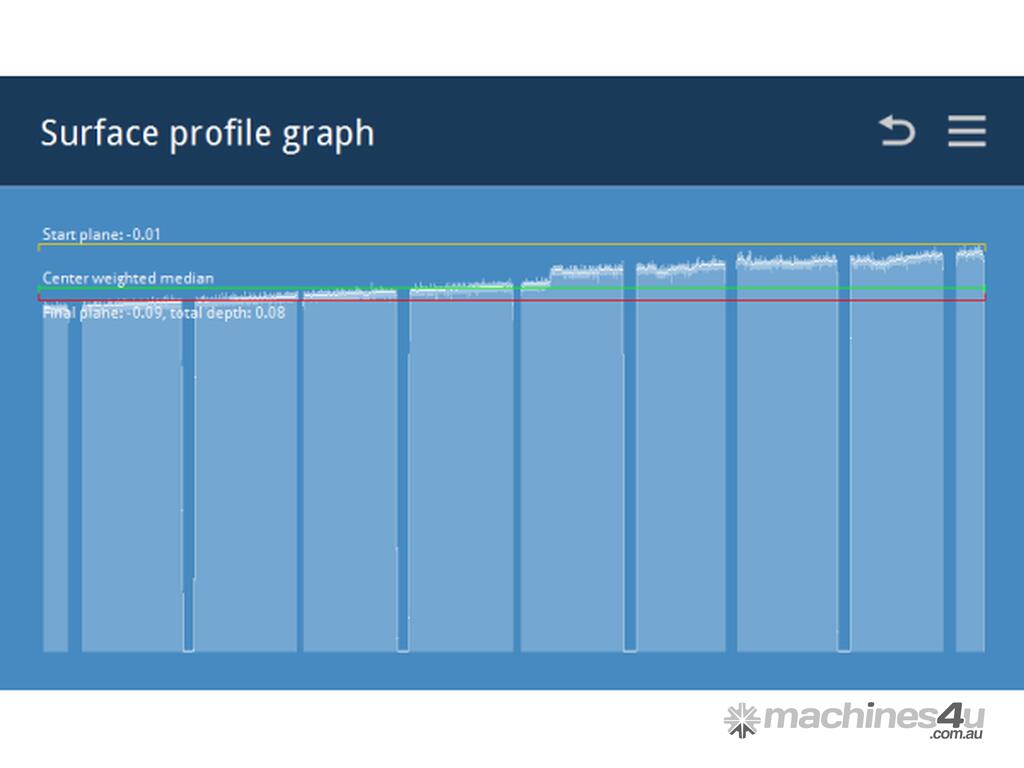

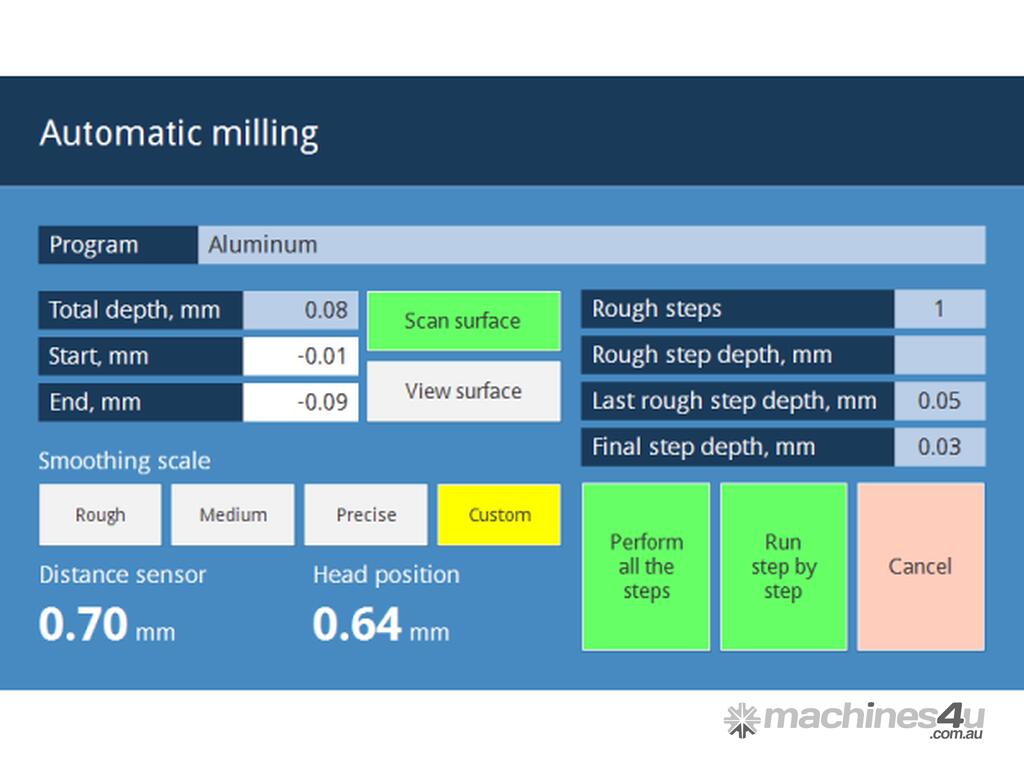

Notably, the RP1400CNC is recognized as the “Smart Resurfacer” due to its laser sensor, which scans and records the profile of cylinder head surfaces, automating the milling process for enhanced accuracy and efficiency.

For more information on the Comec RT1400CNC Head & Block Resurfacer call our sales team today on , or alternatively us at sales.
