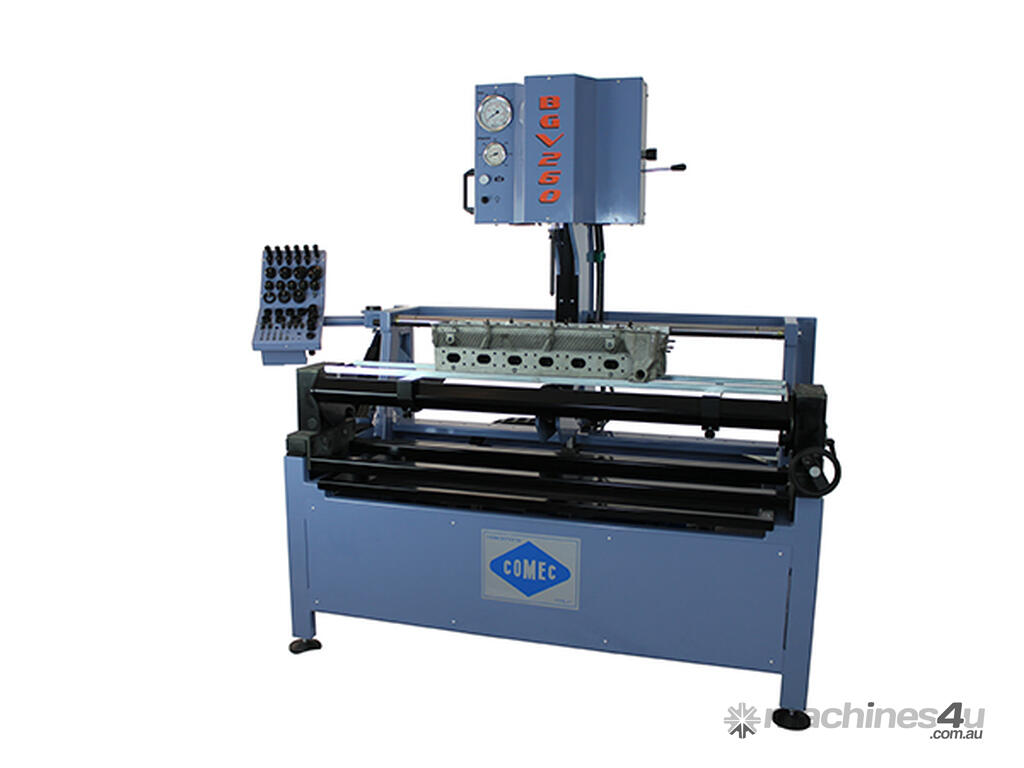

Comec Cylinder Head Guide Press

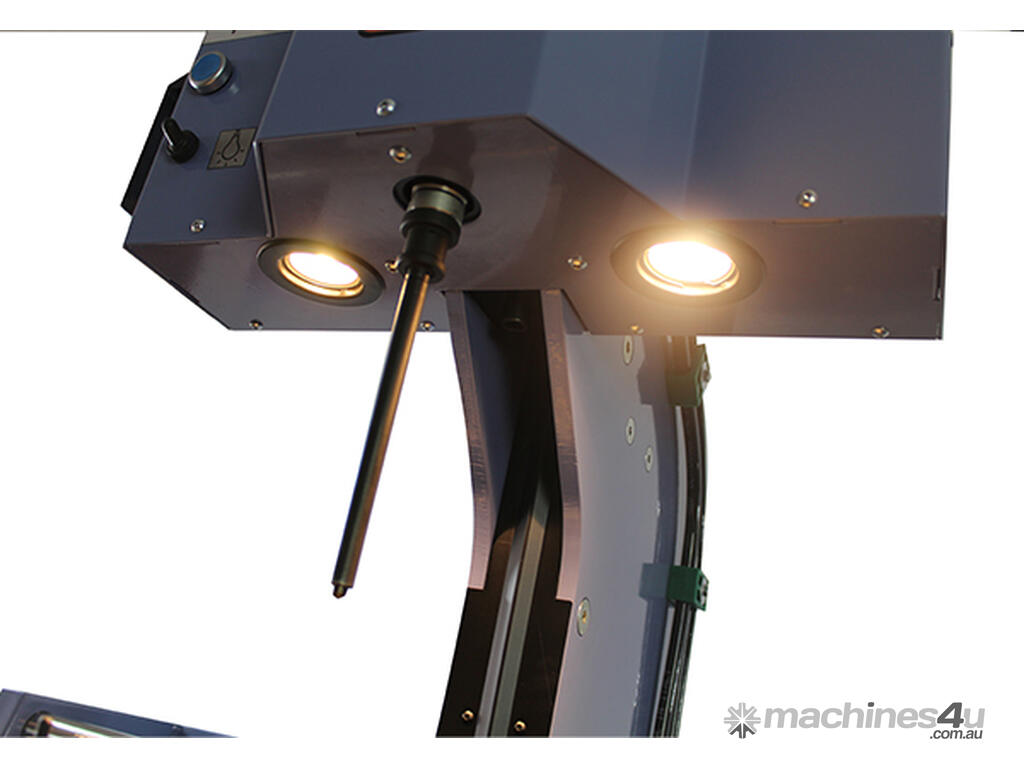

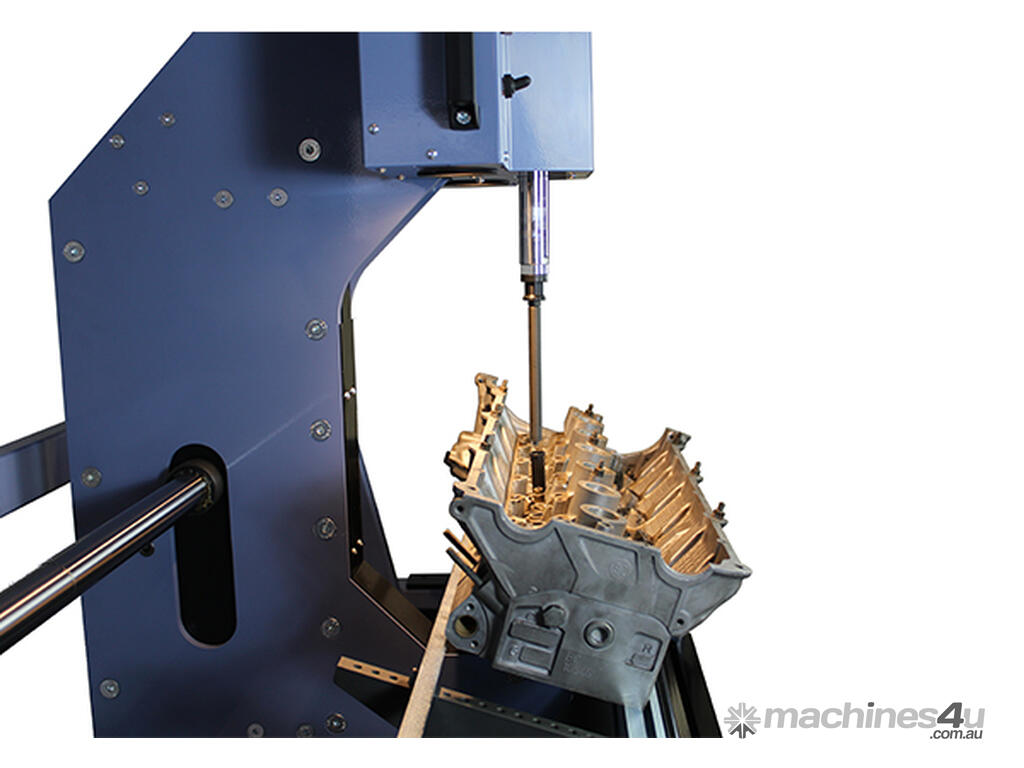

The Comec BGV260 cylinder head guide press is the ideal solution for valve guide replacement on cylinder heads. Featuring robust construction and generous work capacity the BGV260 enables machining of a wide range of heads. The combined hydraulic/mechanical system allows the upper hydraulic cylinder to press uniformly on the guide to be extracted and, at the same time, lift the press body up to rest in the lower part of the load cell which determines the working pressure. The value detected by the load cell is indicated by the precise pressure measurement system by means of a gauge. Therefore the operator knows the correct operating pressure that can be adjusted by acting on the dedicated valve, up to a maximum of 5 tons. The robust cradle provides a stable and secure support for even the heaviest and bulky heads. The side handwheel can be rotated up to ± 50° in order to find the optimal working position. The efficient LED lighting system and the convenient slide panel containing a large set of tools complete the machine’s equipment.

Standard Equipment:

-Hydraulic unit
-Working pressure reading system with pressure gauge
-Swivel cradle with adjustable supports
-Set of push-guide tips

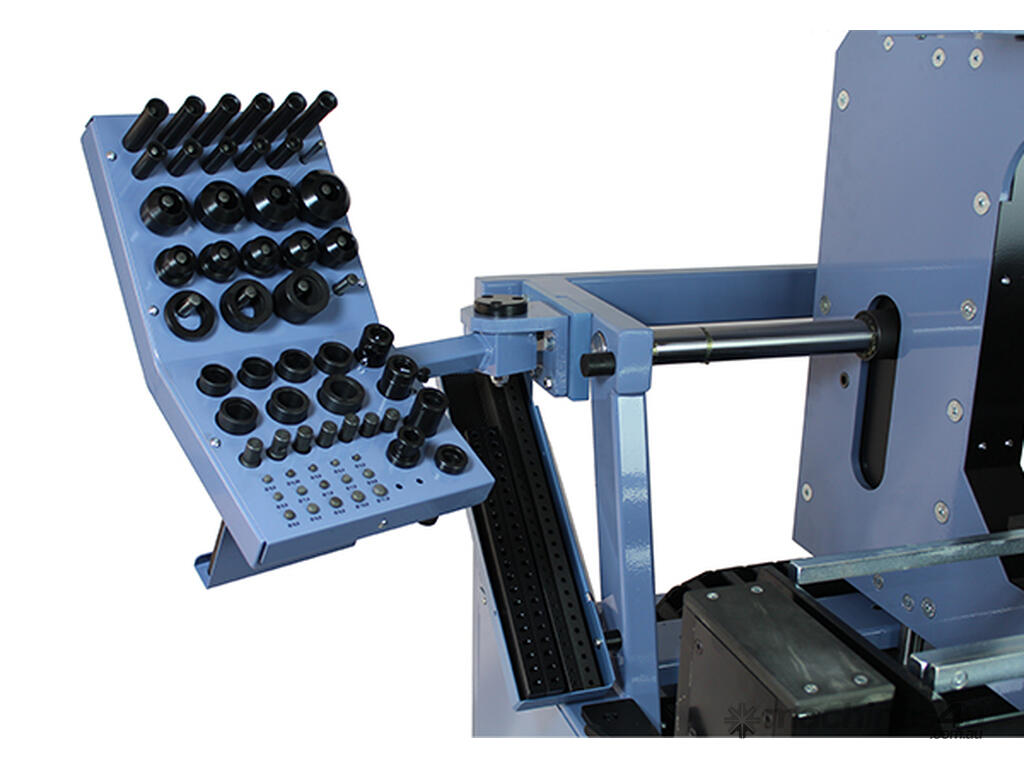

-Equipment tray
-Integrated LED spotlights
-Wrench set
-Instruction manual

“Special Build factory order”

Delivery Australia wide, competitive freight rates available. Call today for a quote.
