Compact Series | M-1200 Robot Welding Cell

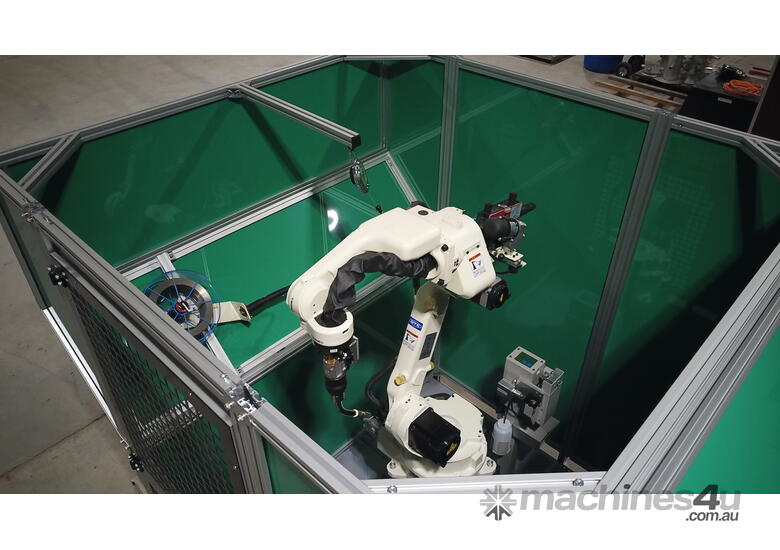

Introducing the M-1200 robot welding cell, a compact and versatile solution engineered to enhance productivity and deliver consistent, high-quality welds. With its innovative rotary station, this work cell offers dual-sided productivity within a compact, manually rotated workstation.

The M-1200 ensures total safety while housing the robot and weld equipment, making it an ideal choice for replacing or supplementing manual welding processes. Equipped with a high-speed arc welding robot, it excels in delivering efficient and precise welds.

The unique rotating station design enables seamless integration of loading, unloading, and welding processes. Here’s how it works: while the robot welds on side B, the operator loads parts onto side A. Once the weld cycle on side B is complete, the operator smoothly rotates the station, allowing for efficient unloading of parts from side B while the robot seamlessly transitions to welding on side A. This synchronized workflow eliminates downtime, ensuring continuous operation and maximizing productivity.

Tailored for small assemblies, the M-1200 robot welding cell provides flexibility and efficiency within a space-saving footprint. Experience the power of the M-1200 and optimize your welding operations with increased productivity and precision, enhancing your manufacturing capabilities.

Equipment:
OTC Daihen B6 Welding Robot with 2000mm reach.

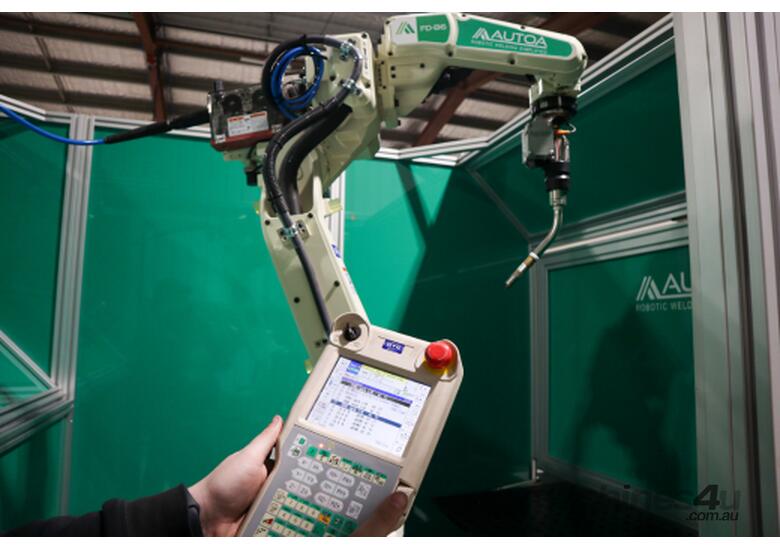

OTC Daihen FD19 Robot Controller and Teach Pendant.
OTC Welbee P502L 500amp Welding Power Source.
350amp Air Cooled Welding Torch and Wire Feeder.
Dual 1200 x 600mm Welding Jig Table.
Safety Guarding – standard ISO 10218-1.

Design:
Flexible single workstation arc welding cell with rotating station to allow welding on one side while loading/unloading on the other.
Modular cell design facilitates future expansion.
Controller and power source in external enclosure.
Clean design with protected cables and floor fixings.
Compact footprint in Autoa cell standard range.
Functional Safety Unit ensures improved safety functions with integrated Safety Controller.

Details:
Welding Jig: 600 x 1200mm.
Cell Dimensions: 2944 x 2270 x 2212mm.
Power Supply: 32A 3ph 400V + Neutral.
