This system is in excellent working condition. It has come out of a working environment, granulating plastic sprues and rejects.

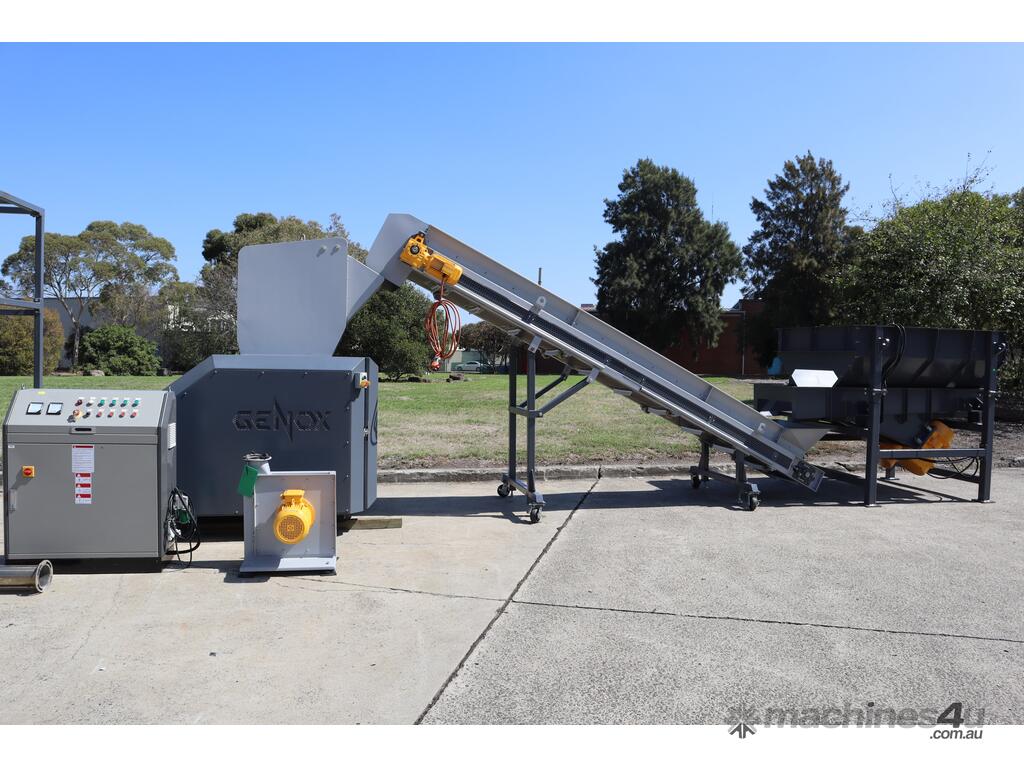

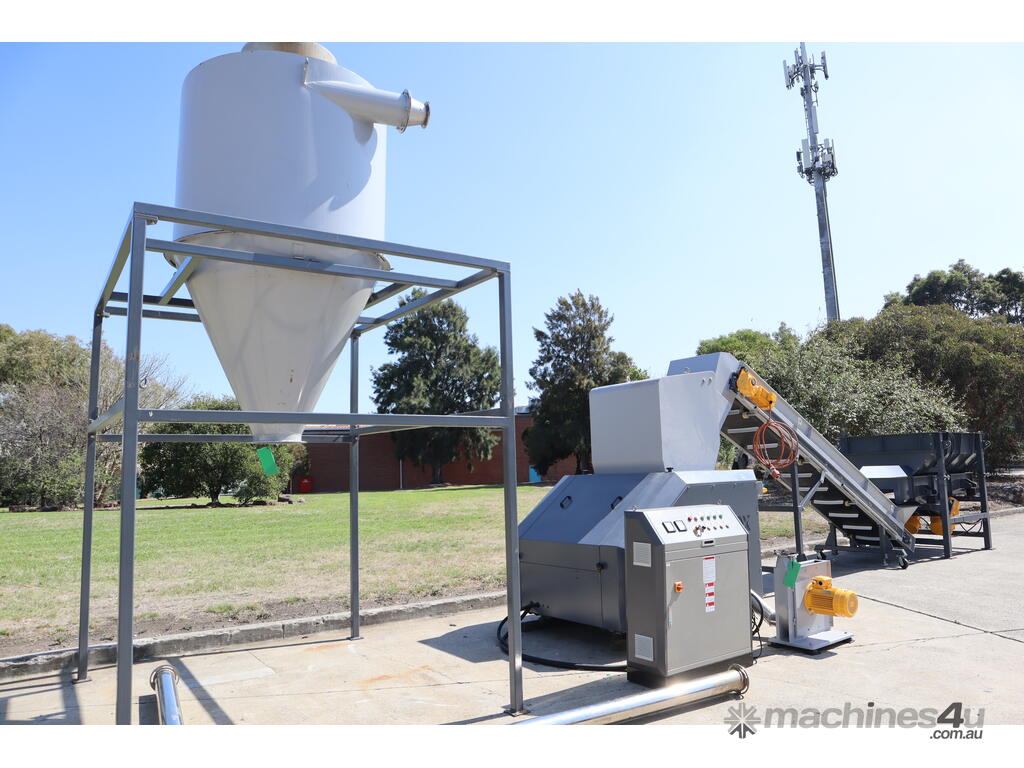

The system consists of:

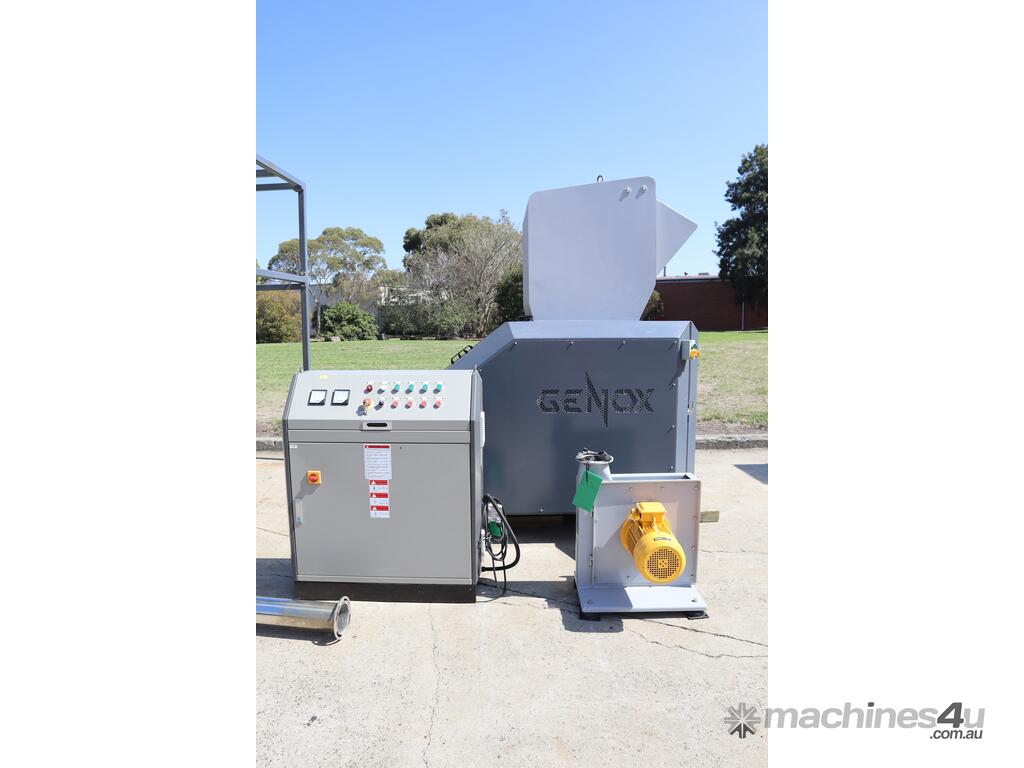

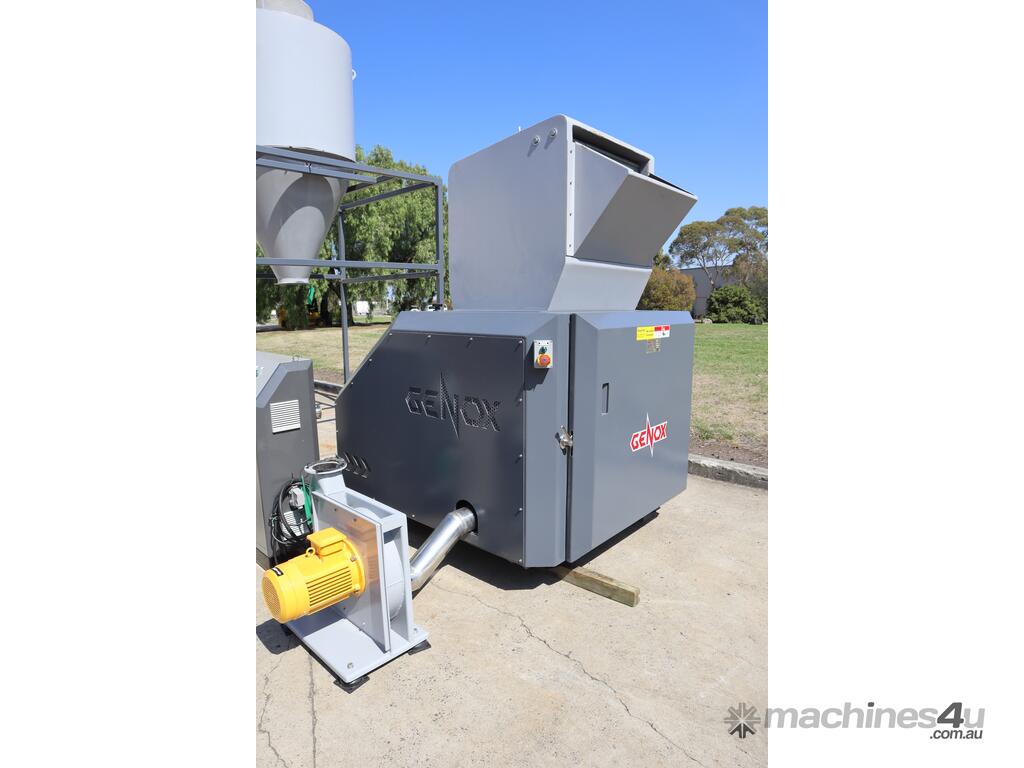

- 50HP Granulator

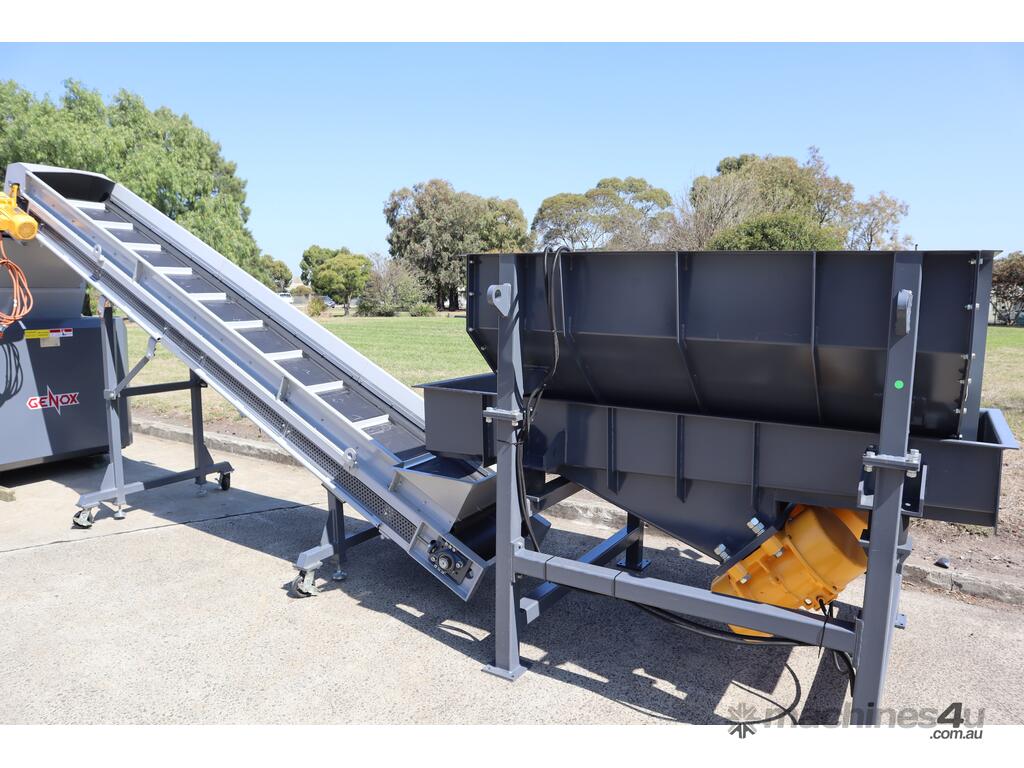

- Large Vibratory Hopper Feeder

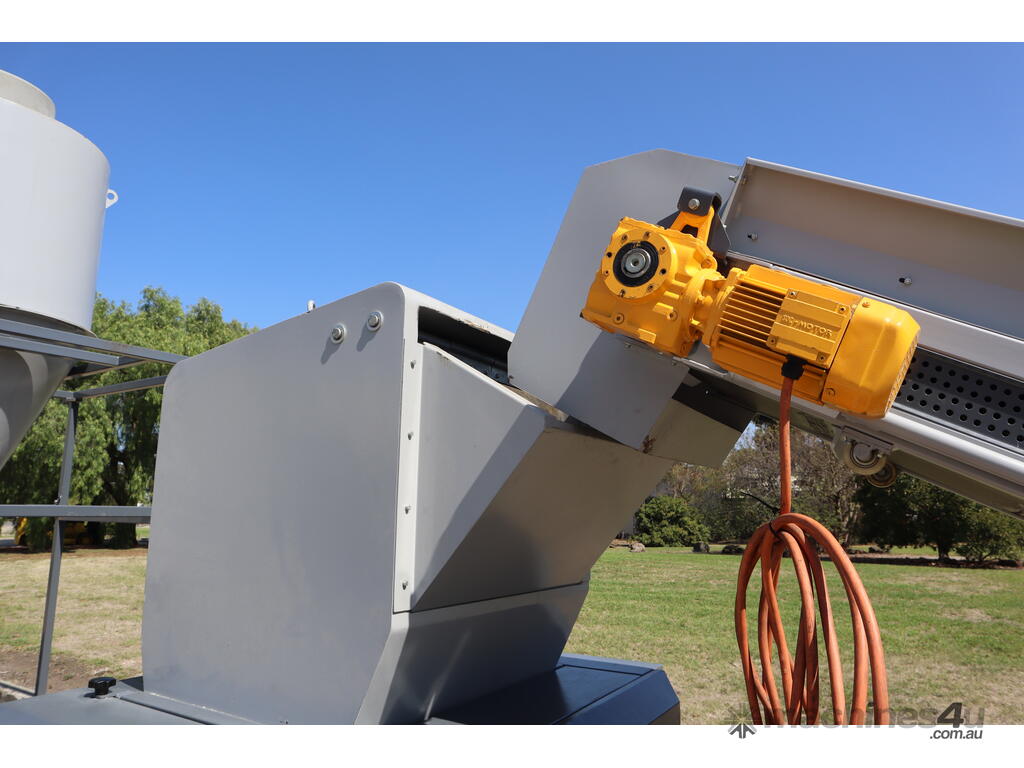

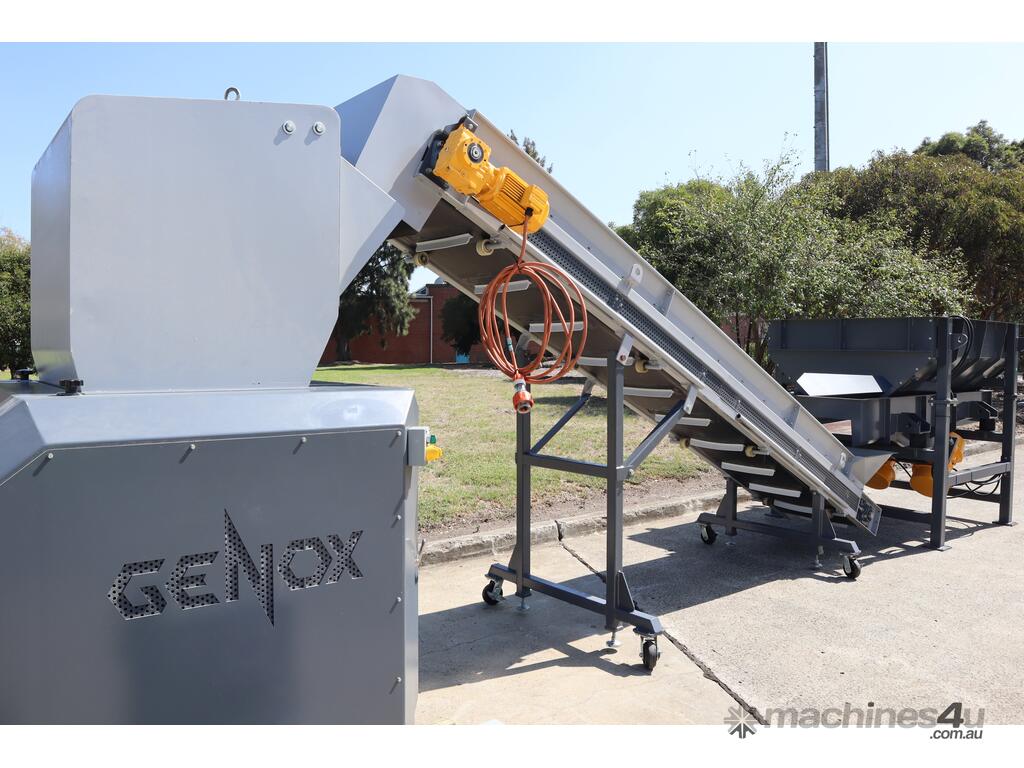

- Large Infeed Incline Conveyor

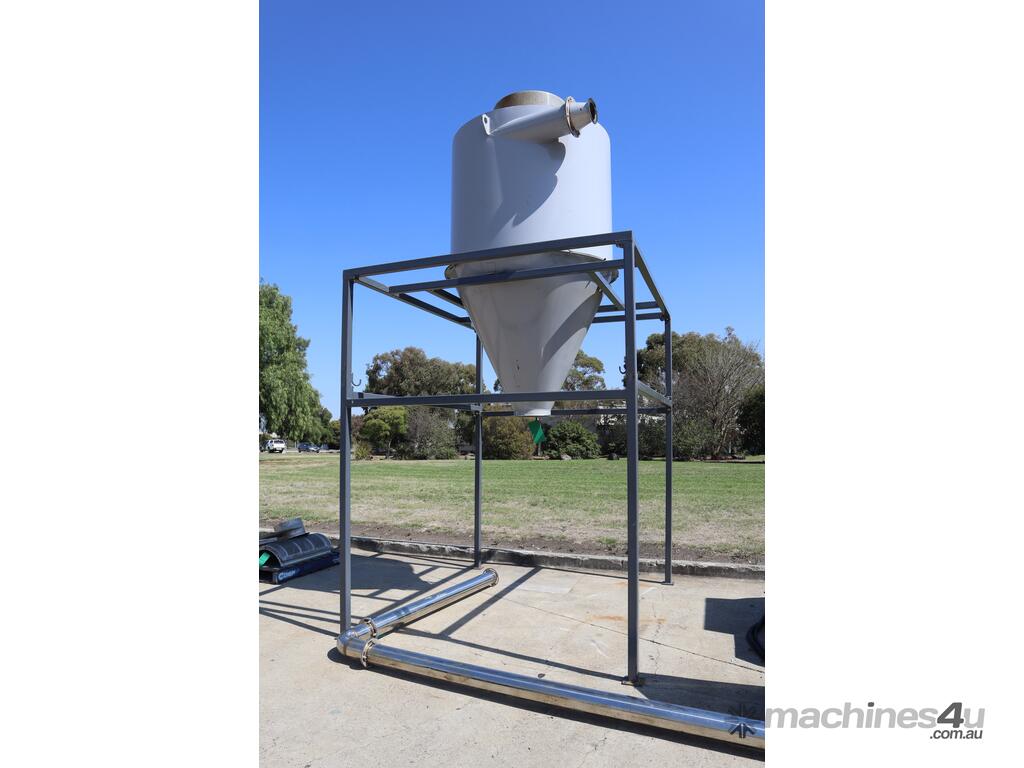

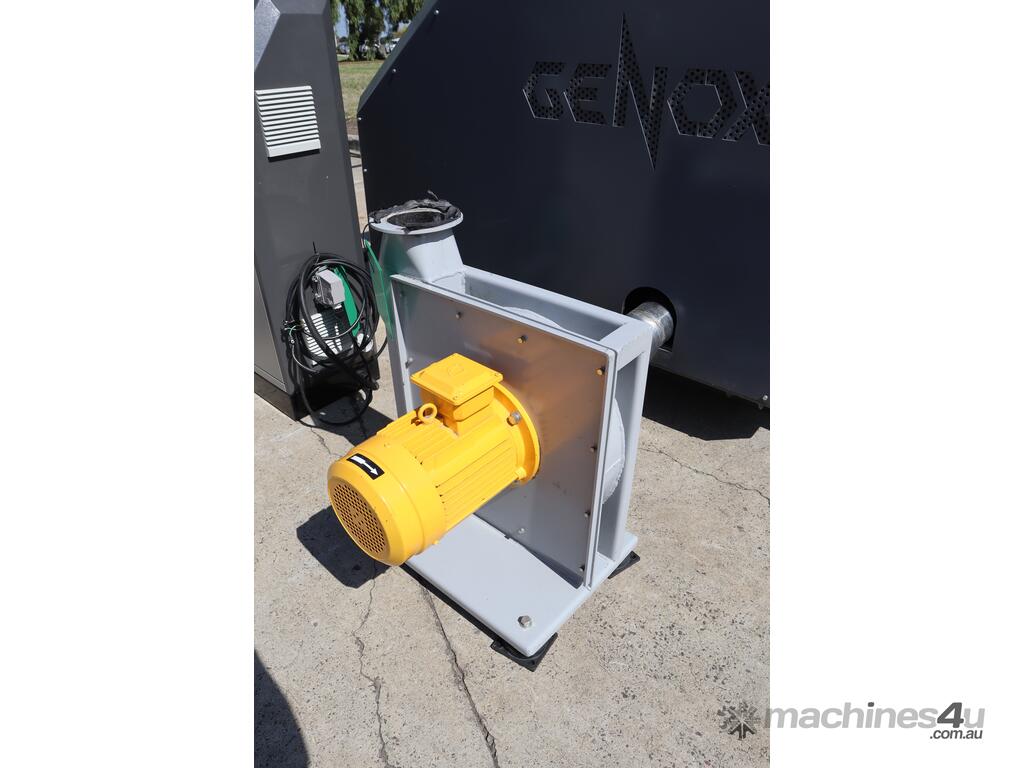

- Blower and Large Cyclone Extraction System

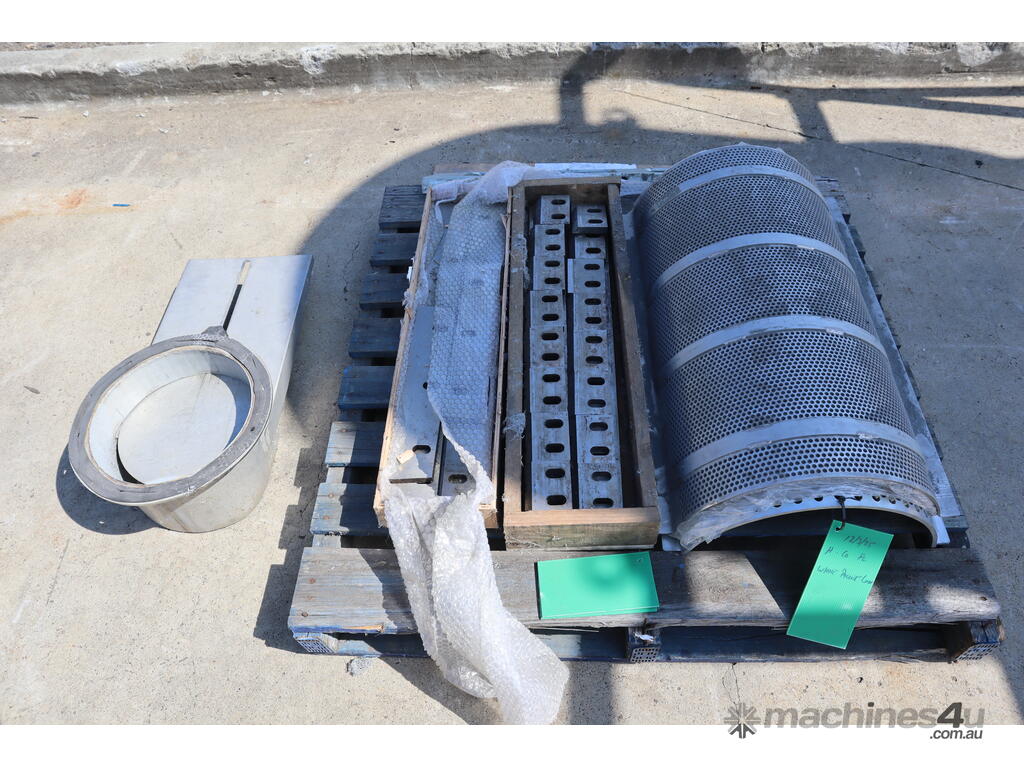

- Pallet of spare screens and blades
GC Series Granulators are high speed granulation machines designed especially for the efficient size reduction of various materials in a single pass. These machines are ideal for processing a multitude of materials including plastics, rubber, copper cable and organics amongst others.
· Compact design minimizes on-site space requirements

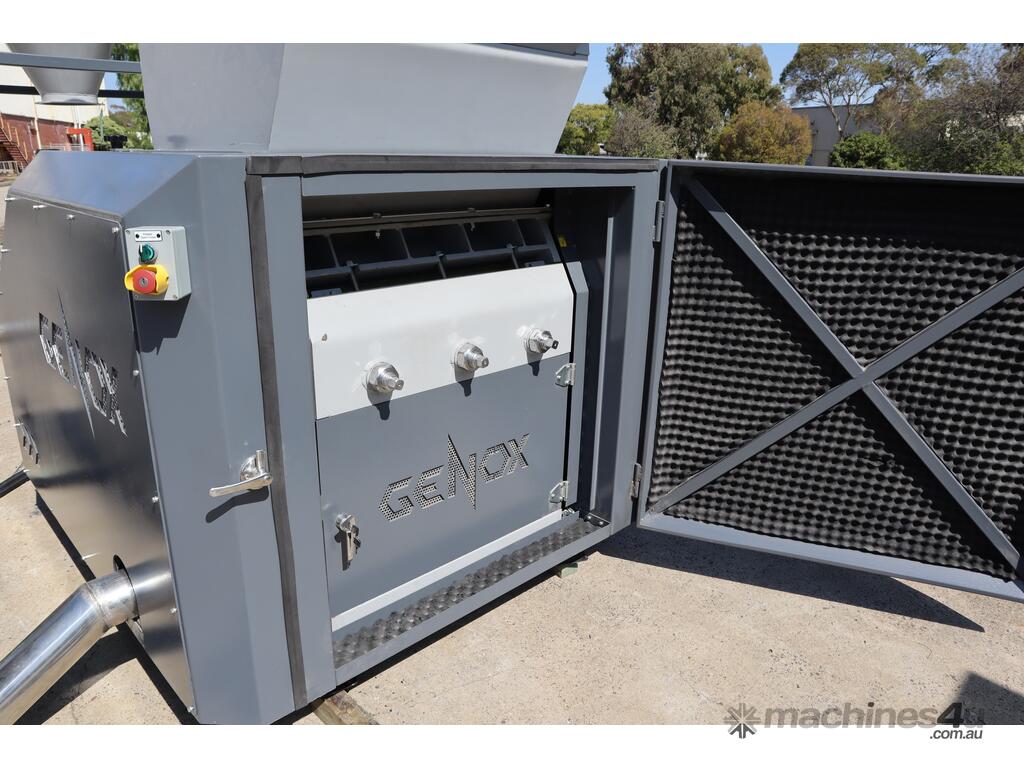

· Inclined, split cutting chamber design
· Precision machined rotors
· Replaceable wear plates at either end of the rotor shaft
· Standard machines are prepared for air extraction

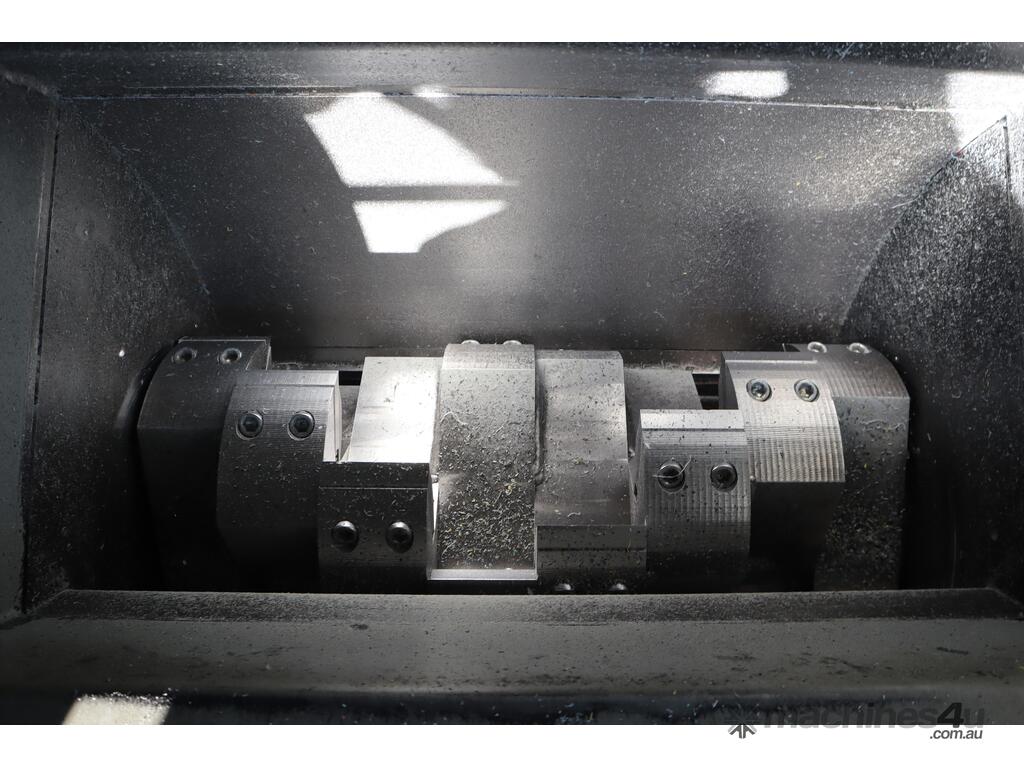

The C-Rotor is a heavy duty, high inertia, semi-closed shaft design which creates a cascade cutting effect. This rotor design is ideal for processing particularly hard or thicker materials, but is also well suited to processing profiles.

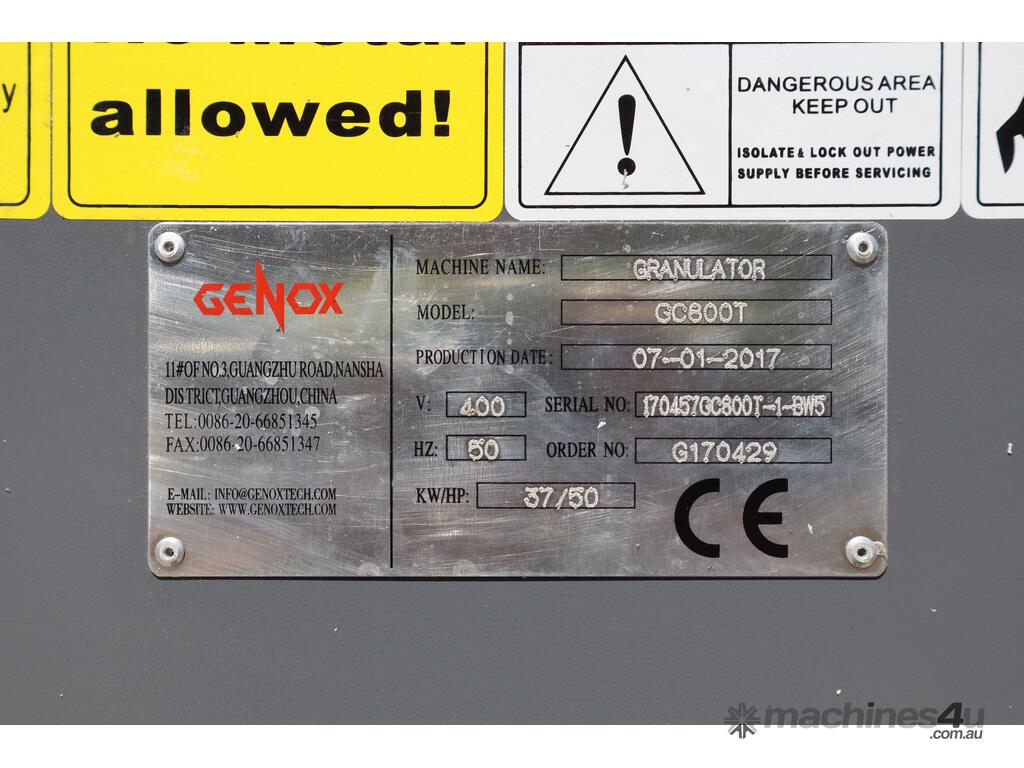

Make: Genox
Series: Gran-Calibur
Year: 2017

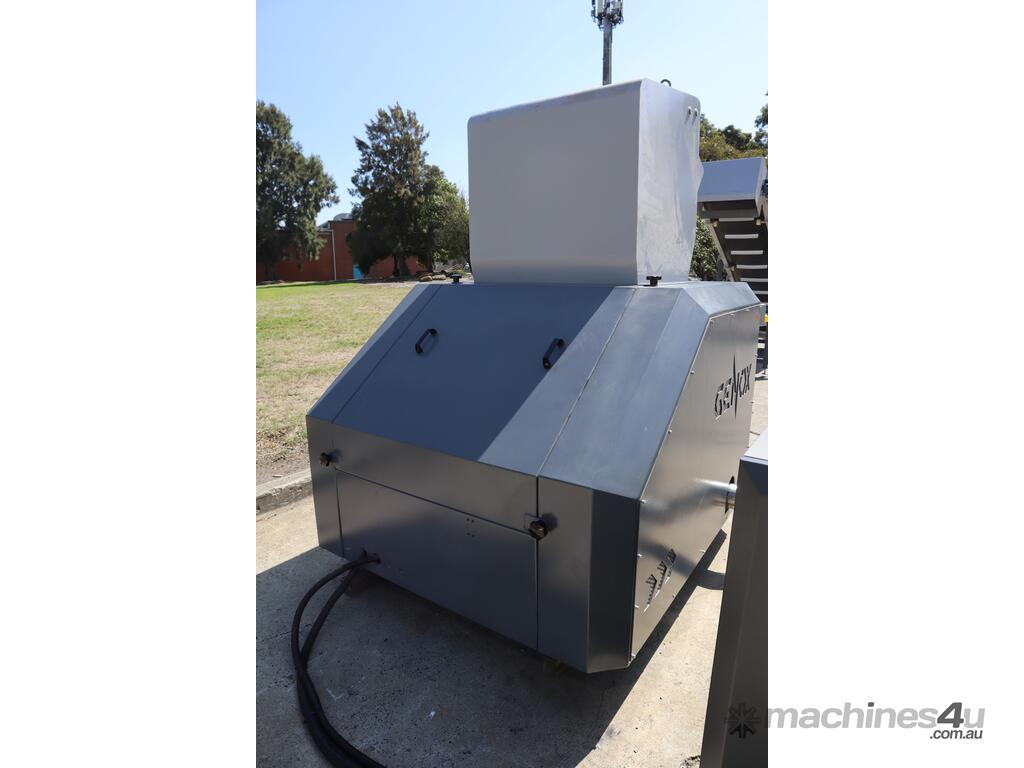

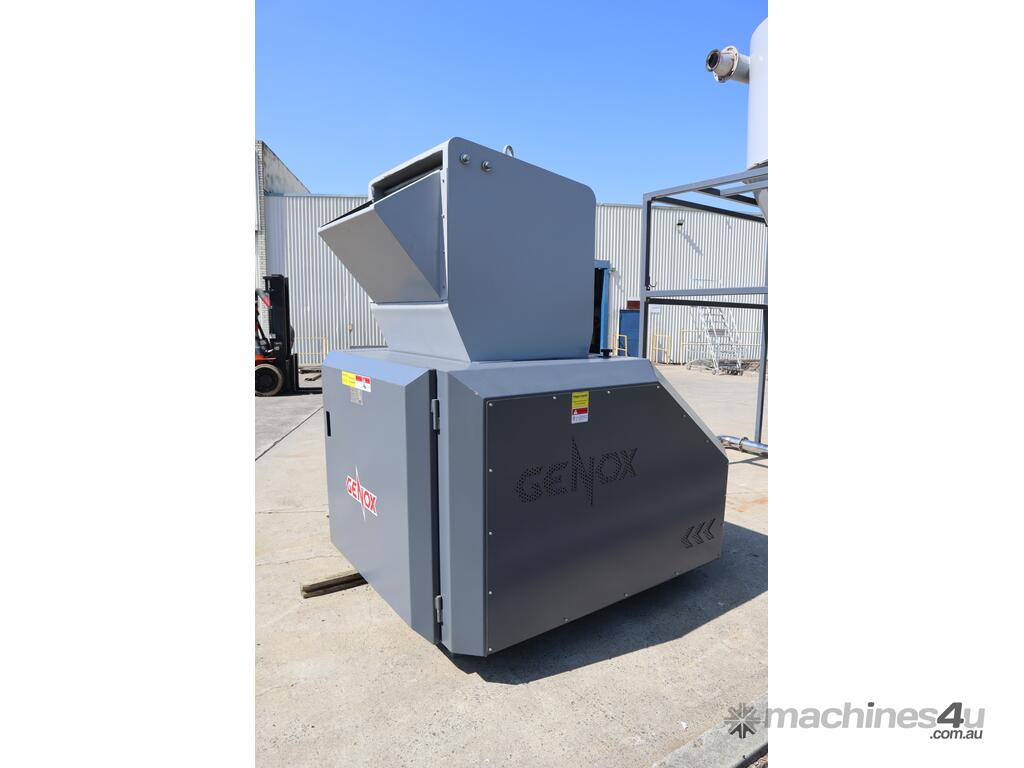

Granulator Model: GC800T
Vibratory Feeder Model: GLD2
Conveyor Model: CBP6040
SPECS
Voltage: 415V 3 Phase

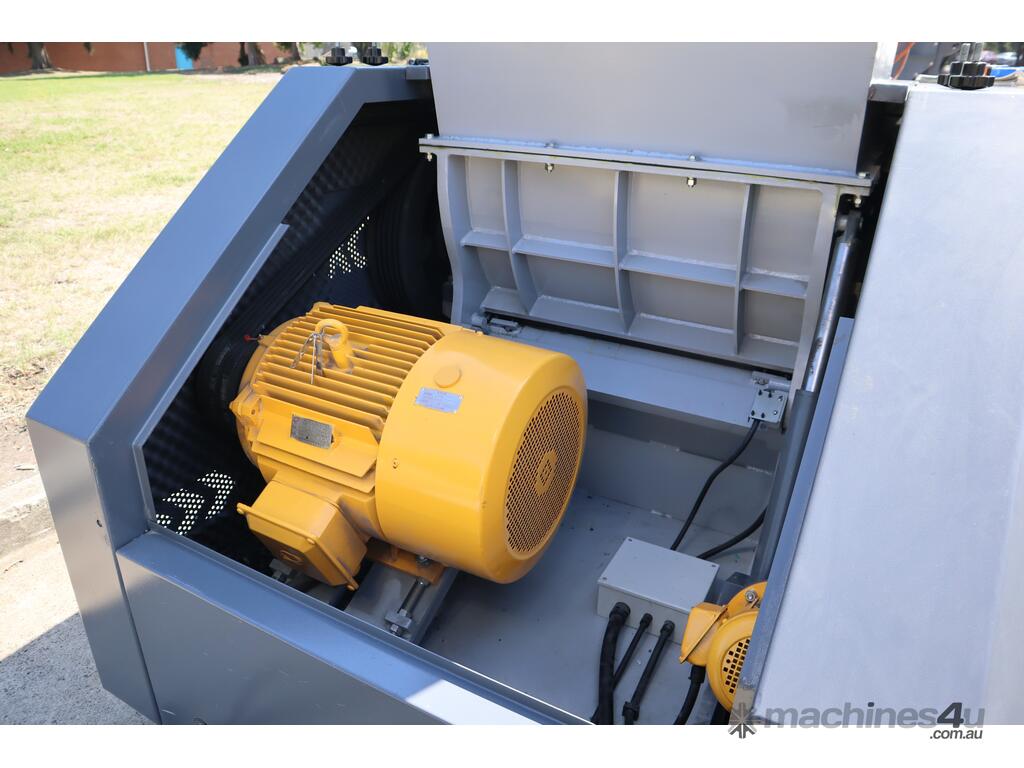

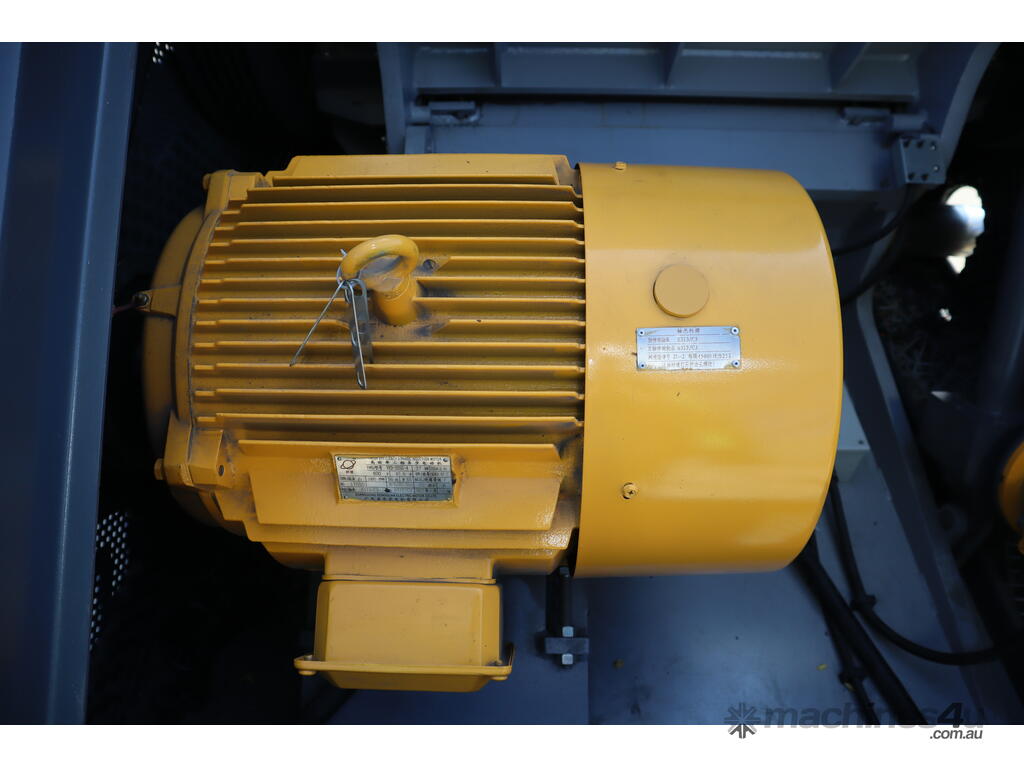

Power (Granulator): 37kW/50HP
Power (Feeder): 1.5kW (x2)
Power (Conveyor): 2HP
Hopper Opening: 750 x 615mm
Rotor Diameter: 420mm
Rotor Length: 800mm
Rotor Speed: 580 RPM
Rotor Knives: 3 x 2 pcs
Counter Knives: 2 x 1 pcs
Hopper Feeder Opening: 1800 x 1315mm
Hopper Feeder Tray: 2100 x 800mm
Conveyor Belt Width: 600mm
Conveyor Discharge Height: 2000mm
Granulator Weight: approx. 2500kg
Granulator Dimensions (mm): 2100 x 1700 x 2400 H
Feeder Dimensions (mm): 2490 x 1700 x 1765 H
Conveyor Dimensions (mm): 4540 x 1270 x 2620 H
Cyclone Dimensions (mm): 2540 x 2250 x 4500 H
