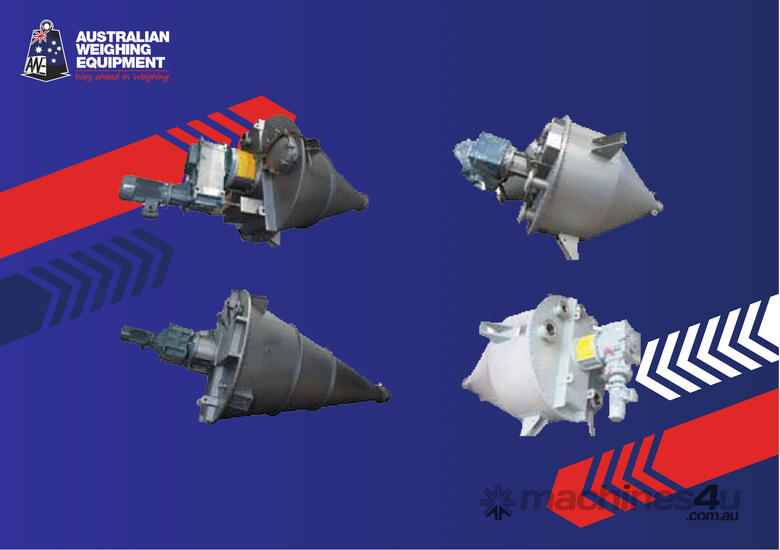

Conical Ribbon Mixer: From 150 - 200,000 litres

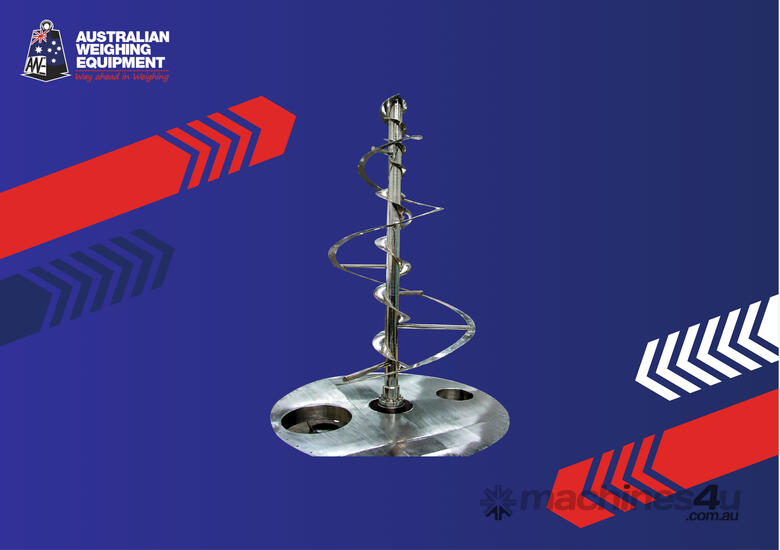

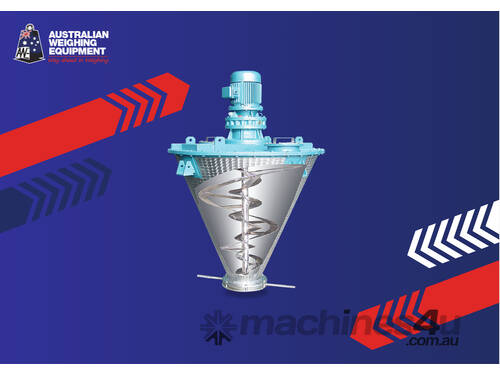

Conical Ribbon Mixer consists of a transmission device, taper cylinder, outer ribbon mixer, inner reverse screw mixer and discharge valve. It is a new design for viscosity material. The material circles and rises under the operation of the outer ribbon mixer, while the inner reverse screw presses down the material along the shaft, which finishes the mixing.

1. Standard features

a. Volume: 100-15000L
b. Stainless steel or carbon steel

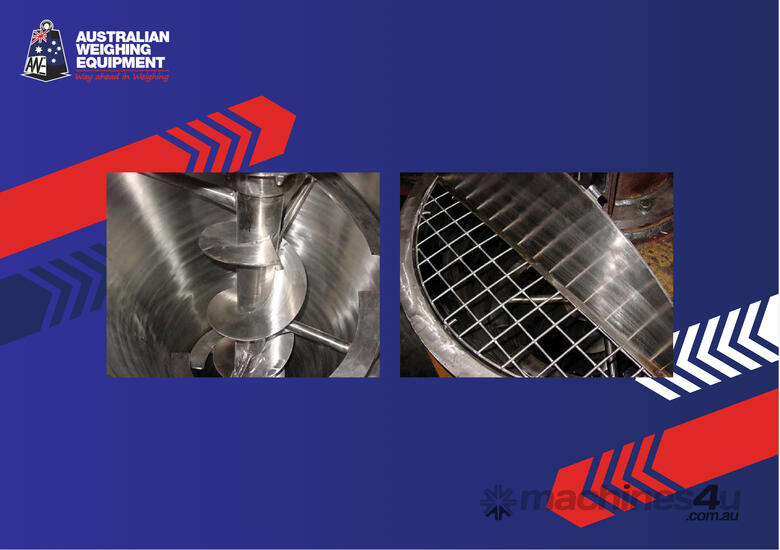

c. Ribbon & screw agitator for bottom discharge
d. Designed for normal temperature and normal atmospheric pressure
e. Feed nozzle
f. Dust nozzle
g. Manually operated or pneumatic operated dislocated valve
h. Packing seal
i. Safety limit switch on man hole

2. Optional features

a. Carbon steel, stainless steel 304, stainless steel 316L
b. Internal pressure
c. Sanitary type construction
d. Dislocated calve, butterfly valve, slide gate valve, ball valve
e. Horsepower to suit higher density materials
f. Explosion-proof motors
g. Control such as variable frequency drives, motor starters and operator stations are available
h. Spray nozzles for liquid introduction
i. Jacket for heating or cooling

Top Features:

Optimal mixing homogeneity
Short mixing time
Excellent reproducibility of batch production
Minimum wear and low maintenance
Easy access to mixer/ Easy to cleaning
Low power consumption
Wide applications

Applications of Conical Ribbon Mixer:

Chemical
Pharmaceuticals
Metal
Battery
Painting & Pigment
Rare Earth
