DAITO CUD3C-1050 CNC Beam Drilling Sawing Line *The World's Best Beam Line*

FASTER – STRONGER – BETTER

3 Spindle Carbide Drill & High Speed Bandsaw

Datio’s latest generation drill and saw tandem line system is one of the worlds fastest, most productive and most accurate beam solution’s ever made.

Features

High speed carbide drilling
High speed band sawing
3 x independent travelling drills
4 sides layout scribing
Dual mitre cutting
Performance optimised through the CNC

Some might say that the phrase “state-of-the-art” was coined in anticipation of the new Daito CUD3C GTR Tandem Drill Saw Beam Line.

The all new Daito CSD3C series carbide drilling machine automatically drills and marks and scribes structural beams by moving the material through the machine via a sophisticated pinch roller system. Other high production features include carbide drilling by 20HP spindle motors, four vertical clamps, beam width verification, flange supports, web support, unitised and compact construction, automatic tool changing for all spindles, underside layout scribing, two large diameter measuring discs, powered cleaning brushes and much, much more.

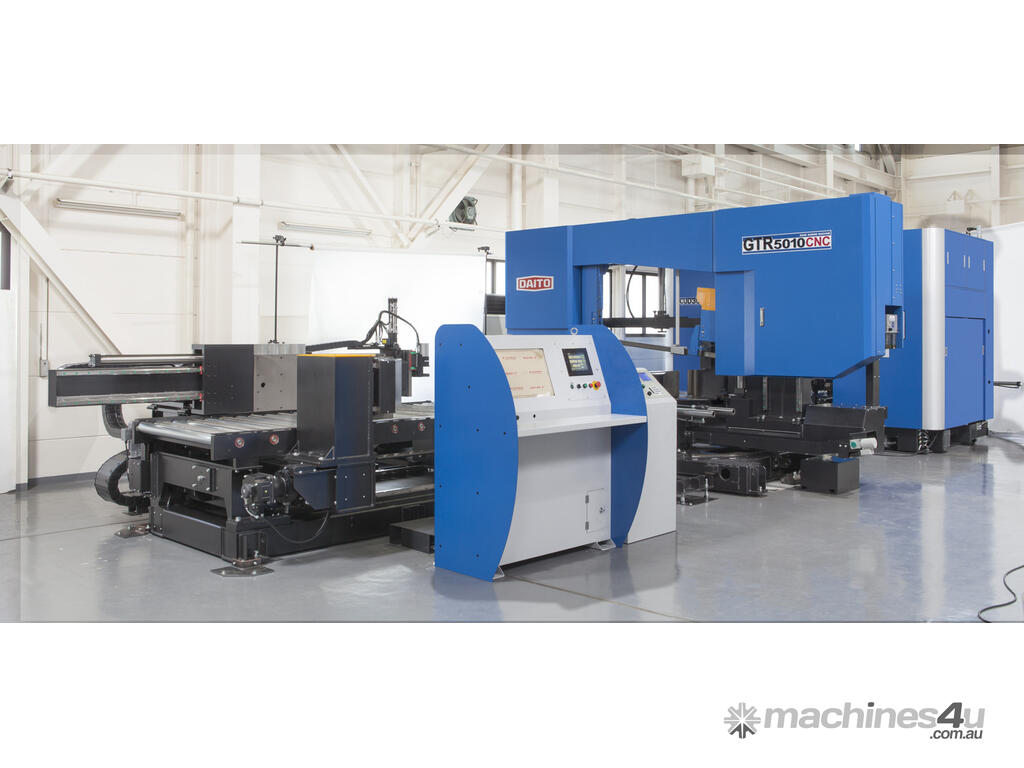

Then couple this amazing drill with the even more amazing GTR series high speed bandsaw. This machine is loaded with innovations and they all add up to speed and accuracy, including the ball screw, servo drive design coupled with linear guide ways for smooth operation. Also by not having to use the hydraulic cylinder to
control the feed rate like other manufacturers, allows Daito the best possible control and the results are faster, more accurate cutting and prolonged blade life.

Overall there is no better drill saw beam line on the market. Contact us to see it in action, in person, in a city near you.

DRILL CUD3C-1050
Capacity (max. width) 1020mm
Drill Size 8-50mm
Main motor 20HP
Drilling Units 3
Auto Tool Changer 3
Layout Marking Yes
