DALI 70 CNC WORK CENTRE 7M

DALI 70 - corsa asse x mm 7230 / x axis travel mm 7320
- Bar-code optical reader
- Additional clamps with positioning through carriage (No.2)Note: Dali 70 max 4 additional clamps – Dali 40 max 2 additional clamps
- Additional 3 positions tool change and micro drip blade lube.
- Hunting type machining on two working areas.

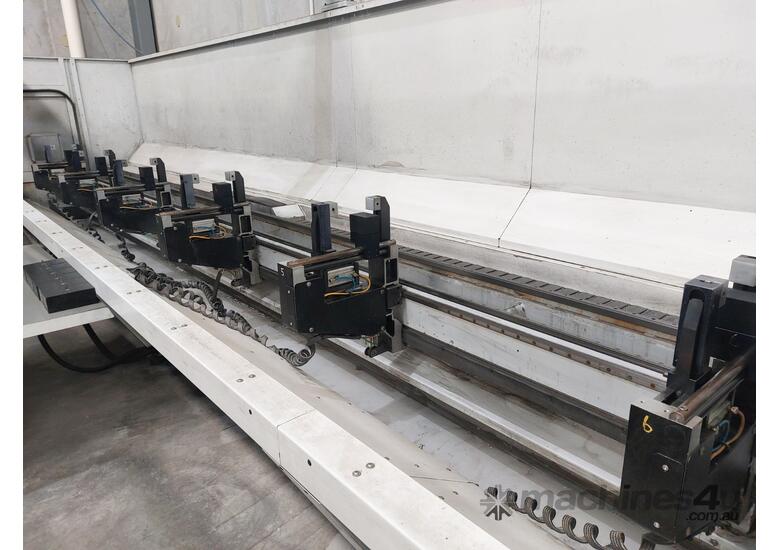

- Automatically movable clamps.
- Machine handling kit for container
- Frontal doors automatic opening/closing
- SW Kit for the insertion of geometries ‘defined by the user’ and import of drawings in DXF format for
FOMCAM
- SW Kit for the graphic designing in 3D for FOMCAM
- Dali 70 FOM Cam dongle / Office FOM Cam dongle

Specifications
Manufacturer Fom Industrie
Model Dali 70
Year 2010
Condition Used
Made in Italy
X-Axis travel 7320 mm
Y-Axis travel 1040 mm
Z-Axis travel 430 mm
A-Axis travel -15°/+195°
X-Axis working area 7000 mm
Y-Axis working area 220 mm
Z-Axis working area 200 mm
X-Axis speed 90 m/min
Y-Axis speed 30 m/min
Z-Axis speed 13 m/min
Axes number 4
Tool magazine 10 positions
Motor power 6.5 kW
Max rotation speed 19000 rpm
Tool collet ISO 30
Dimensions L 8675 x W 2051 x H 2341 mm
Weight 3900 kg
Availability April 2024
