DB-180 Digital Bevel Box 4 x 90º Range

TOOLMASTER DB-180 Digital Bevel Box 4 x 90º Range
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M977

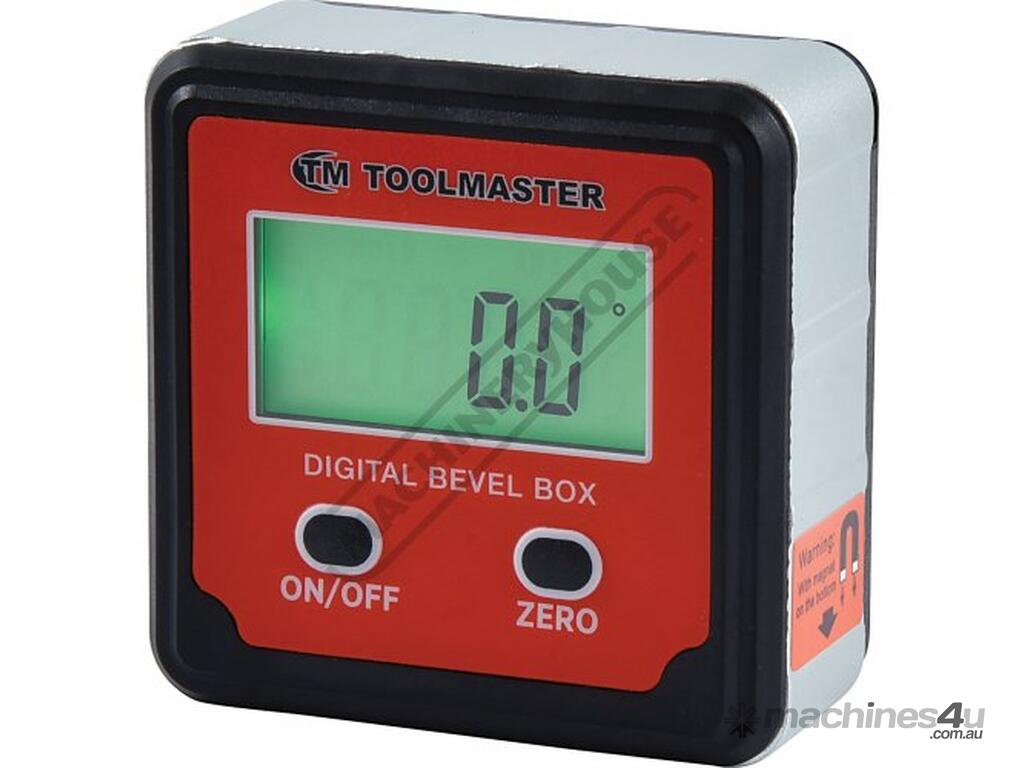

This digital bevel box is a mini protractor that provides digital readings of 4 x 90º with a resolution of 0.1° and auto shut off after 5 minutes. It is small enough to be carried around in a pocket and the LCD screen is convenient to read. It incorporates magnets in the base for accuracy when measuring mitre and bevel angles on mitre saws, saw benches etc.

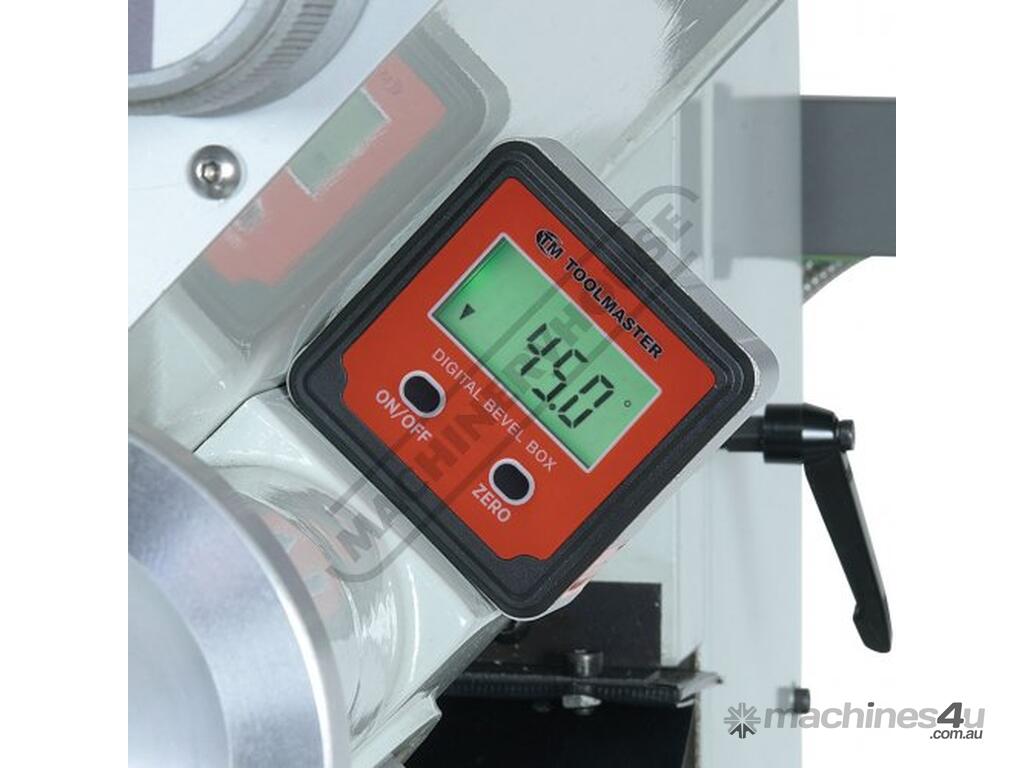

Works great for mitre saws and table saws in setting blade angle accurately as well as and setting the angle of jointer fences and band saw tables.

Features:
Mini digital protractor that provides digital readings of 4 x 90º
Ideal for measuring mitre and bevel angles on saw benches etc.
4 x 90º digital readings

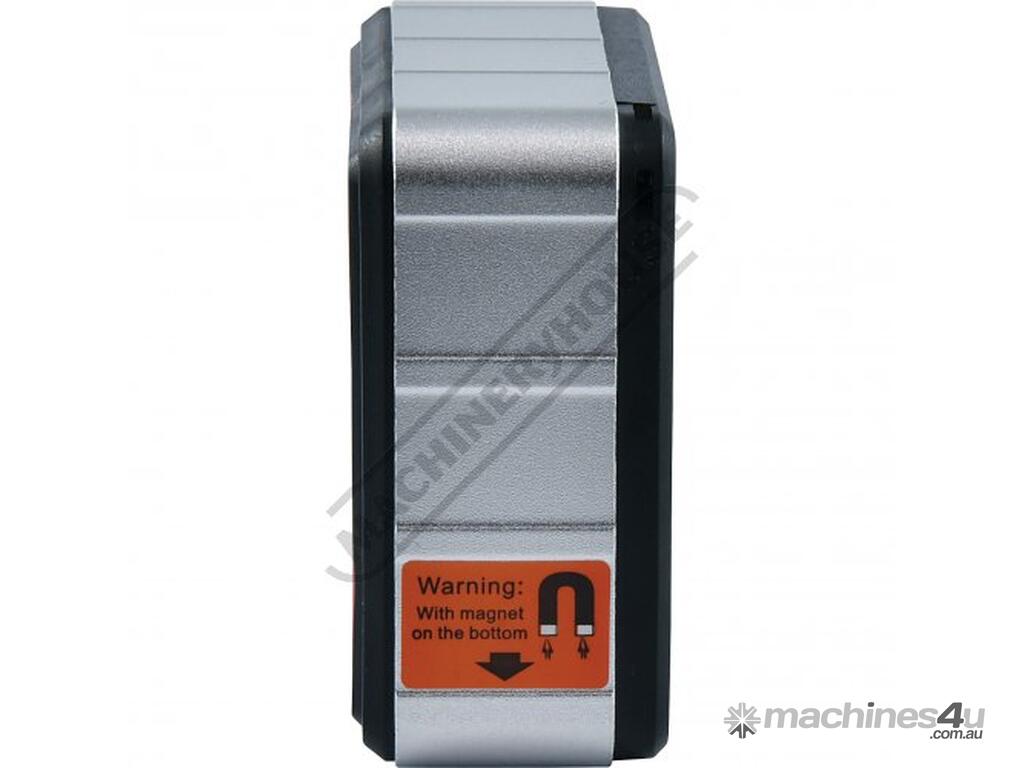

Magnets in the base
LCD backlight screen
On/Off & Zero button
0.1 degree resolution
0.1 accuracy for 0º & 90º - ±0.2º for all other angles
Automatic digit inversion for overhead
Auto shut off after 5 minutes
2 x measuring modes ABS - Absolute & Relative
60 x 60 x 25mm (L x W x D)
Working temperature 0º to 90ºC

Includes:
- Includes AAA alkaline battery

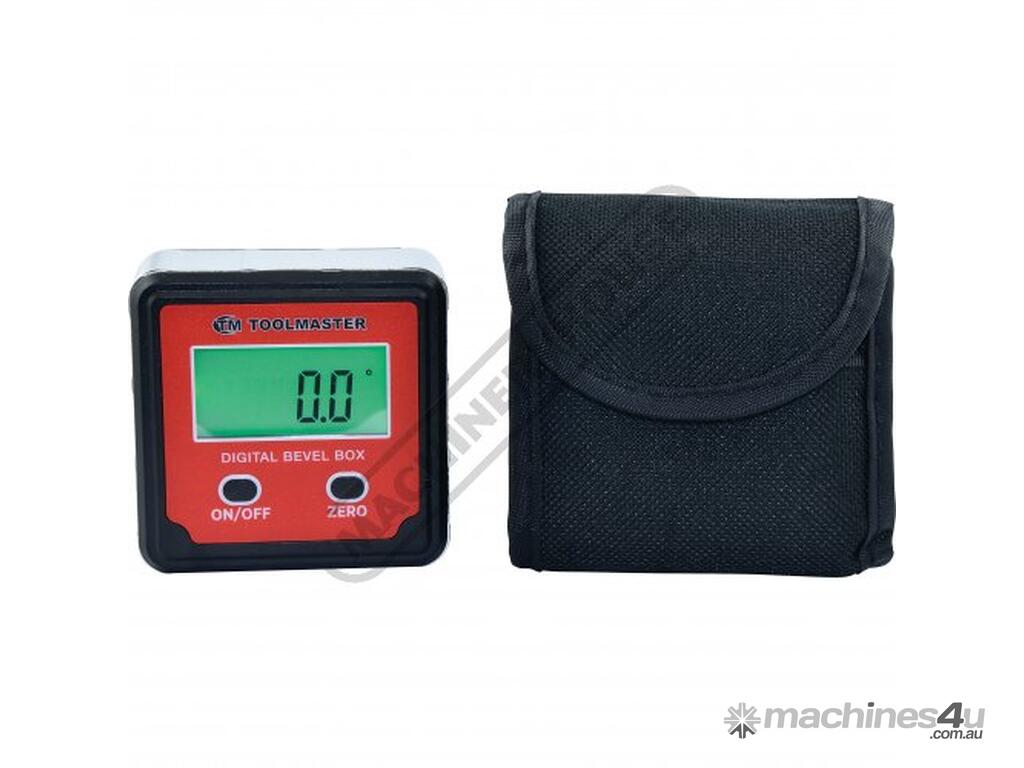

- Protective case



Specifications:
ORDER CODE: M977
Type: Angle Gauge
Type: ~
Blade Length (mm): ~
Range (deg): 4 x 90º
Graduated Scale (mm): ~
Resolution (deg): 0.1º
