HAFCO DB-32 Tube Bender - Electric Ø15.87 - Ø31.75mm Round Tube Capacity Includes Ø15.87, Ø19.05, Ø22.22, Ø25.4 & Ø31.75mm Aluminium Tube Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T070
Manufactured in Taiwan
A versatile, powerful and portable tube-bending system for site use or pre-fabrication of pre-set angle
The DB-32 includes a digital display readout for dialling in the bend angle required and is use on the following material tube types; Steel, copper, plastic-coated copper, coated soft steel, aluminium. Universal applications for plumbing, heating, refrigeration, air conditioning and general industry.
Features:

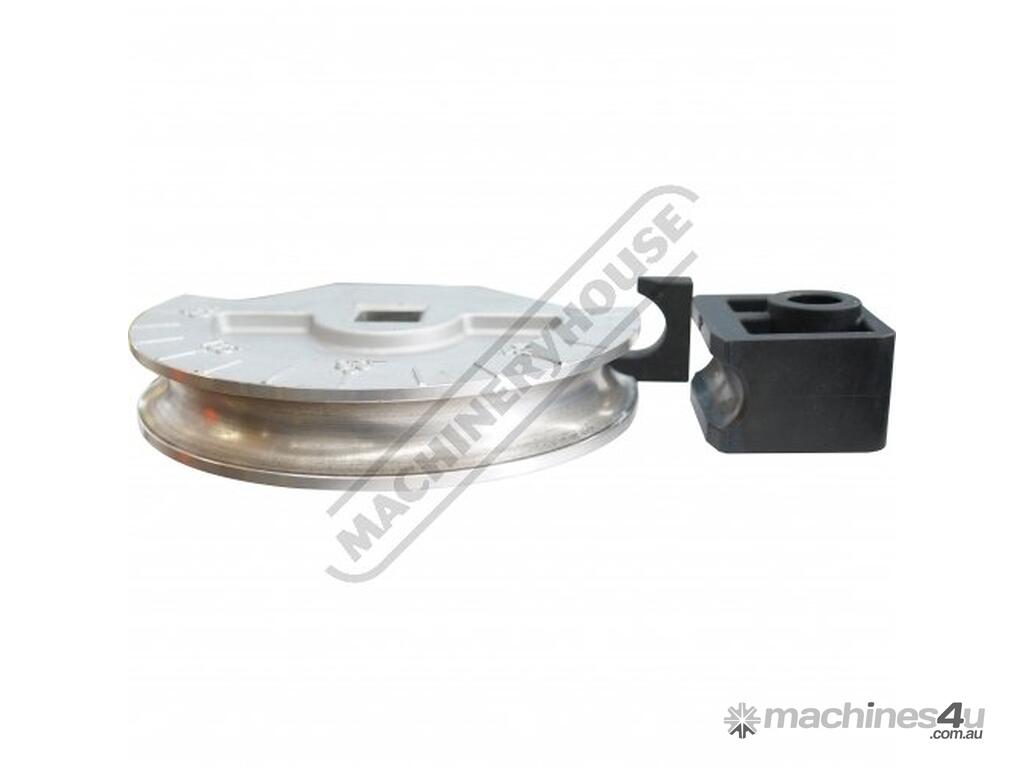

Complete with 5 Aluminium round tube formers (Ø15.87 Ø19.05 Ø22.22 Ø25.4 & Ø31.75mm OD)

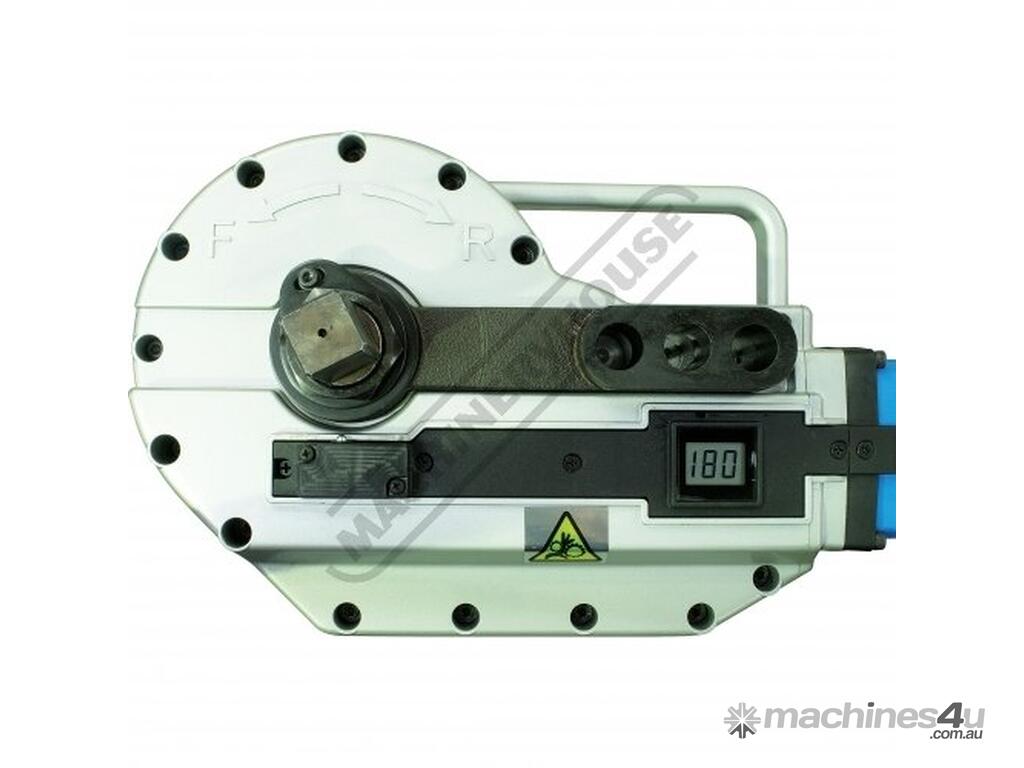

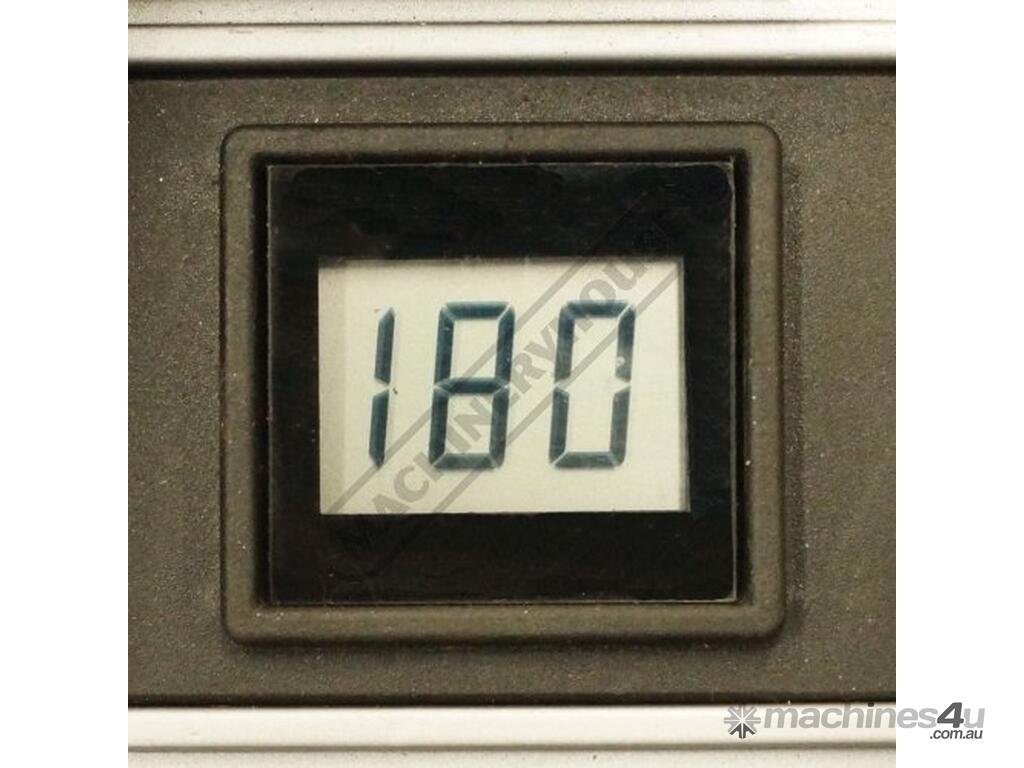

Digital readout display 0-180º for repetitive bends
Automatic stop at pre-selected angle
High reduction transmission for increased torque
Patented low-friction guide shoe

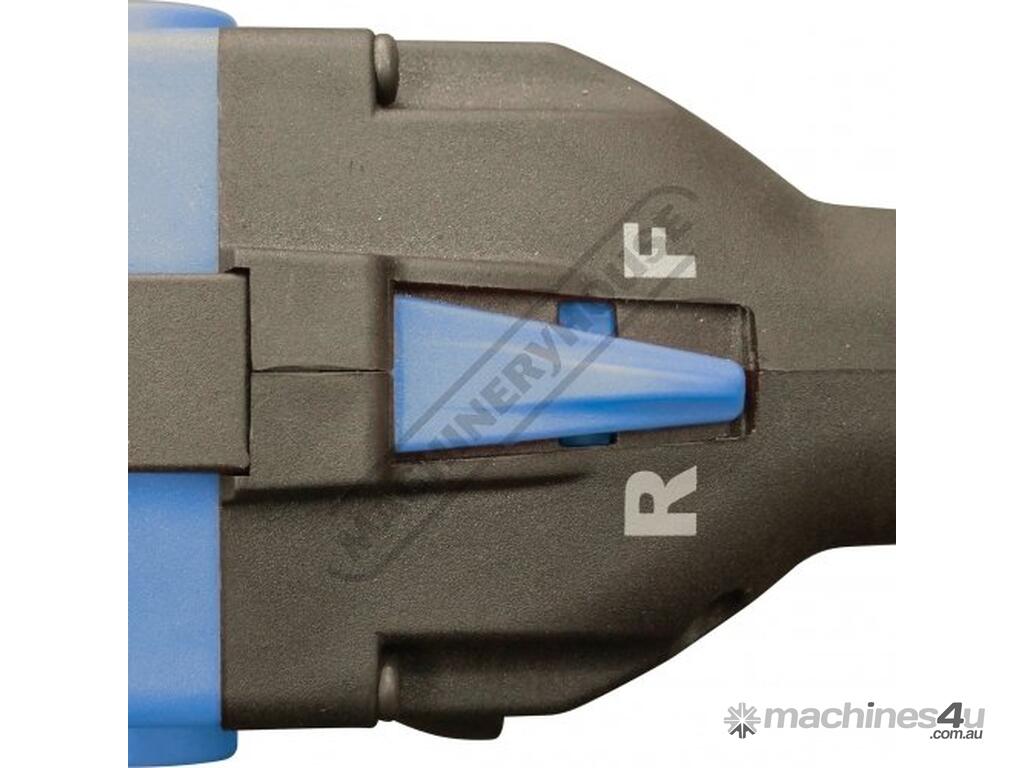

Forward & reverse switch
1.7kW 240V motor
Aluminium Round Tube Formers Capacities:
Ø15.87 Ø19.05 Ø22.22 Ø25.4mm OD - 2.0mm mild steel wall & 1.6mm stainless steel wall thickness
* Ø31.75mm OD - 1.6mm mild steel wall & 1.2mm stainless steel wall thickness
Includes:

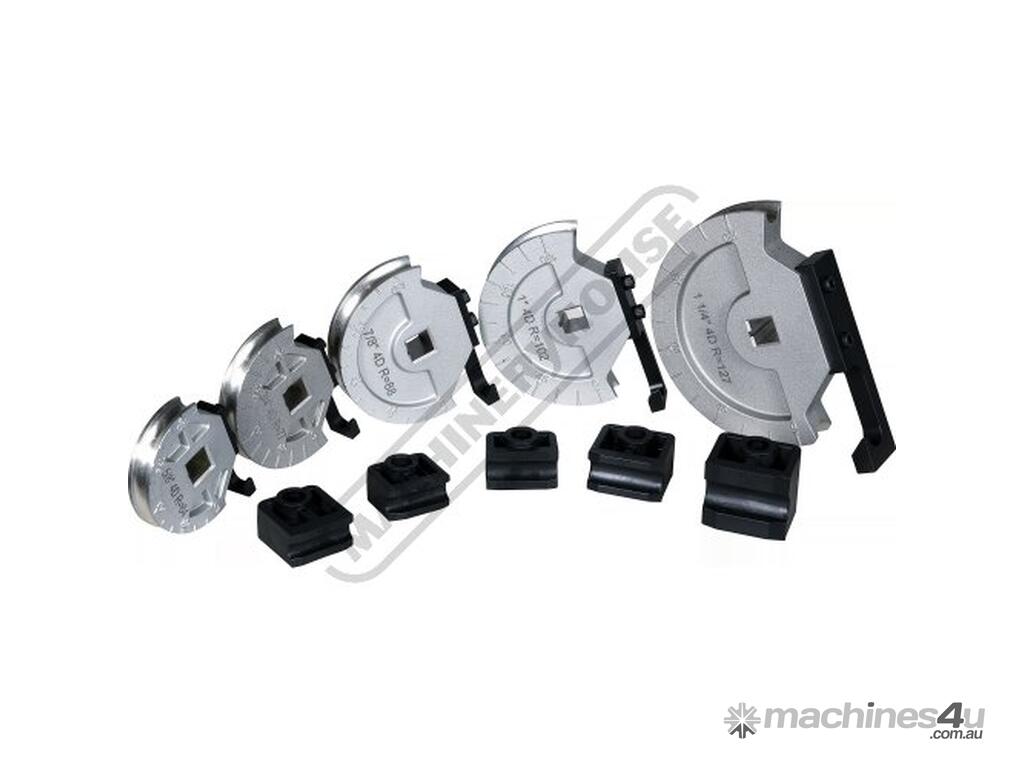

- Aluminium Round Tube Formers:
- Ø15.87mm OD x 68mm Centreline radius
- Ø19.05mm OD x 80mm Centreline radius
- Ø22.22mm OD x 92mm Centreline radius

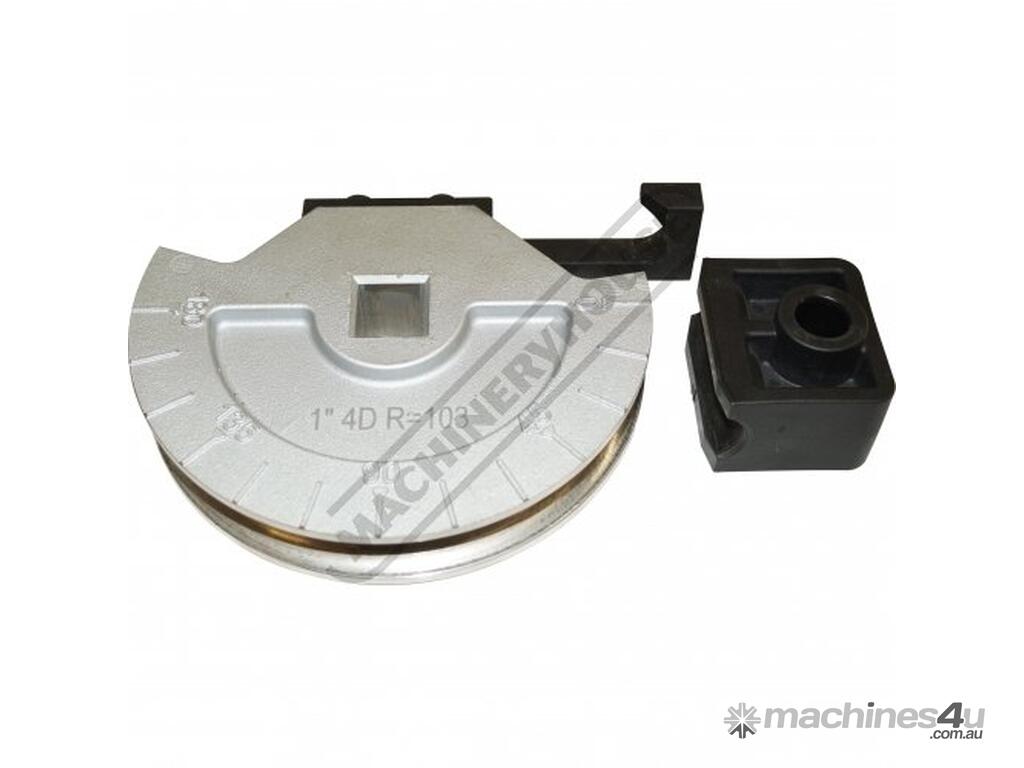

- Ø25.4mm OD x 103mm Centreline radius
- Ø31.75mm OD x 130mm Centreline radius
-

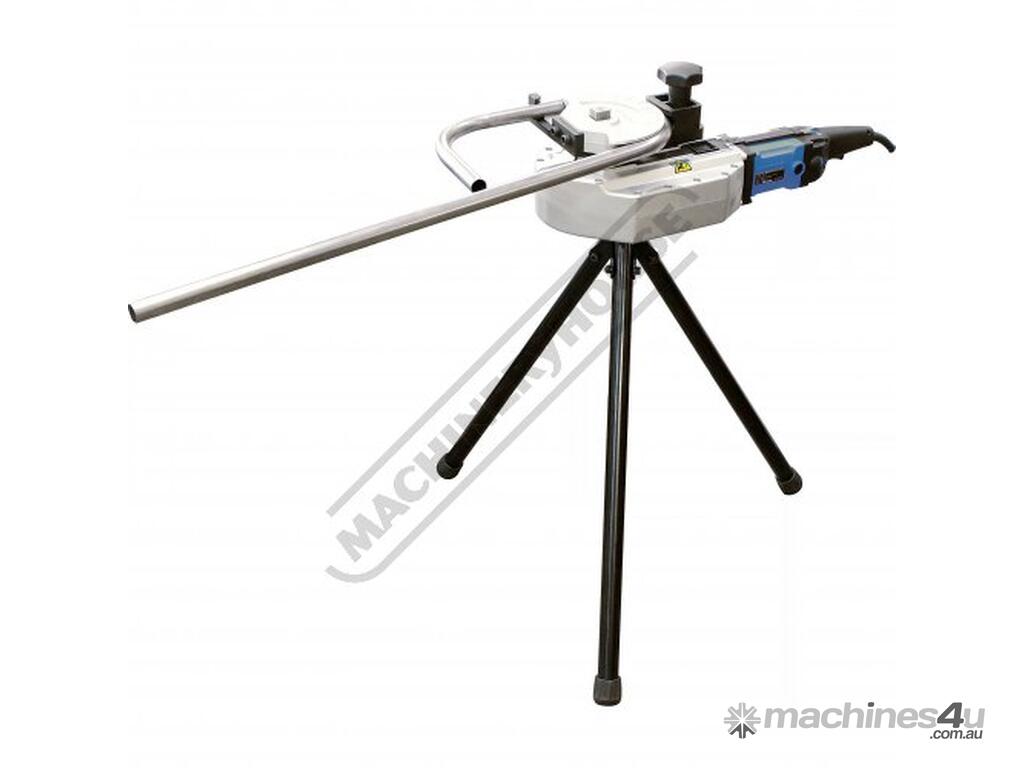

- Three leg stand

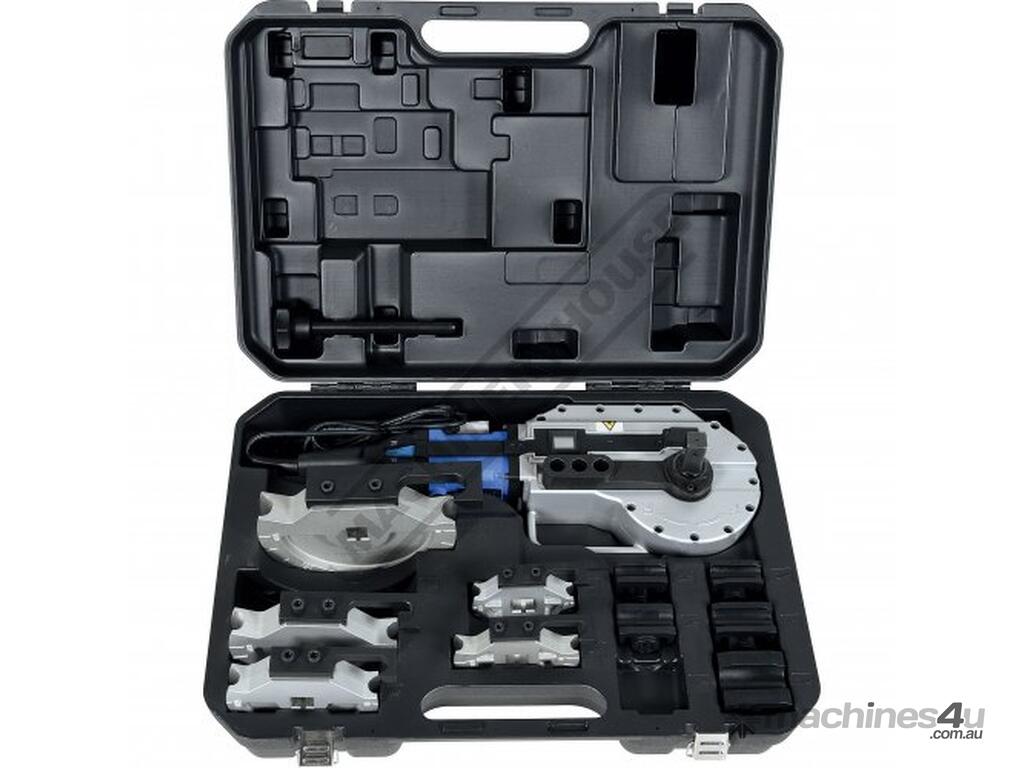

- Plastic carry case
Specifications:
ORDER CODE: T070
MODEL: DB-32
Material (Type): Tube
Material Section (Type): Round
Machine (Type): Electric
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): ~
Round Tube Range (OD) - Mild Steel (inch / mm): Ø15.87 - Ø31.75
Square Tube Range (inch / mm): ~
Tube Wall Thickness - Mild Steel (inch / mm): 2.0*
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): ~
Centre Line Radius - Minimum (CLR) (inch / mm): ~
Tube Formers Included (inch / mm): 15.87, 19.05, 22.22,
Tube Formers Included (inch / mm): 25.4 & 31.75 OD Round
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 0 - 180º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): 1.7 / 2.3
Voltage / Amperage (V / amp): 240
Nett Weight (kg): 32.6
