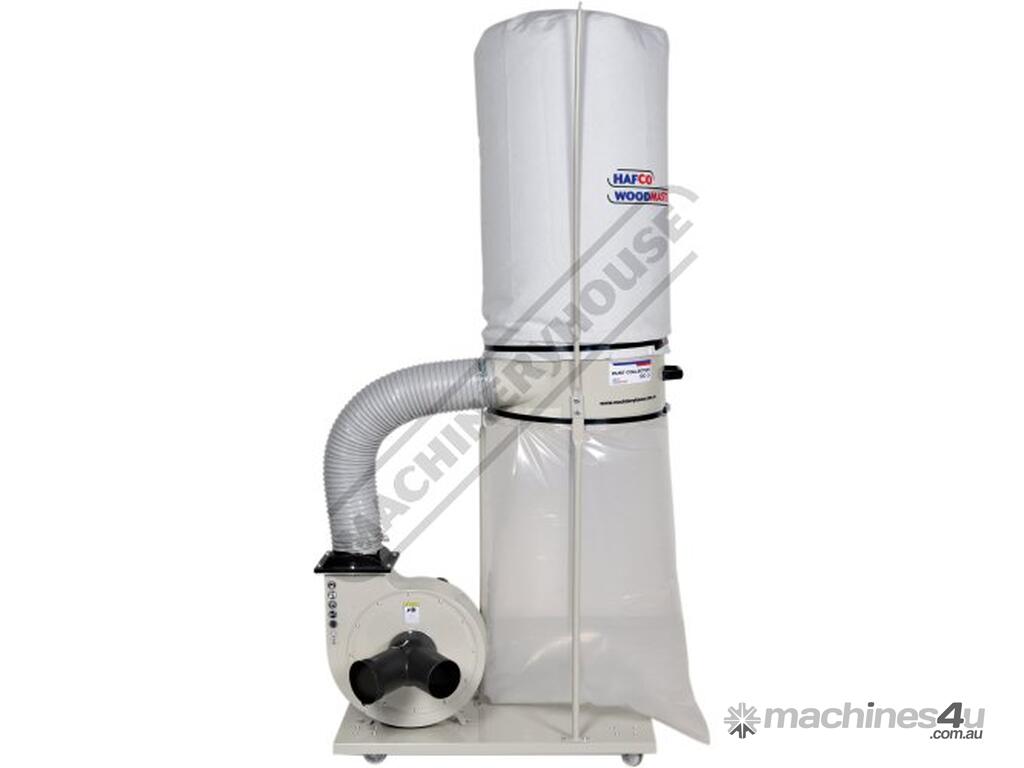

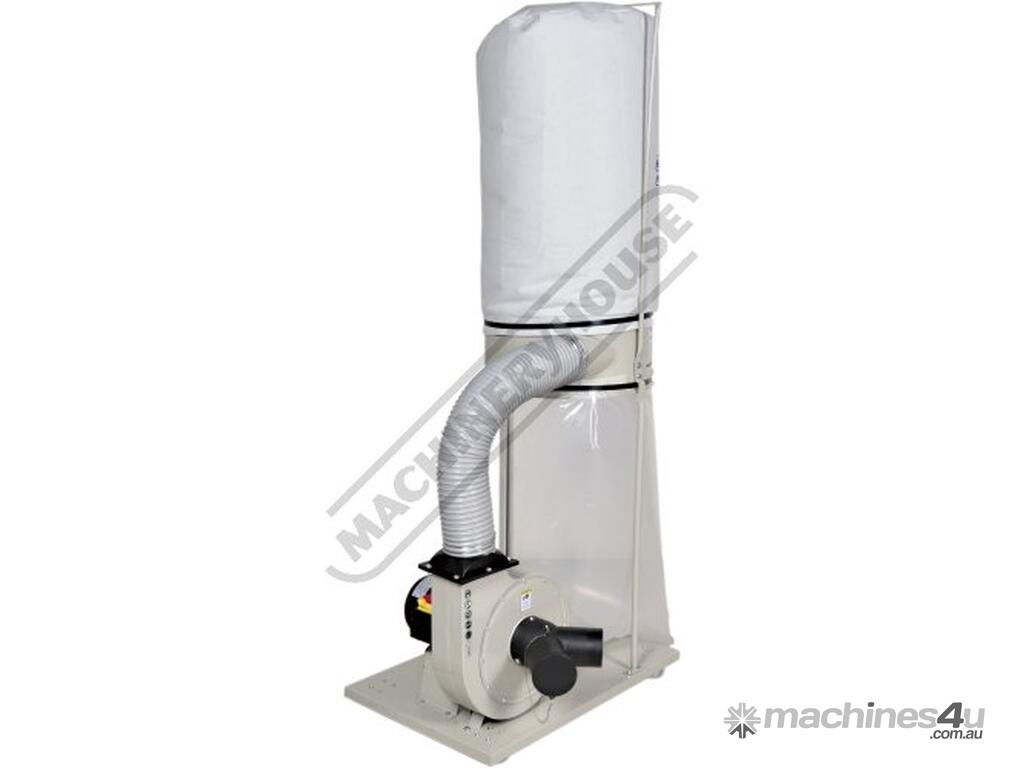

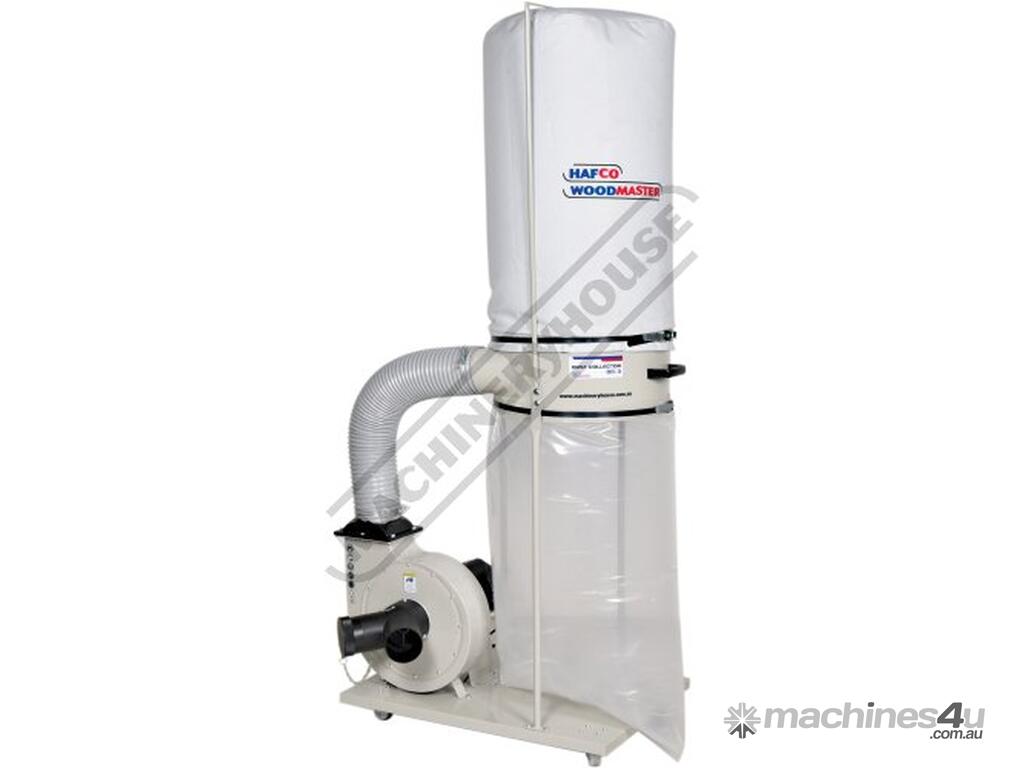

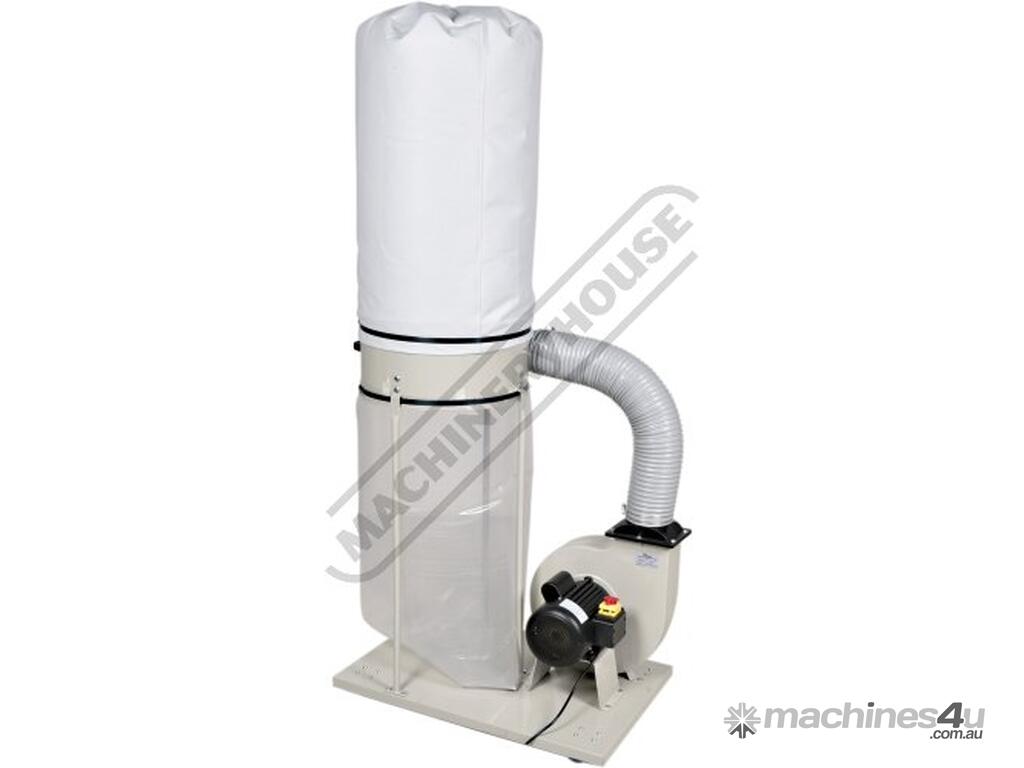

DC-3 Dust Collector 2HP 1200cfm - LPHV System

HAFCO-WOODMASTER DC-3 Dust Collector 2HP 1200cfm - LPHV System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W394

LPHV = Low Pressure High Volume System

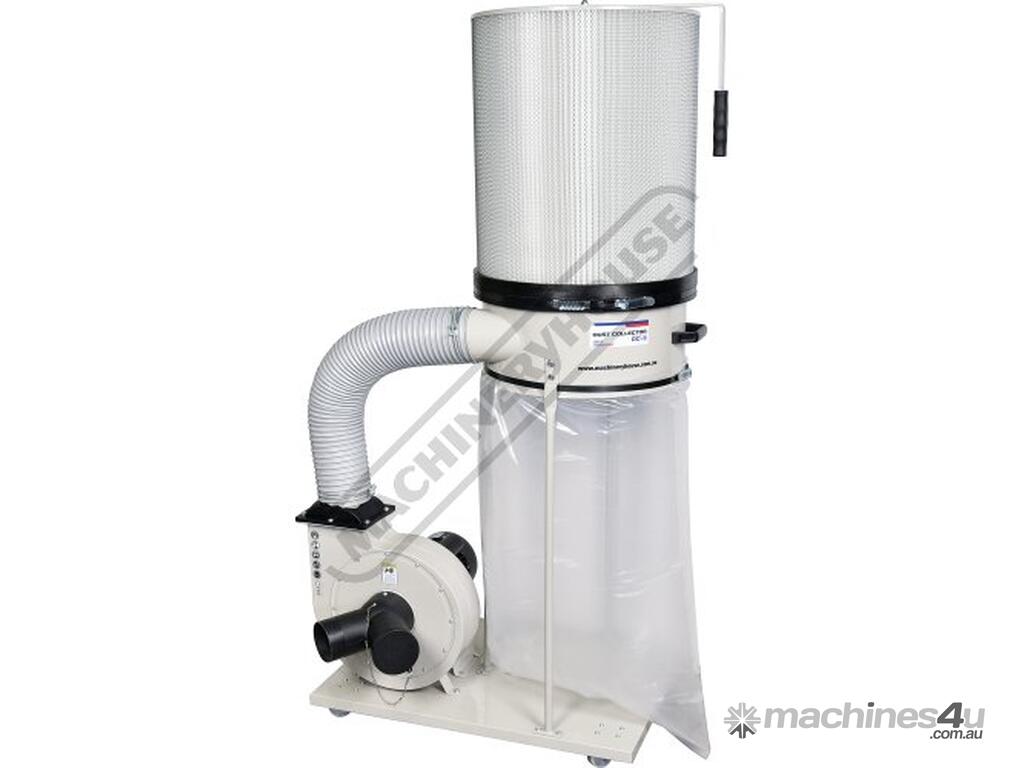

The DC-3 is a low-pressure high-volume dust collector (LPHV), dust and shavings of LPHV extractors are sucked through the impeller fan blade, the heavier waste falls into the lower bag with the air being exhausted through the top filter bag which aids in collecting some of the fine dust on the way out. This type of extraction shifts huge volumes of air at low pressure. They are very efficient at removing bulk waste, recommended for Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The fine filtration efficiency can be improved somewhat by fitting a cyclone and replacing the bag with a cartridge filter.

Features:
1200cfm air flow suction

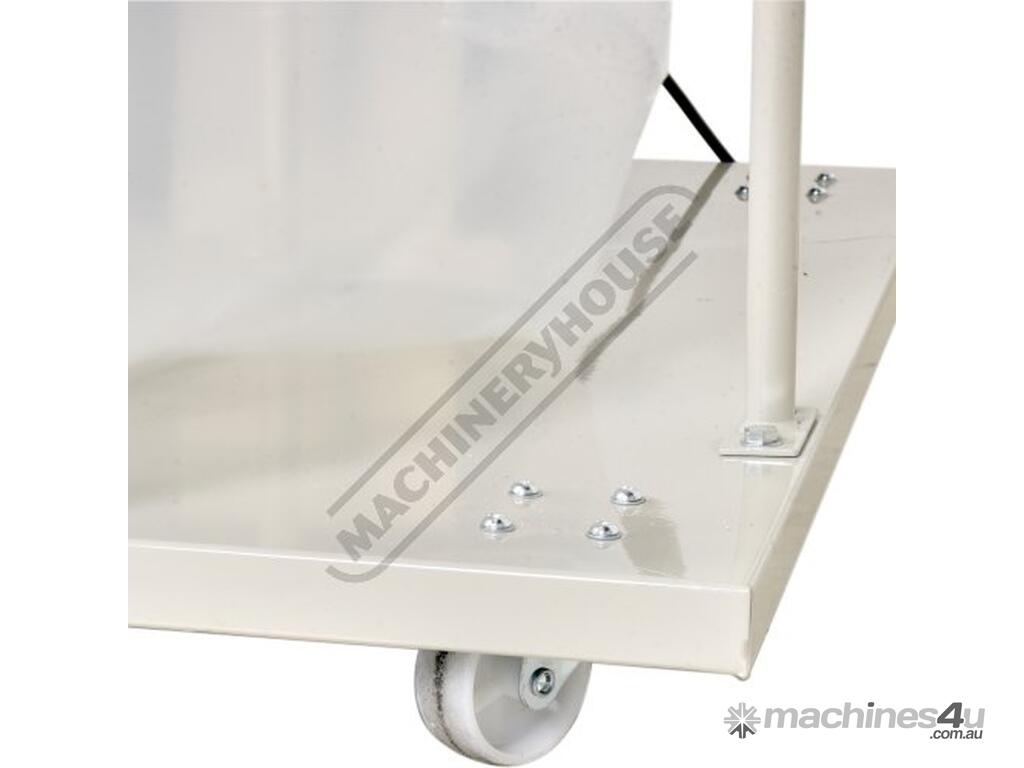

Portable on wheels

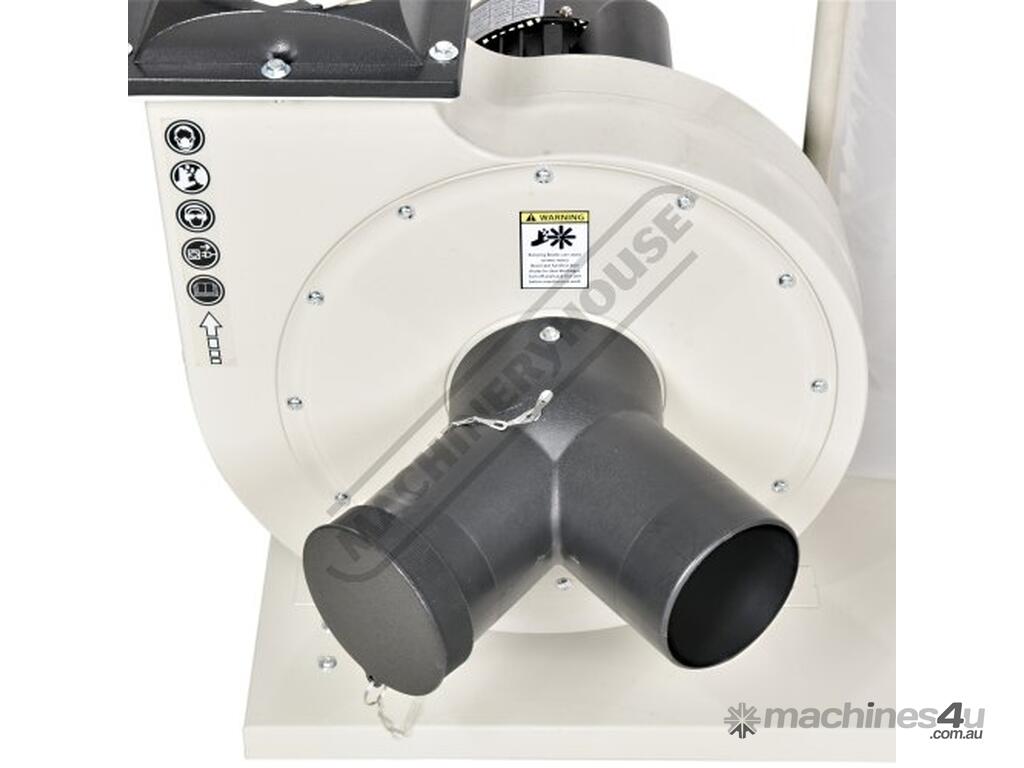

Ø100mm twin inlets

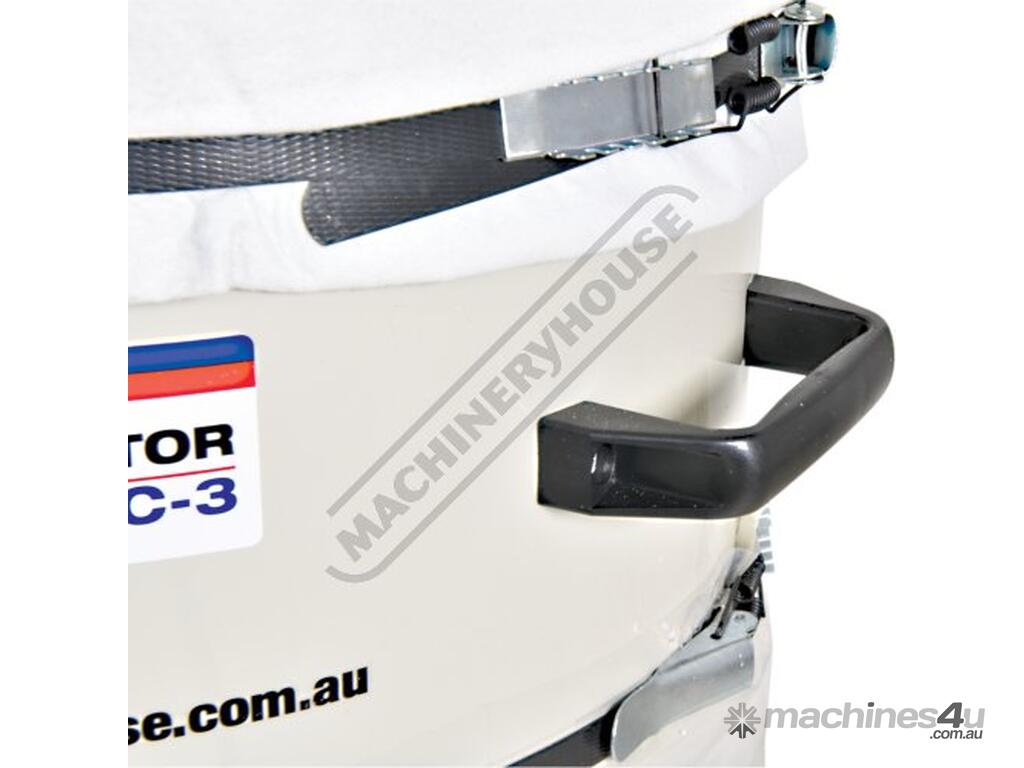

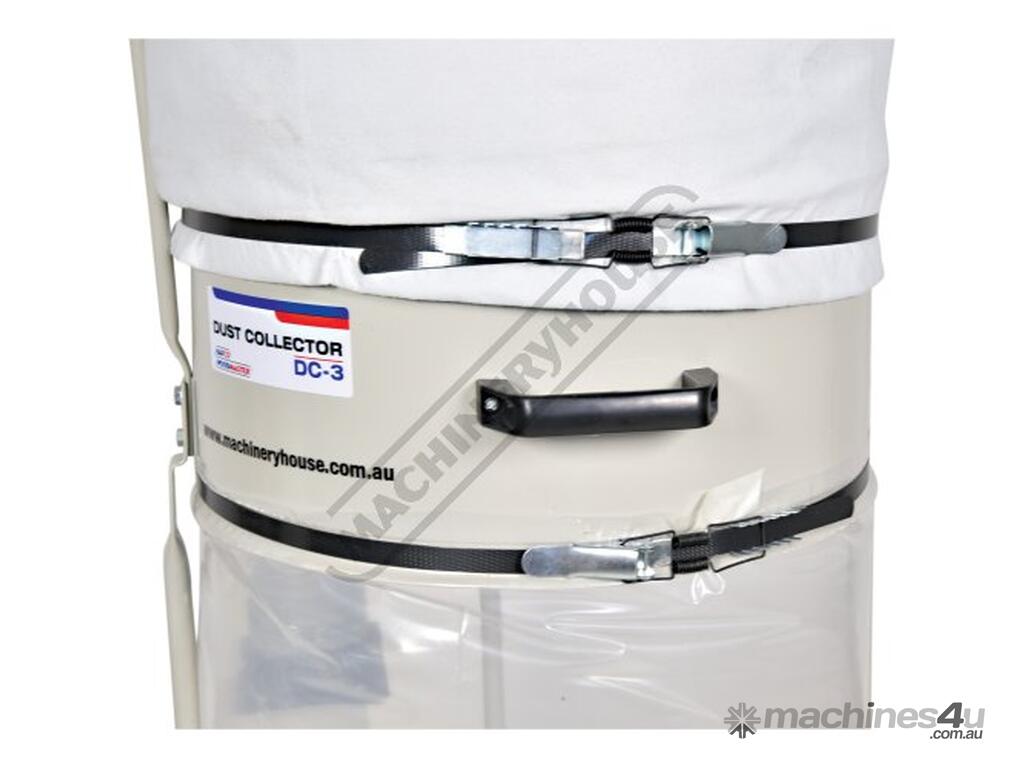

Quick-action clamps

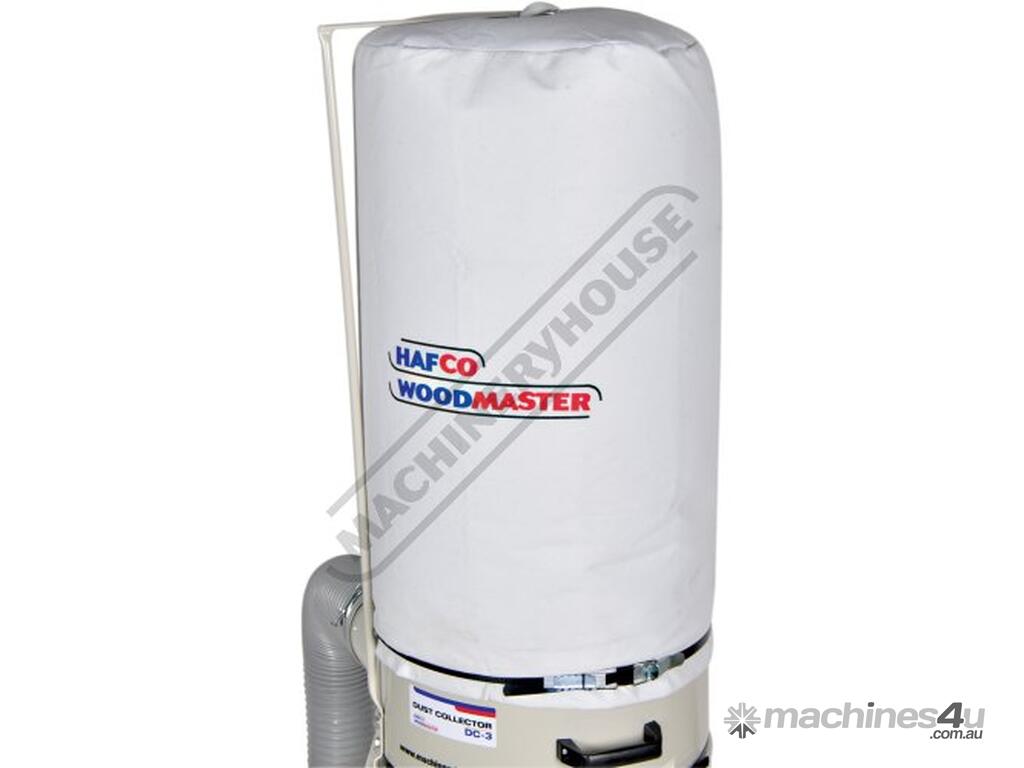

5 Micron fine filter bag

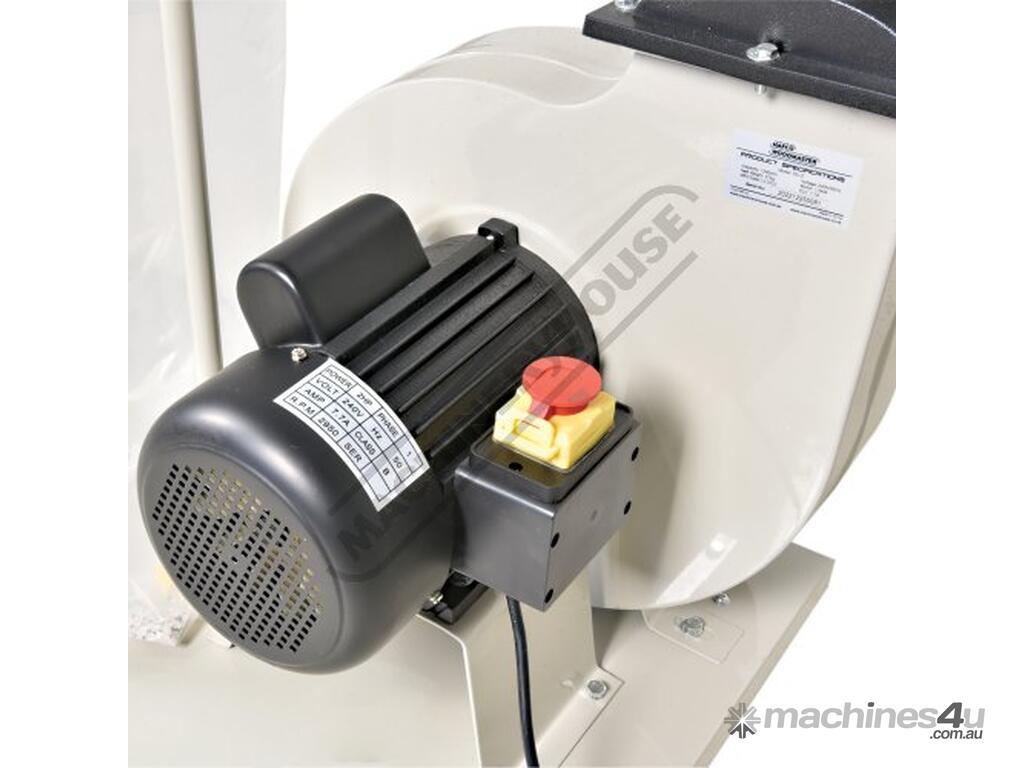

1.5kW / 2hp 240V motor


Specifications:
ORDER CODE: W394
MODEL: DC-3
Type: Dust Collector
Type: ~
Airflow (CFM): 1200
LPHV - Low Pressure High Volume (Yes / No): Yes
HPLV - High Pressure Low Volume (Yes / No): No
Inlets / Diameter (No. / mm): 2 x Ø100
Outlets / Diameter (No. / mm): ~
Motor Power (kW / hp): 1.5 / 2
Voltage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 1000 x 700 x 1950
Nett Weight (kg): 42
