DC-7 Dust Collector 3HP 2300cfm - LPHV System

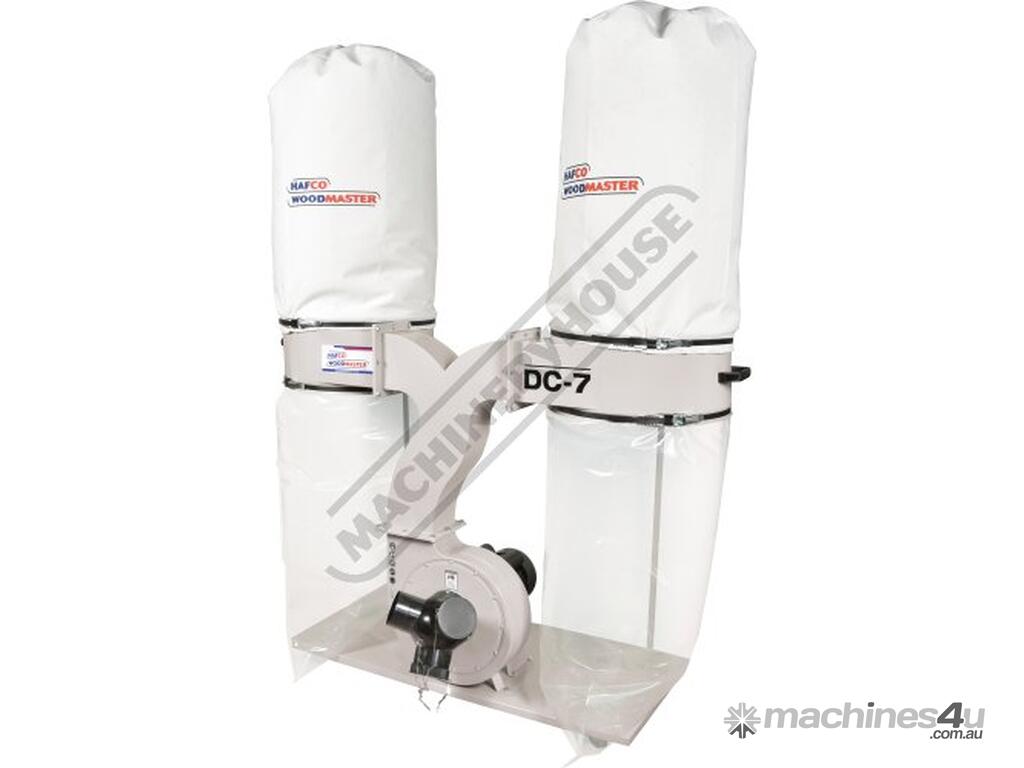

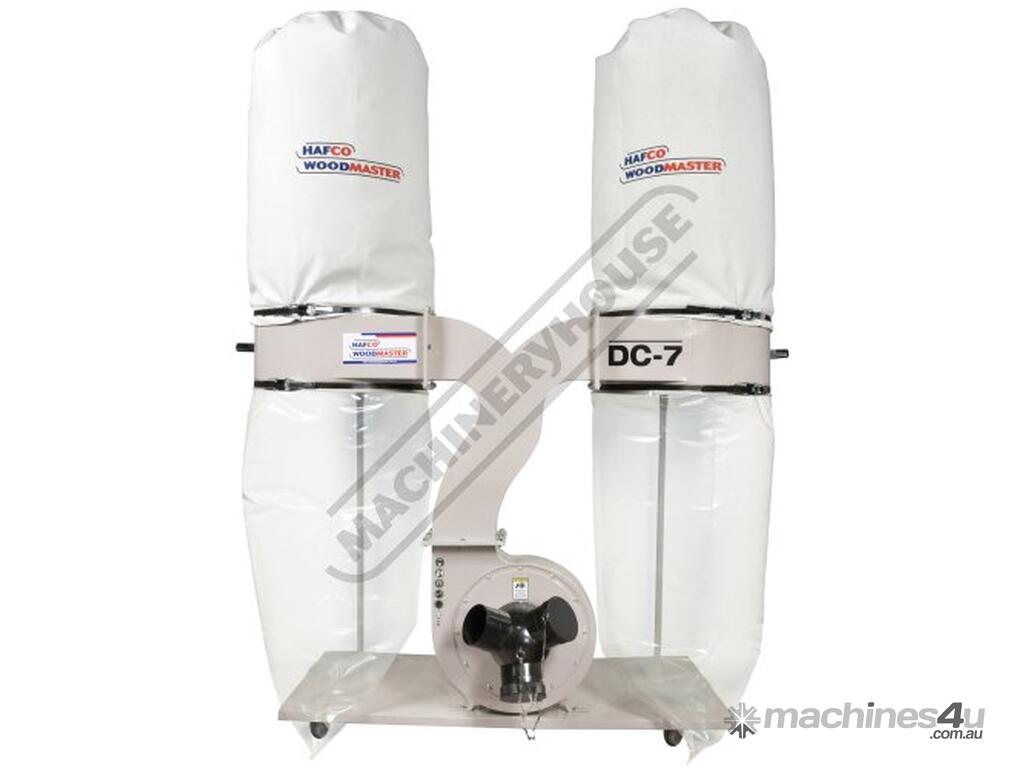

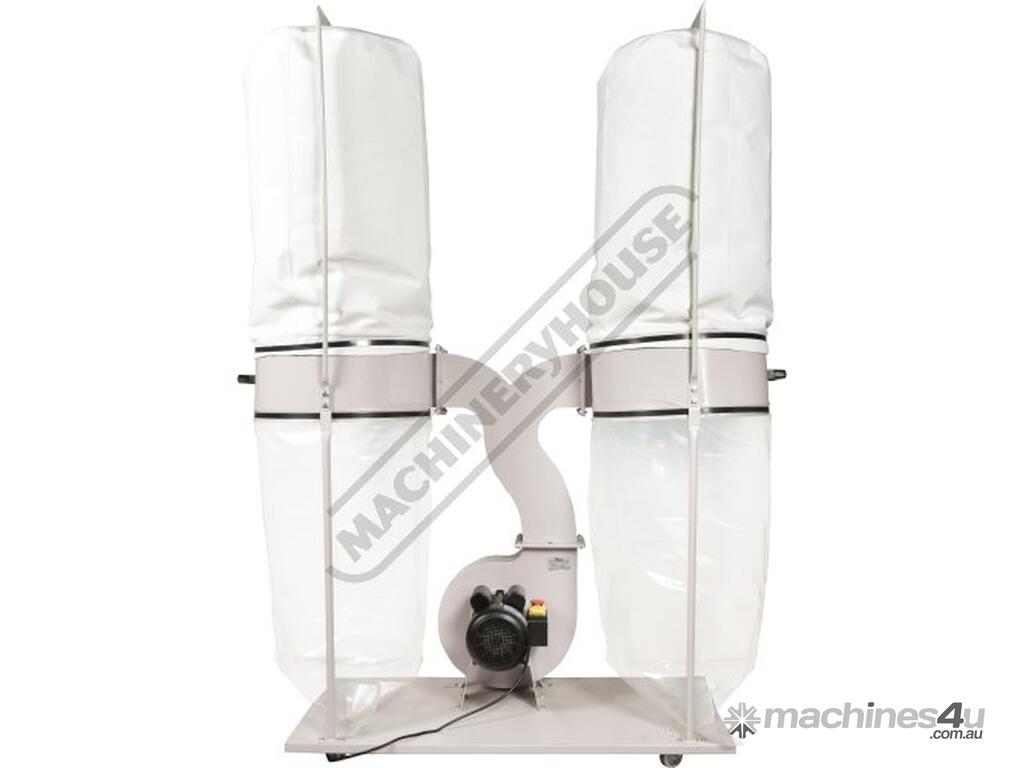

HAFCO-WOODMASTER DC-7 Dust Collector 3HP 2300cfm - LPHV System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W329

LPHV = Low Pressure High Volume System

The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically. The fine filtration efficiency can be improved somewhat by fitting a filter cartridge instead of the bag.

Features:
2300cfm air flow suction

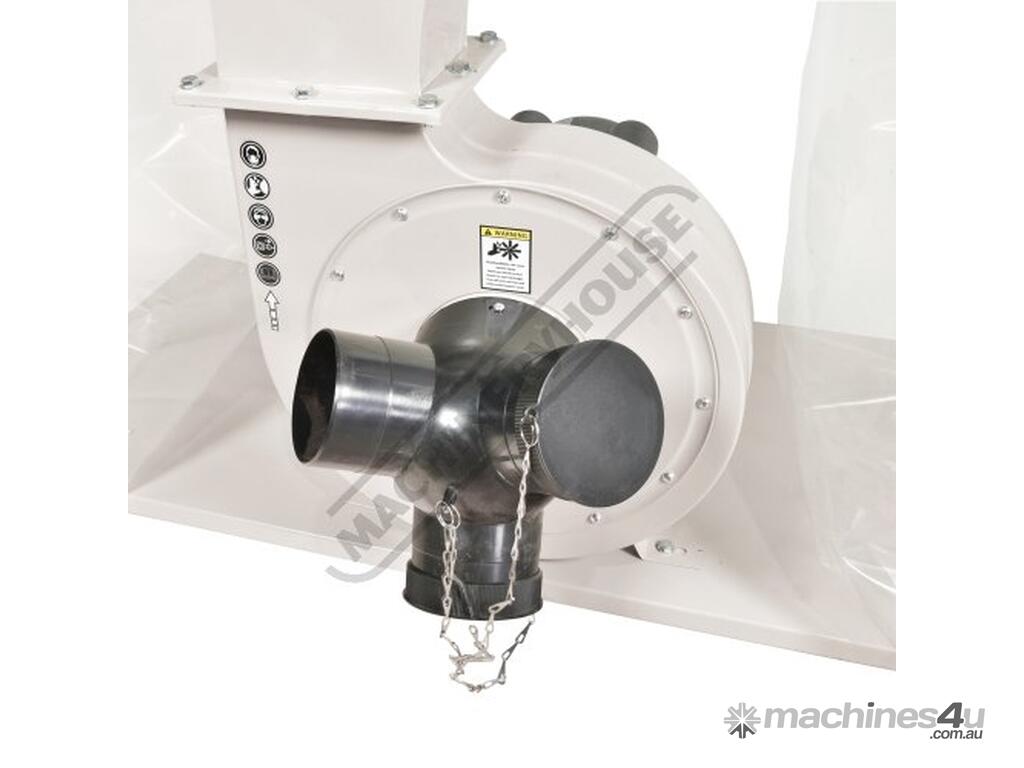

Ø100mm triple inlets
Portable on wheels

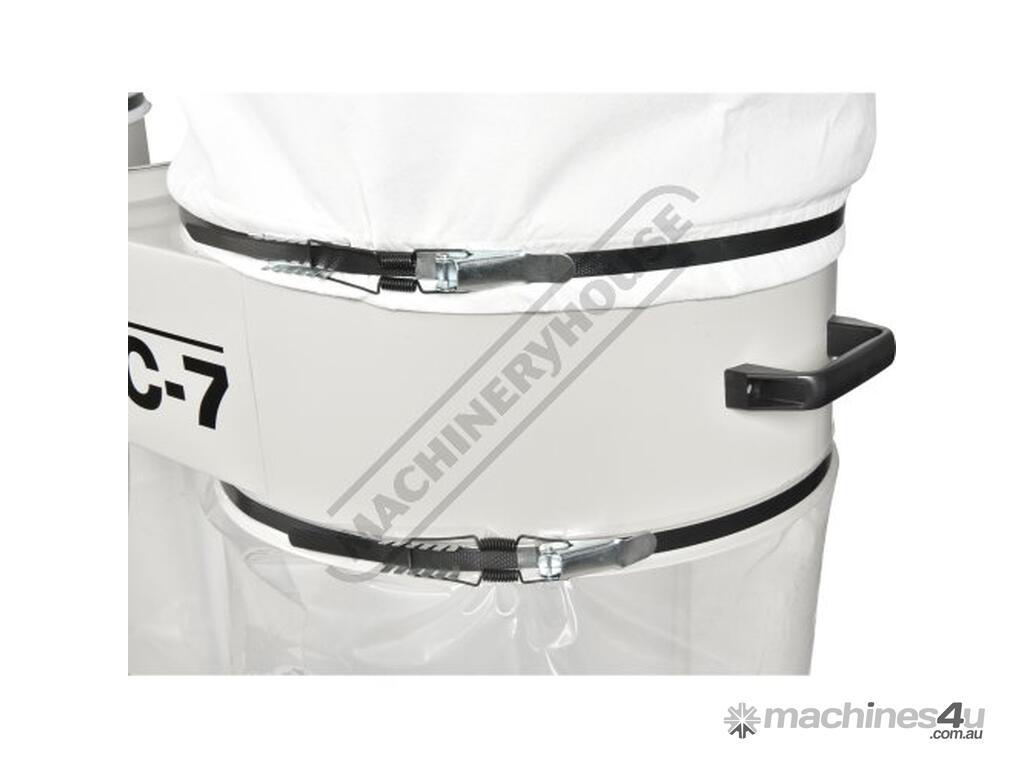

Quick-action clamps on filter & collection bags

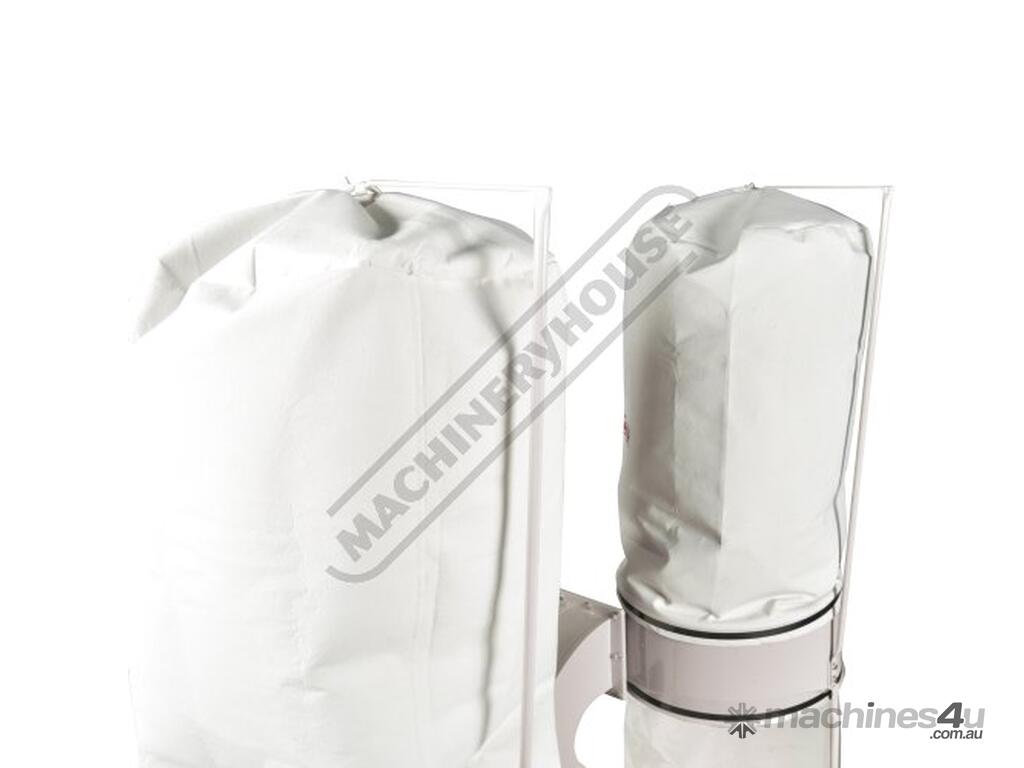

5 Micron fine filter bag
Ideal for multiple extraction applications

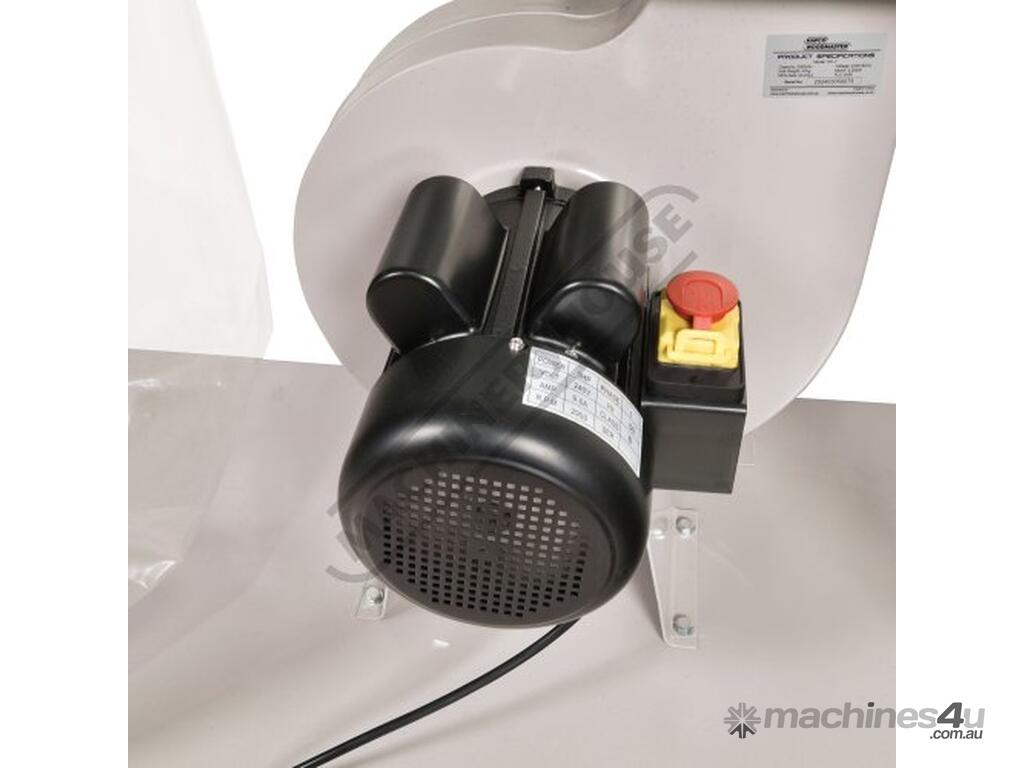

2.25kW / 3hp 240V motor

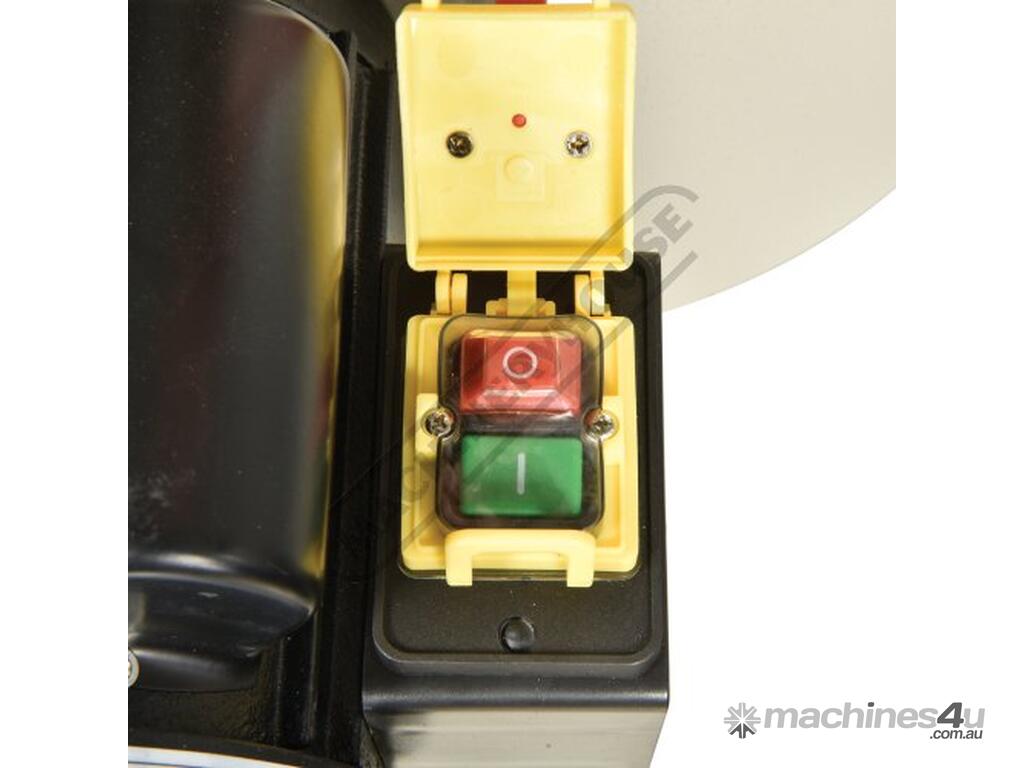

Magnetic safety switch


Specifications:
ORDER CODE: W329
MODEL: DC-7
Type: Dust Collector
Type: ~
Airflow (CFM): 2300
LPHV - Low Pressure High Volume (Yes / No): Yes
HPLV - High Pressure Low Volume (Yes / No): No
Inlets / Diameter (No. / mm): 3 x Ø100
Outlets / Diameter (No. / mm): ~
Motor Power (kW / hp): 2.25 / 3
Voltage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 1550 x 740 x 1930
Nett Weight (kg): 51


To Purchase Online Please Visit The Machineryhouse & Search For 'W329'
