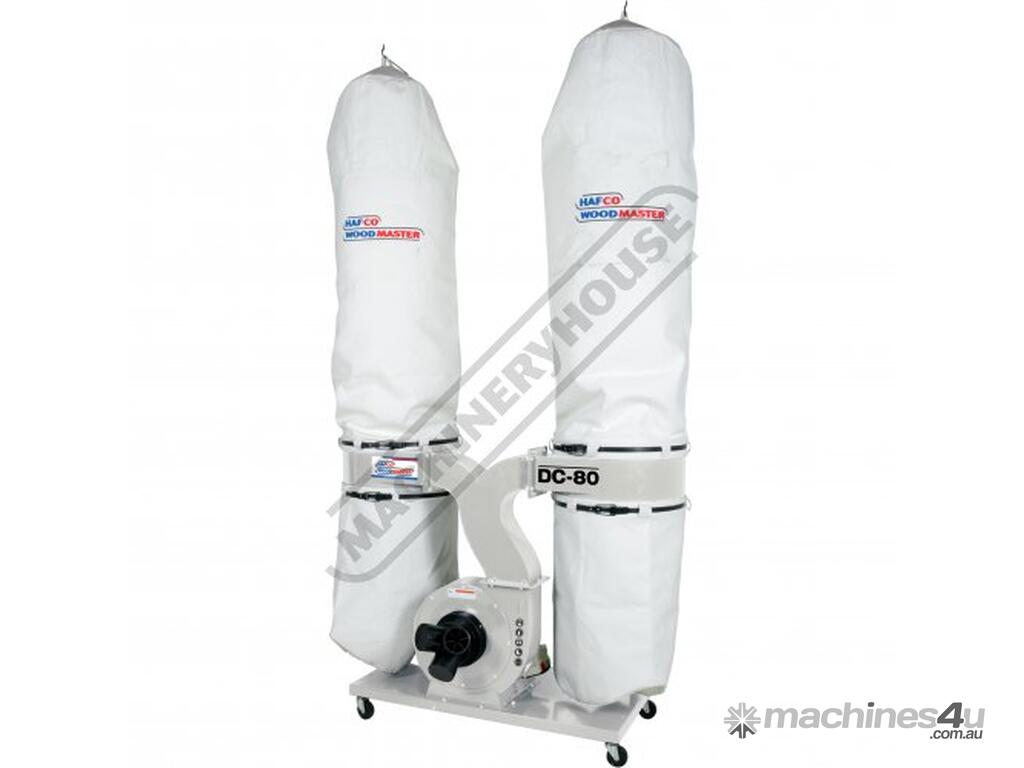

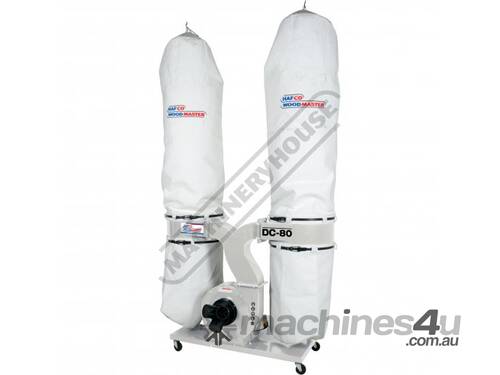

DC-80 Industrial Dust Collector 3HP 2800cfm - LPHV System

HAFCO-WOODMASTER DC-80 Industrial Dust Collector 3HP 2800cfm - LPHV System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W397

LPHV = Low Pressure High Volume System

The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically. The fine filtration efficiency can be improved somewhat by fitting a filter cartridge instead of the bag.

Features:
2800cfm air flow suction

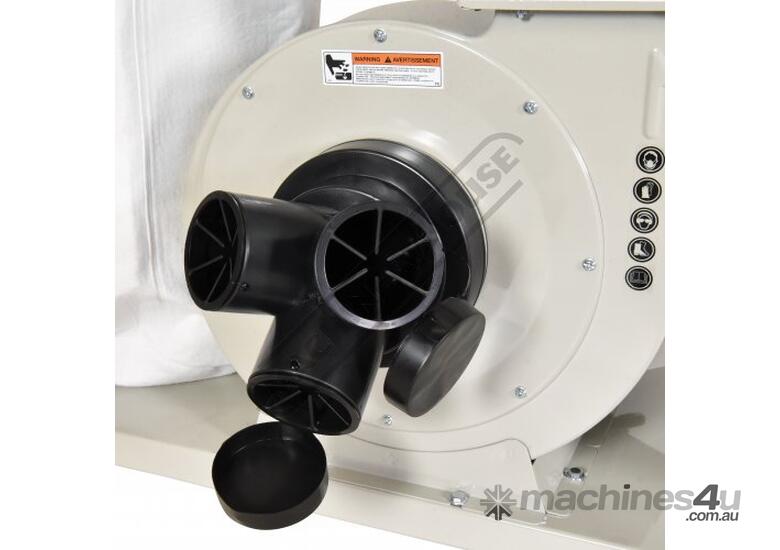

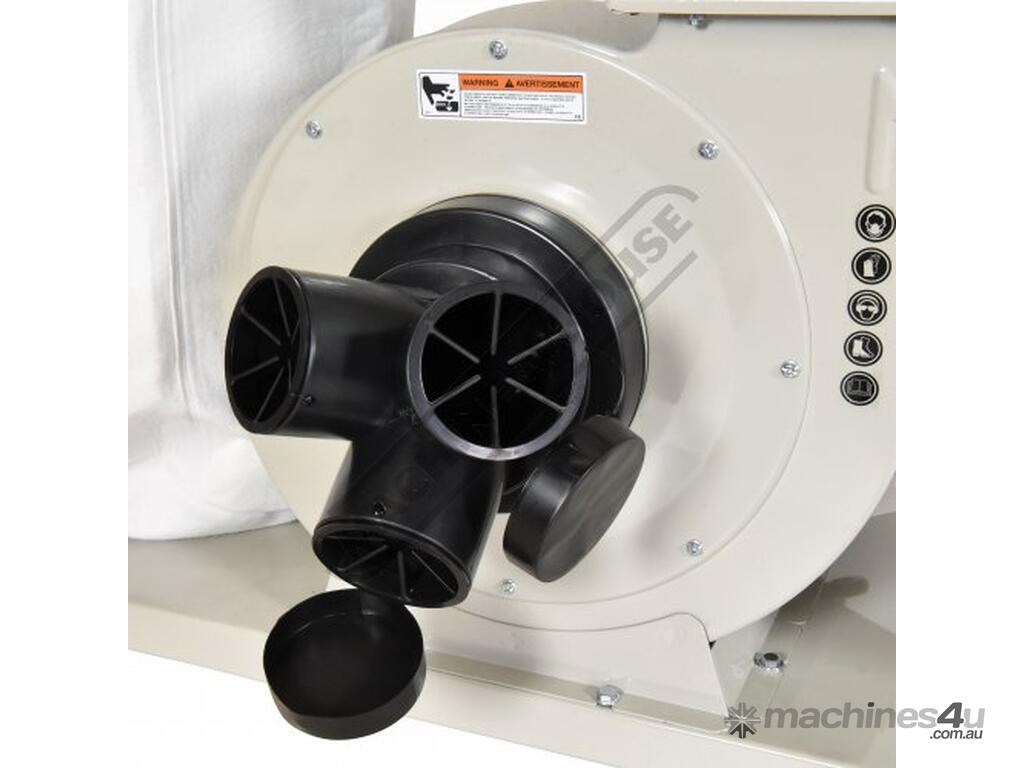

Ø100mm triple inlets

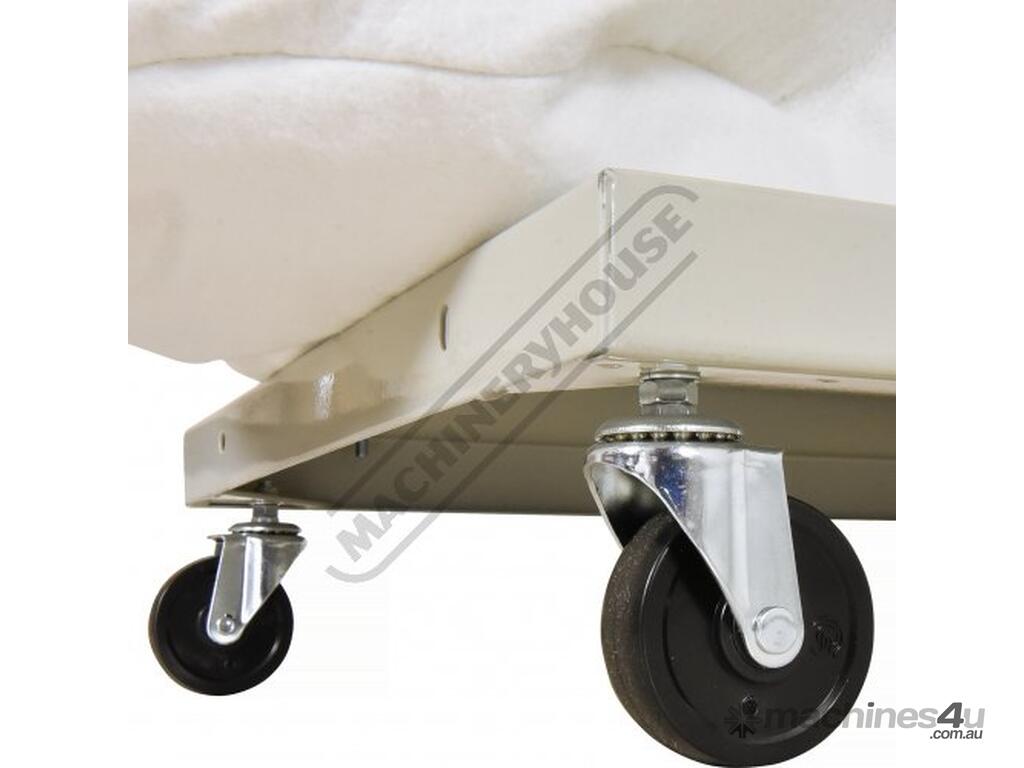

Portable on wheels

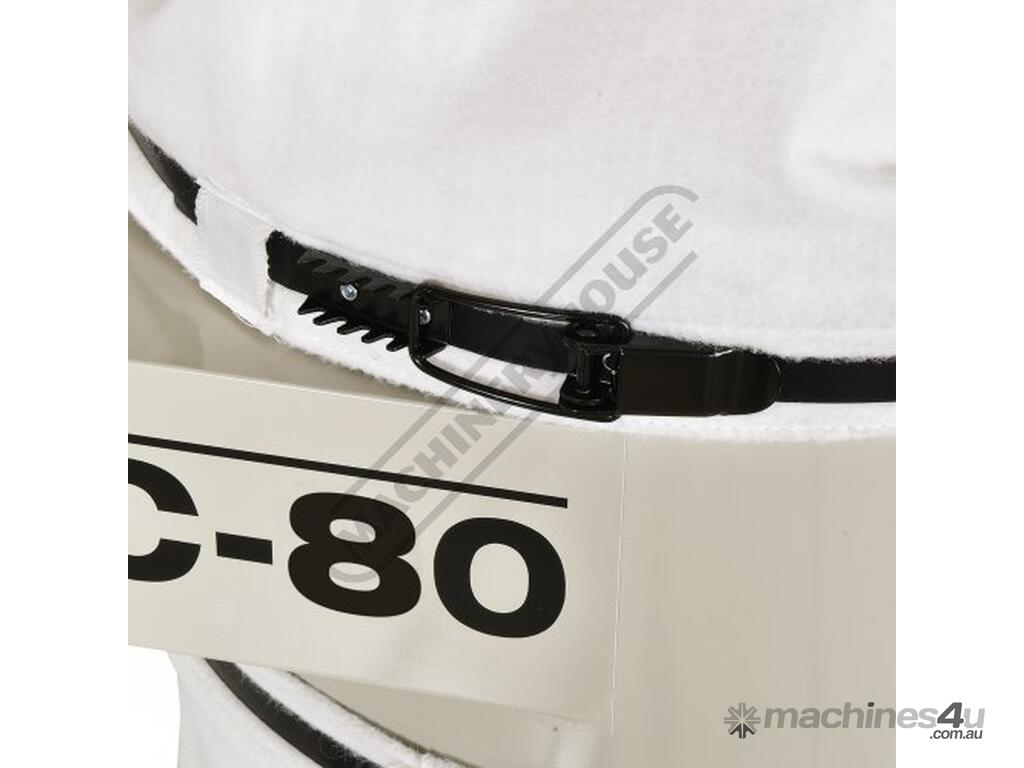

Quick-action clamps
2 Micron filter bags

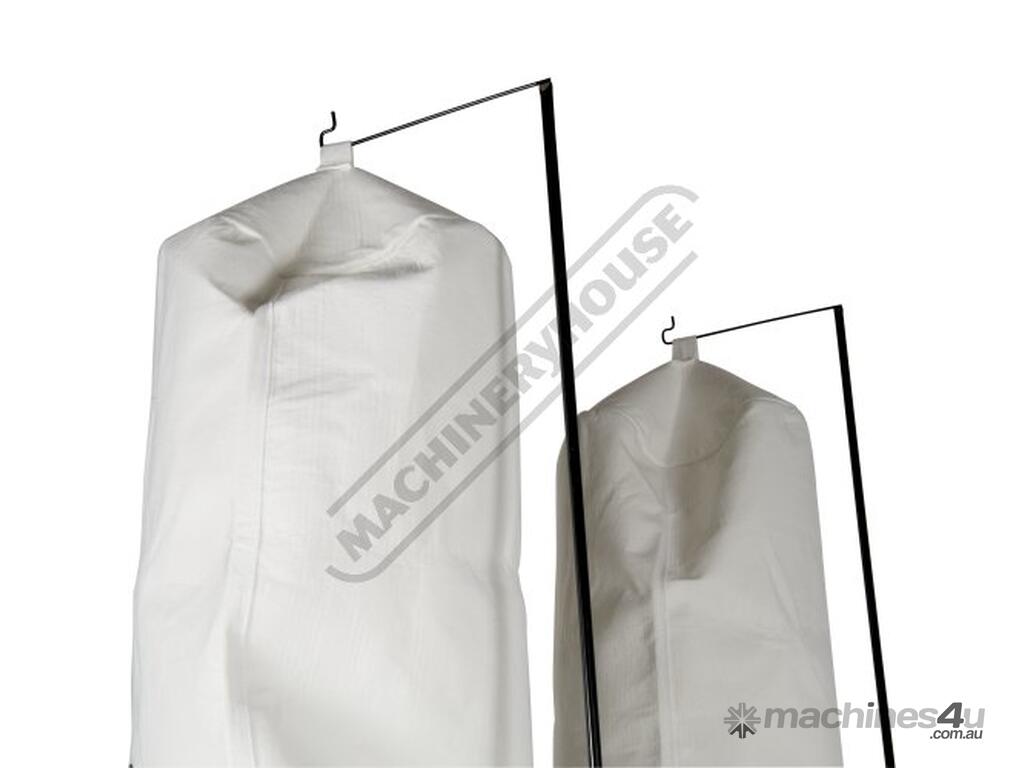

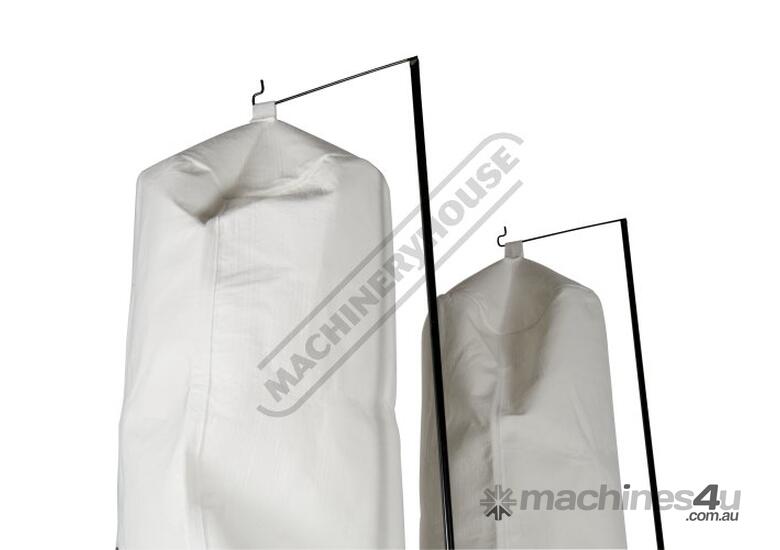

1600mm high filter bags

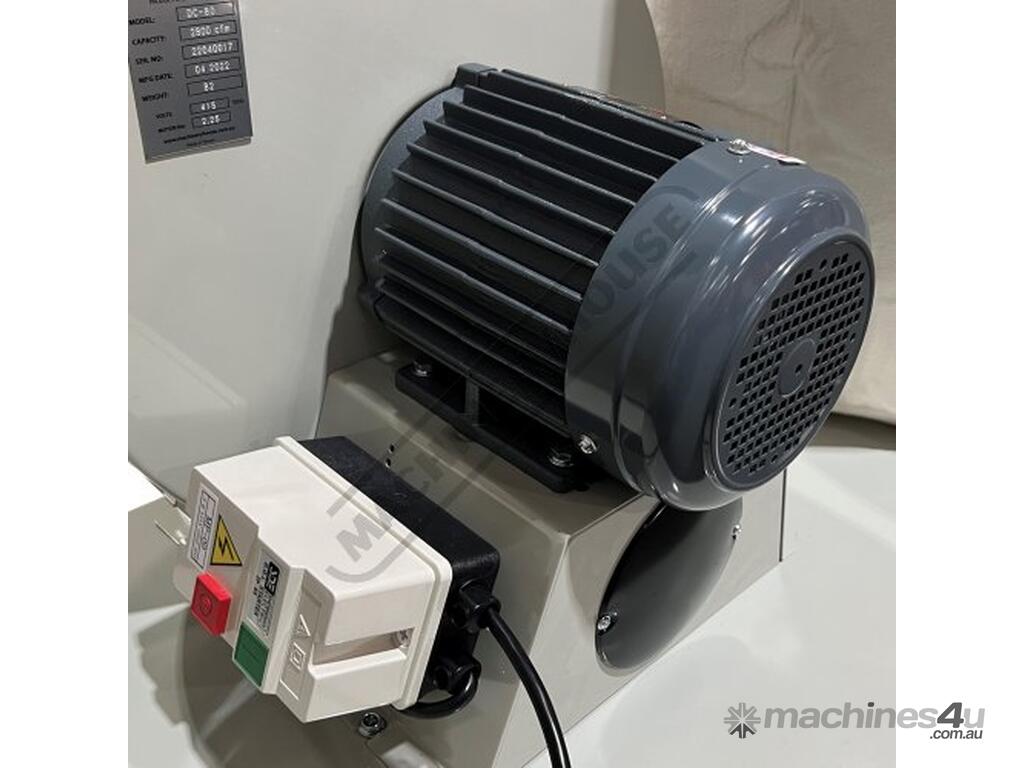

2.25kW / 3hp 415V motor
MADE IN TAIWAN


Specifications:
ORDER CODE: W397
MODEL: DC-80
Type: Dust Collector
Type: ~
Airflow (CFM): 2800
LPHV - Low Pressure High Volume (Yes / No): Yes
HPLV - High Pressure Low Volume (Yes / No): No
Inlets / Diameter (No. / mm): 3 x Ø100
Outlets / Diameter (No. / mm): ~
Motor Power (kW / hp): 2.25 / 3
Voltage (V / amp): 415
Floor Space (W x D x H) (mm): 1600 x 800 x 2840
Nett Weight (kg): 87
