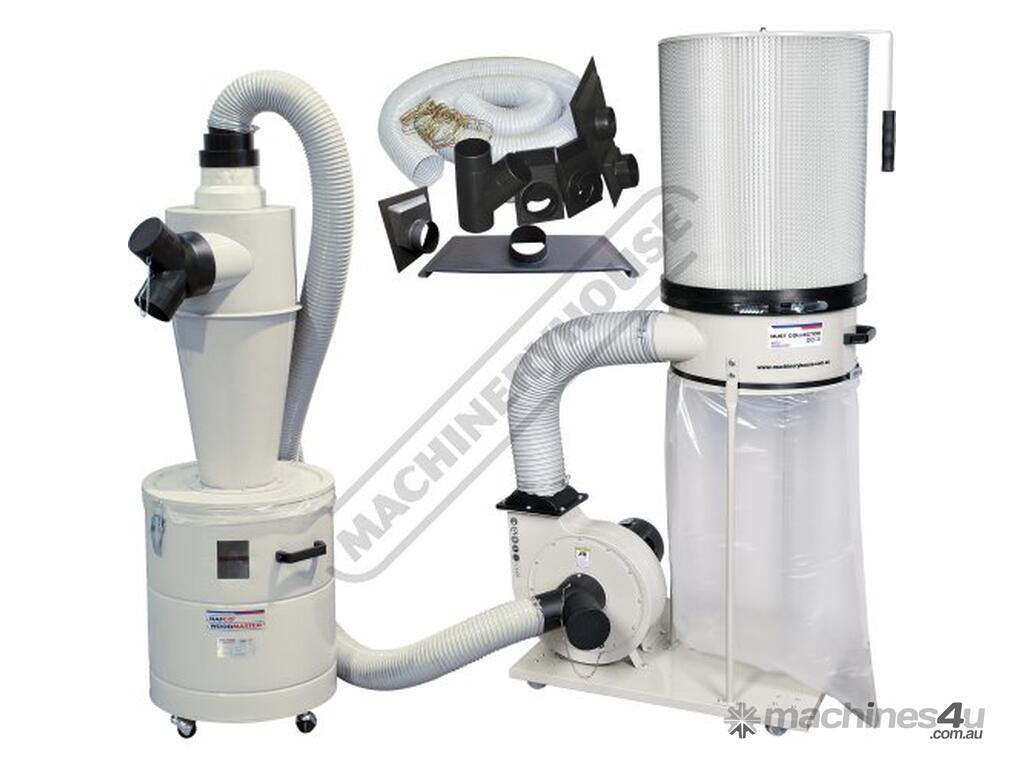

DCC-310 Dust Collector & Cyclone Separator Package Deal Includes Hose Kit 1200cfm - LPHV System

HAFCO-WOODMASTER DCC-310 Dust Collector & Cyclone Separator Package Deal Includes Hose Kit 1200cfm - LPHV System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K047

DC-3: dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically. The fine filtration efficiency can be improved somewhat by fitting a filter cartridge instead of the bag.

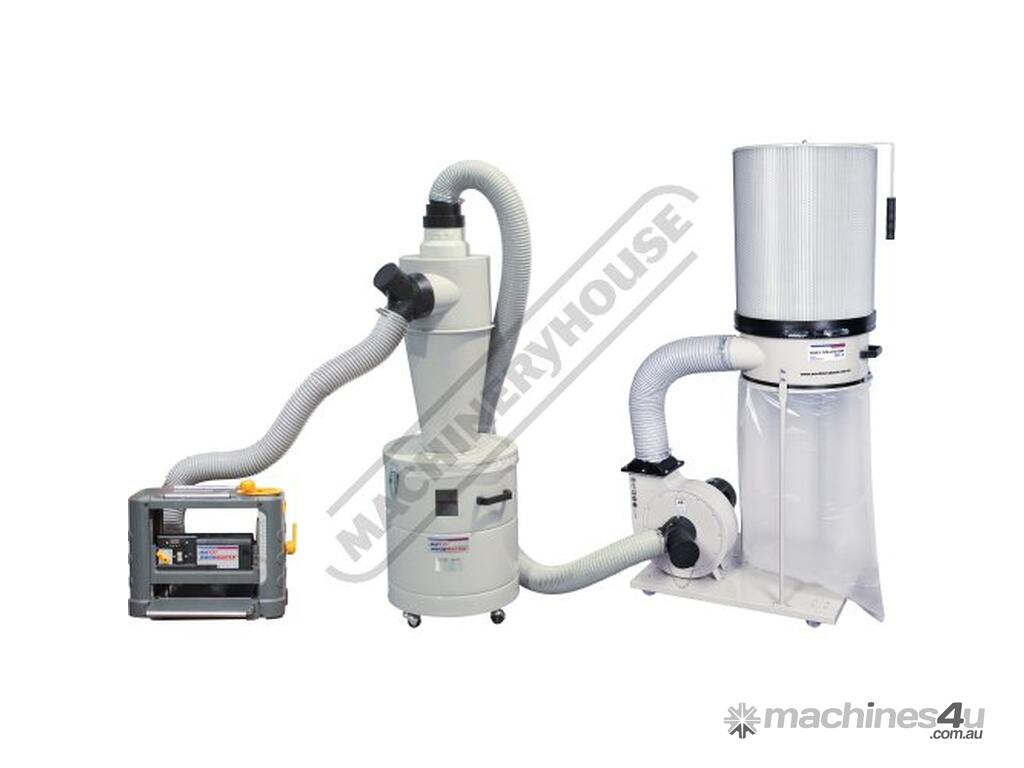

CDS-2/3: cyclone separator main advantages is the ability to extract and hold large particles and chips before they reach the dust collector impellers resulting in no more loss of suction from blocked filters. The cyclone is designed as a pre-filter for your dust collector. It has no moving parts, and nothing to wear out, clog up or replace.

Separates up to 99% of dust from the air stream prior to reaching the filter. This prevents your collector’s filter from clogging, allowing you to work safer and longer while saving you valuable time and money on replacement filters and collection bags. The mobile collection bin is fitted with a waste sight viewing window and wheels for easy disposal.

Features:

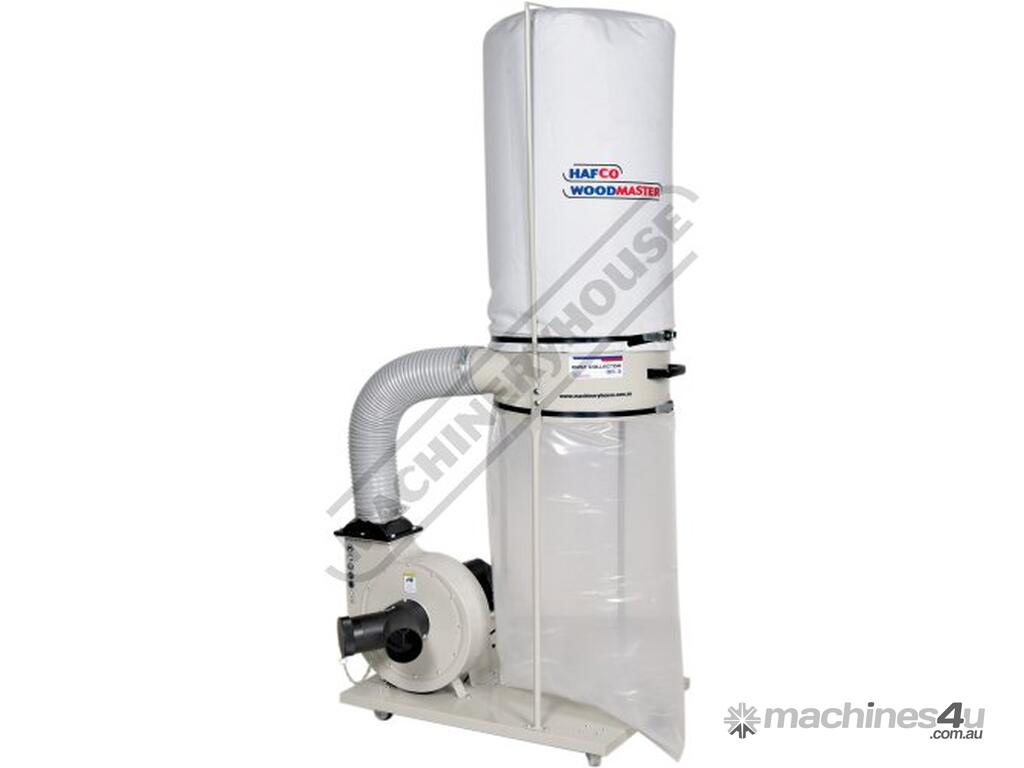

DC-3 Dust Collector:
1200cfm air flow suction
Portable on wheels
Ø100mm twin inlets
Quick-action clamps
5 Micron fine filter bag
1.5kW / 2hp 240V motor

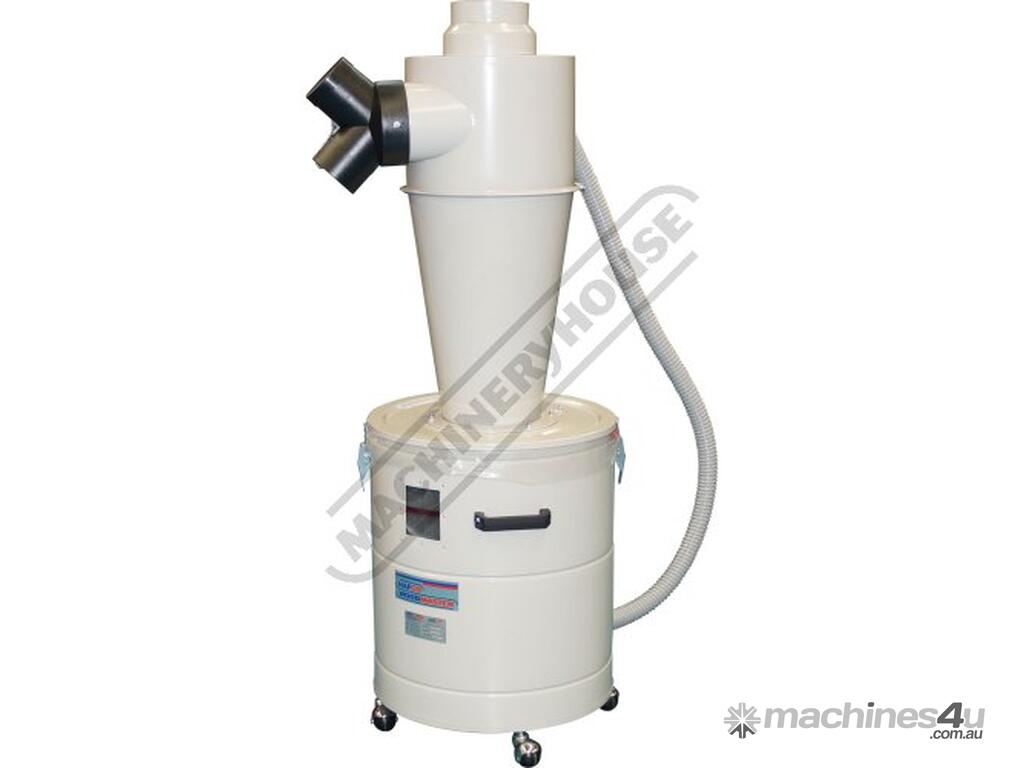

CDS-2/3 Cyclone Separator:
Large 110 litre metal collection bin
Airtight clamping with rubber seals
Ø152mm inlet with 2 x Ø100mm reducer
Ø152mm outlet with Ø152mm to Ø125mm to Ø100mm reducer
Viewing window on collection bin for waist level
Capable of running dust bags in collection bin
Ideal for the up to 3hp dust collectors

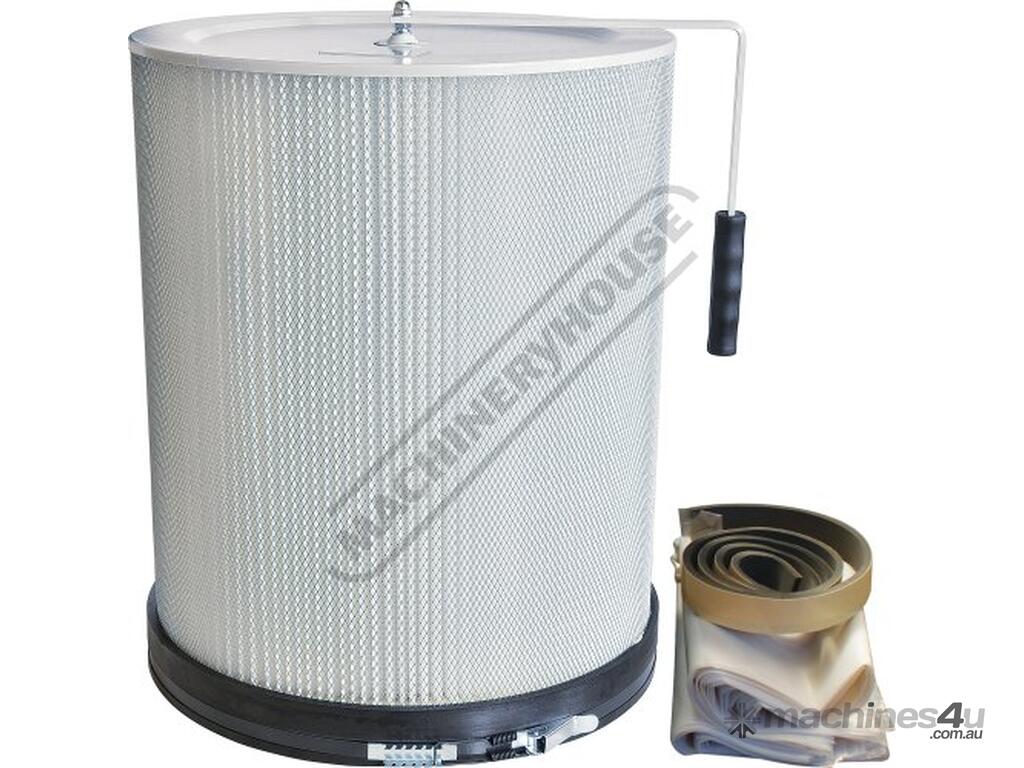

FC-10 Filter Cartridge:
Increases filtering area by 700%
1 micron filtration
Rotary handwheel for manual cleaning the filter
Complete with 10 plastic bottom bags
500mm Dia. x 600mm high

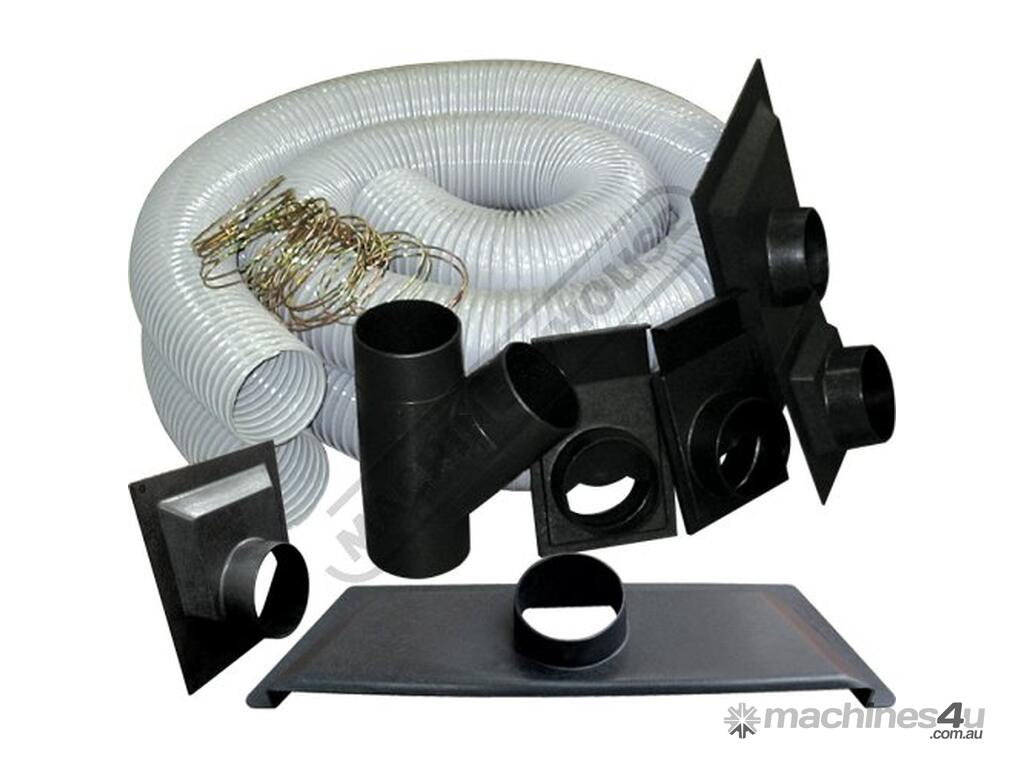

DCK-2 Dust Accessory Kit:
2 x 3 metres x Ø100mm diameter dust hose
10 x Hose clamps to suit Ø100mm diameter hose
1 x 558mm wide floor sweeper attachment
1 x Table saw hood
1 x Universal dust hood
1 x 150mm dust hood
1 x "Y" connector
2 x Shut-off valves.


Specifications:
ORDER CODE: K047
MODEL: DCC-310
Type: Dust Collector Package
Type: ~
Airflow (CFM): 1200
LPHV - Low Pressure High Volume (Yes / No): Yes
HPLV - High Pressure Low Volume (Yes / No): No
Inlets / Diameter (No. / mm): 2 x Ø100
Outlets / Diameter (No. / mm): ~
Motor Power (kW / hp): 1.5 / 2
Voltage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 2000 x 700 x 1950
Nett Weight (kg): 91
