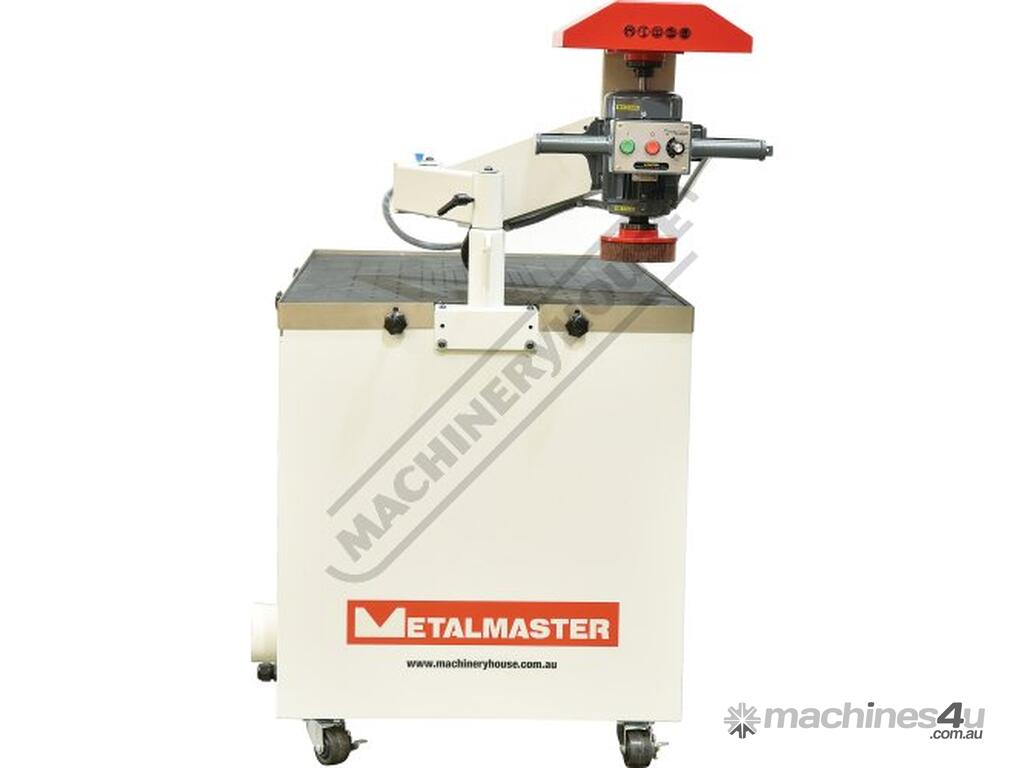

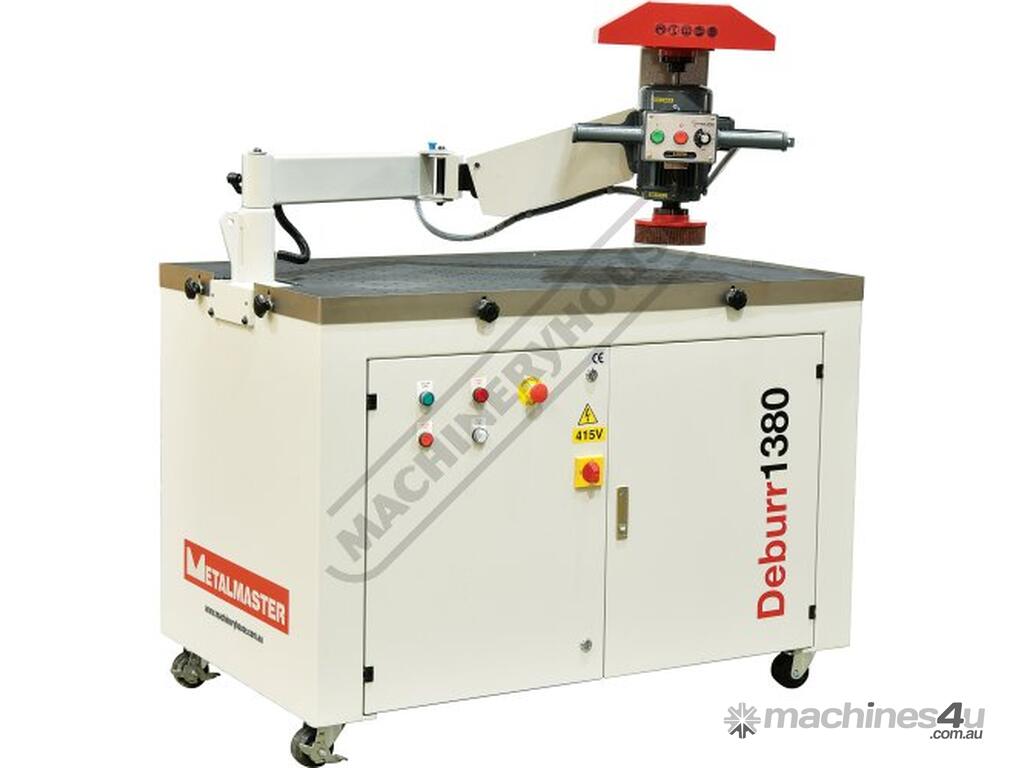

METALMASTER DEBURR1380 Deburring Machine
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P7870

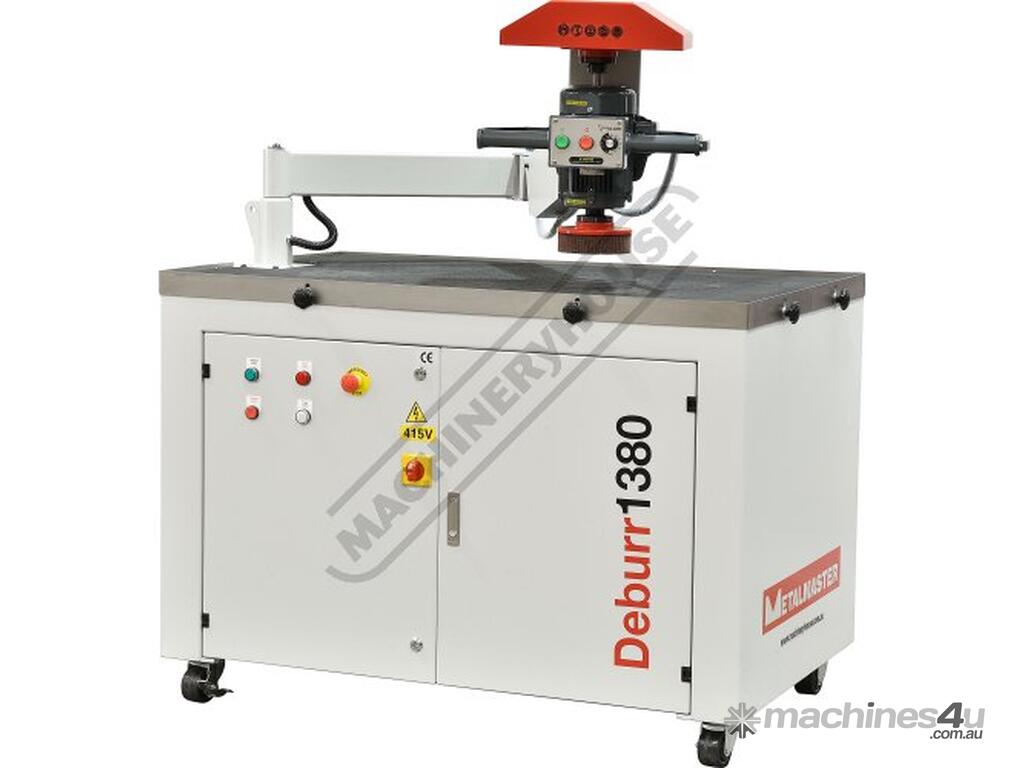

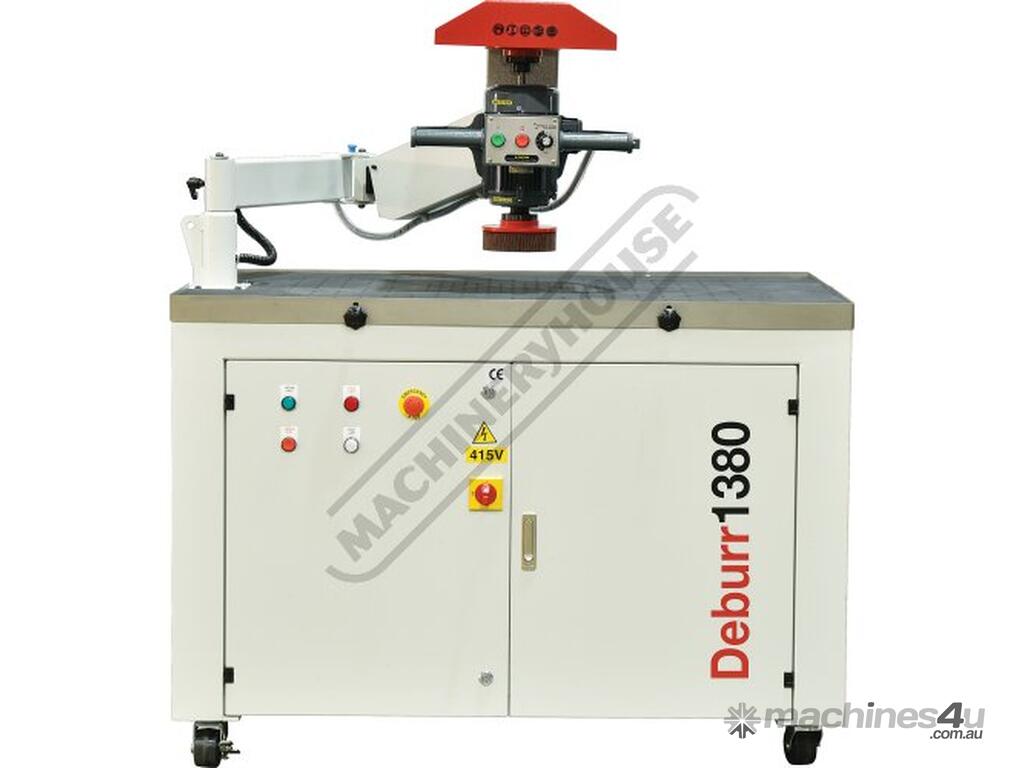

The Metalmaster Deburr1380 deburring machine is the ultimate cost-saving solution for deburring, grinding, edge rounding and finishing of metal parts.

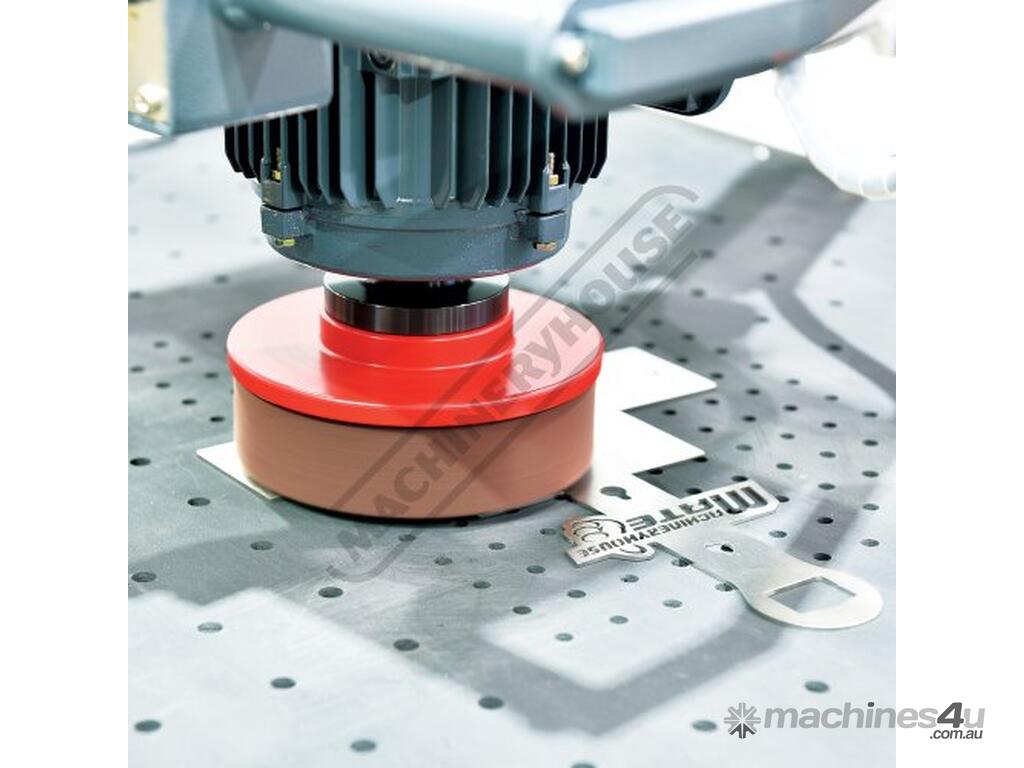

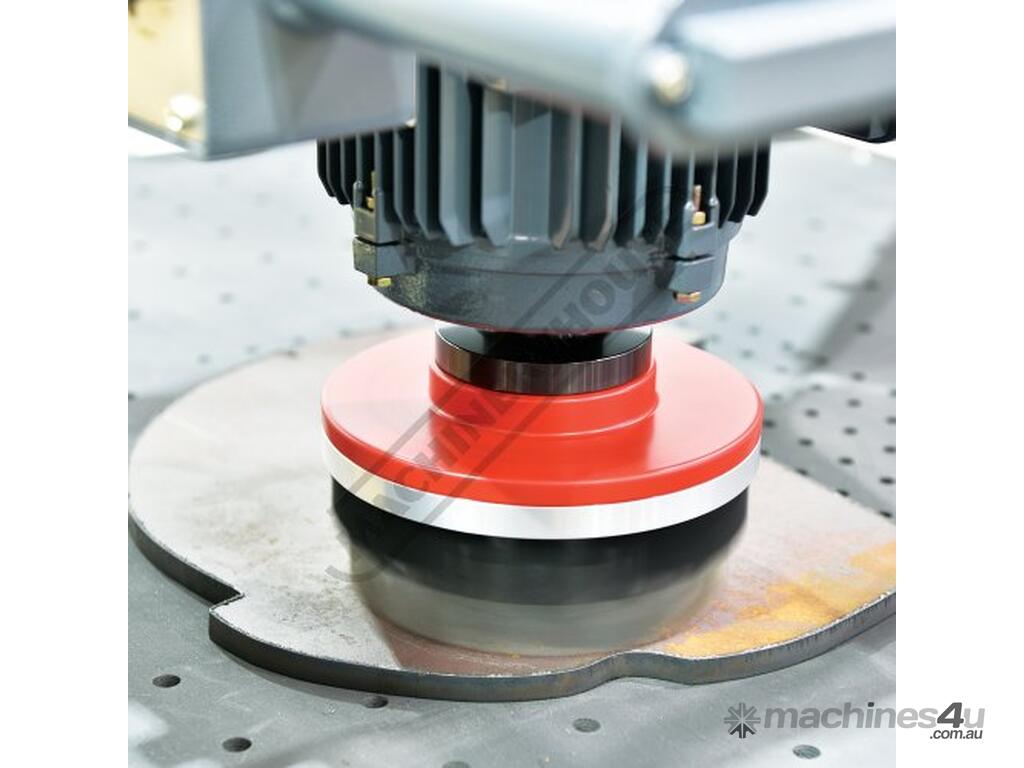

The machine is equipped with multiple stations and allows for the integrated execution of different processes. With the right tools, the processes of slag removal, pre-grinding, deburring, edge-rounding, oxide removal up to finish grinding can be achieved.

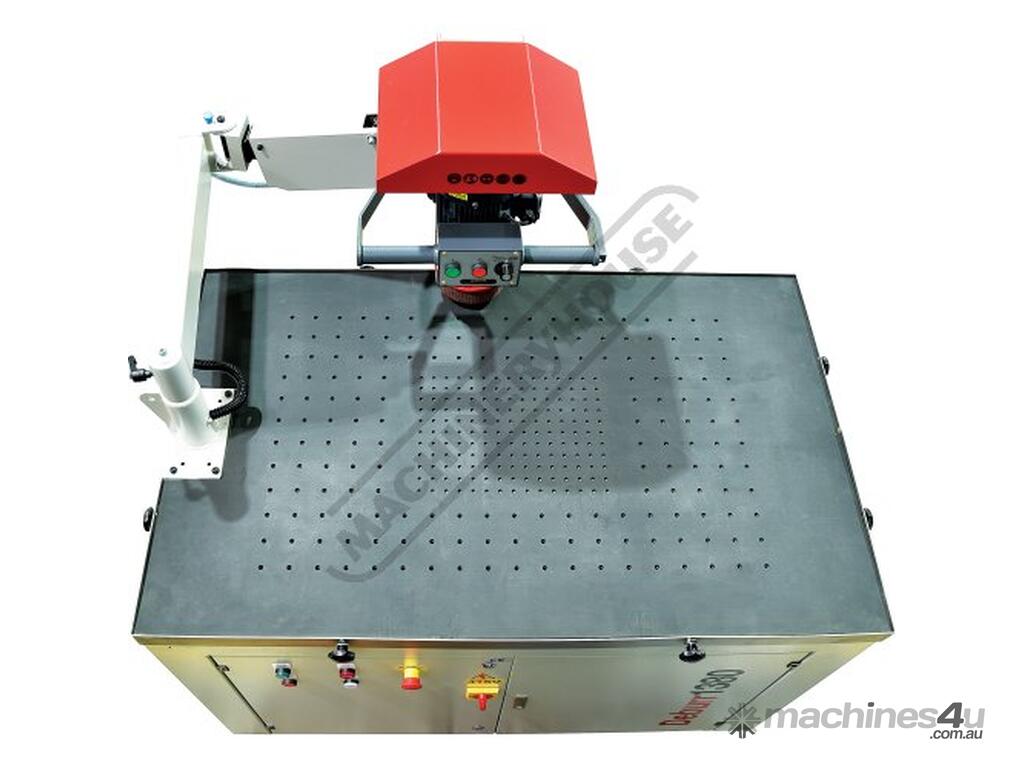

The 1300 x 800 table features a vacuum area to keep small parts in place and the table trim can be lowered to accommodate larger workpieces.
Features:
1300 x 800mm table with vacuum area to secure small parts in place
Table trim can be lowered to accommodate workpieces larger than the worktable

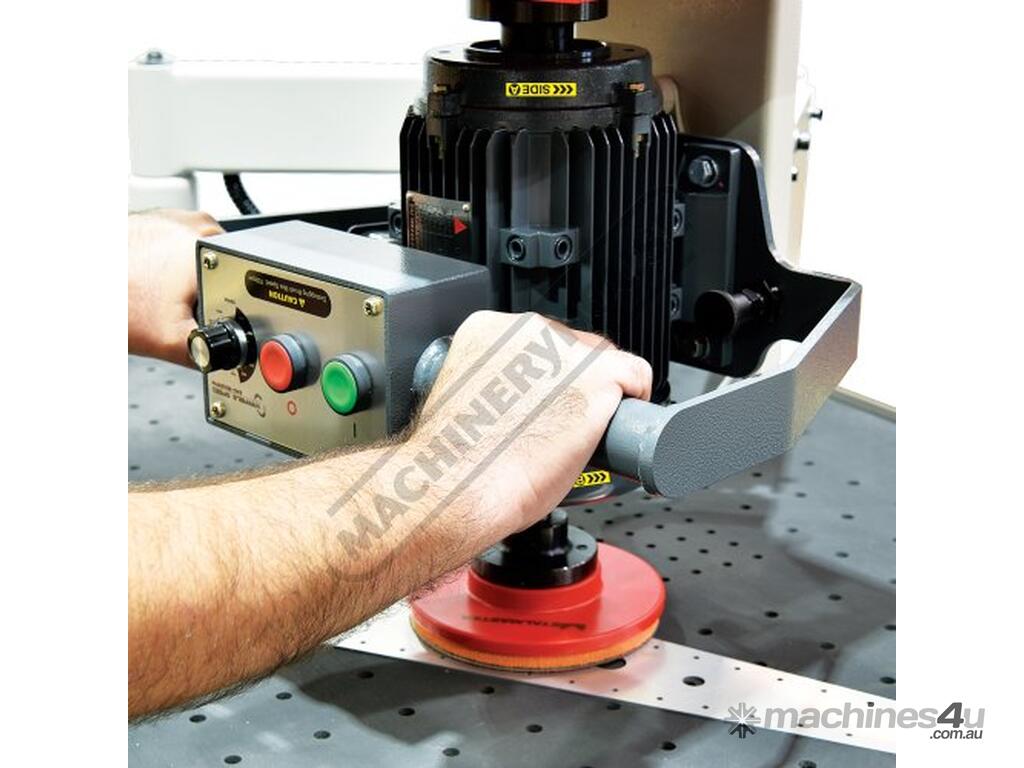

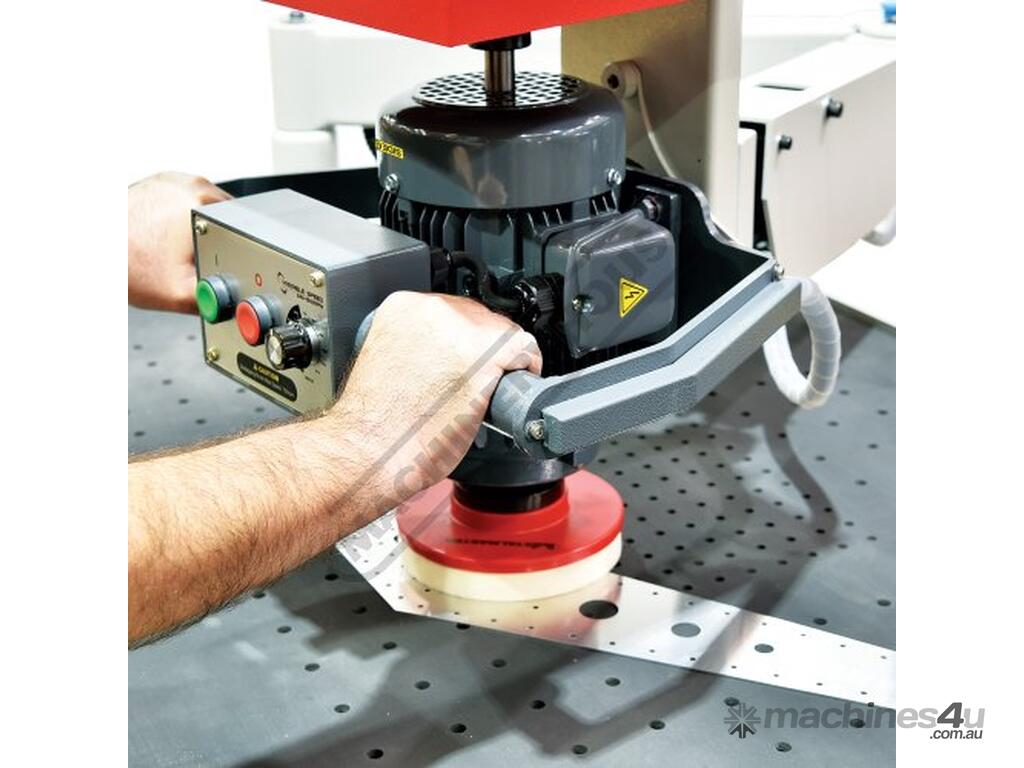

Easy-to-use swinging arm and weight compensation allows the operator to adjust the pressure exerted on the material as required

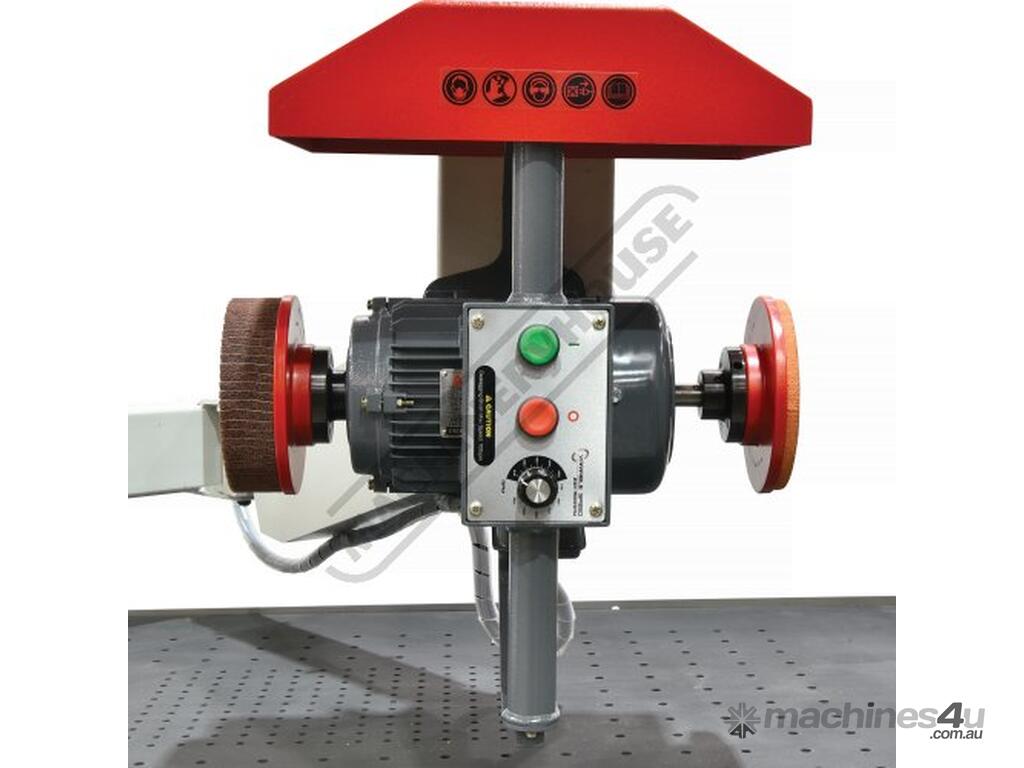

Grinding head rotates 180° ensuring a quick and easy switch between processing steps
Variable speed allows for easy speed adjustment to suit the tool and process
Dust extraction outlet fitted to rear of cabinet allows for connection of dust extraction machine
Storage cupboard with shelf to store accessories

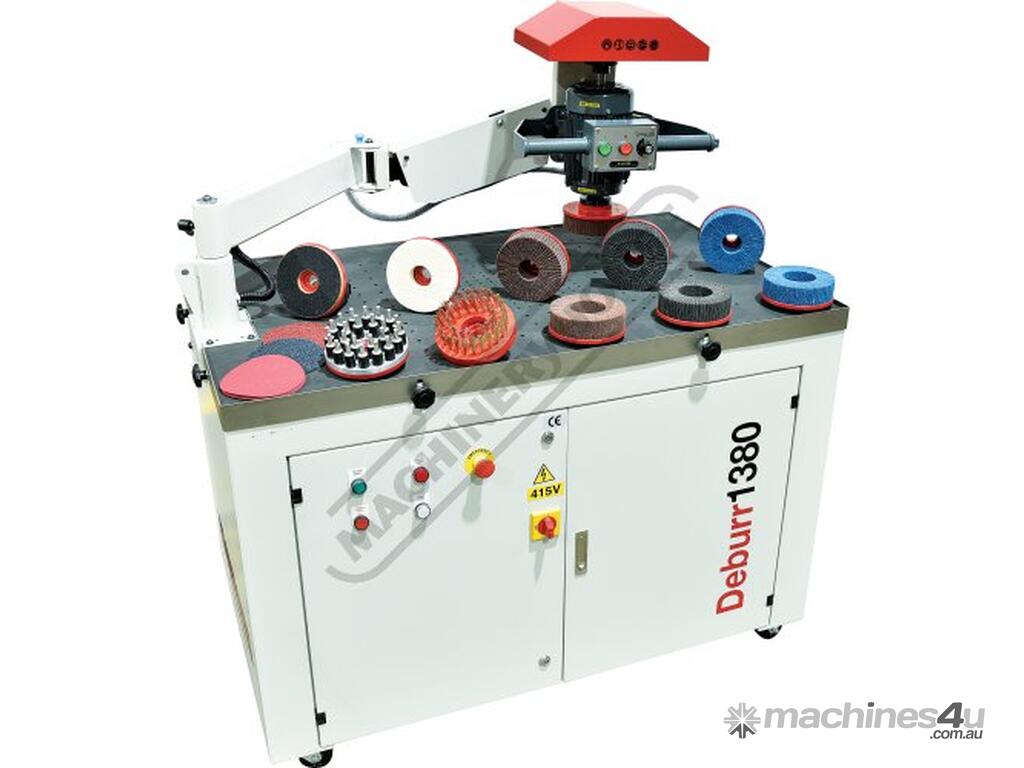

A range of different types of pads and brushes for deburring edge rounding finishing laser oxide removal and heavy slag removal are available for processing of steel stainless steel aluminium and plastic
Note
Recommended to be used with Metal Dust Collector
Specifications:
ORDER CODE: P7870
MODEL: Deburr1380
Table Size (mm): 1300 x 800
Vacuum Area (mm): 350 x 250
Minimum Workpiece Dimension (mm): Approx. 80 x 50
Maximum Workpiece Height (mm): 150
Table Working Height (mm): 920
Work Table Load Capacity (kg): 110
Tilting Head: 180º
Spindle Speed (rpm): Variable 240-1500
Motor Power - Spindle (kw / hp): 0.75 / 1
Motor Power - Vacuum (kw / hp): 2.2 / 3
Voltage (V / amp): 415 / 10
Floor Space (mm): 1310 x 810 x 1450
Shipping Dimensions (mm): 1530 x 1080 x 1610
Nett Weight (kg): 340
Gross Weight (kg): 420
