DELECCA'S OF BENDIGO - Bobcat S100 Skidsteer

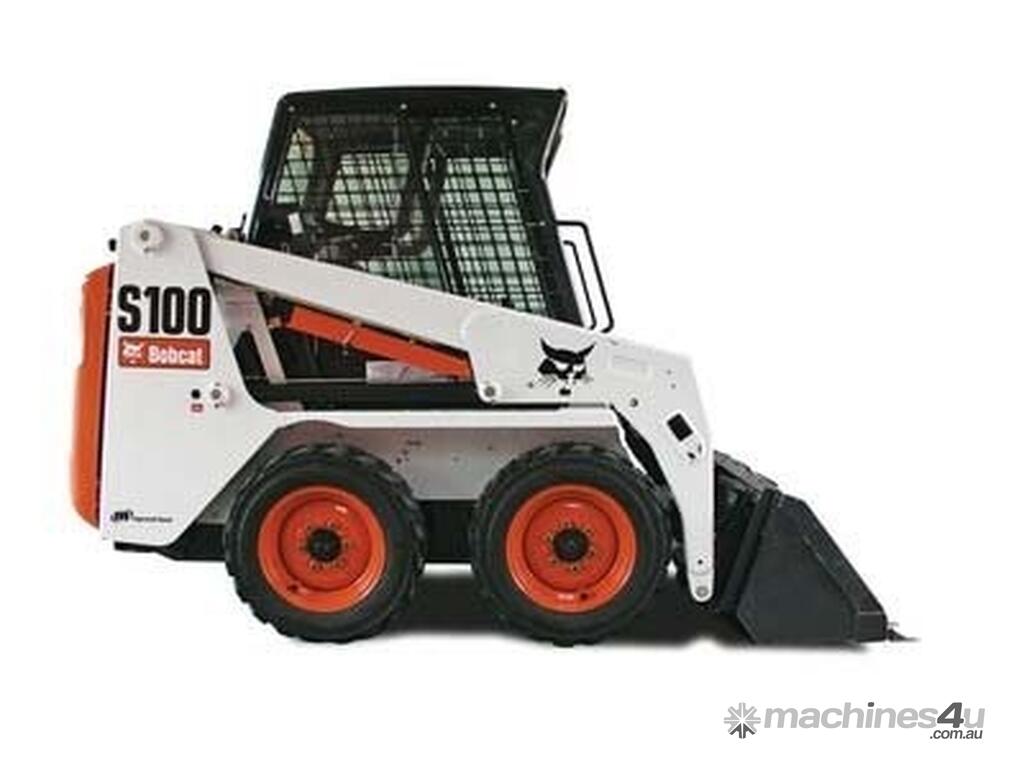

S100 Skid Loader

- Compactness
- Transportability
- Performance
- Durability

The S100 is the ideal size to work quickly and efficiently on limited-access jobsites thanks to its radius lift pattern and its short wheel base.

More than 20 attachments turn this small skid-steer loader into a problem-solving model. The Bob-TachTM mounting system makes changing attachments quick and easy.

The S100 is also easy to transport, giving you the benefit of handling multiple tasks at multiple sites in a single day.

Get even more with the Deluxe heated cab, the counterweights, the Power Bob-Tach™, the bucket position valve and the Deluxe instrument panel available as factory options.

SPECIFICATIONS:

Machine Rating:
Rated operating capacity: 457 kg
Tipping load: 915 kg
Pump capacity: 50 l/min
System relief at quick couplers: 207 bar
Max. travel speed: 10.4 km/h


Engine:
Make / Model: Kubota / V1505-E2B-BCZ
Fuel / Cooling: Diesel / Liquid
Maximum power at 3000 RPM (SAE J1349): 25 kW
Torque at 1700 RPM (SAE J1349): 93 Nm
Number of cylinders: 4
Displacement: 1498 cm3
Fuel tank capacity: 45

Weights:
Operating weight (with std tyres, 48 inch bucket): 1800 kg
Operating weight (with hd tyres, 50 inch bucket): 1818 kg

Controls:
Vehicle steering: Direction and speed controlled by two hand levers
Loader hydraulics tilt and lift: Separate foot pedals
Front auxiliary (standard): Lateral movement of right-hand steering lever

Drive System:
Transmission: Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors

Standard Features:
Automatically activated glow plugs
High-back cushion suspension seat
Bob-Tach™ frame
Engine / Hydraulic system shutdown
Bobcat Interlock Control System (BICS)
Operating lights, front and rear
Instrumentation
Lift arm support
Deluxe operator cab Includes interior cab foam, side, top and
rear windows

Options:
Heated enclosed cab
Power Bob-Tach™
Hydraulic bucket positioning (including ON/OFF switch)
Counterweights
