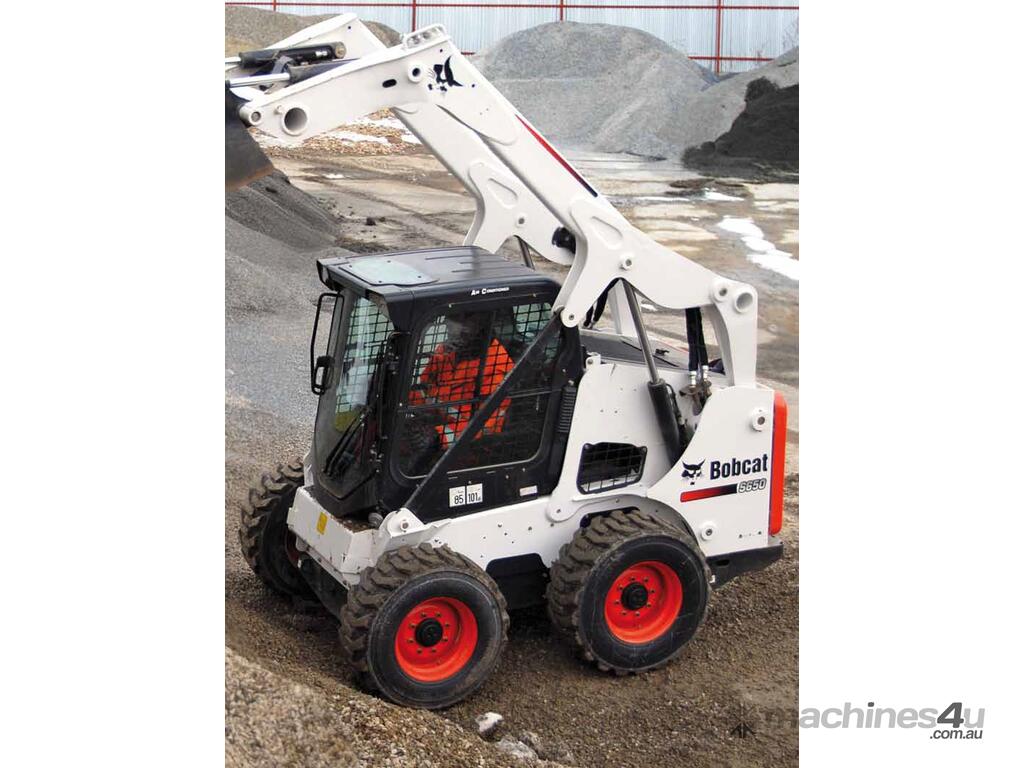

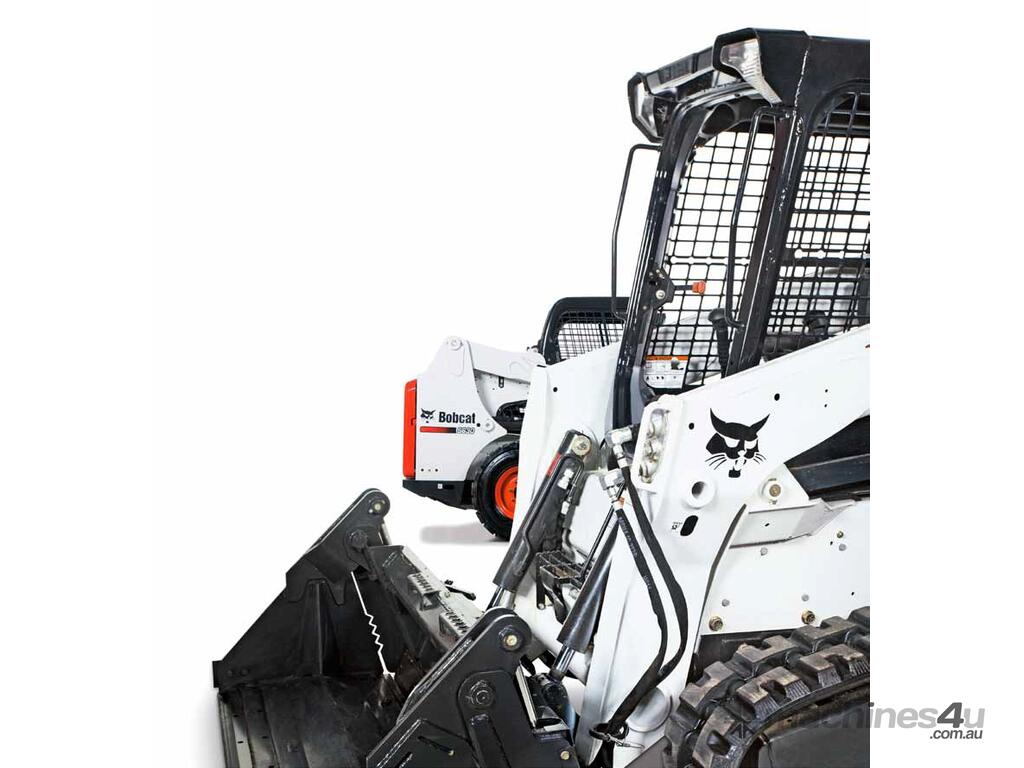

S650 Skid Loader

- Cab-Forward design
- Better visibility
- Superior performance
- Maximizing uptime
- Ultimate protection

With the new Bobcat loaders, there’s a difference you can see – and a difference you’ll experience on the job. They have a completely re-engineered cab that keeps you comfortable, with superior power and hydraulic performance that will help you do more, do it faster and better.
Harnessing over 50 years of leadership in the design and construction of compact equipment, Bobcat has begun the launch of a completely new generation of machines that set up the new standard in the skid-steer and compact tracked loader market worldwide.

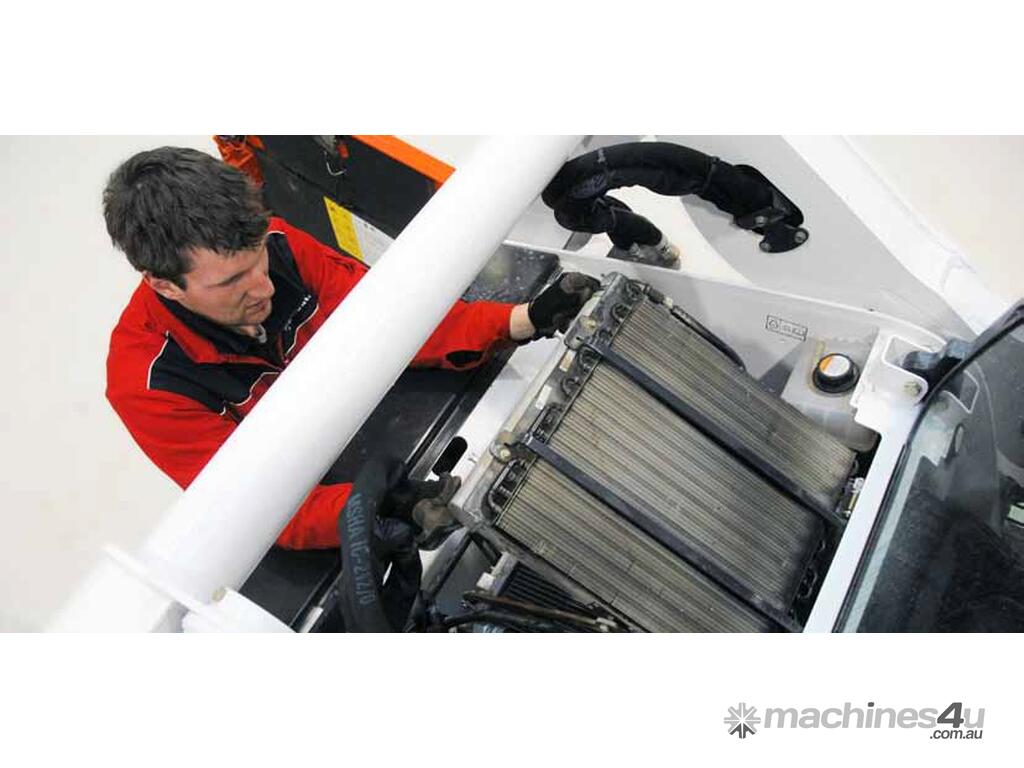

All the innovations on the new loaders are dramatic. Take the Premium Cab design, the largest on the market, with more space, less noise and enhanced ergonomics for greater operator comfort, enhanced productivity and better protection both back and front. Even more dramatic is the new forward position of the cab that significantly increases visibility for the operator both in front and all round the machine. Add to this a significant increase in power and hydraulic performance that boosts productivity; simplified maintenance and serviceability; and a completely new engineering design coupled with improved durability that further increases uptime.

Machine Rating:
Rated operating capacity: 1220 kg
Tipping load: 2440 kg
Pump capacity: 87.1 L/min
Pump capacity ( 91% efficiency with high flow option): 115.5 L/min
System relief at quick couplers: 23.8–24.5 MPa
Max. travel speed (low range): 11.4 km/h
Max. travel speed (high range - option): 19.8 km/h

Engine:
Make / Model: Kubota / V3307-DI-TE3
Fuel / Cooling: Diesel / Liquid
Power: 55.4 kW
Torque, maximum at 1600 RPM (SAE JI 995 Gross): 264 Nm
Number of cylinders: 4
Displacement: 3331 cm3
Fuel tank capacity: 103.3 L

Weights:
Operating weight: 3777 kg

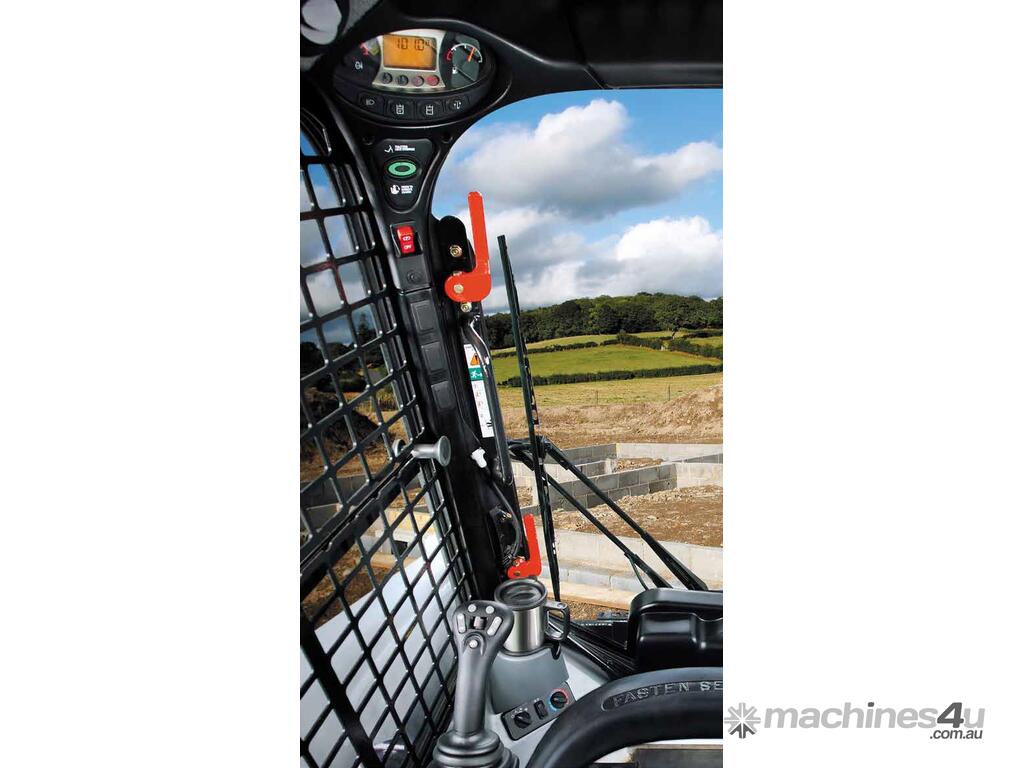

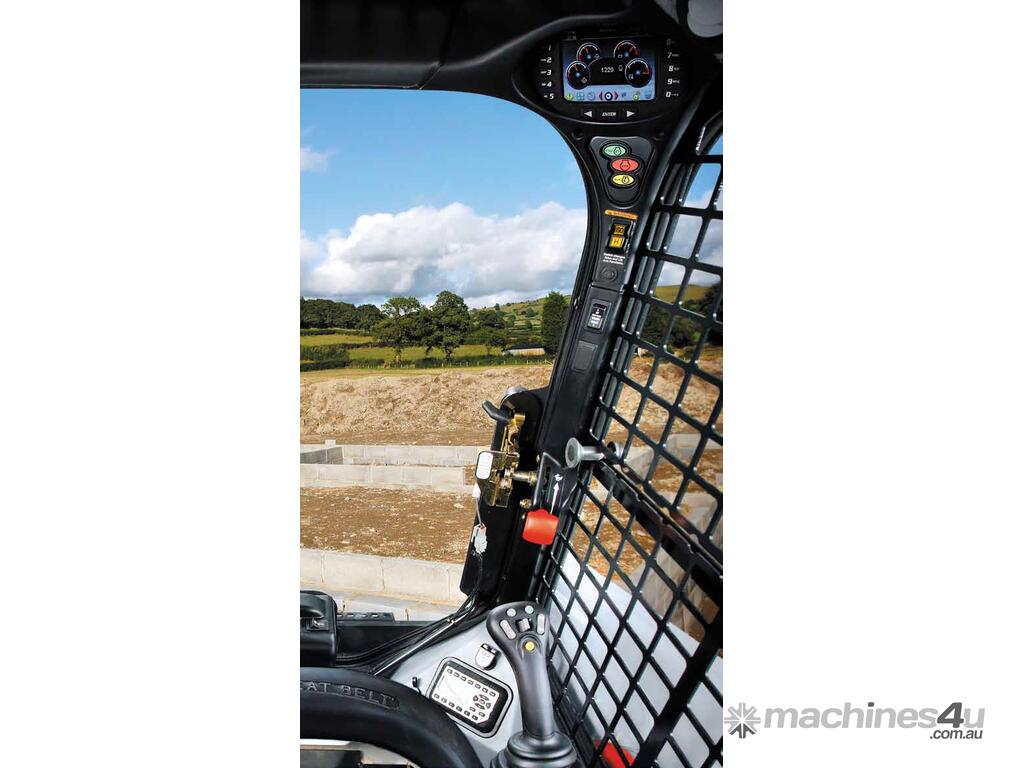

Controls:
Vehicle steering Direction and speed controlled by two hand levers
Loader hydraulics tilt and lift Separate foot pedals, optional Advanced Control System (ACS),
Advanced Hand Control (AHC) or Selectable Joystick Control(SJC)
Front auxiliary (standard) Electrical switch on right-hand steering lever

Drive System:
Transmission: Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors

Standard Features:
High-back adjustable suspension seat
Automatically activated glow plugs
Bob-Tach™ frame
Bobcat Interlock Control System (BICS)
Deluxe operator cab
Includes interior cab foam, side, top and rear windows
Electrically activated proportional front auxiliary hydraulics
Engine/hydraulics system shutdown
Hydraulic bucket positioning
Instrumentation
Lift arm support
Work lights, front and rear
Parking brake
Seat belt
Seat bar
12 x 16.5, 12–ply, Heavy duty tyres
CE certification
Turbo-charger with approved spark arrestor
* Roll Over Protective Structure (ROPS) – meets requirements of SAE-J1040 and ISO 3471; Falling Object Protective Structure (FOPS) - meets requirements of SAE-J1043
and ISO 3449, Level I
Options
Two speed
High flow hydraulics
Deluxe instrument panel
Cab enclosure with heating
Air conditioning
Power Bob-Tach™
33 x 15.5-16.5, 12–ply, Superflotation tyres, offset rims
12 x 16.5, 12–ply, Heavy duty tyres, offset rims
12 x 16.5, 12–ply, Severe duty tyres
12 x 16.5, 12–ply, Severe duty tyres, poly filled
12 x 16.5, Solid flex tyres
Advanced Control System (ACS)
Advanced Hand Controls (AHC)
Selectable Joystick Controls (SJC)
