S70 Skid Steer Loader
Cab – comfort

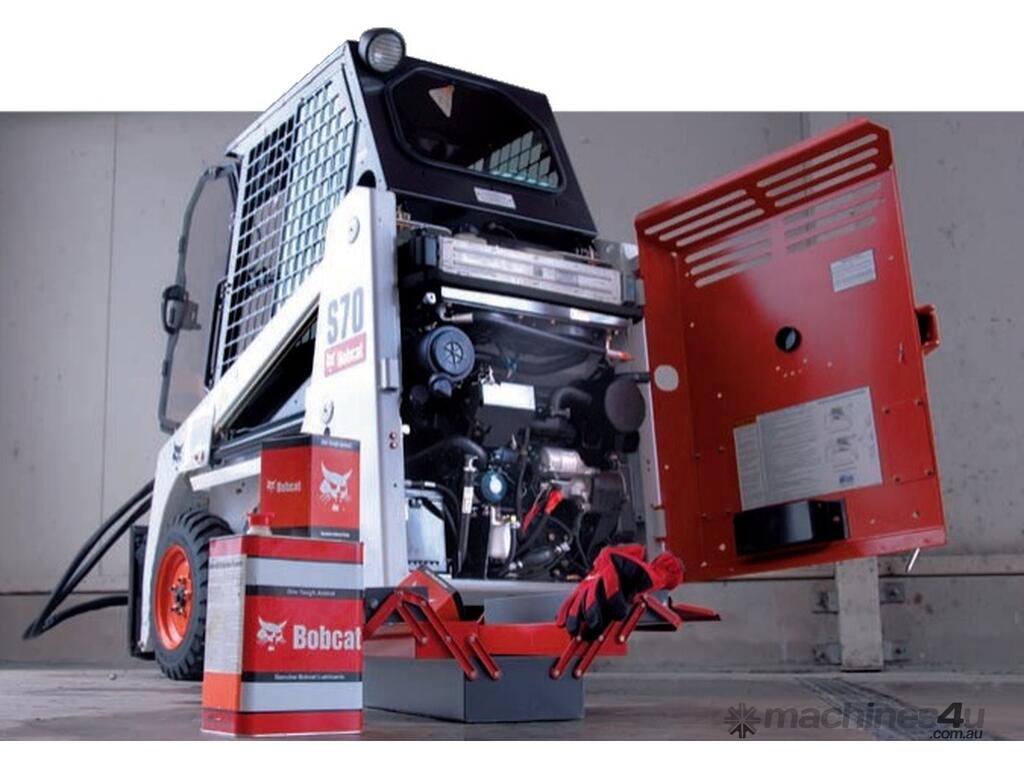

- Transverse mounted engine – serviceability
- Wide range of attachments – versatility
The S70 is the most compact skid-steer loader in the range.
Thanks to its radius lift pattern, this short wheel base machine is ideal when it comes to tackling jobs in spaces too tight for other equipment.
More than 20 attachments turn this mini loader into a versatile model.

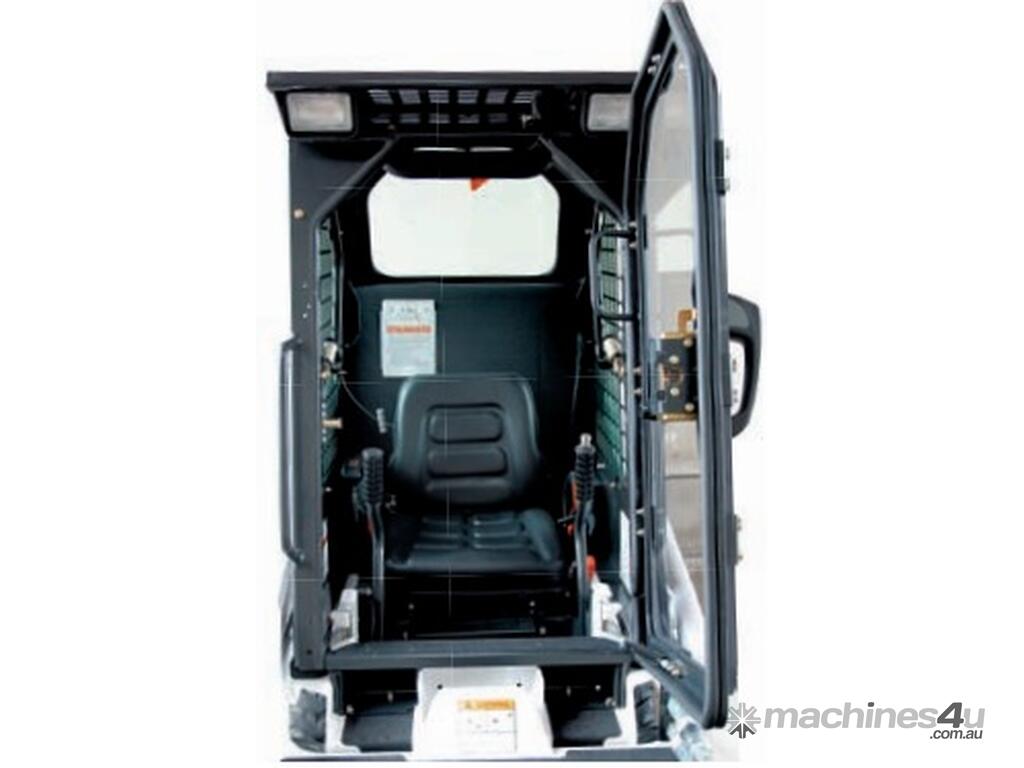

The operator-friendly cab (low noise, less vibrations, easy entry and exit, excellent visibility, improved safety, upgraded instrument panel with additional functionalities and diagnostic capabilities) passes through openings less than 92 cm wide by 182 cm high!
The S70 is also easy to transport, giving you the benefit of handling multiple tasks at multiple sites in a single day.
Get even more with the Deluxe heated cab and the narrow or heavy duty tires available as factory options.
Specifications:
Machine Rating:
Rated operating capacity: 343 kg
Tipping load: 686 kg
Pump capacity: 37.00 L/min
System relief at quick couplers: 20.7 MPa
Max. travel speed: 9.8 km/h
Engine:
Make / Model: Kubota / D1005-E3B-BC-3
Fuel :Diesel
Cooling: Liquid
Max power 3000 RPM (SAE J1349): 16.8 kW
Torque at 2200 RPM (SAE J1349): 62.8 Nm
Number of cylinders: 3
Displacement: 1001 cm3
Fuel tank: 24.60 L
Weights:
Operating weight: 1268 kg
Shipping weight (w/o bucket): 1109 kg
Controls
Vehicle steering: Direction and speed controlled by two hand levers
Loader hydraulics tilt and lift: Separate foot pedals
Front auxiliary: Lateral movement of right-hand steering lever
Drive System
Transmission: Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors
Standard Features:
Automatically activated glow plugs: Operating lights, front and rear
Bob-Tach™ frame: Operator cab
Bobcat Interlock Control System (BICS): Parking brake
Engine/hydraulics system shutdown: Rear and top window
Front auxiliary hydraulics: Seat belt
High-back cushion suspension seat: Seat bar
Instrumentation: Spark arrestor muffler
Lift arm support: CE certification
23 x 5.70-12, 4–ply, Narrow tyres: Warranty: 12 months or 2000 hours (whichever occurs
first)
Options:
Cab enclosure with heating: 23 x 8.-ply, heavy duty tyres
Environmental:
Noise level LpA(EU Directive 2000/14/EC): 86 dB(A)
Noise level LWA(EU Directive 2000/14/EC): 97 dB(A)
Whole body vibration (ISO 2631–1): 1.29 ms
Hand-arm vibration (ISO 5349–1): 1.54 ms
