DELECCA'S OF BENDIGO - DIGGA Hydrive Range XD

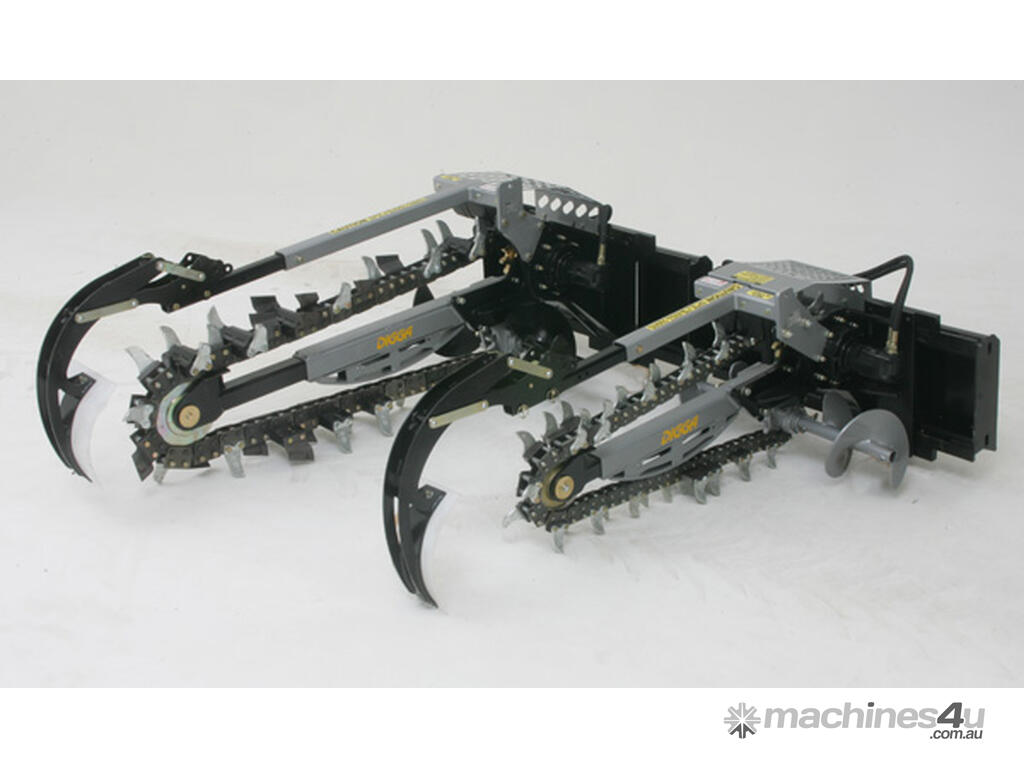

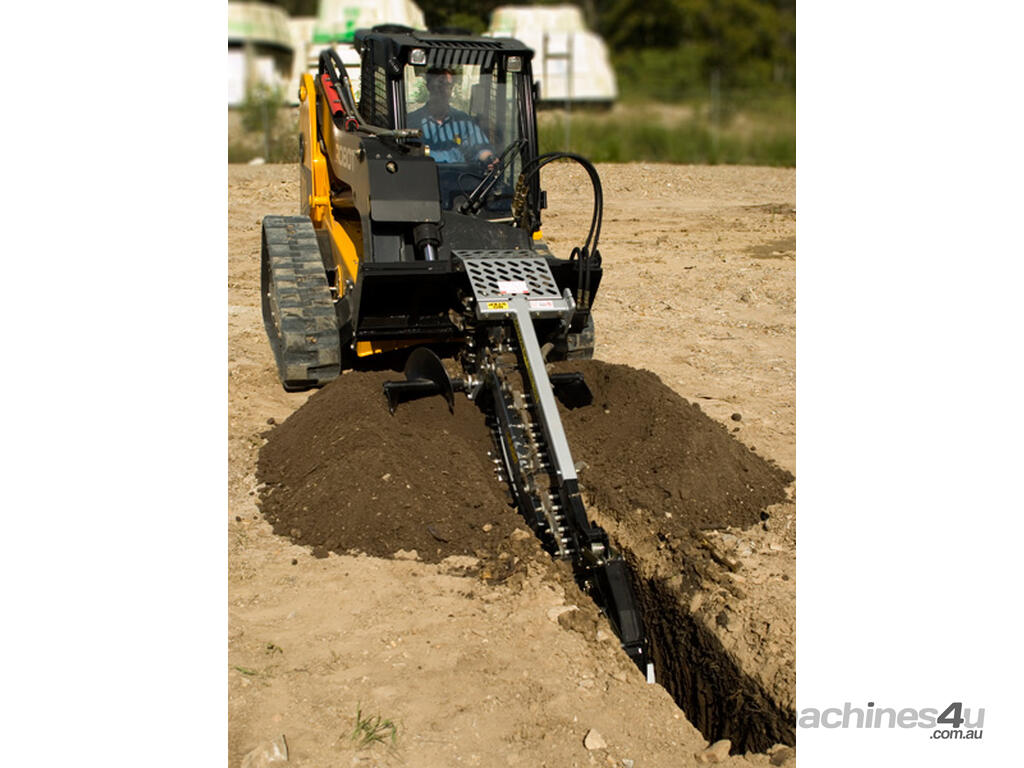

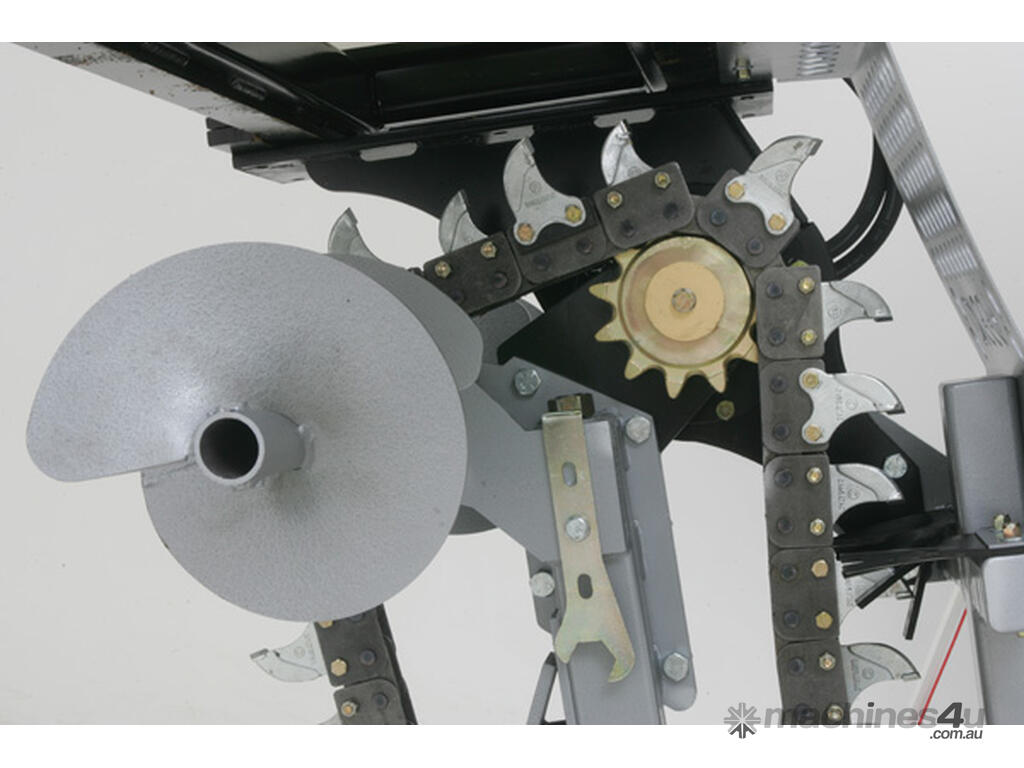

The Hydrive range of trenchers is designed for the serious trenching contractor. Hydrive Extra Duty is ideal for machines over 4.5 Tonne, and primarily suited to experienced operators. Fitted with a compact, powerful Digga planetary drive system & twin spoil removal augers. The unique drive system positioning allows for more usable horse power providing greater efficiency. Twin auger spoil removal deposits finely crumbled spoil to both sides of the trench for effective compaction back into the trench. Frame can be side shifted for digging close to permanent structures ie buildings, trees.
Hydrive XD for extra duty trenching up to 1200mm digging depth and 350mm digging width fitted with a 2” pitch chain
with 4 selections of premium cutting systems to suit your individual needs



Xtra Drive to suit Digga Hydrive XD

Xtra Drive is a attached to the motor to keep its speed nearly constant. Xtra drive stores energy to provide more power when needed. During Trenching debris within the ground can effect the driving forces from the hydraulics become momentarily less than is necessary to drive the trencher causing it to stall. The Extra Drives stored inertia keeps the speed from decreasing quickly. It is ideally used where the forces driving the Machine are not constant such

3pt Linkage Frame to suit Hydrive XD

The 3pt Linkage Frame allows the Hydrive XD Trencher to be connected to a tractor with a design incoporating a hydraulic accumulator, acting as a shock absorber whilst trenching. It allows the trencher to rise if the tractor is running too fast through hard ground, preventing any strain or damage to the attachment and/or tractor. The Adjustable frame allows for 5 positions to dig at different depths while allowing for varying 3pt linkage heights.

The 3pt Linkage Frame and Hydraulics to suit the Hydrive XD Trencher requires a hydrostatic trencher with a minimum flow of 50LPM and a maximum of 3500psi working pressure. It will also require a minimum of 2 auxliairy lines/remotes to operate.

UNIVERSAL CRUMBER
This spring loaded crumber is available on all trenchers with varying plates to suit trench widths.

The crumbers have springs to give constant down pressure on the bottom of trench to scoop all spoil missed in the initial cut of the chain, throwing it back onto the chain to be carried back to the surface.

Please specify when selling or commissioning the trencher that the crumber must be in the fold back position until the trench has started, then drop the crumber forward and pin off to continue trenching.

If the crumber is in the trenching position from the top of the ground the spring in the trencher will over extend as it is going down the first part of the trench resulting in possible crumber failure and damage.
