DERATECH FIBER LASER

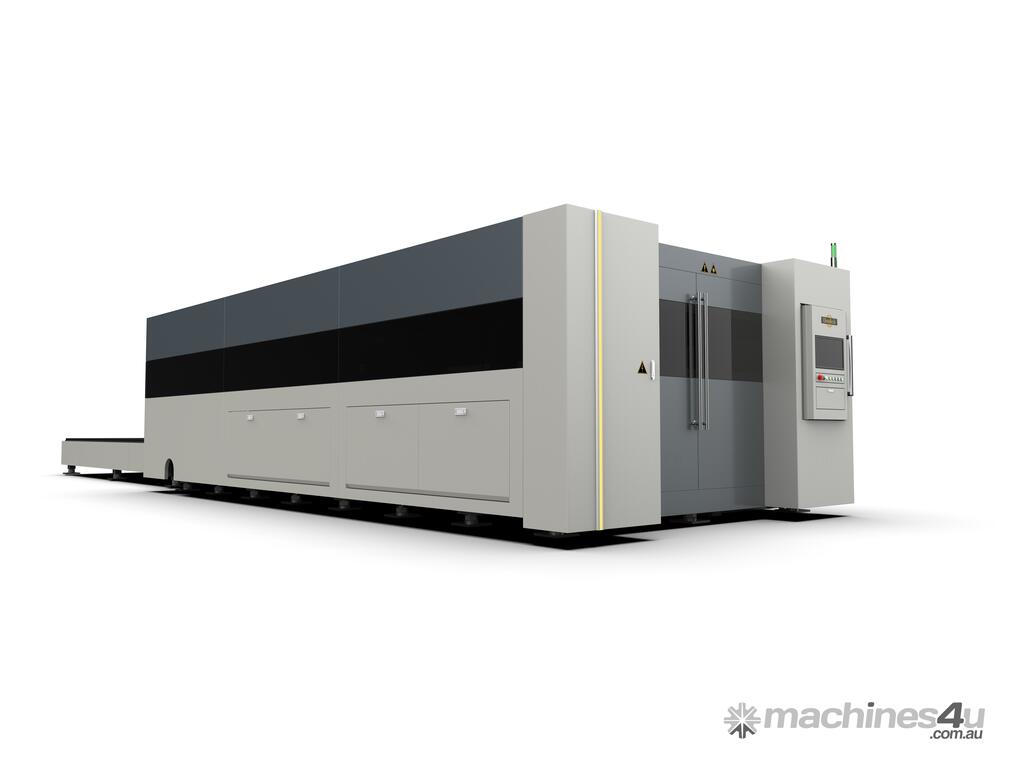

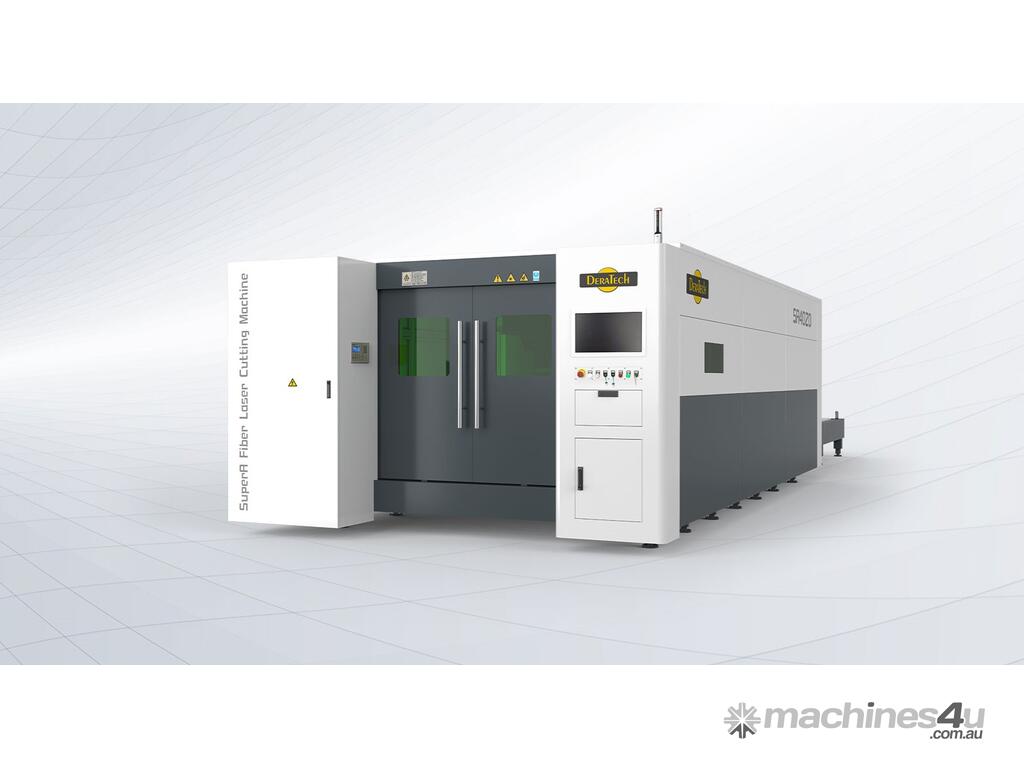

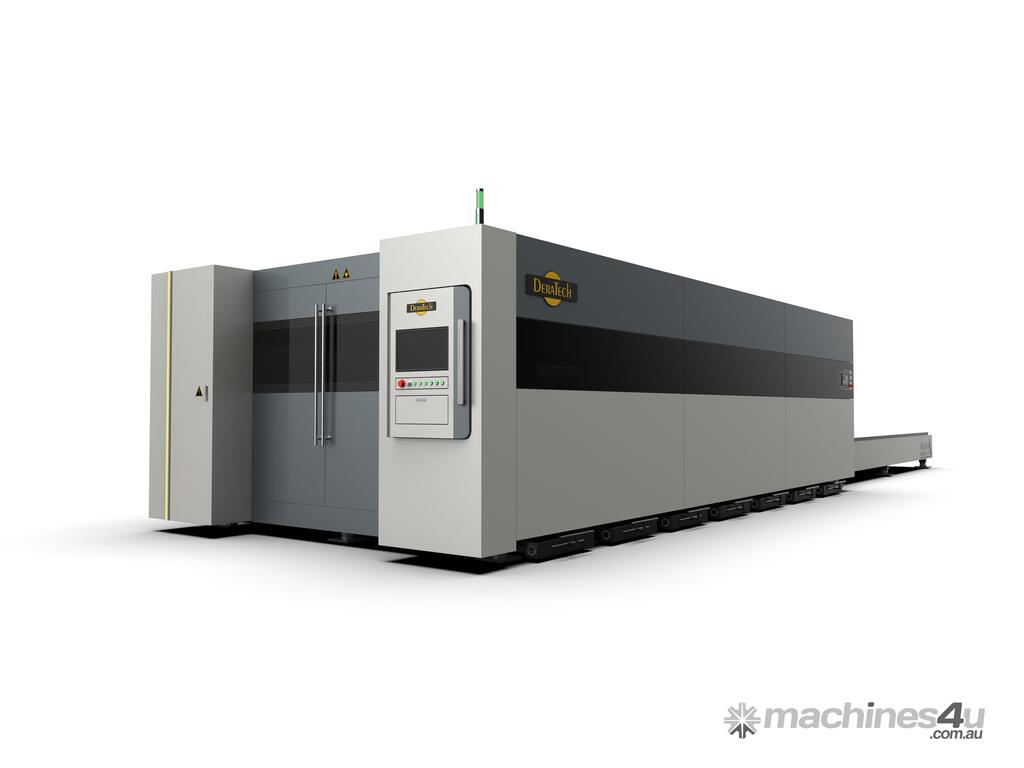

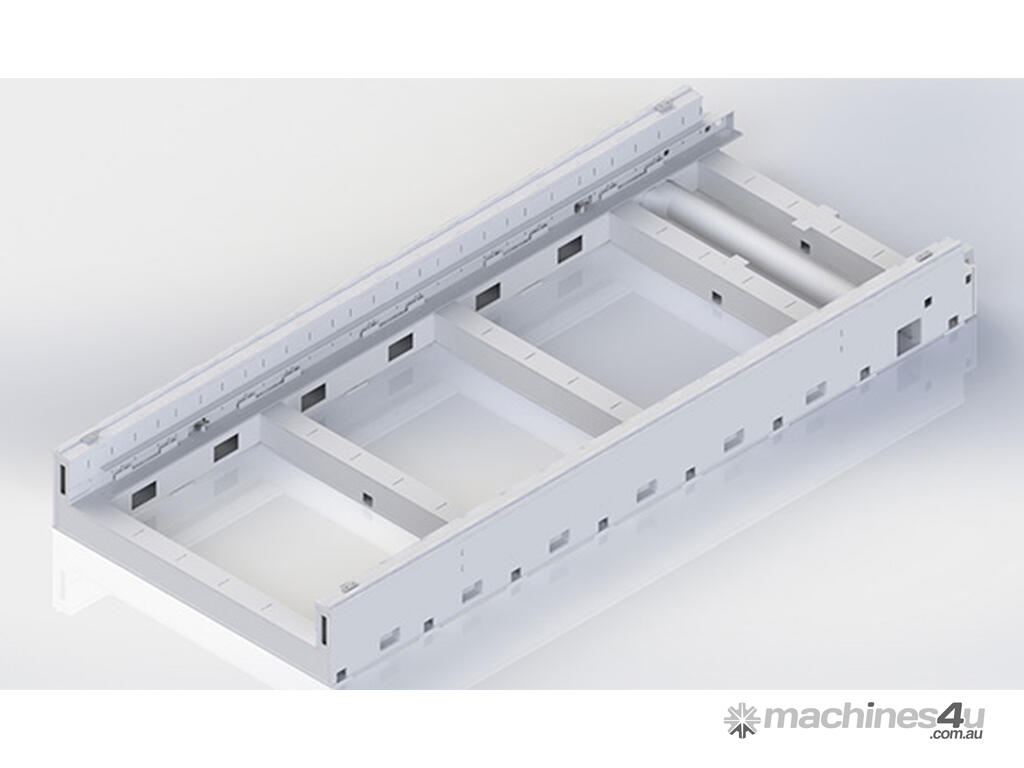

The Supera Fiber Laser is an double-drive gantry type laser cutting machine. It is designed to offer high dynamics during high-speed cutting of thin materials while having all the technology and know-how on board to produce stable and consistent parts in thicker material, where the maximum thickness is only limited by the out- put power of the laser.

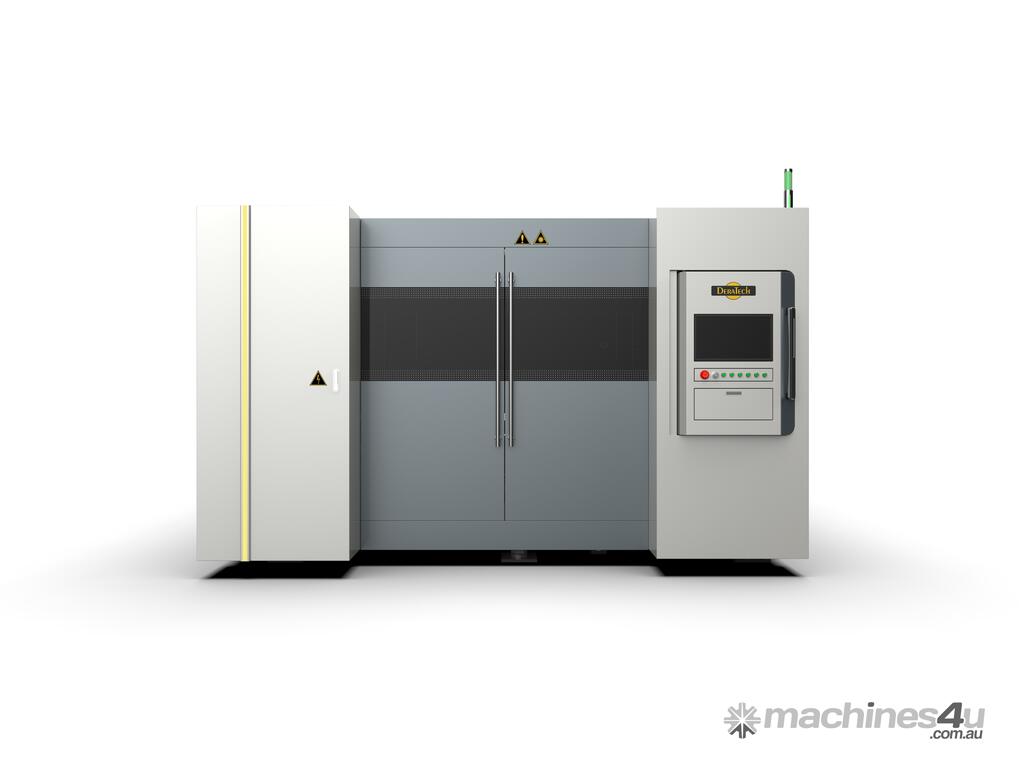

The machine can cut the sheets on two different height levels inside the machine, this allows the automatic shuttle table system to change very fast between tables since the tables do not need to make any vertical movement. The fully covered machine assures a perfectly eye-safe operation.

SPECIFICATIONS

SUPERA 3015
Cutting plate size - 3000 X 1500mm
X axis stroke - 3100mm
Y axis stroke - 1600mm
Z axis stroke - 295mm
XY axis positioning accuracy - ±0.03mm/m
XY axis repeat positioning accuracy - 0,02mm
Maximum speed of machine too - 130m/min
Maximum acceleration - 1.2 G

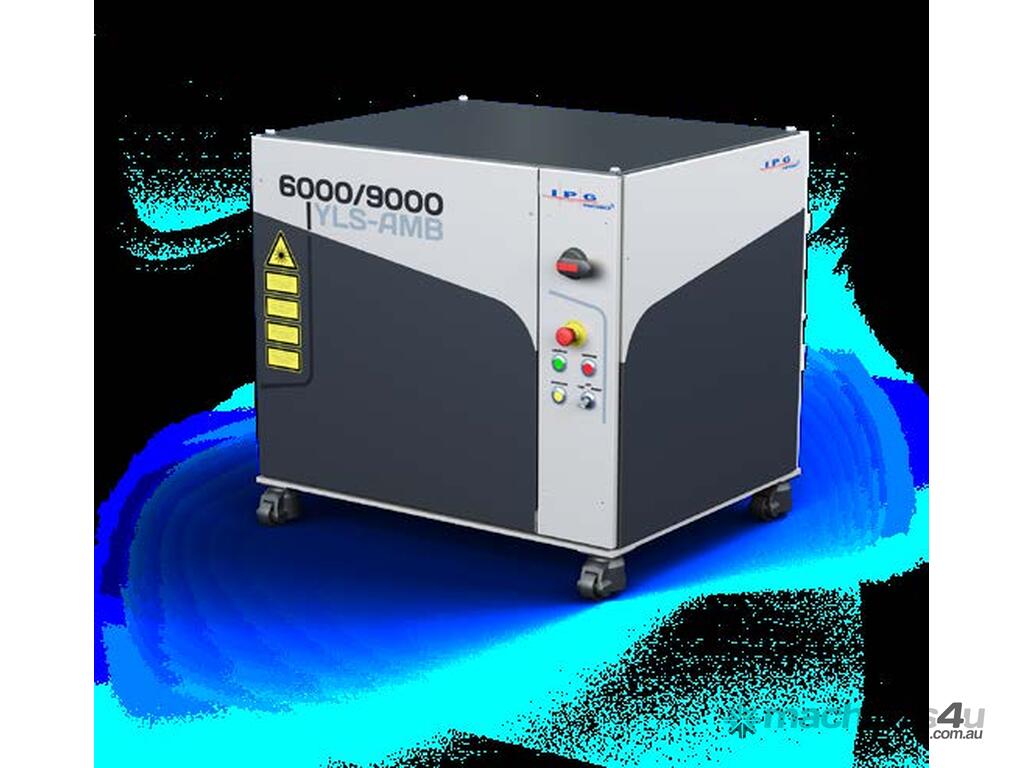

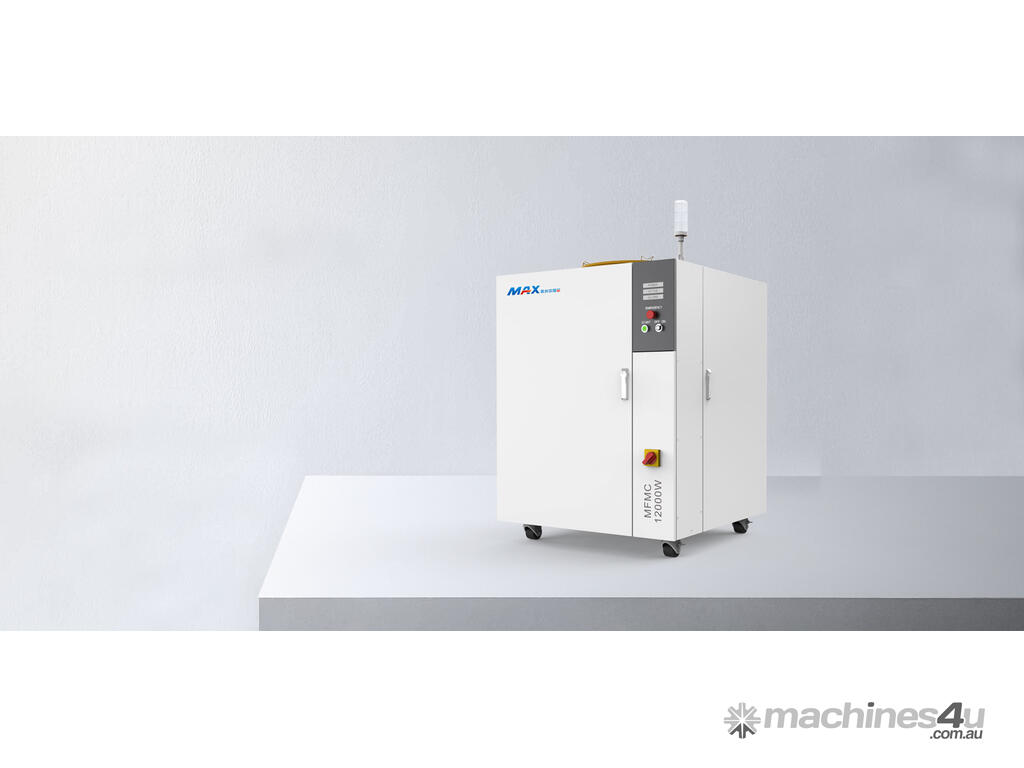

Lazer power 3 - 15kW available

SUPERA 4020
Cutting plate size - 4000 X 2000mm
X axis stroke - 4050mm
Y axis stroke - 2100mm
Z axis stroke - 295mm
XY axis positioning accuracy - ±0.03mm/m
XY axis repeat positioning accuracy - 0,02mm
Maximum speed of machine too - 130m/min
Maximum acceleration - 1.2 G
Lazer power - 3 - 15kW available

SUPERA 6025
Cutting plate size - 6000 X 2500mm
X axis stroke - 6050mm
Y axis stroke - 2525mm
Z axis stroke - 295mm
XY axis positioning accuracy - ±0.03mm/m
XY axis repeat positioning accuracy - 0,02mm
Maximum speed of machine too - 130m/min
Maximum acceleration - 1.2 G
Lazer power - 3 - 15kW available
