DEUTZ FAHR 4090.4E - When versatility is a priority !!

Looking for a tractor with a low weight to power ratio that meets your needs for productivity? The 4090.4E ROPS is the perfect answer for you, whatever the task.

The 4E Series developed by Deutz-Fahr gives you a tractor with plenty of versatility to meet demands of day-to-day farming.

The ROPS version is available with all the same features of a cab tractor, minus glass and air conditioning.

All 4E series tractors are equipped with a forward / reverse shuttle synchronised transmission, which is a must when doing loader work as you can move quickly between forward and reverse gears.

Tractor speeds range from a low 240 m/hr to 40 km/h, with nine working gears between 5-20km/h. Other standard features are four wheel wet disc brakes, Easylift push button three point linkage and a three speed PTO (540/750/ground speed).

- 85 hp 4 cylinder turbo intercooled engine
- Engine speed programming
- 4 Wheel Wet Disc Brakes
- Flat floor ISO mounted operating area
- 3 sets of rear auxiliary remotes

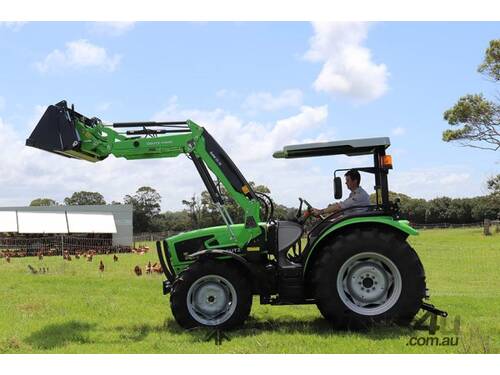

- STOLL Loader 35-18

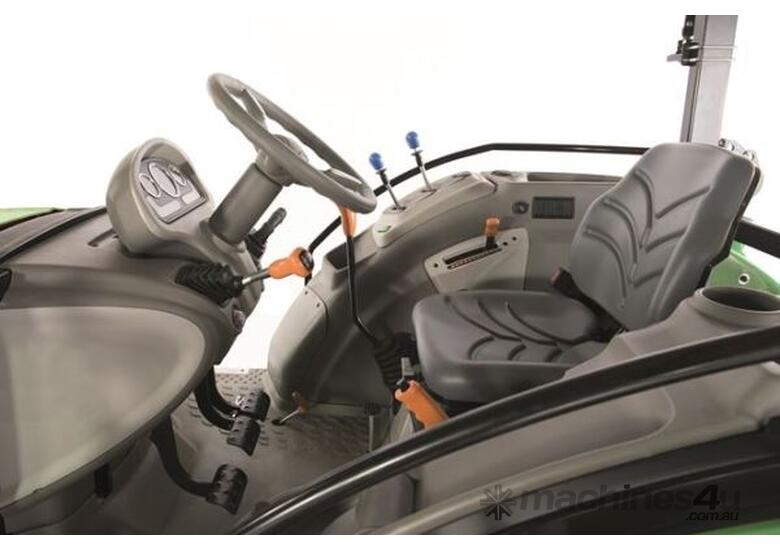

Operator Environment:

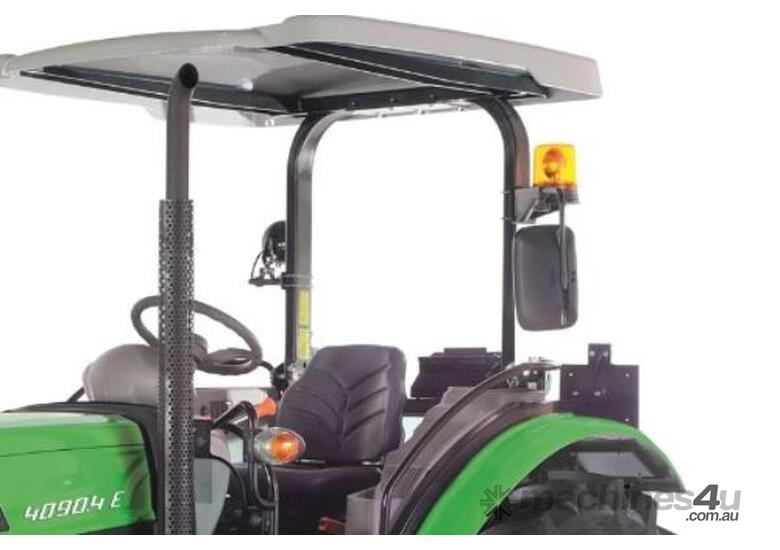

2 Post ROP Frame
Flat Floor ISO Mounted Platform
Rubber Floor Mat
Ergonomic Controls
Telescopic and Tilting Steering Wheel
Analogue Dash
Deluxe PVC Mechanical Seat
Sun Canopy
Telescopic Mirrors
1 Rear Work lights
2 Bonnet Work lights
Rotating Beacon

Engine:
SDF 1000 Series Tier 3 Diesel Engine
4Cyl /4000cc Turbocharged Intercooled
Liquid/Oil Cooled
Engine speed programming
Individual Bosch Injector Pumps
85Hp 2200 rpm (2005/25/CE)
Side mounted upswept exhaust
Tractor only
Side mounted down swept exhaust
Tractor + FEL
70lt Fuel Capacity

Transmission:
30/15 Synchromesh Gearbox
Forward/Reverse Synchro Shuttle
Shuttle mounted on Steering Column
Double Dry Heavy Duty 11” Clutch
Gear Levers Located Right Hand Side
Creep Gear Std
Heavy Duty Rear Axle
4 Wheel Independent Braking
Front Wheel Assist - Mechanical
Front & Rear Diff Lock - Mechanical
40 km/h Road Speed

PTO:
Independent Rear PTO
540/ 750 Speed PTO
540 PTO 1967 Rpm
540E PTO 1560 Rpm
1”3/8 - 6 Spline PTO Shaft

Hyd/Linkage/Drawbar:
Open Centre Hydraulic System
42 l/min Hyd Pump
Separate 17 L/min Steering Pump
3 Sets of Remotes
Spring/Detent on 2 sets / 1 Set Float
Mechanical Three Point Linkage
EASYLIFT raise and lower switch
Position & draft control Settings
Cat 2 Ball ends
3500kg lift capacity
Swinging Drawbar CAT A

Weights & Dimensions:
Wheelbase 2106mm
Overall Length 3990mm
Total Weight 3100kg
