DMC Turning Centre (Korean) - DL8TMH (READY FOR SHIPPING)

Machine ready to ship, have on your shop floor in May.

FFG DMC T Series turning centres are categorised into eleven models according to size. This series is available as turn only or with C-axis/driven tools. For higher volume work these CNC lathes can be fitted with part catchers, tool pre-setters and collet chucks interfaced with barfeed units.

Options on this machine:
Air blow
A/C
Air gun
Bar feeder interface
Chip bucket
Chip conveyor
Coolant gun
Coolant pump 1.5kw
Soft jaw
Hard jaw
Tailstock centre
Oil skimmer
Part catcher with box
Tool setter (Removable, Renishaw)
Transformer
CF memory card


Swing over Bed: 480mm
Swing over Cross slide: 285mm
Max. Turning Dia: 190mm
Max.Turning Length: 380mm

Max.Spindle Speed: 4,500rpm
Spindle Nose: A2-6
Spindle Bore: 62mm
Max. Spindle Torque: 90nm

Main Spindle Motor: 5.5/7.5kW
X-axis Servo Motor: 1.6kW
Z-axis Servo Motor: 1.6kW

X-axis travel: 160mm
Z-axis travel: 390mm
Guideway Type(X/Z): L.M Guide
X-axis rapid traverse rate: 30m/min
Z-axis rapid traverse rate: 30m/min

Turret Index Type: Servo, VDI30
Max. No. of Tools: 12
Turning tool shank size: 20mm
Borning bar diameter: 32mm


Who is FFG DMC

FFG DMC stands as a renowned name in the CNC machining industry, renowned for its precision engineering and innovative solutions. Since its inception, FFG DMC has been dedicated to delivering top-quality machinery to meet the evolving needs of manufacturers worldwide.

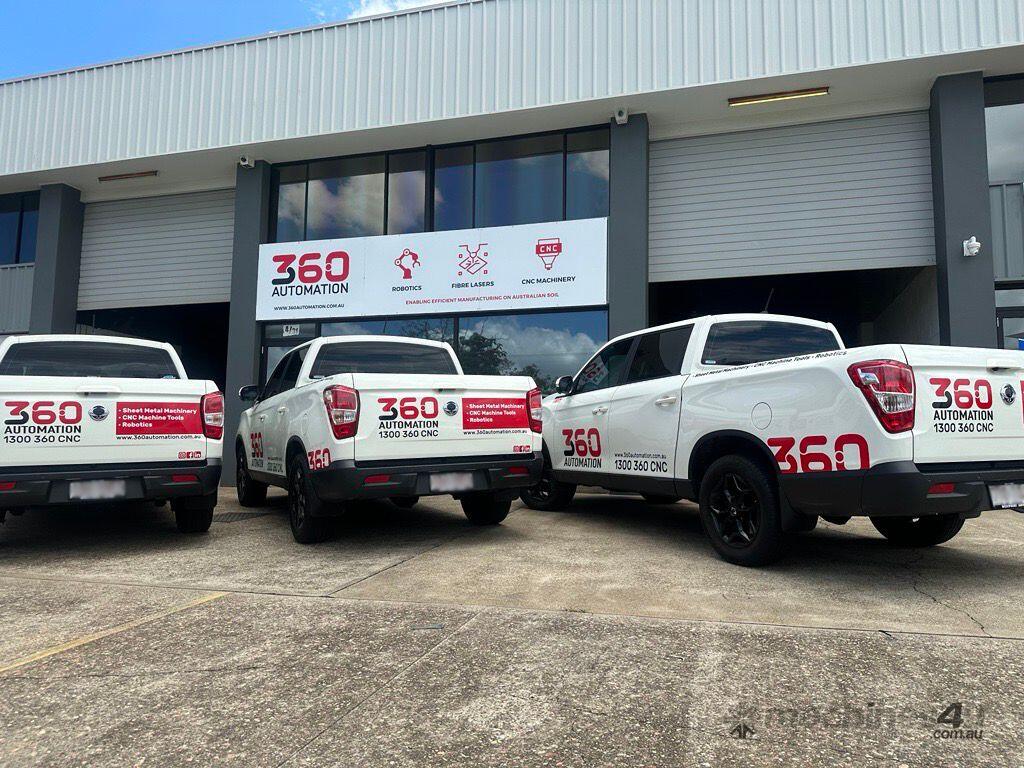

360 Automation and FFG DMC Partnership.

In a significant collaboration, FFG DMC has joined forces with 360 Automation to extend the reach of its advanced CNC machines. As an appointed representative of FFG DMC, 360 Automation ensures businesses receive comprehensive support, from initial consultation to installation and beyond. This partnership underscores a shared commitment to delivering cutting-edge technology and unparalleled service to clients across various industries.
