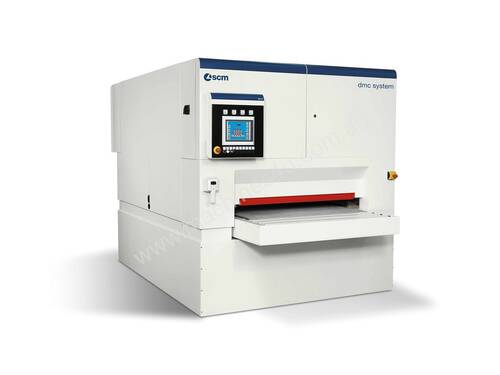

Automatic calibrating sanding machine
Equipped with 7 main units, the dmc system t7 1350 represents the most advanced solution available today for the processing of kitchen cabinet doors and windows frames, both assembled and disassembled: from the calibration straight to the superfinishing, in a single pass through the machine.
Main equipment:
Contact roller units equipped with heavy pressure bars for windows processing
Unique planetary units (patented), for multi directional sanding of rails and styles
Counter-rotating sanding brush rollers, with helicoidal slots for the abrasive strips
Vacuum hold-down table for small pieces processing, with electric fan embedded in the machine frame
Constant pass-line from the floor, for integration in automated production lines
Total management of the machine through “Hydra PC” control panel with 17” touch-screen
Advantages:
Maximum speed in all tool changing, cleaning and routine maintenance operations, facilitated by the innovative system of side unit extraction using telescopic supports with prismatic guides.
Extremely uniform, high quality surface finishes, thanks to the multidirectional action of the multifunctional "Planetario" working unit.
Reduced space needed for the machine, and limited noise emissions with the electric fan positioned under the work bench
Technical data:
Working width mm 1350
Min/max working thickness (with fixed table) mm 3÷170
Sanding belt width mm 1370
Sanding belt length mm 2620
Constant pass-line mm 900
