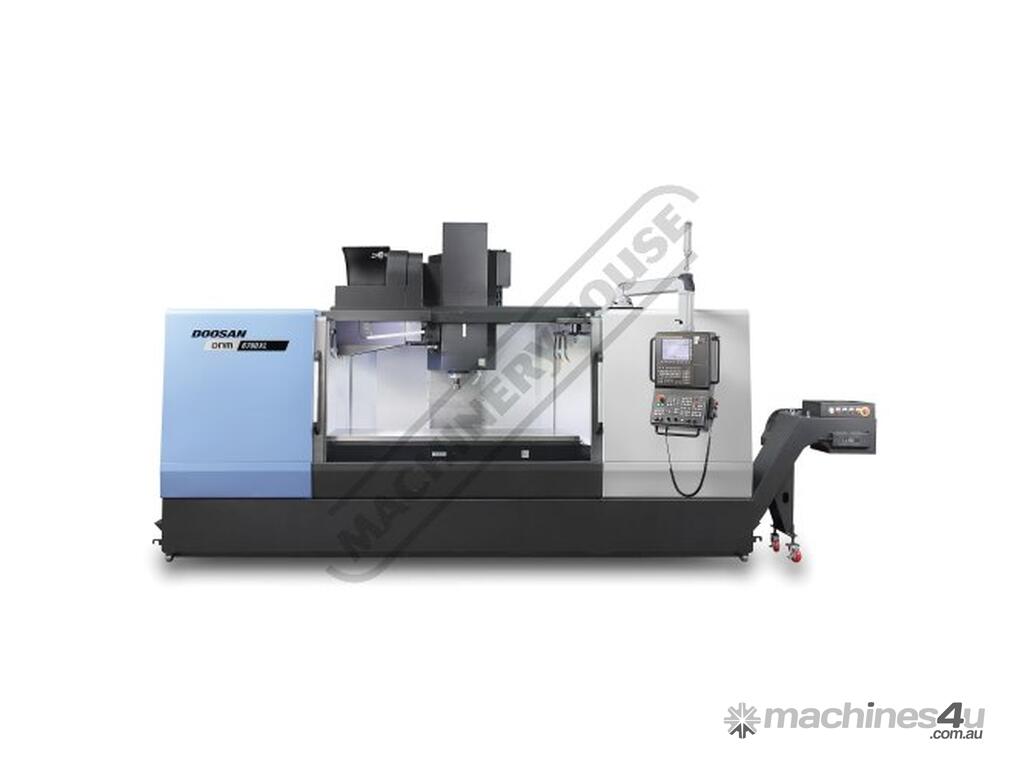

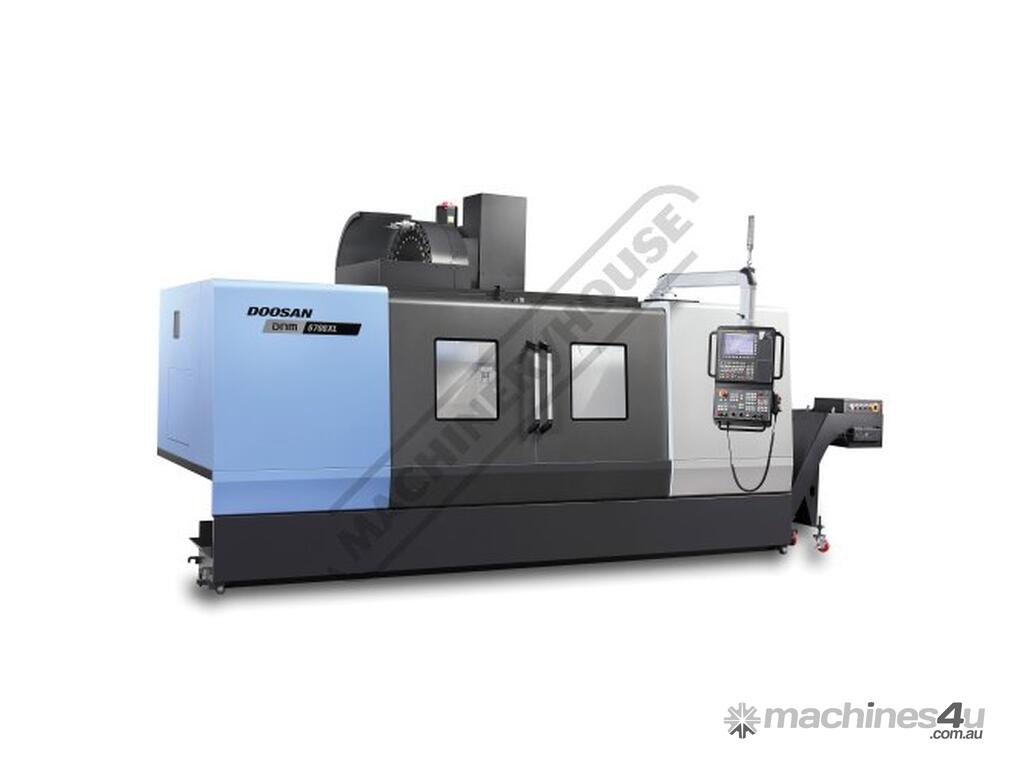

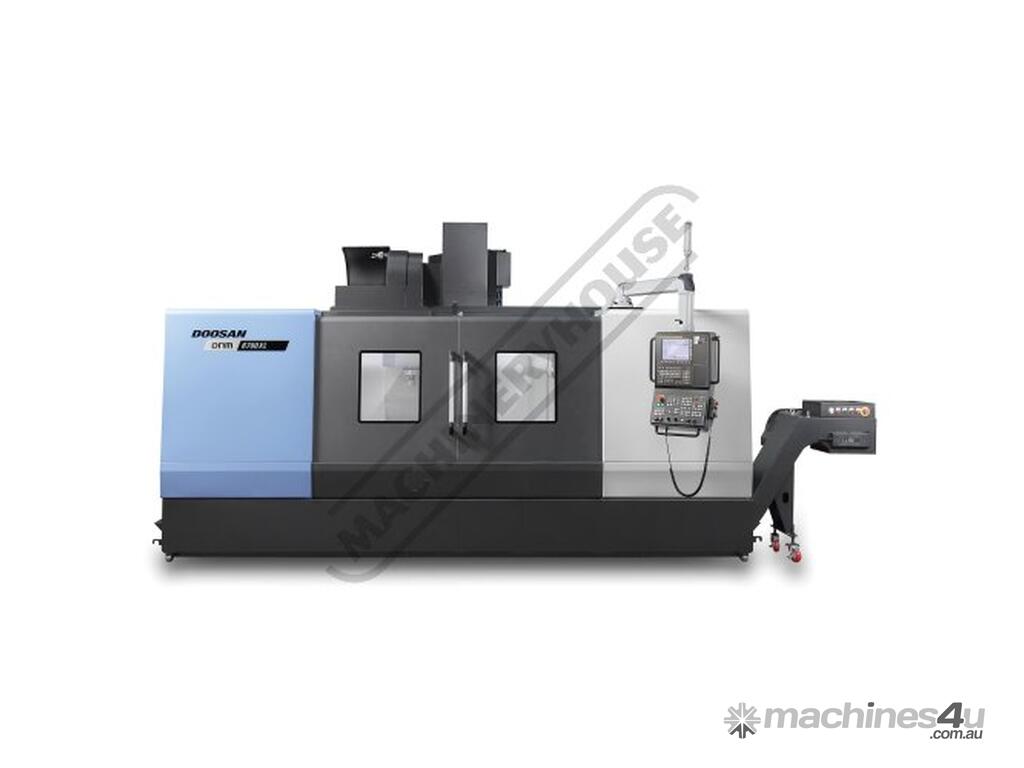

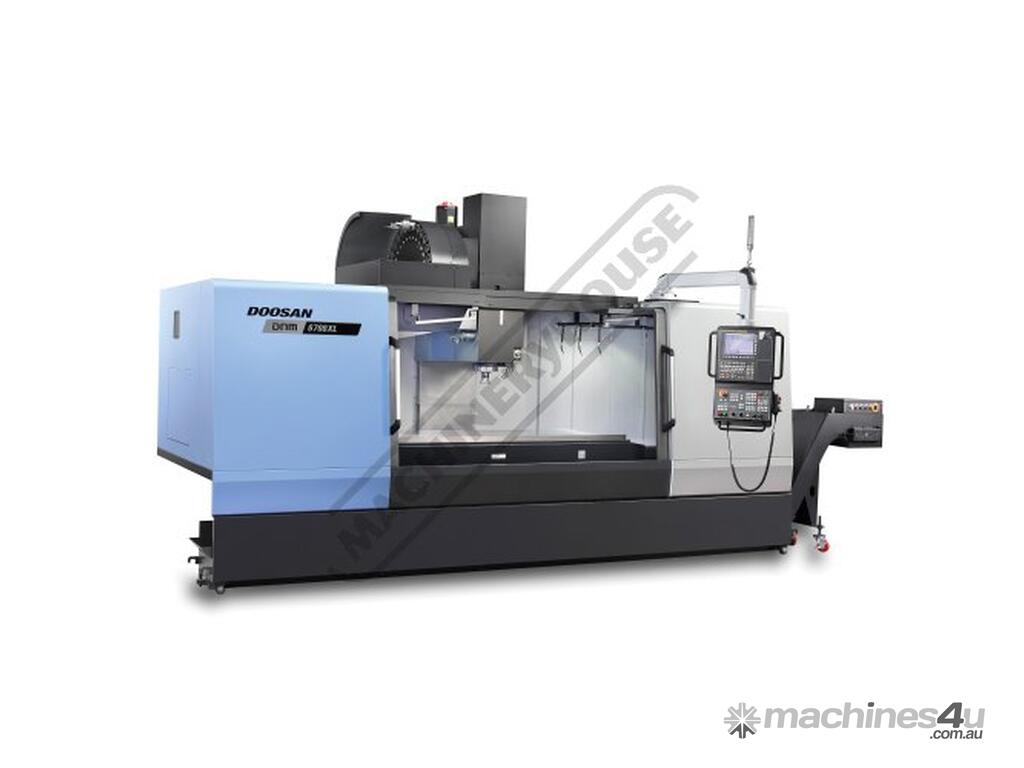

DNM 6700XL CNC Vertical Machining Centre

DOOSAN MACHINE TOOLS DNM 6700XL CNC Vertical Machining Centre
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M8470

Basic Specifications
• 2100, 670, 625mm X, Y, Z travels
• 2200 x 670mm table size
• 1300kg table load capacity
• 30, 30, 30m/min X, Y, Z rapid feed rates
• 150 – 775mm spindle to table
• 12,000 rpm spindle speed
• 18.5kW spindle power
• 118Nm spindle torque
• BT40 spindle taper
• Dual contact (Big Plus) spindle nose

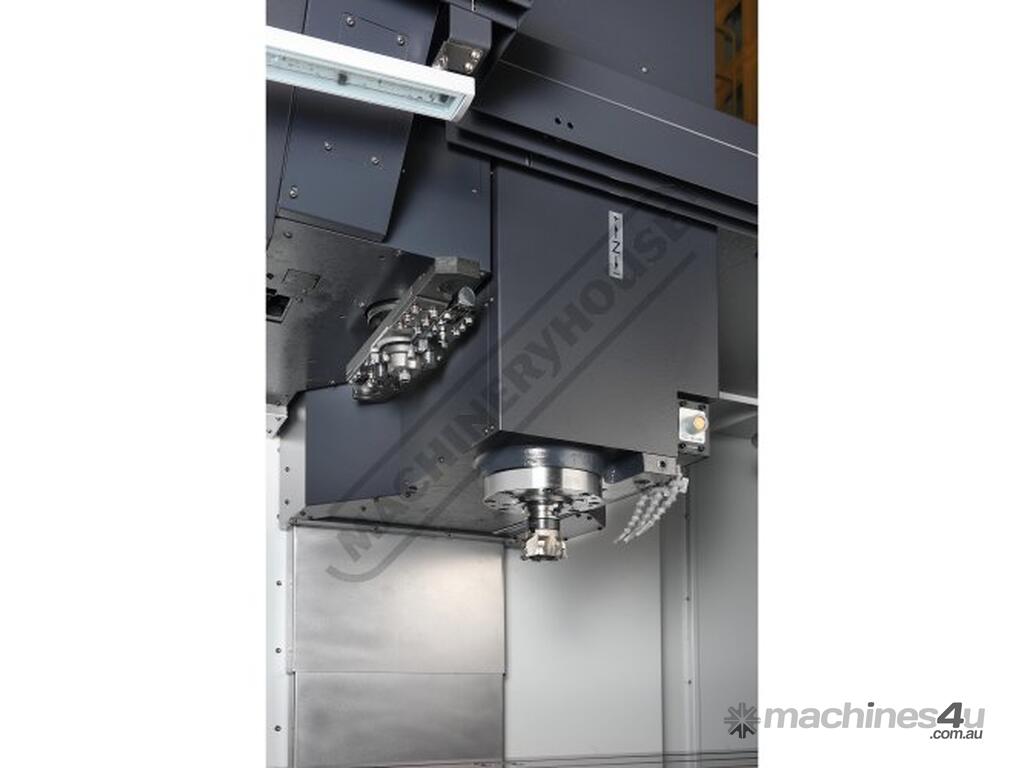

Main Spindle
• 12,000 rpm heavy duty spindle
• 18.5kW Fanuc direct drive spindle motor
• Air blast through spindle
• Spindle oil cooler
• Spindle air curtain

Axis Motors & Drives
• Fanuc Servo Drive Amplifiers
• Fanuc high Torque direct coupled AC Digital servo motors
• Fanuc absolute position encoders (No Axes limit switches required)
• Highly rigid, precision, wide span roller linear guideways

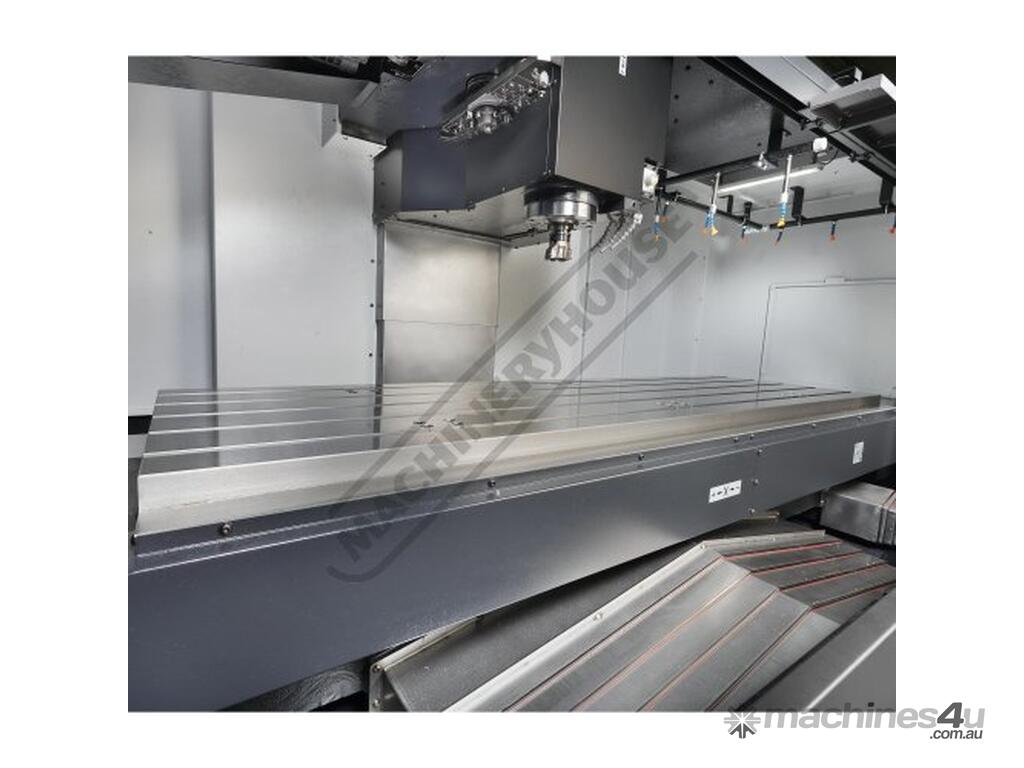

• Fully supported table eliminating overhang
• Large diameter pretensioned precision reciprocating ballscrews
• Automatic lubrication equipment

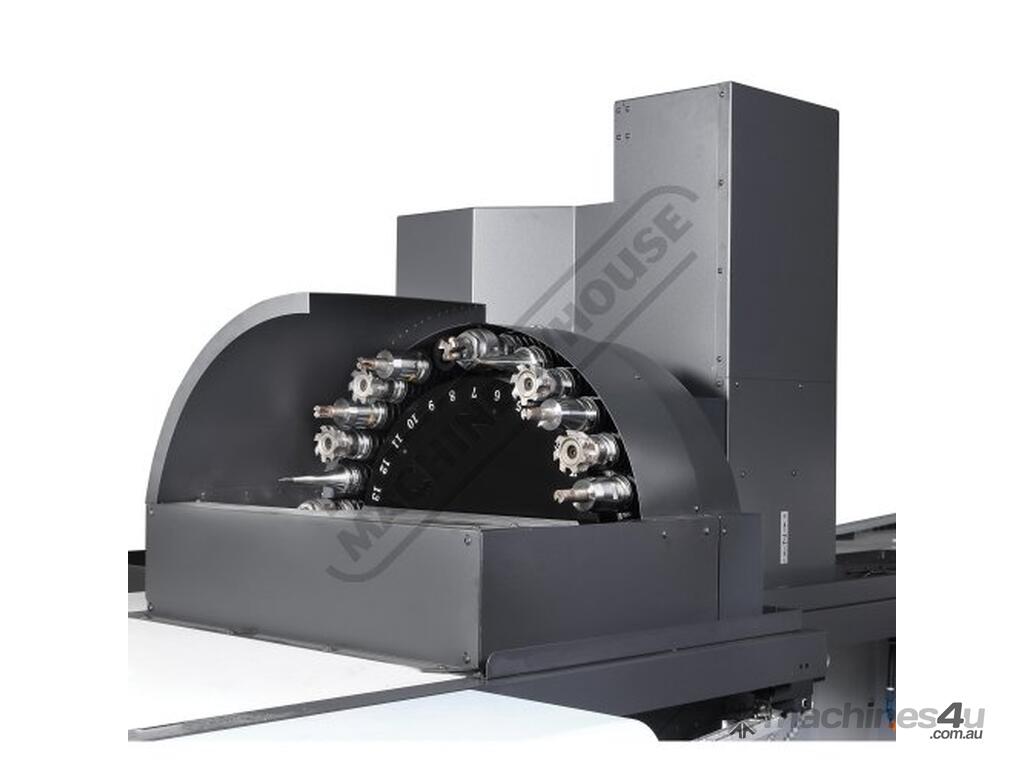

Tool Changer
• High-speed arm type automatic tool changer 1.3 second tool to tool
• 30 tool bi-directional magazine
• Side mount fully enclosed tool magazine


Coolant System
• Flood coolant
• Box type screen filter
• High pressure through spindle coolant 20 bar x 20 l/min
• Fully enclosed chip & coolant shield
• 380L coolant tank & chip pan

Electrical
• Door safety interlock switch
• Heat exchanger for electrical cabinet
• Line filter
• Transformer

Swarf Removal

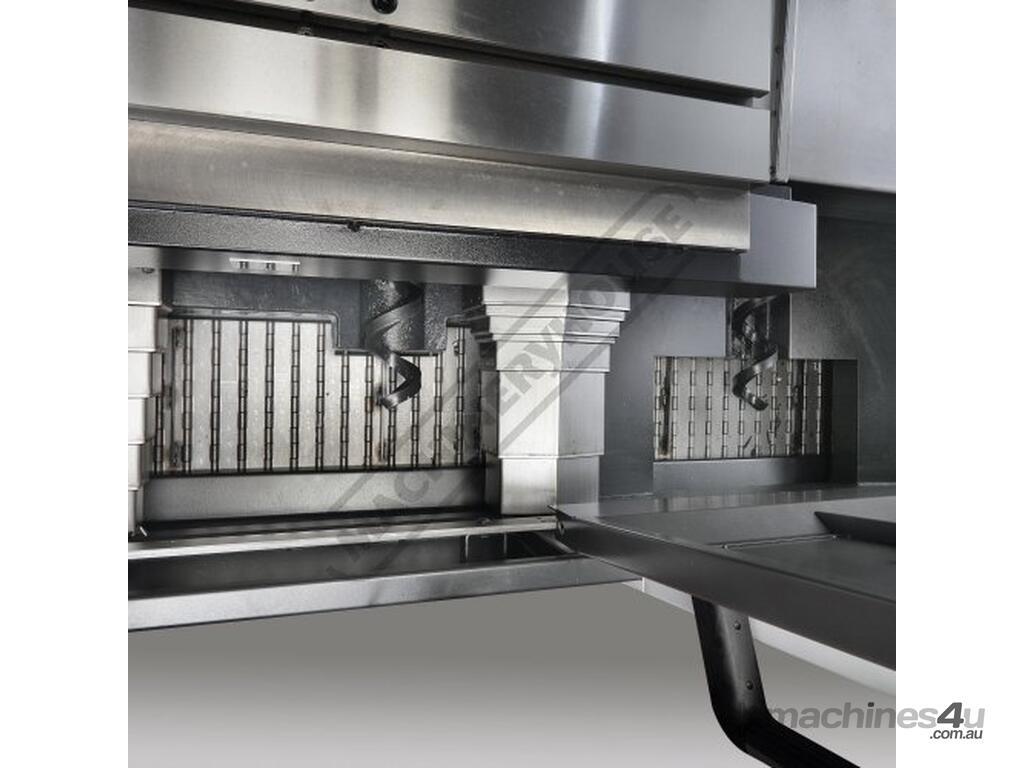

• Twin screw type internal chip conveyors
• Link type External chip conveyor

Operation
• Remote MPG (Portable Hand Wheel)
• Control panel with > 90° swivel
• 3 tier operation patrol lamp
• Work light
• Operating & maintenance manuals
• Electrical schematics
• Tool box

CNC Control
• Doosan Fanuc I Series (0i-Pus) CNC Controller
• Ezi Guide i Conversational software
• Fanuc 15” Colour LCD
• Rigid-synchronised tapping
• Helical interpolation
• Artificial intelligence contour control (AICC – 200 Block)
• Fine surface machining function
• Custom Macro B
• USB & PCMCIA Card Slot
• Ethernet Interface
• RS232 Interface
• Doosan Easy operation package including:
• Graphical tool table
• Self diagnostic ATC recovery
• Onboard G & M code assistance
• + more

Automation
• Control prepared to accept Rotary Table – 4th Axis

Local Service and Support
• Commissioning & Testing Included
• Comprehensive Operator Training Included
• Hare and Forbes In House Service And Applications Staff
• Ongoing Support For Life Of The Machine

Features:
Doosan Machine Tools changes its name to DN Solutions
Read more at:


Specifications:
ORDER CODE: M8470
MODEL: DNM 6700XL
MODEL: ~
X Travel (mm): 2100
Y Travel (mm): 670
Z Travel (mm): 625
Table Size (mm): 2200x670
Table Capacity (kg): 1300
Spindle - Table (mm): 150-775
Spindle Taper: BT40 - Big Plus
Spindle Speed (rpm): 12,000
Spindle Motor (kW): 18.5
Rapid Traverse (m/min): 30/30/30
Guideways: Roller LMG
Tool Arm Type (No.): 30
Control: Doosan Fanuc I Series (0i-Plus)
Programming: EZI Guide I Conversational
