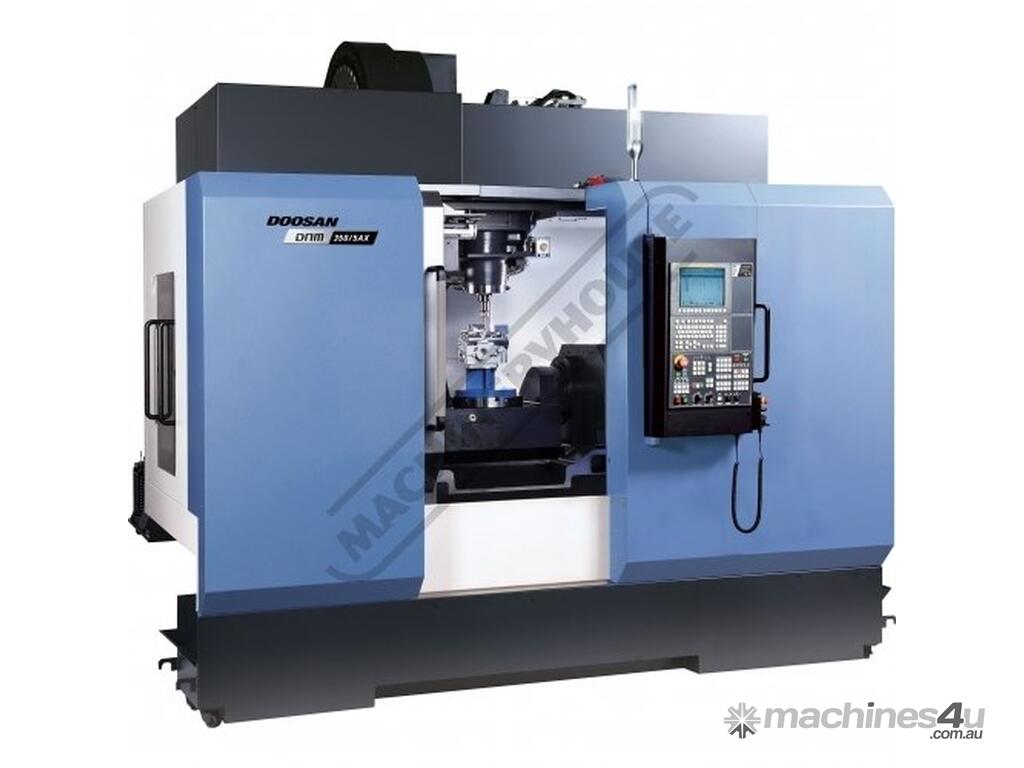

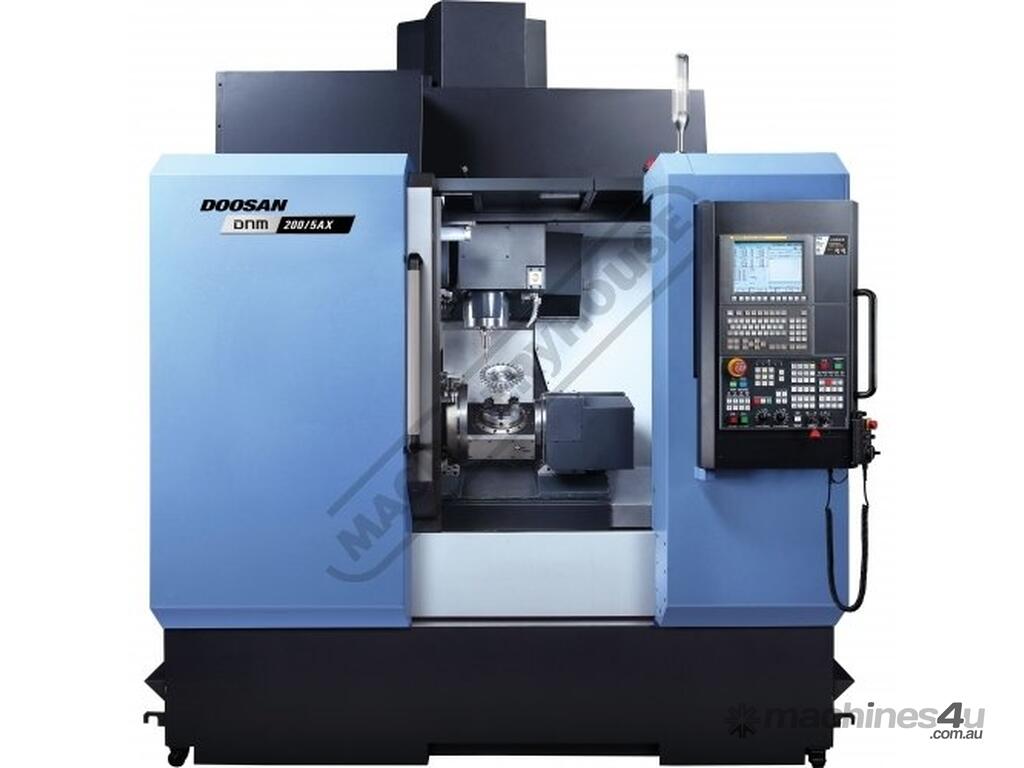

DN SOLUTIONS DNM200/350 CNC 5 Axis Machining Centre Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8016
Features:
Portable MPG
Internal Chip Conveyor
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide
Specifications:
ORDER CODE: I8016
MODEL: DNM 200/300 5AX
X Travel (mm): 400-600
Y Travel (mm): 435-655
Z Travel (mm): 500
A Travel (deg): 150 (+30 -120)
B Travel (deg): 220 (+110 -110)
C Travel (deg): 360
Table Size (mm): Ø500 / 800 (opt)
MAX Workpiece Height (mm): 200-300
Table Capacity (kg): 40-250
Spindle - Table (mm): 30-550
Spindle - Table (mm): -40-760 (5 Axis Vertical)
Spindle - Table (mm): 295-1095 (5 Axis Horiz)
Spindle Taper: BT40 - Big Plus
Spindle Speed (rpm): 12,000-20,000
Spindle Motor (kW): 18.5
Rapid Traverse (m/min): 30-36
Guideways: Roller LMG
Tool Change: 30Tool Arm Type
Control: Fanuc 31i /
Control: Heidenhain TNC 640
Control: EZI Guide I Conversational
Control: / Heidenhain
Control: 4+1 or 5 Axis Simultaneous
To Purchase Online Please Visit The Machineryhouse & Search For 'I8016'
