DOUCET Stroke sander for metal

HEAVY DUTY TRIANGULAR STROKE BELT SANDER & POLISHER
MODEL PMCT-HD-2
Triangular Heavy-Duty Stroke Belt Sanders and Polishers have a heavy-duty welded structure. They feature dust hood on one side, a table with steel rollers and virtually wear free balanced and quiet running aluminum pulleys. All models are equipped with a magnetic starter (overload protection) and belt guards.

The triangular shape allows better visibility on parts, better heat dissipation and belt saving. Table is covered with with Russian Cherry wood plywood surface. Motorized vertical table with 25" vertical adjustment. Total weight capacity is 1000 lb.
DESCRIPTION OF EQUIPMENT
? 144" TRIANGULAR HEAVY-DUTY SANDING AND POLISHING MACHINE,
MODEL PMCT-HD-2-374
DUAL BELTS:
o Table size: 48" (1220mm) wide X 144" (3660mm) long
o Aluminum table covered with Russian Cherry wood plywood surface

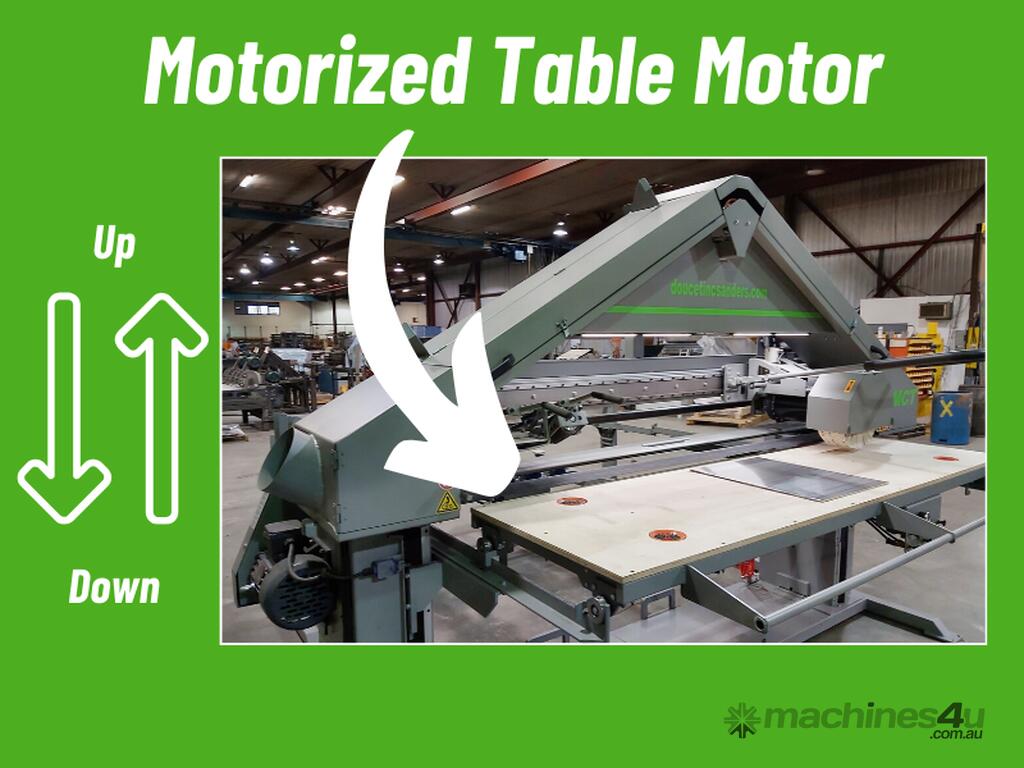

o Motorized vertical table with 25" vertical adjustment
o Table weight capacity: 1000 lb
o Two Abrasive Belts: 6" (150mm) X 374", 4750 F.P.M.
o Pulleys: 10" (250mm) dia. X 6.25" face
o Pressure Pad Traveling Bar
o Handheld Pressure Device

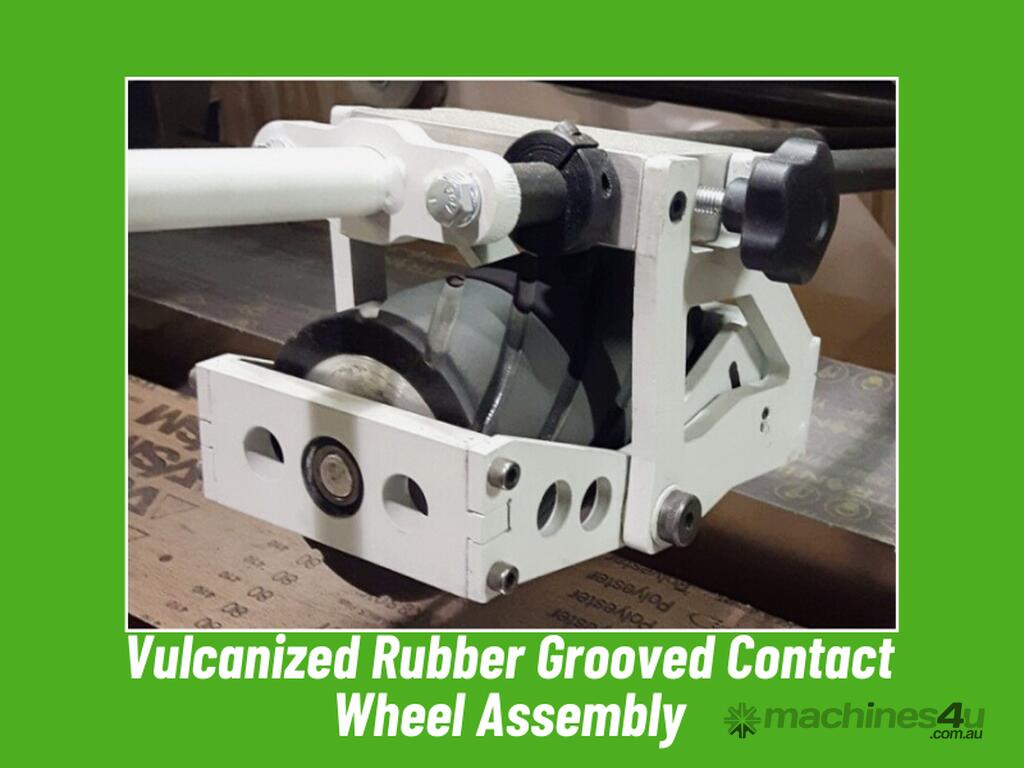

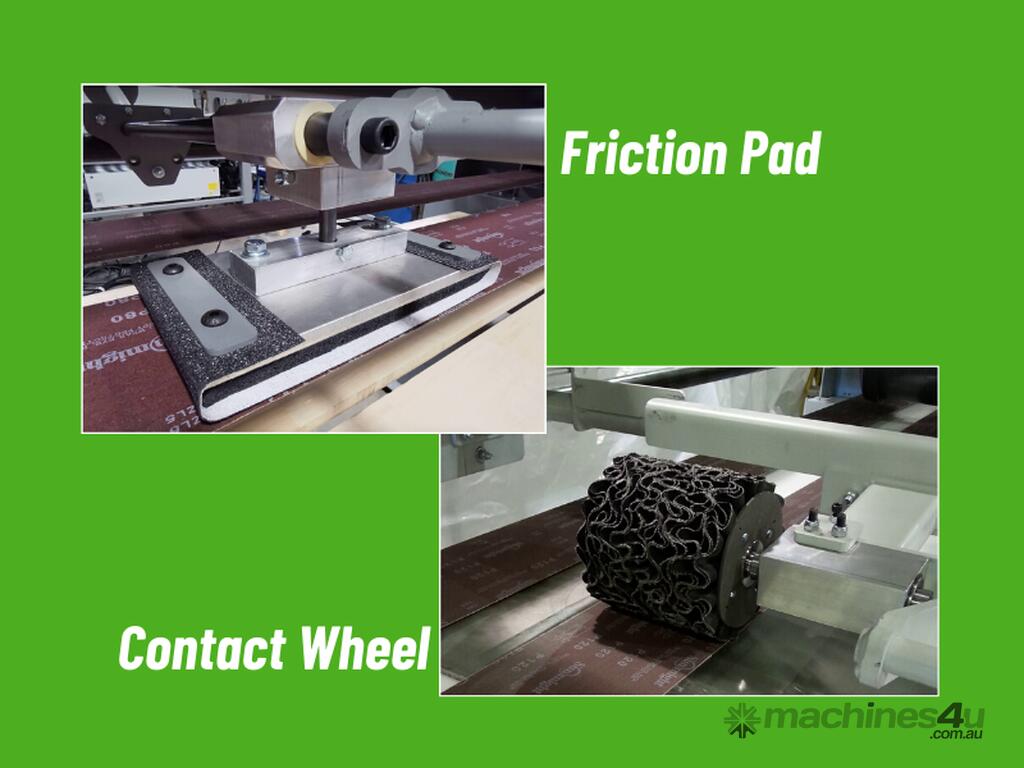

o Vulcanized Rubber Grooved Contact Wheel Assembly
o Pneumatic Tensioner
o Light Fixture over the working table
o Magnetic starter with overload protection
o Belt guards
o Moveable safety guard to cover the sanding belt that is not in used

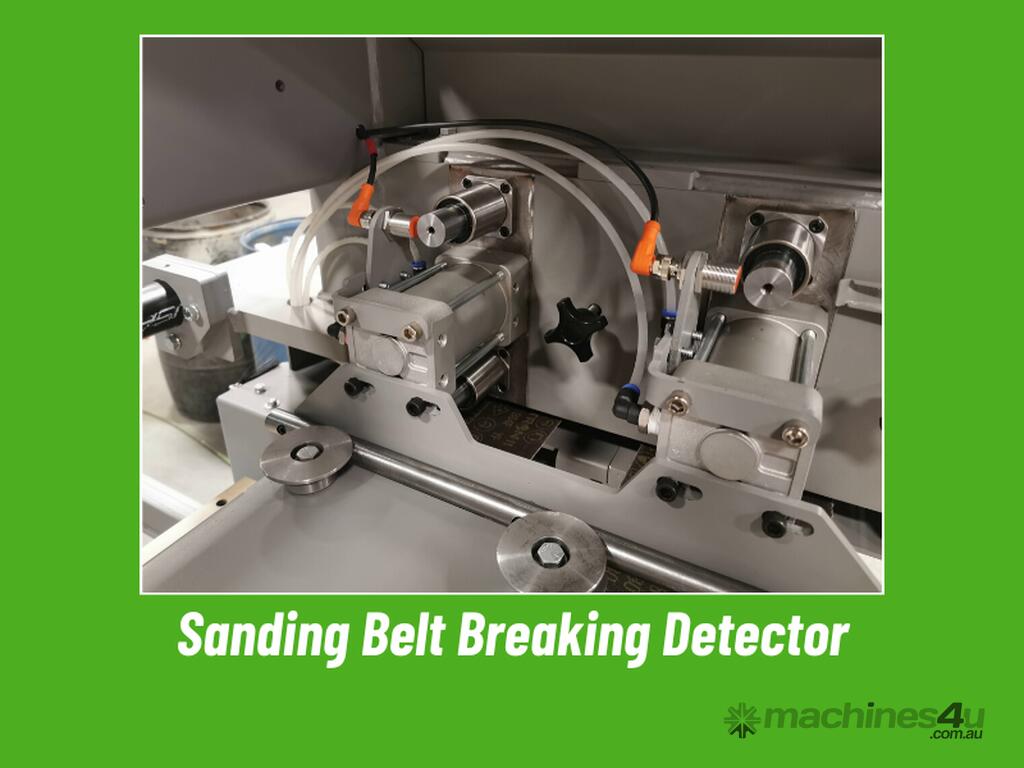

o Sanding belt breaking detector
o Dust collector outlet: 8"(200mm) diameter 2400 cfm
o Compressed air requirement: 90 psi
o 7.5 HP T.E.F.C. motor, 1750 rpm
o Voltage: 220 or 440 / 3 / 60, 17 amps
o Variable speed for a 7.5 HP Motor Allow belt speed between 3300 to 6300 ft./min.

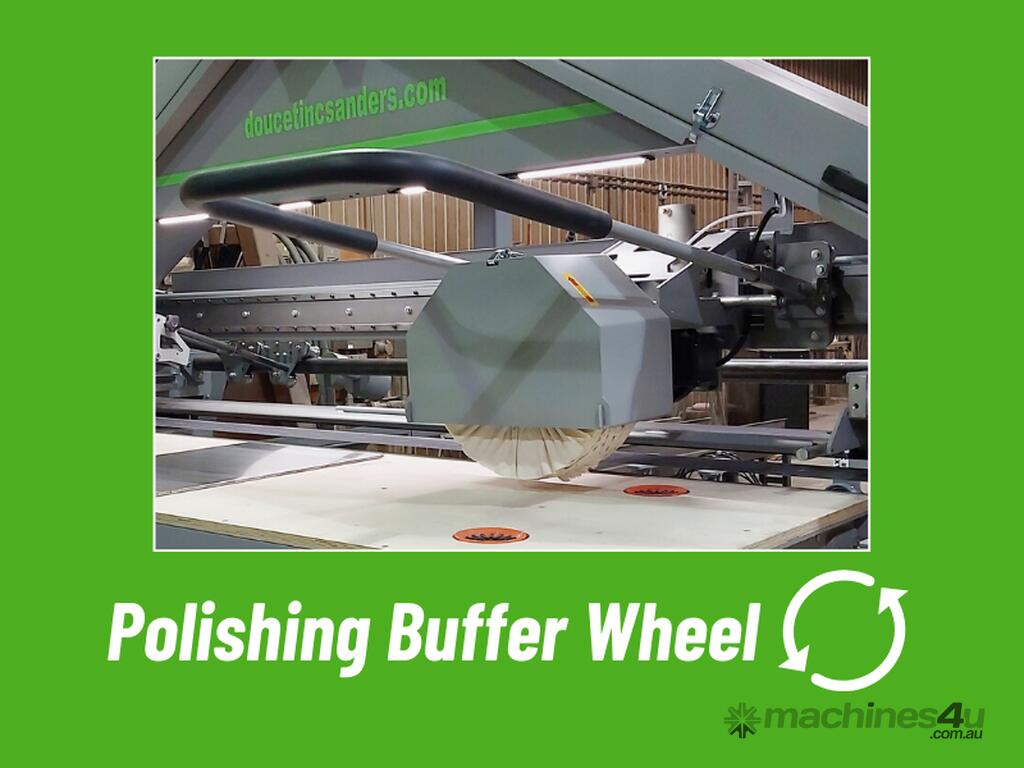

o Polishing Wheel: The motorized polishing wheel travels on independent linear bearings across the work surface as the operator guides the position of the polishing wheel and the table. Users can apply mirror type finishes. Results depending upon material and time.
