DPM-1070 Industrial Motorised Hydraulic Press - 100 Tonne 7.5hp 415V Motor, 300mm Ram Stroke & 800mm

LFSS DPM-1070 Industrial Motorised Hydraulic Press - 100 Tonne 7.5hp 415V Motor, 300mm Ram Stroke & 800mm Height From Ram To Table Includes Pressure Gauge & Bending Vee Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P136

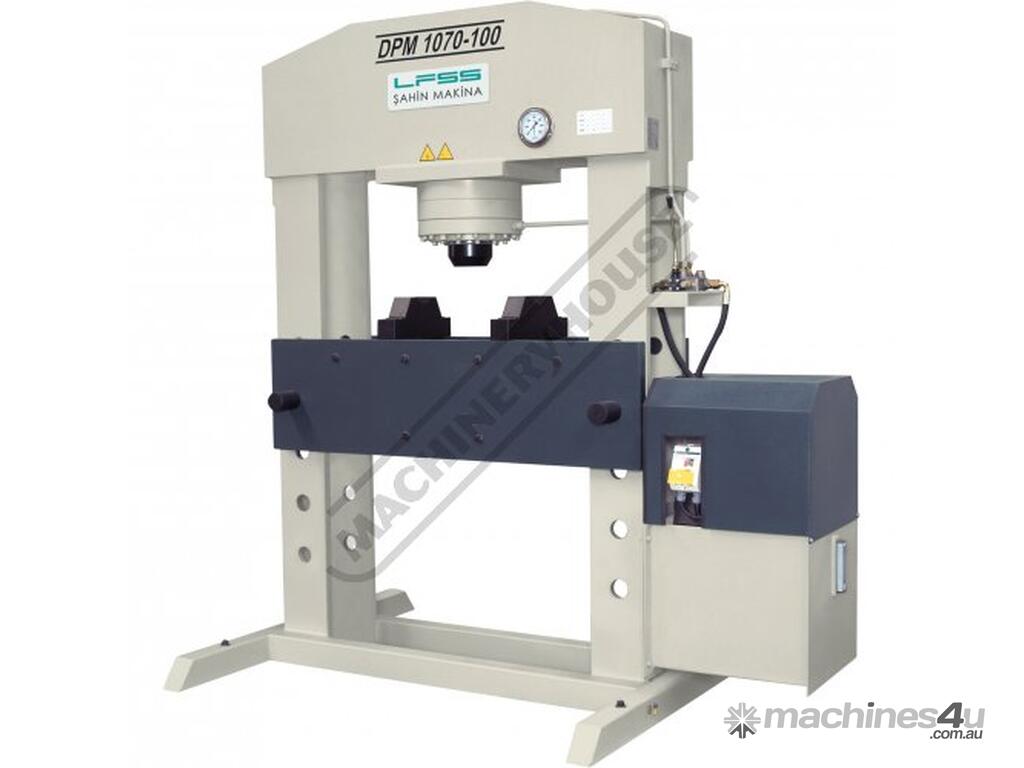

100 Tonne Industrial Hydraulic Press
Suited for the Industrial workshop, for pressing of bearings, bushings & straightening shafts, bending steel as well as all general pressing applications

Features:
Heavy duty steel welded frame
Hydraulic operated pressing ram
1070mm width between front posts
Dual-speed joystick control (fast approach slow bend)
Pressure gauge fitted for easy control of pressing operations
Heavy duty worktable with 5 adjustable positions

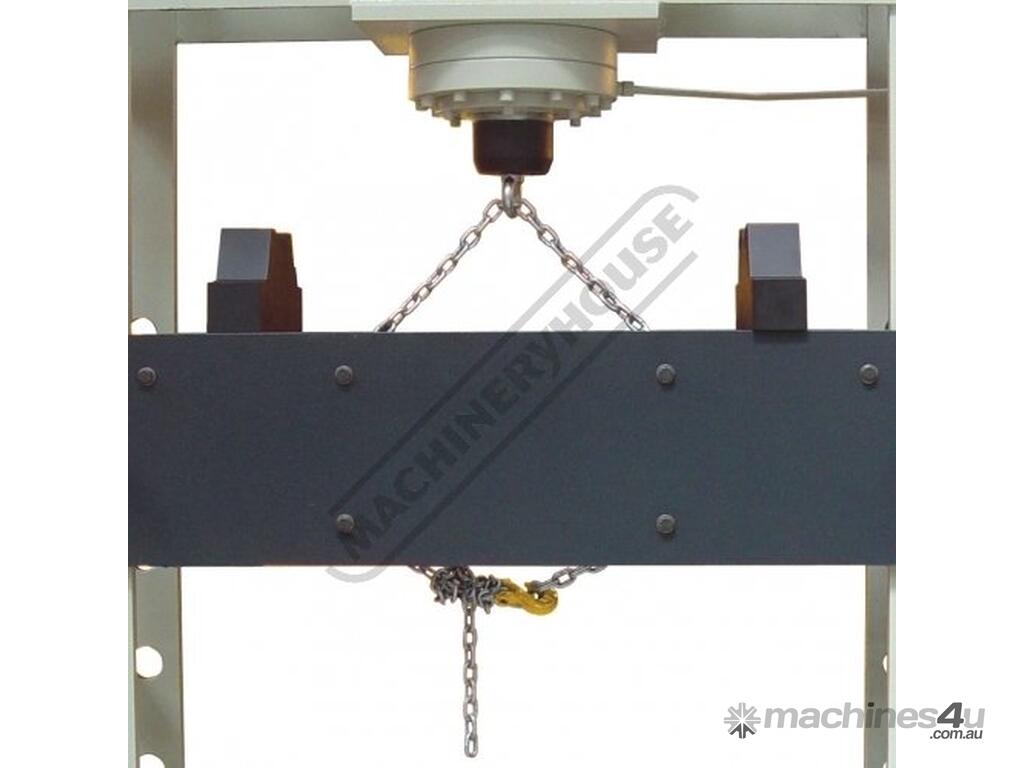

Worktable can be adjusted using the provided chain system which works in conjunction with the hydraulic ram
Safety overload valve
Safety contactor switch with overload protection
Built to CE regulations

Includes:
- Pair of bending plates
- Table lifting and lowering chains
- Hydraulic oil



Specifications:
ORDER CODE: P136
MODEL: DPM-1070
Pressing Capacity (Tonne): 100
Hydraulic Ram Operation (Type): Motorised System
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): No
Width Between Front Posts (mm): 1070
Width Between Side Posts (mm): 250
Table Top Opening - (Front to Back) (mm): 305
Ram To Table (Max.) (mm): 800
Cylinder Stroke (mm): 300
Ram Diameter (mm): Ø220
Piston Diameter (mm): ~
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): 5.5 / 7.5
Voltage (V): 415
Floor Space (W x D x H) (mm): 2100 x 1050 x 2200
Nett Weight (kg): 1500
