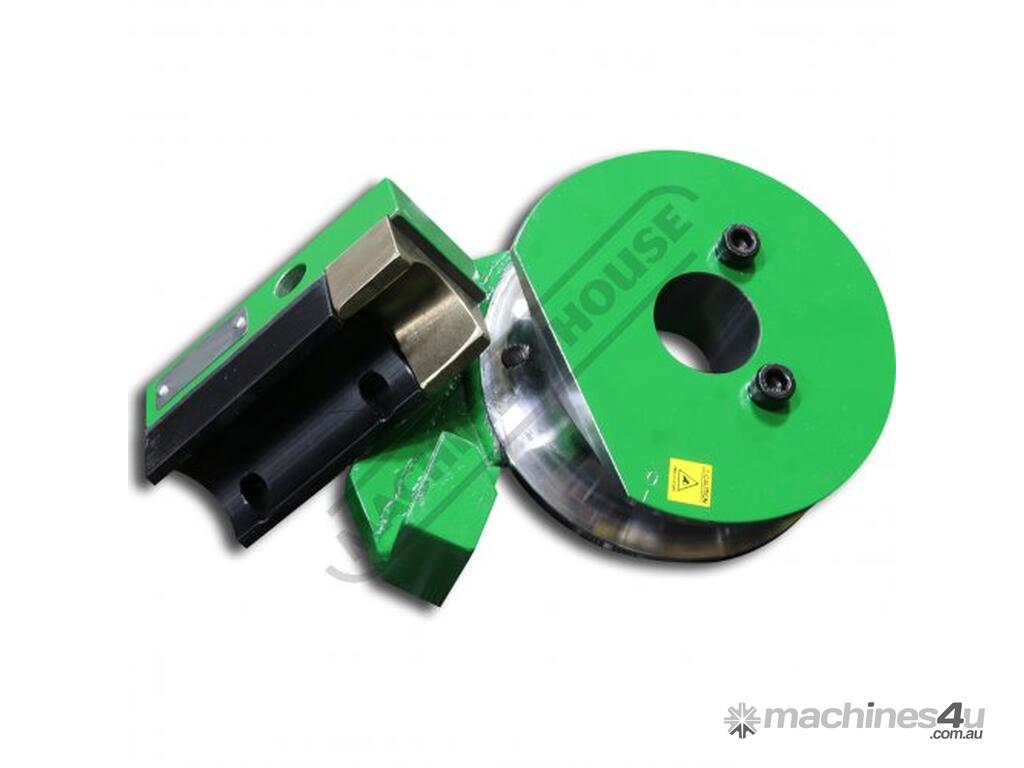

DS-0750P-R300 3/4" NB x 180º Round Pipe Die Set 3" (76.2mm) CLR, Made from Steel Suits RDB Series (N

BAILEIGH DS-0750P-R300 3/4" NB x 180º Round Pipe Die Set 3" (76.2mm) CLR, Made from Steel Suits RDB Series (Not RDB-050) Pipe & Tube Benders
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8131

FOR PIPE ONLY!
3/4" Round pipe (1" OD) die set with a 3" (76.2mm) Center line Radius. Fits on all Baileigh Industrial rotary draw benders that accept drop on tooling (Not RDB-050). Center line radius is based on 2.8702mm wall thickness (Schedule 40)

Features:
3/4" NB steel former with 3" (76.2mm) centre line radius for 180 degree bends
2.8702mm recommended minimum wall thickness
180 degree maximum bend angle
Set includes forming die counter die and hook sleeve


Specifications:
ORDER CODE: B8131
MODEL: DS-0750P-R300
Part Number: ~
Type: Round Pipe Die Set
Degree of Bend (Max) (Deg): 180º
Size (inch / mm): 3/4" NB
Size (inch / mm): ~
Size (inch / mm): ~
CLR - Centre Line Radius (inch / mm): 3" / 76.2mm
Recommended Min. Wall Thickness (inch / mm): Schedule 5
Material OD (inch / mm): ~
Suits Spigot Size (inch / mm): ~
Suits Machine Model: RDB Series (Not RDB-050)
Nett Weight (kg): 7.3
