DS-1250T-R400 31.75mm OD x 180º Round Tube Die Set 101.6mm CLR, Made from Steel Suits RDB Series (No

BAILEIGH DS-1250T-R400 31.75mm OD x 180º Round Tube Die Set 101.6mm CLR, Made from Steel Suits RDB Series (Not RDB-050) Pipe & Tube Benders
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8271

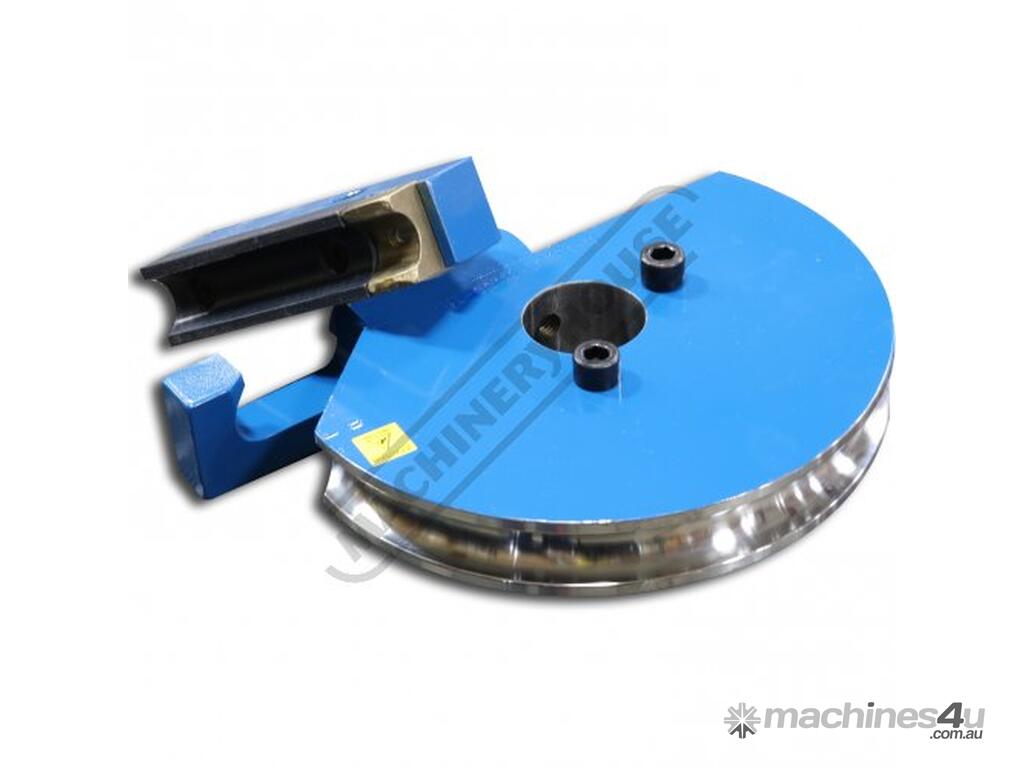

31.75mm OD Round tube die set with a 101.6mm Center line Radius. Fits on all Baileigh Industrial rotary draw benders that accept drop on tooling (Not RDB-050). Center line radius is based on 2.1082mm wall thickness.

Features:
31.75mm OD steel former with 101.6mm centre line radius for 180 degree bends
2.1082mm recommended minimum wall thickness
180 degree maximum bend angle
Set includes forming die counter die and hook sleeve


Specifications:
ORDER CODE: B8271
MODEL: DS-1250T-R400
Part Number: ~
Type: Round Tube Die Set
Degree of Bend (Max) (Deg): 180º
Size (inch / mm): 31.75 OD
Size (inch / mm): ~
Size (inch / mm): ~
CLR - Centre Line Radius (inch / mm): 101.6
Recommended Min. Wall Thickness (inch / mm): 2.1082
Material OD (inch / mm): ~
Suits Spigot Size (inch / mm): ~
Suits Machine Model: RDB Series (Not RDB-050)
Nett Weight (kg): 13.2
