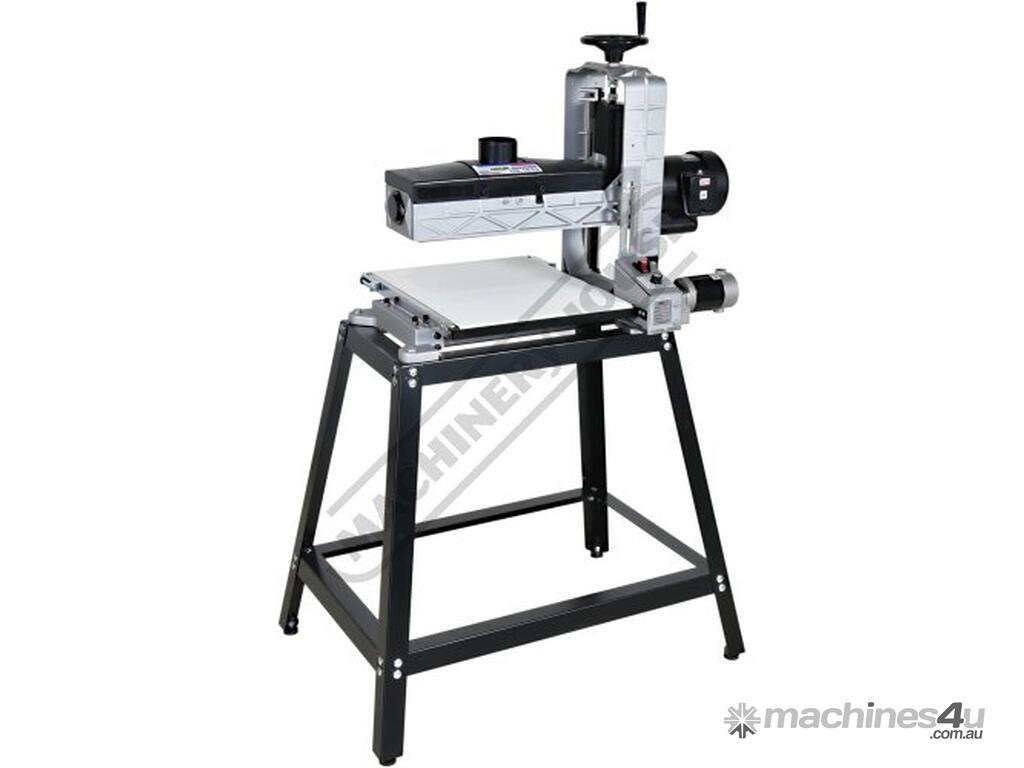

DS-1632 Drum Sander - Open End 400mm Single Pass & 800mm Double Pass Capacity Includes Stand

HAFCO-WOODMASTER DS-1632 Drum Sander - Open End 400mm Single Pass & 800mm Double Pass Capacity Includes Stand
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L110

Manufactured in Taiwan

The DS-1632 wide drum sander offers a unique open end sanding system that provides a maximum of 800mm sanding capacity with two passes, with a generous height capacity of 127mm down to a minimum of 3.2mm.

This machine is constructed from high grade cast aluminium to enable portability from site to site with ease. Fitted to this machine as standard feature is a variable table feed dial enabling operator to finely adjust surface finish required. It is recommended by the manufacturer to use a dust extraction system (not included) please refer to optional accessories.

Features:
Open side configuration with sanding capacity (400mm with 1 Pass) & (800mm with 2 Passes)

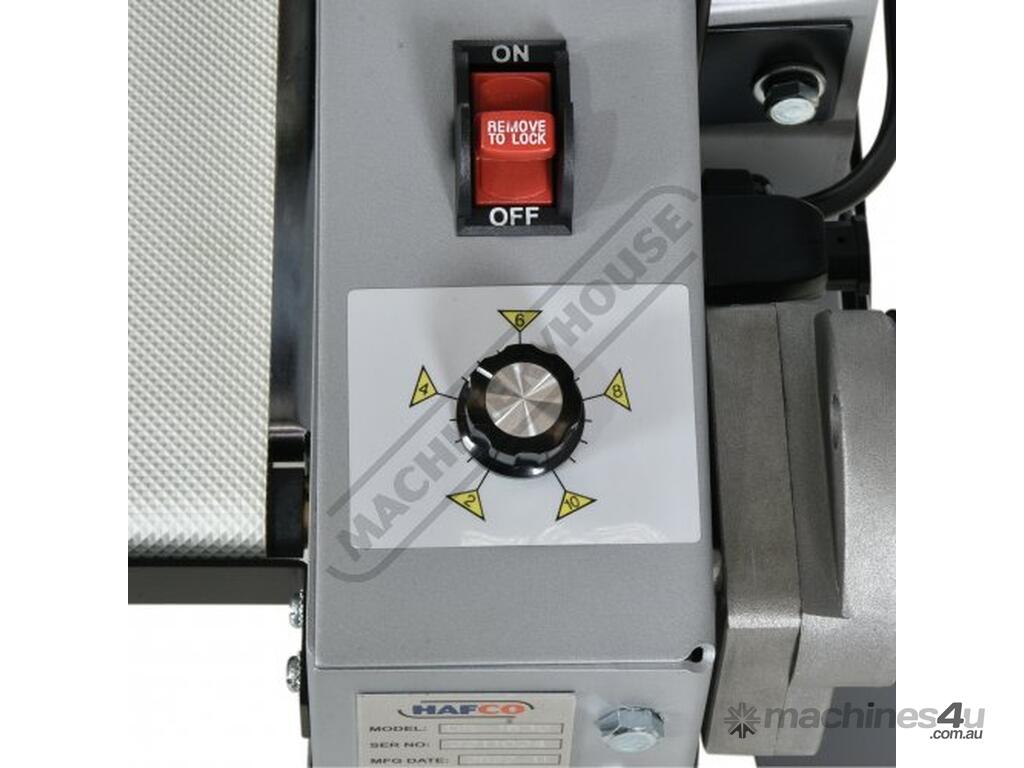

Variable feed speeds from 0.6-3 M/min to suit various sanding requirements and material widths

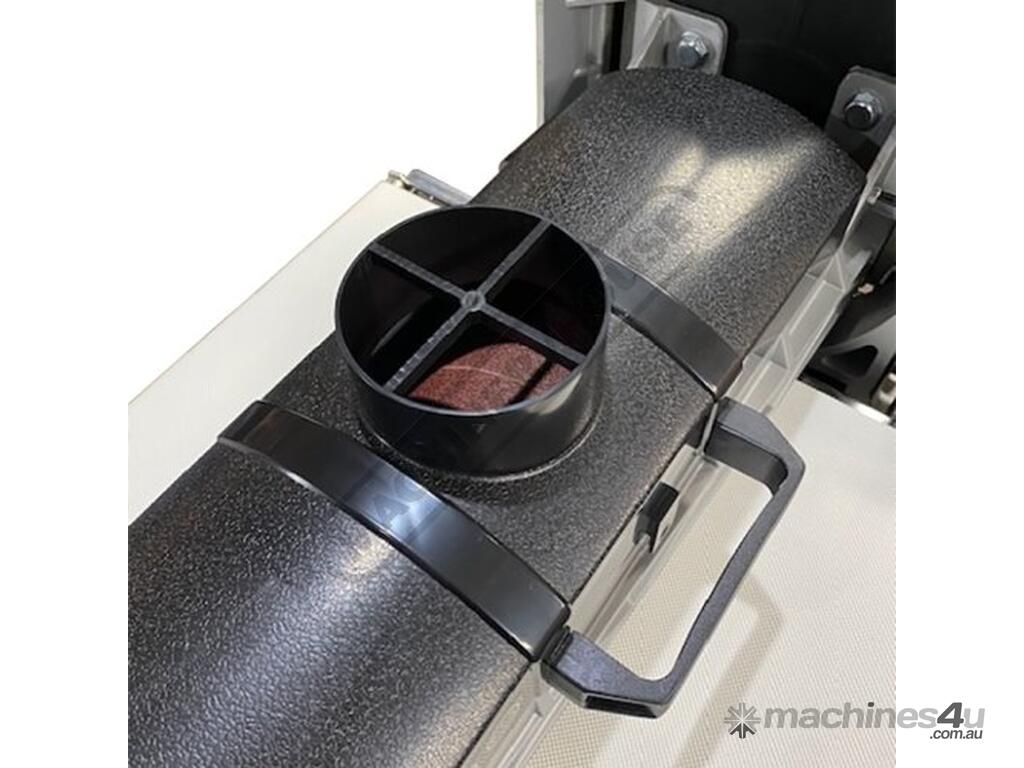

Ø63.5mm diameter dust hood outlet
Rugged aluminium drum supports frame

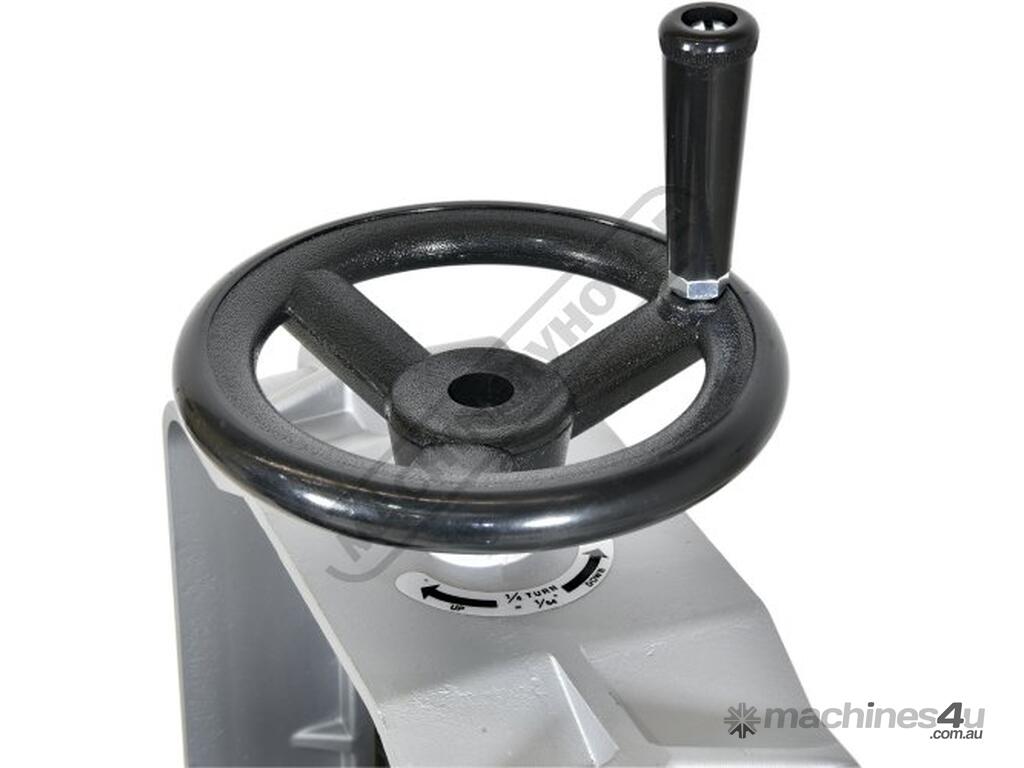

Drum height is adjusted by turning a control hand wheel

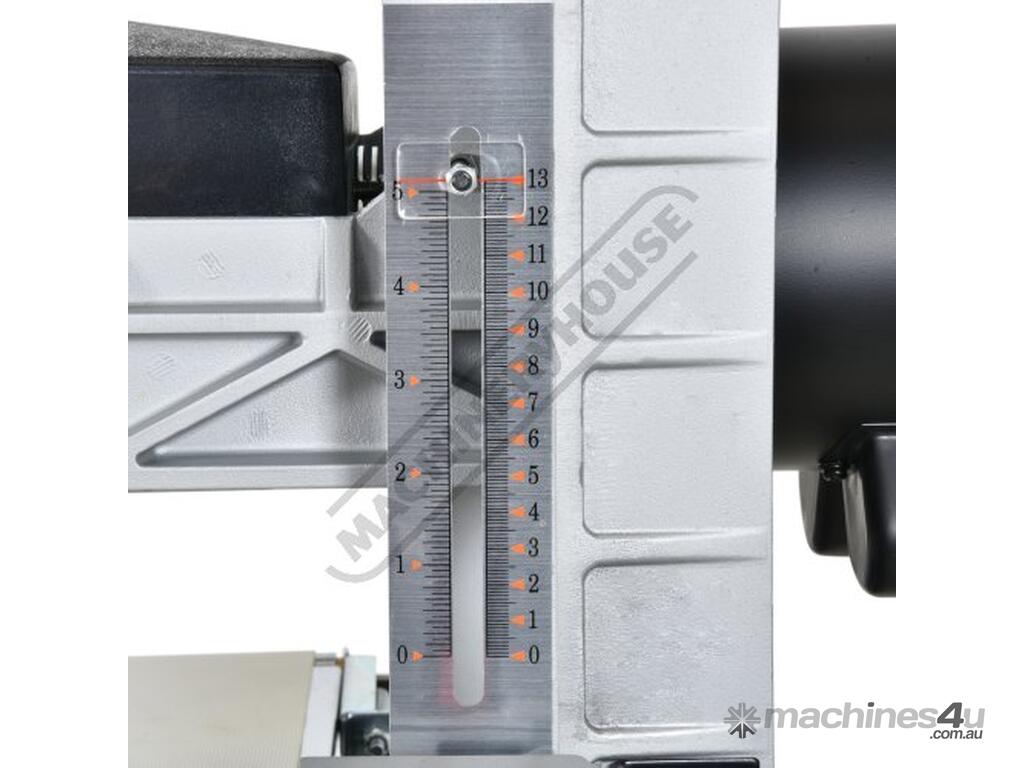

Depth scale provided on the drum support frame for accurate reading of height adjustment

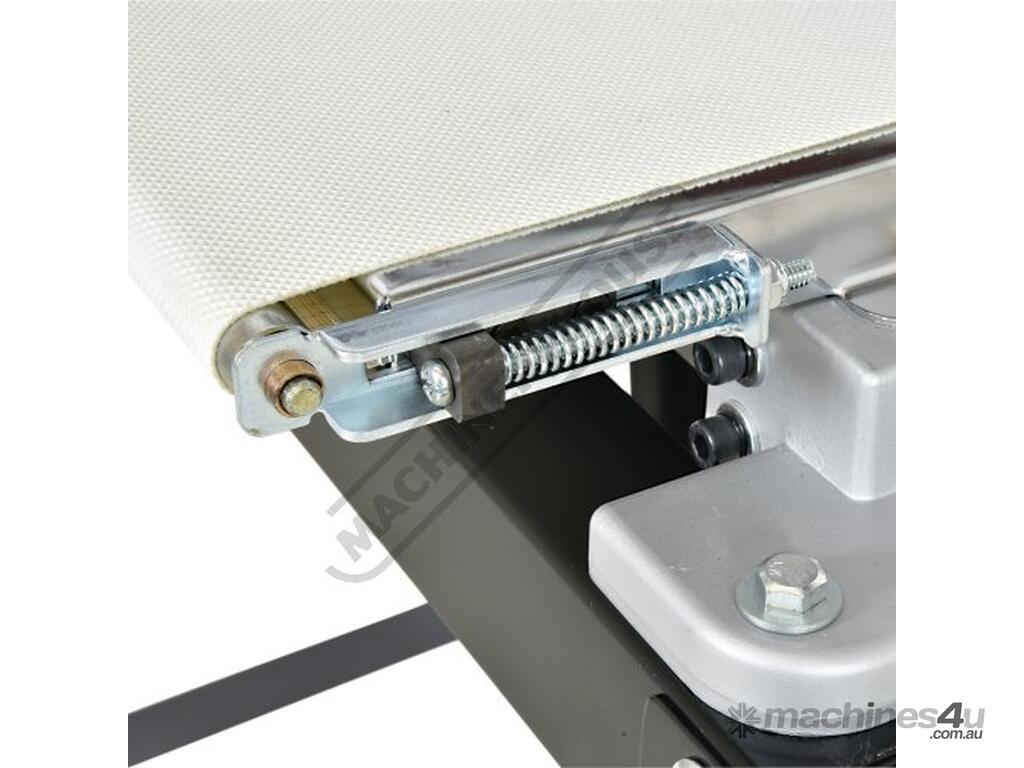

Conveyor belt tracking is easy to adjust
Quality Taiwanese

Includes:
- Stand



Specifications:
ORDER CODE: L110
MODEL: DS-1632
Variable Table Feed Speed (m/min): 0.6 - 3
Sanding Drum Speed (rpm): 1720
Belt Size (mm): 2330 x 78
Drum Diameter (mm): 127
Maximum Material Width (mm): 400
Maximum Material Thickness (mm): 127
Minimum Material Thickness (mm): 3.2
Dust Collector Port Diameter (Qty x mm): 1 x Ø63.5
Feed Motor Power (hp): 1/8
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 1050 x 700 x 1545
Nett Weight (kg): 70
