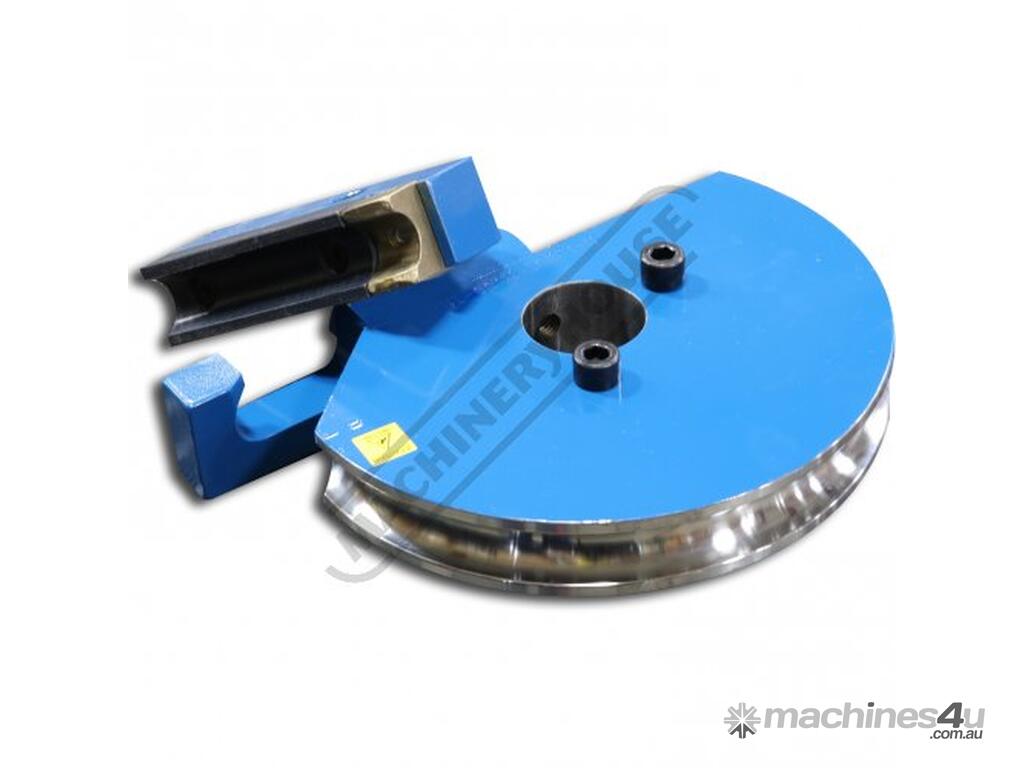

BAILEIGH DS-1750T-R600 44.45mm OD x 180º Round Tube Die Set 152.4mm CLR, Made from Steel Suits RDB Series (Not RDB-050) Pipe & Tube Benders
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8305
44.45mm OD Round tube die set with a 152.4mm Center line Radius. Fits on all Baileigh Industrial rotary draw benders that accept drop on tooling (Not RDB-050). Center line radius is based on 2.413mm wall thickness.
Features:
44.45mm OD steel former with 152.4mm centre line radius for 180 degree bends
2.413mm recommended minimum wall thickness
180 degree maximum bend angle
Set includes forming die counter die and hook sleeve
Specifications:
ORDER CODE: B8305
MODEL: DS-1750T-R600
Part Number: ~
Type: Round Tube Die Set
Degree of Bend (Max) (Deg): 180º
Size (inch / mm): 44.45 OD
Size (inch / mm): ~
Size (inch / mm): ~
CLR - Centre Line Radius (inch / mm): 152.4
Recommended Min. Wall Thickness (inch / mm): 2.413
Material OD (inch / mm): ~
Suits Spigot Size (inch / mm): ~
Suits Machine Model: RDB Series (Not RDB-050)
Nett Weight (kg): 7
