DS-180-0750T-R300 19.05mm OD x 180º Round Tube Die Set 76.2mm CLR, Made from Steel Suits RDB-050 Man

BAILEIGH DS-180-0750T-R300 19.05mm OD x 180º Round Tube Die Set 76.2mm CLR, Made from Steel Suits RDB-050 Manual Tube Bender
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8040

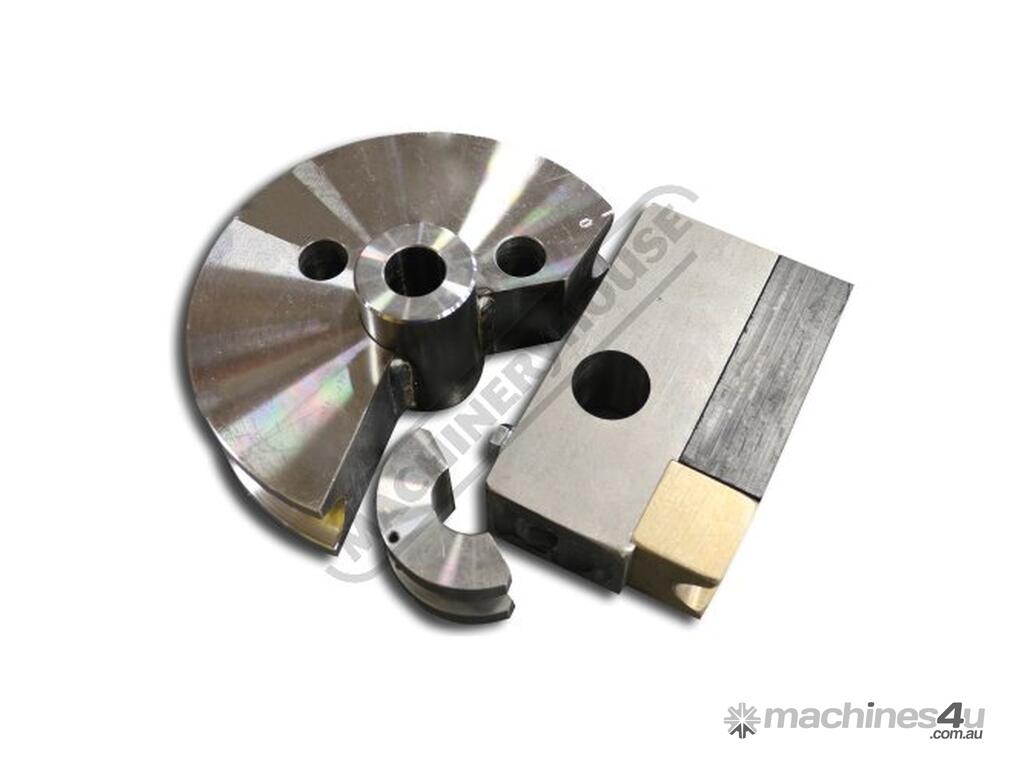

This is a complete die set, including 19.05mm OD round tube forming die, counter die and hook sleeve for making 180 degree bends on the RDB-050 manual tube bender.

Features:
19.05mm OD steel former with 76.2mm centre line radius for 180 degree bends
1.47mm recommended minimum wall thickness
180 degree maximum bend angle
Set includes forming die counter die and hook sleeve


Specifications:
ORDER CODE: B8040
MODEL: DS-180-0750T-R300
Part Number: 1003649
Type: Round Tube Die Set
Degree of Bend (Max) (Deg): 180º
Size (inch / mm): 19.05 OD
Size (inch / mm): ~
Size (inch / mm): ~
CLR - Centre Line Radius (inch / mm): 76.2
Recommended Min. Wall Thickness (inch / mm): 1.47
Material OD (inch / mm): ~
Suits Spigot Size (inch / mm): ~
Suits Machine Model: RDB-050
Nett Weight (kg): 8.2


To Purchase Online Please Visit The Machineryhouse & Search For 'B8040'
