DS-180-1000P-R400 1" NB x 180º Round Pipe Die Set 4" (101.6mm) CLR, Made from Steel Suits RDB-050 Ma

BAILEIGH DS-180-1000P-R400 1" NB x 180º Round Pipe Die Set 4" (101.6mm) CLR, Made from Steel Suits RDB-050 Manual Tube Bender
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8036

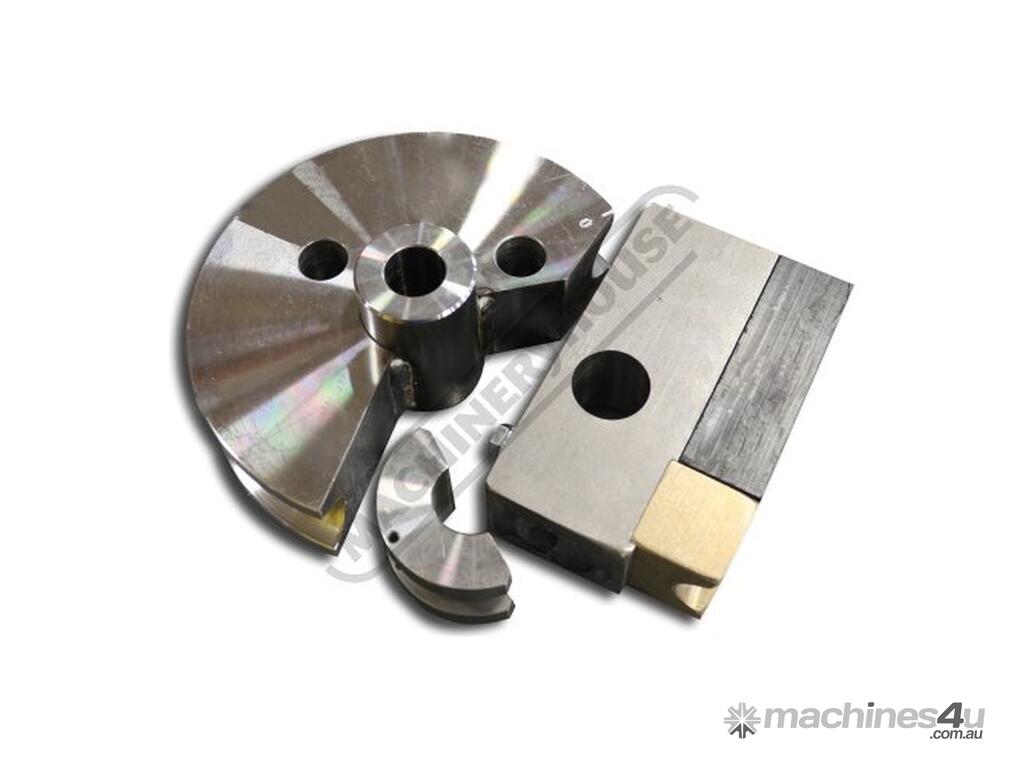

This is a complete die set, including 1" NB round pipe forming die, counter die and hook sleeve for making 180 degree bends on the RDB-050 manual tube bender.

Features:
1" NB steel former with 4" (101.6mm) centre line radius for 180 degree bends
180 degree maximum bend angle
Set includes forming die counter die and hook sleeve


Specifications:
ORDER CODE: B8036
MODEL: DS-180-1000P-R400
Part Number: ~
Type: Round Pipe Die Set
Degree of Bend (Max) (Deg): 180º
Size (inch / mm): 1" NB
Size (inch / mm): ~
Size (inch / mm): ~
CLR - Centre Line Radius (inch / mm): 4" / 101.6
Recommended Min. Wall Thickness (inch / mm): ~
Material OD (inch / mm): ~
Suits Spigot Size (inch / mm): ~
Suits Machine Model: RDB-050
Nett Weight (kg): 18.5
