DS-180-1500T-R500 38.1mm OD x 180º Round Tube Die Set 127mm CLR, Made from Steel Suits RDB-050 Manua

BAILEIGH DS-180-1500T-R500 38.1mm OD x 180º Round Tube Die Set 127mm CLR, Made from Steel Suits RDB-050 Manual Tube Bender
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8054

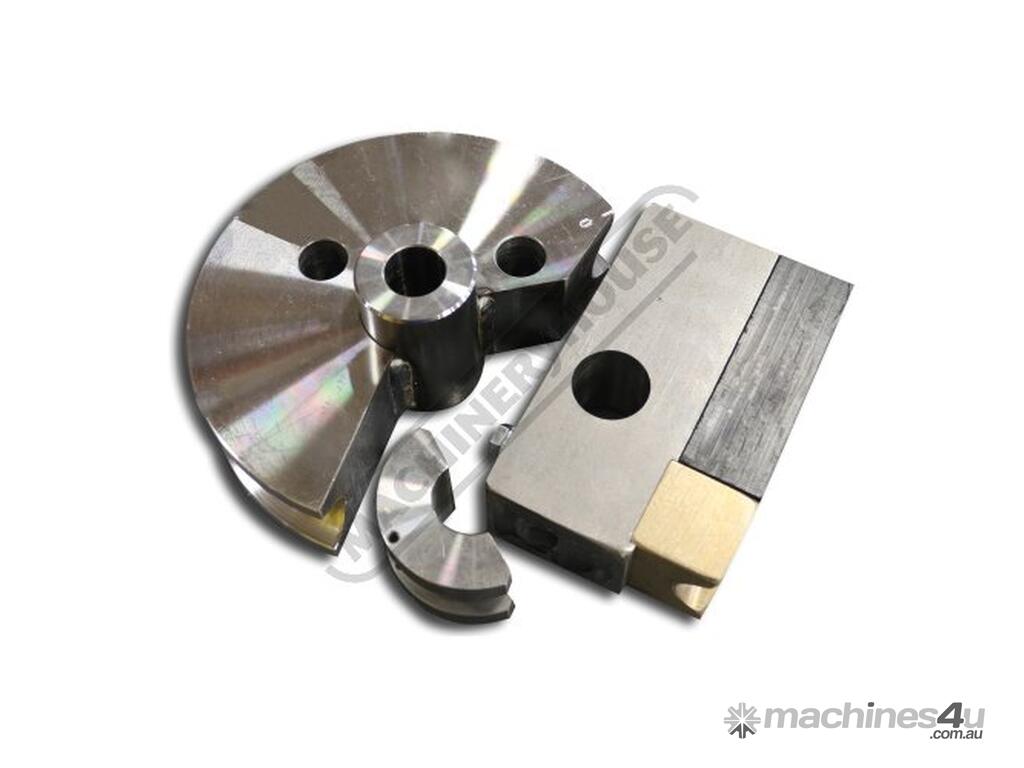

This is a complete die set, including 38.1mm OD round tube forming die, counter die and hook sleeve for making 180 degree bends on the RDB-050 manual tube bender.

Features:
38.1mm OD steel former with 127mm centre line radius for 180 degree bends
2.1mm recommended minimum wall thickness
180 degree maximum bend angle
Set includes forming die counter die and hook sleeve


Specifications:
ORDER CODE: B8054
MODEL: DS-180-1500T-R500
Part Number: 1003665
Type: Round Tube Die Set
Degree of Bend (Max) (Deg): 180º
Size (inch / mm): 38.1 OD
Size (inch / mm): ~
Size (inch / mm): ~
CLR - Centre Line Radius (inch / mm): 127
Recommended Min. Wall Thickness (inch / mm): 2.1
Material OD (inch / mm): ~
Suits Spigot Size (inch / mm): ~
Suits Machine Model: RDB-050
Nett Weight (kg): 20


To Purchase Online Please Visit The Machineryhouse & Search For 'B8054'
