DS-180-2000T-R700 50.8mm OD x 180º Round Tube Die Set 177.8mm CLR, Made from Steel Suits RDB-050 Man

BAILEIGH DS-180-2000T-R700 50.8mm OD x 180º Round Tube Die Set 177.8mm CLR, Made from Steel Suits RDB-050 Manual Tube Bender
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8064

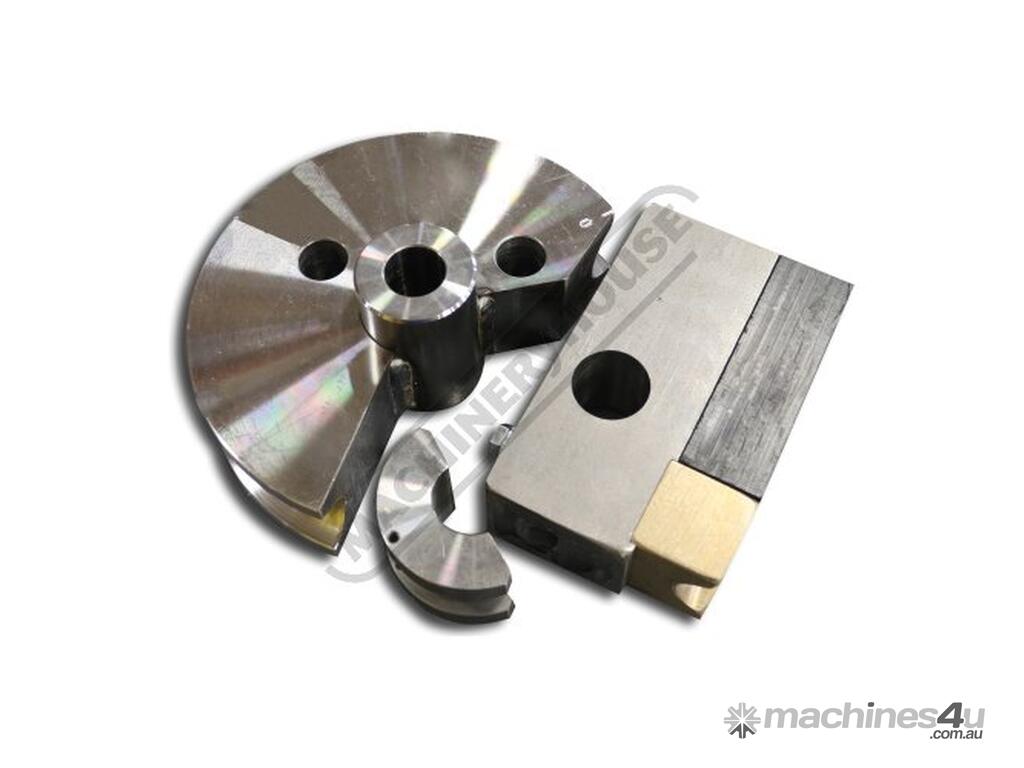

This is a complete die set, including 50.8mm OD round tube forming die, counter die and hook sleeve for making 180 degree bends on the RDB-050 manual tube bender.

Features:
50.8mm OD steel former with 177.8mm centre line radius for 180 degree bends
2.0mm recommended minimum wall thickness
180 degree maximum bend angle
Set includes forming die counter die and hook sleeve


Specifications:
ORDER CODE: B8064
MODEL: DS-180-2000T-R700
Part Number: 1003675
Type: Round Tube Die Set
Degree of Bend (Max) (Deg): 180º
Size (inch / mm): 50.8 OD
Size (inch / mm): ~
Size (inch / mm): ~
CLR - Centre Line Radius (inch / mm): 177.8
Recommended Min. Wall Thickness (inch / mm): 2.0
Material OD (inch / mm): ~
Suits Spigot Size (inch / mm): ~
Suits Machine Model: RDB-050
Nett Weight (kg): 32.7
